Nissan March K13. Manual - part 559





SB-10

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the rear seat belt retractor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

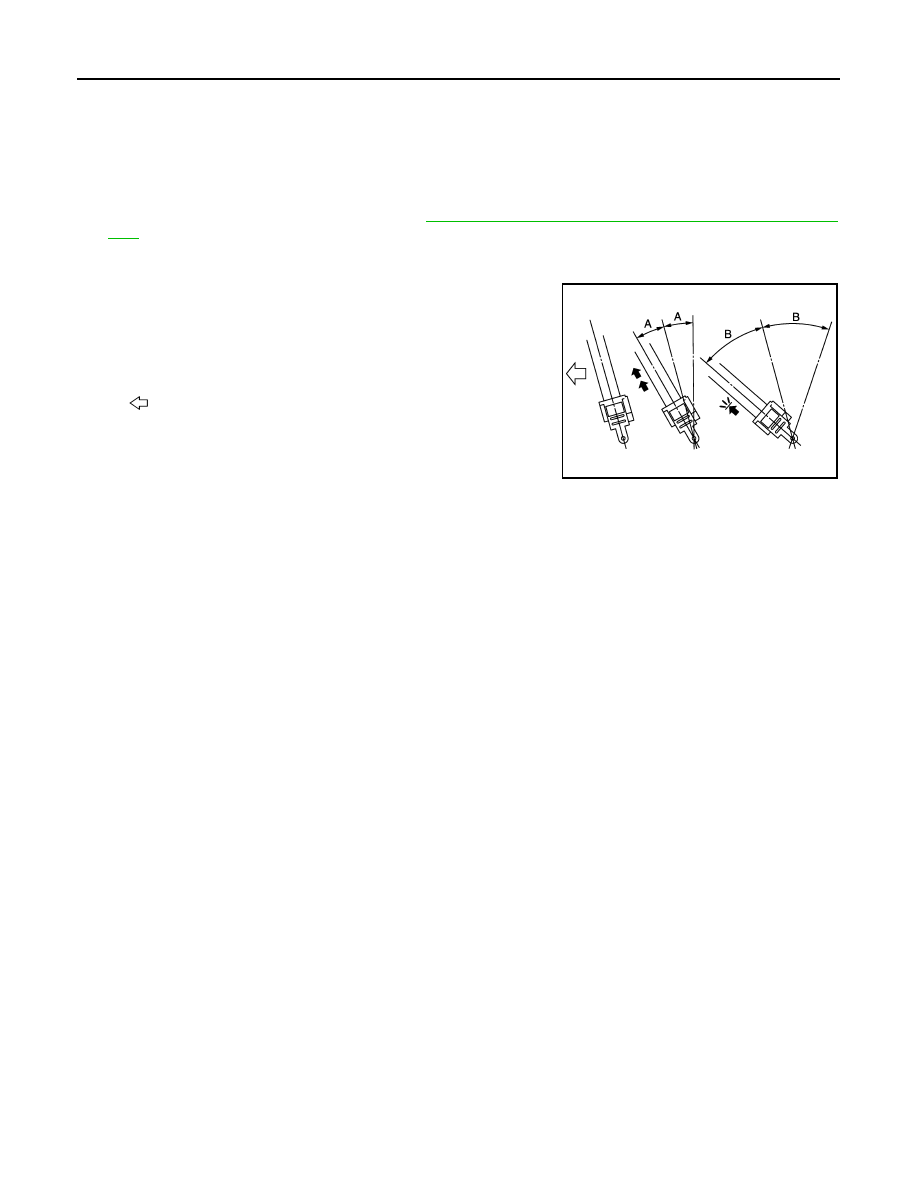

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.
• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 13

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

A and B

: Tilting angles

: Vehicle front

JMHIA1064ZZ

REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

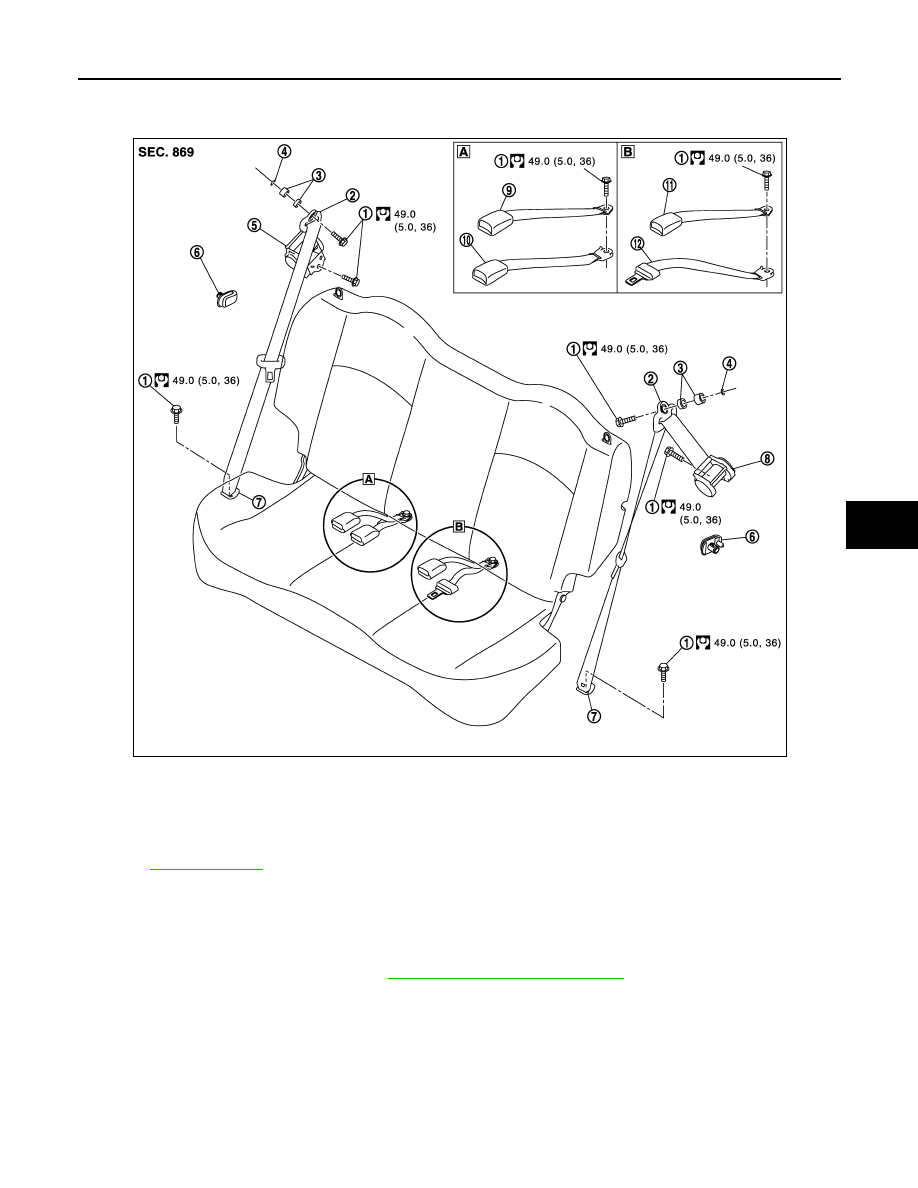

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000005984490

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000005984491

REMOVAL

OUTER SEAT BELT RETRACTOR

1.

Remove the outer anchor.
1.

Remove the seat cushion. Refer to

SE-19, "Removal and Installation"

.

2.

Remove the outer anchor mounting anchor bolt.

2.

Remove the shoulder anchor.
1.

Remove the luggage side upper finisher. Refer to

INT-31, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

2.

Remove the shoulder anchor mounting anchor bolt.

3.

Remove the seat belt retractor.
Remove the seat belt retractor mounting anchor bolt.

1.

Anchor bolt

2.

Shoulder anchor

3.

Spacer

4.

Toothed washer

5.

Seat belt retractor (RH side)

6.

Seat belt hook

7.

Outer anchor

8.

Seat belt retractor (LH side)

9.

Seat belt buckle (RH side)

10. Center seat belt buckle

11.

Seat belt buckle (LH side)

12. Center seat belt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1499GB

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000005984492

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Repeat step above if necessary to check the other seat belts.

REAR SEAT BELT

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT BUCKLE : Exploded View

INFOID:0000000006039624

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000005984494

REMOVAL

Remove the seat belt buckle.
1.

Remove the rear seat cushion. Refer to

SE-19, "Removal and Installation"

.

2.

Remove the seat belt buckle mounting anchor bolt.

INSTALLATION

Install in the reverse order of removal.

1.

Anchor bolt

2.

Shoulder anchor

3.

Spacer

4.

Toothed washer

5.

Seat belt retractor (RH side)

6.

Seat belt hook

7.

Outer anchor

8.

Seat belt retractor (LH side)

9.

Seat belt buckle (RH side)

10. Center seat belt buckle

11.

Seat belt buckle (LH side)

12. Center seat belt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1499GB
