Nissan March K13. Manual - part 515

PG-48

< WIRING DIAGRAM >

CONNECTOR INFORMATION

CONNECTOR INFORMATION

How to Read Connector Type

INFOID:0000000006044195

1

: Connector model

2

: Cavity

3

: Male (M) and female (F) terminals

4

: Connector color

5

: Special type

JPMIA0113GB

PG

CONNECTOR INFORMATION

PG-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

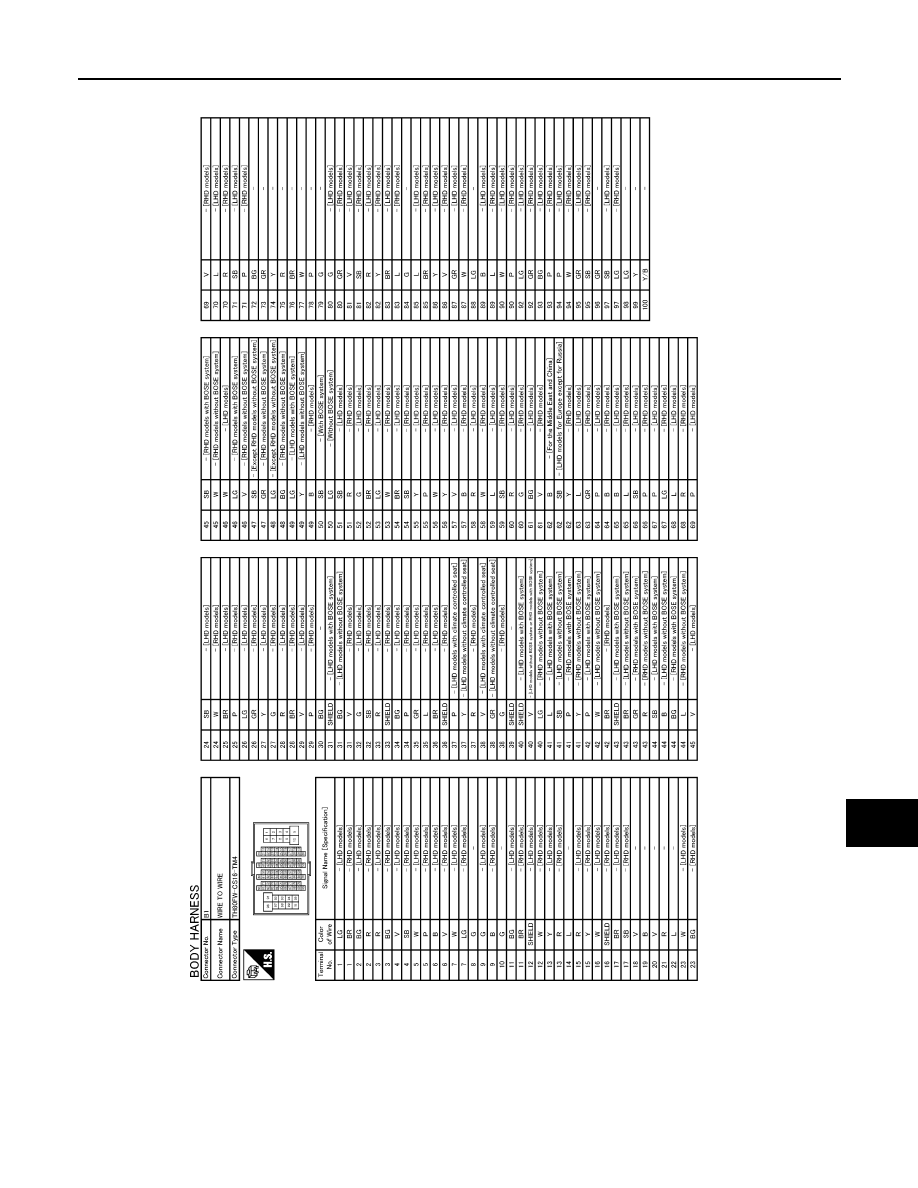

B Body Harness

INFOID:0000000006044196

JCMWM6675GB

PG-50

< WIRING DIAGRAM >

CONNECTOR INFORMATION

JCMWM6676GB

PG

CONNECTOR INFORMATION

PG-51

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

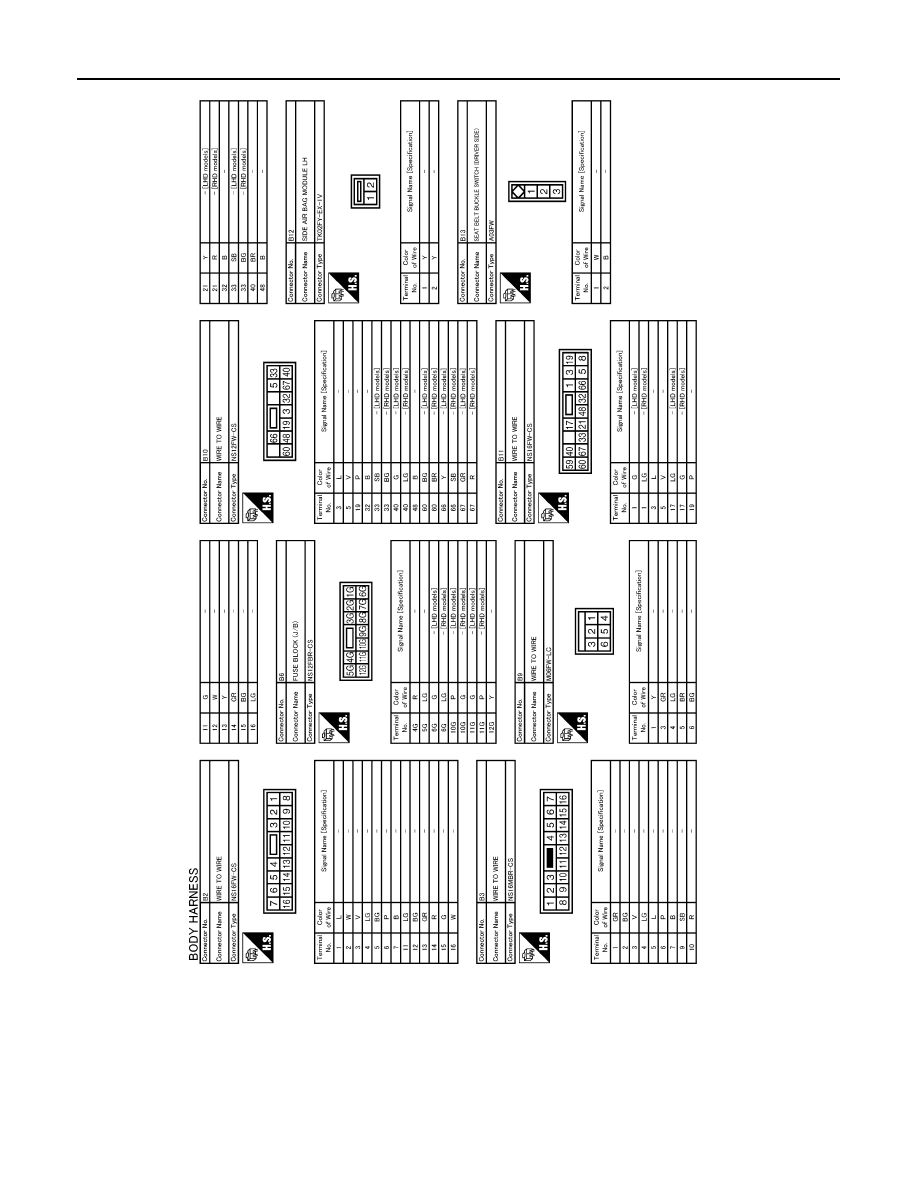

A

O

P

N

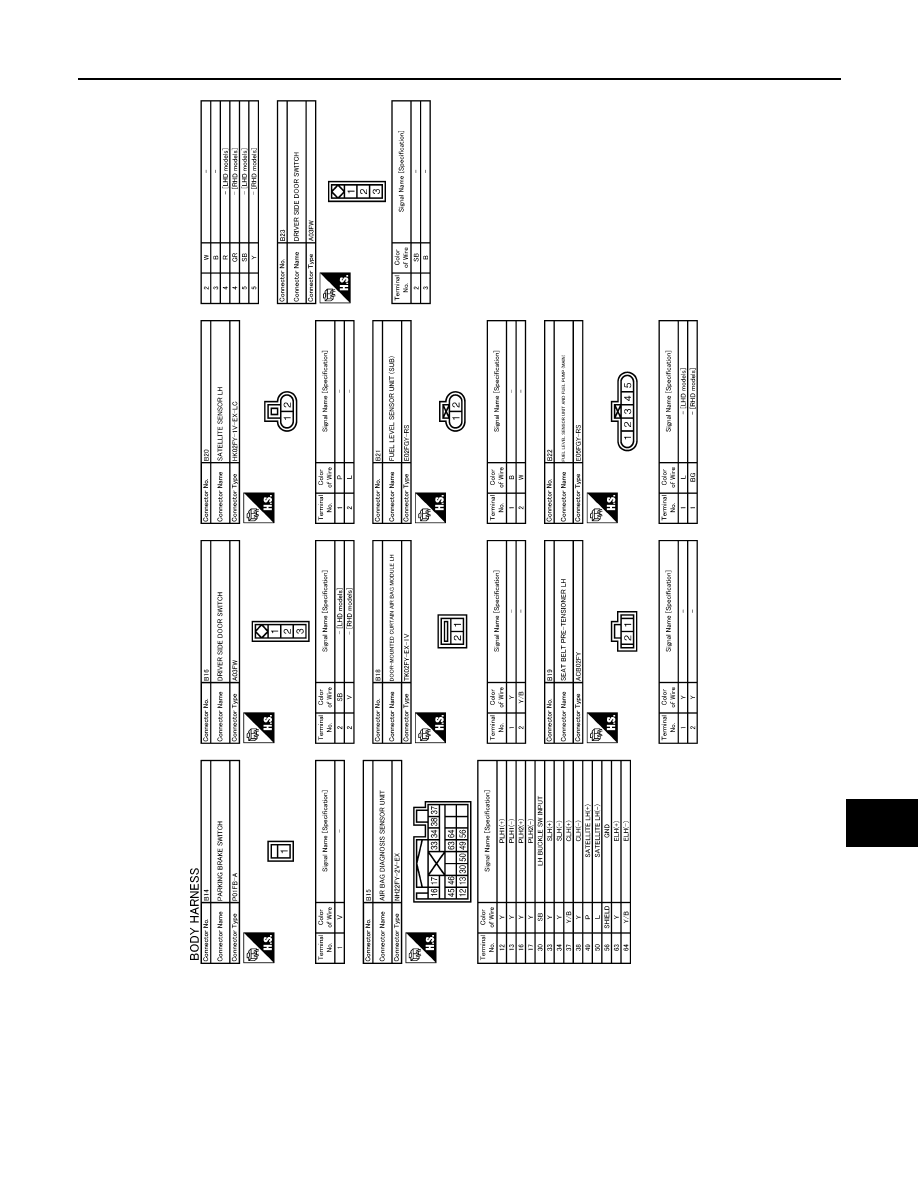

JCMWM6677GB
