Nissan March K13. Manual - part 507

PG-16

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 49 -

INFOID:0000000005911838

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4478GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Wiring Diagram - ACCESSORY POWER SUPPLY -

INFOID:0000000005911843

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4505GB

PG-18

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

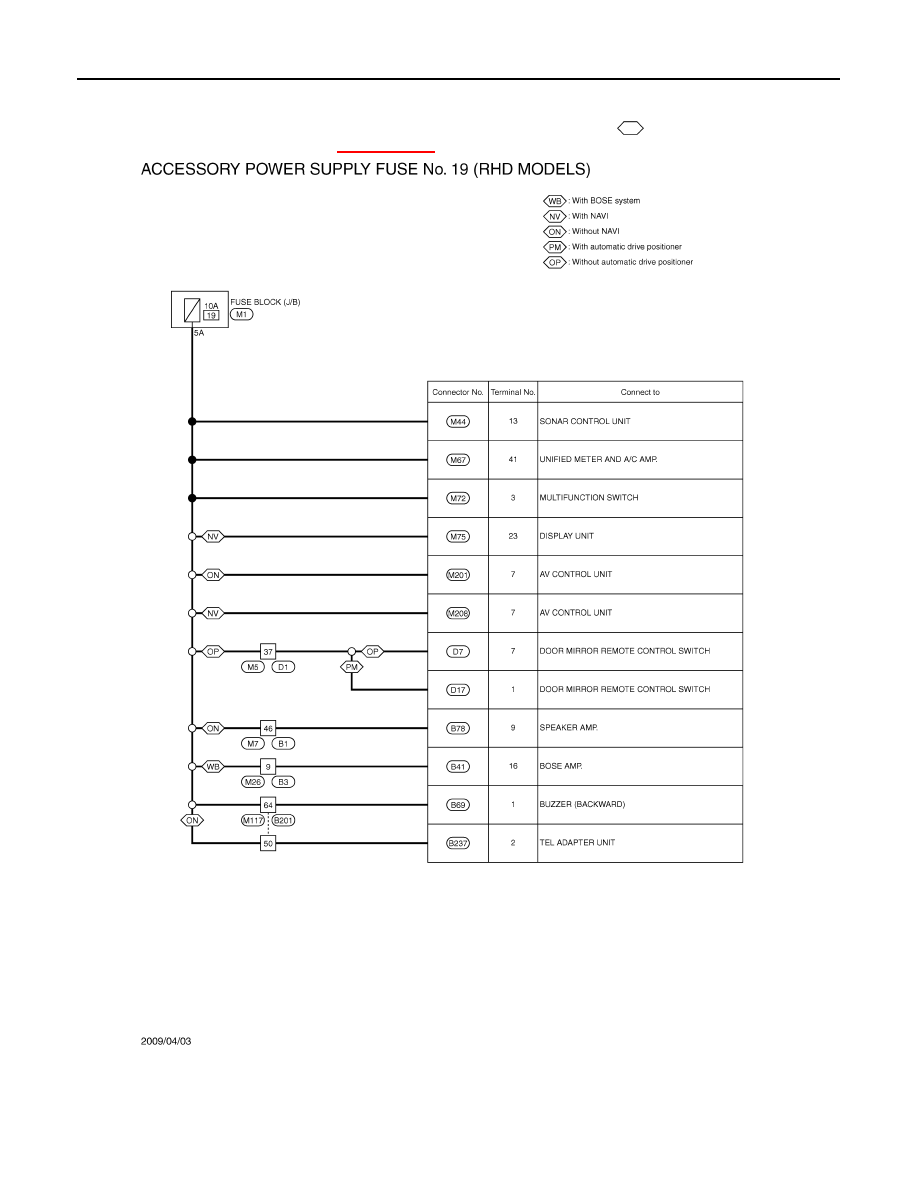

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 19 -

INFOID:0000000005911844

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4508GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

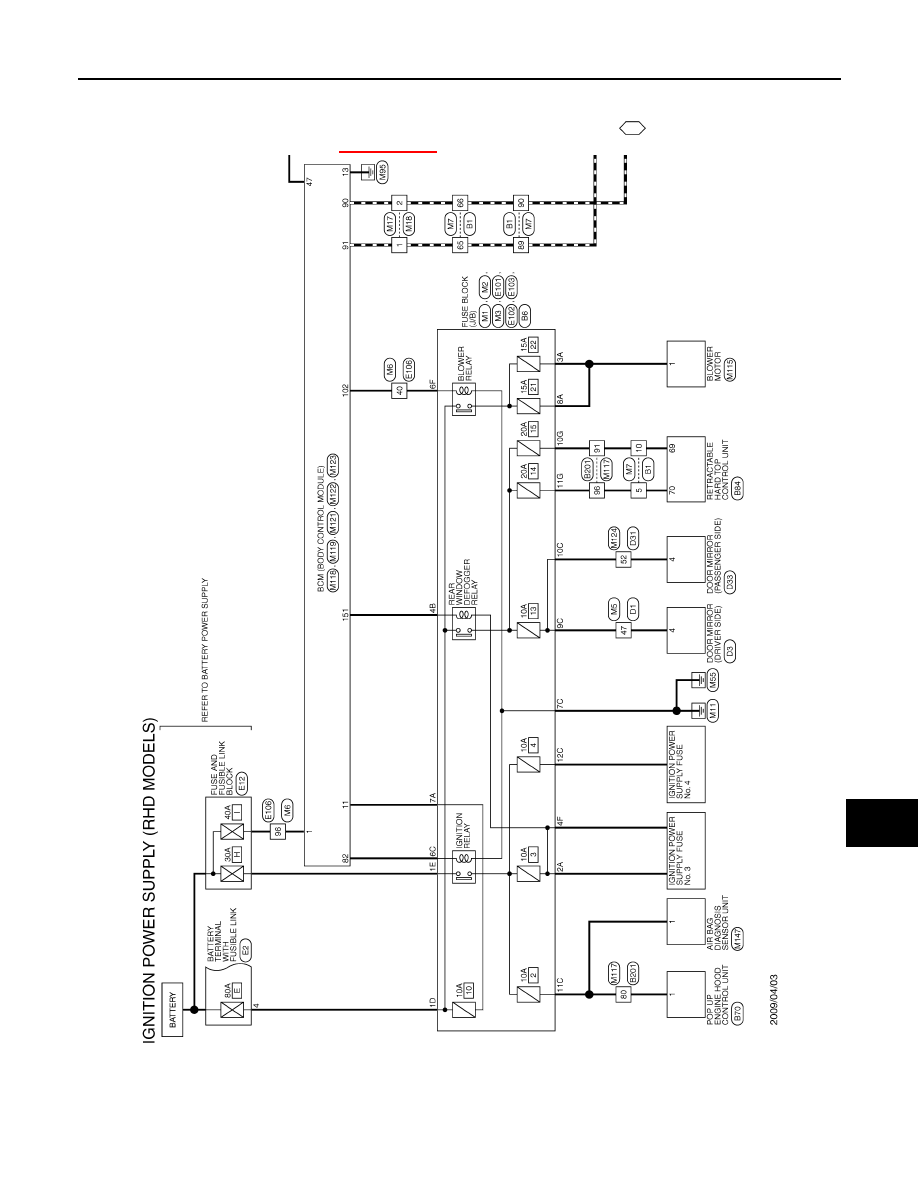

Wiring Diagram - IGNITION POWER SUPPLY -

INFOID:0000000005911845

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4539GB
