SYSTEM

IPDM E/R outputs power generation command signal (PWM signal) to the alternator according to the status of
the power generation command value signal received from ECM via CAN communication. Refer to

CHG-8,

"POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System Diagram"

.

SIGNAL BUFFER SYSTEM

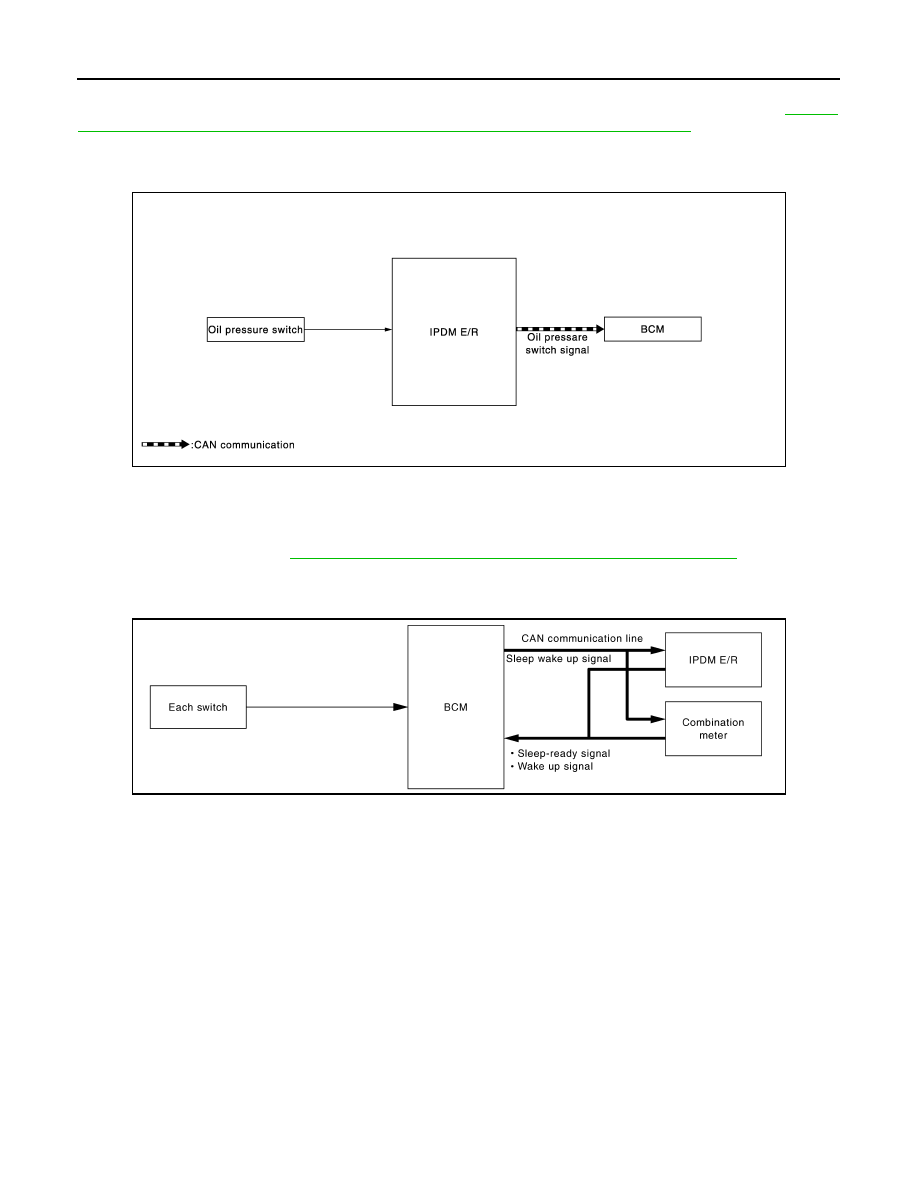

SIGNAL BUFFER SYSTEM : System Diagram

INFOID:0000000005914143

SIGNAL BUFFER SYSTEM : System Description

INFOID:0000000005914144

IPDM E/R reads the status of the oil pressure switch and transmits the oil pressure switch signal to BCM via
CAN communication. Refer to

MWI-10, "OIL PRESSURE WARNING LAMP : System Diagram"

.

POWER CONSUMPTION CONTROL SYSTEM

POWER CONSUMPTION CONTROL SYSTEM : System Diagram

INFOID:0000000006053651

POWER CONSUMPTION CONTROL SYSTEM : System Description

INFOID:0000000005914146

OUTLINE

• IPDM E/R incorporates a power consumption control function that reduces the power consumption accord-

ing to the vehicle status.

• IPDM E/R changes its status (control mode) with the sleep wake up signal received from BCM via CAN com-

munication.

Normal mode (wake-up)

- CAN communication is normally performed with other control units.
- Individual unit control by IPDM E/R is normally performed.

Low power consumption mode (sleep)

- Low power consumption control is active.
- CAN transmission is stopped.

SLEEP MODE ACTIVATION

JMMIA0402GB

JPMIA0731GB

PCS

SYSTEM

PCS-35

< SYSTEM DESCRIPTION >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• IPDM E/R judges that the sleep-ready conditions are fulfilled when the ignition switch is OFF and none of the

conditions below are present. Then it transmits a sleep-ready signal (ready) to BCM via CAN communica-
tion.

- Outputting signals to actuators
- Switches or relays operating
- Output requests are being received from control units via CAN communication.
• IPDM E/R stops CAN communication and enters the low power consumption mode when it receives a sleep

wake up signal (sleep) from BCM and the sleep-ready conditions are fulfilled.
