Nissan March K13. Manual - part 451





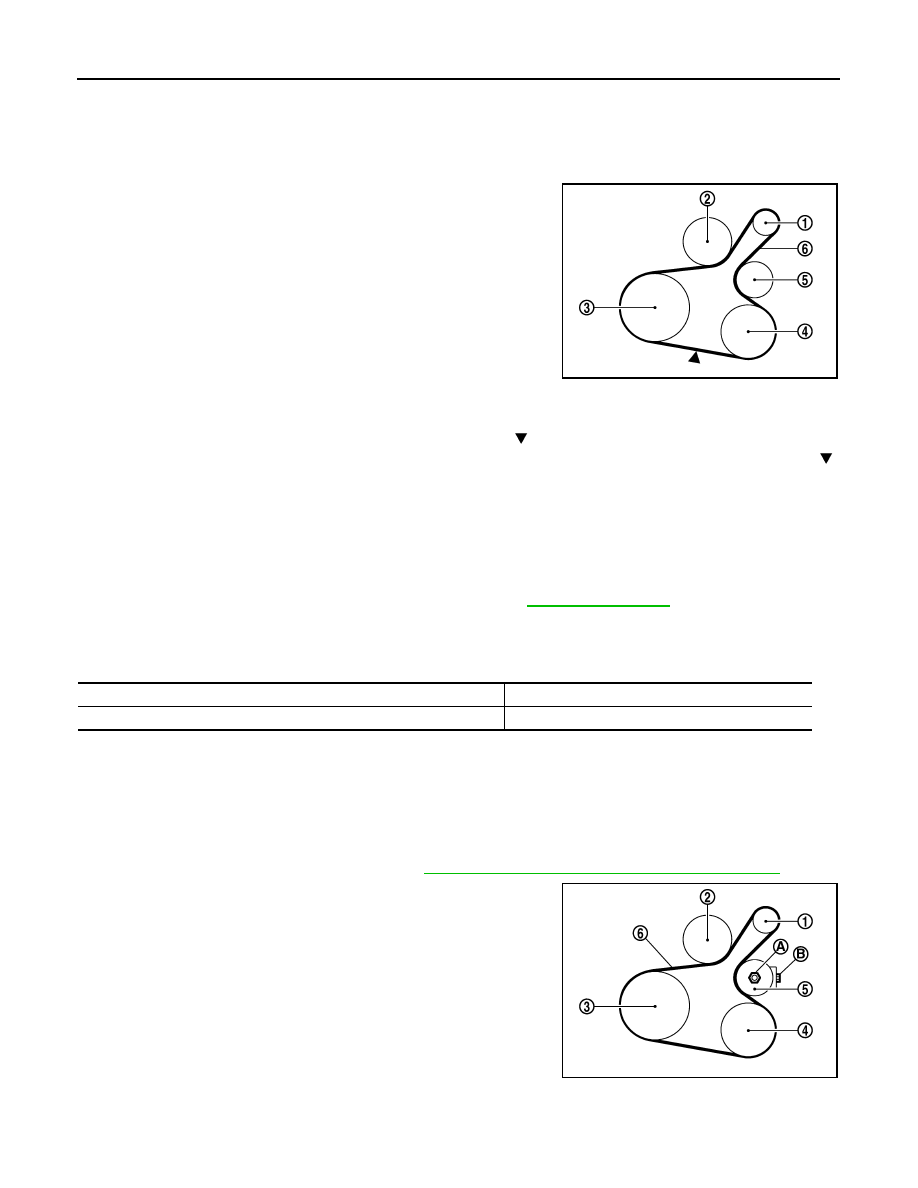

MA-10

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

ENGINE MAINTENANCE

DRIVE BELT

DRIVE BELT : Checking

INFOID:0000000006057327

• Inspection should be done only when engine is cold or over 30

minutes after the engine is stopped.

• Visually check belts for wear, damage, and cracks on inside and

edges.

• Turn crankshaft pulley two time clockwise, and check tension on all pulleys is equal before doing the test.
• When measuring deflection, apply 98 N (10 kg, 22 lb) at the ( ) marked point.
• Measure the belt tension and frequency with acoustic tension gauge (commercial service tool) at the ( )

marked point.

CAUTION:

• When the tension and frequency are measured, the acoustic tension gauge should be used.
• When checking immediately after installation, first adjust it to the specified value. Then, after turning

crankshaft two turns or more, readjust to the specified value to avoid variation in deflection between
pulleys.

DRIVE BELT : Tension Adjustment

INFOID:0000000006057328

CAUTION:

• When belt is replaced with new one, adjust belt tension to the value for “New belt”, because new belt

will not fully seat in the pulley groove.

• When tension of the belt being used exceeds “Limit”, adjust it to the value for “After adjusted”.
• When installing a belt, check it is correctly engaged with the pulley groove.
• Never allow oil or engine coolant to get on the belt.
• Never twist or bend the belt strongly.

1.

Remove front fender protector (RH). Refer to

EXT-17, "FENDER PROTECTOR : Exploded View"

.

2.

Loosen the idler pulley lock nut (A) from the tightening position
with the specified torque by 45 degrees.

CAUTION:

• When the lock nut is loosened excessively, the idler pulley tilts and the correct tension adjust-

ment cannot be performed. Never loosen it excessively (more than 45 degrees).

1

:  Alternator

2

:  Water  pump

3

: Crankshaft pulley

4

: A/C compressor (With A/C models)
: Idler pulley (Without A/C models)

5

: Idler pulley

6

:  Drive  belt

Belt Deflection/Belt Tension and Frequency: Refer to

EM-92, "Drive Belt"

.

PBIC3642E

Location

Location of adjuster and tightening method

Drive belt

Adjusting bolt on idler pulley

1

:  Alternator

2

:  Water  pump

3

: Crankshaft pulley

4

: A/C compressor (with A/C models)
: Idler pulley (without A/C models)

5

: Idler pulley

6

: Drive belt

PBIC3643E

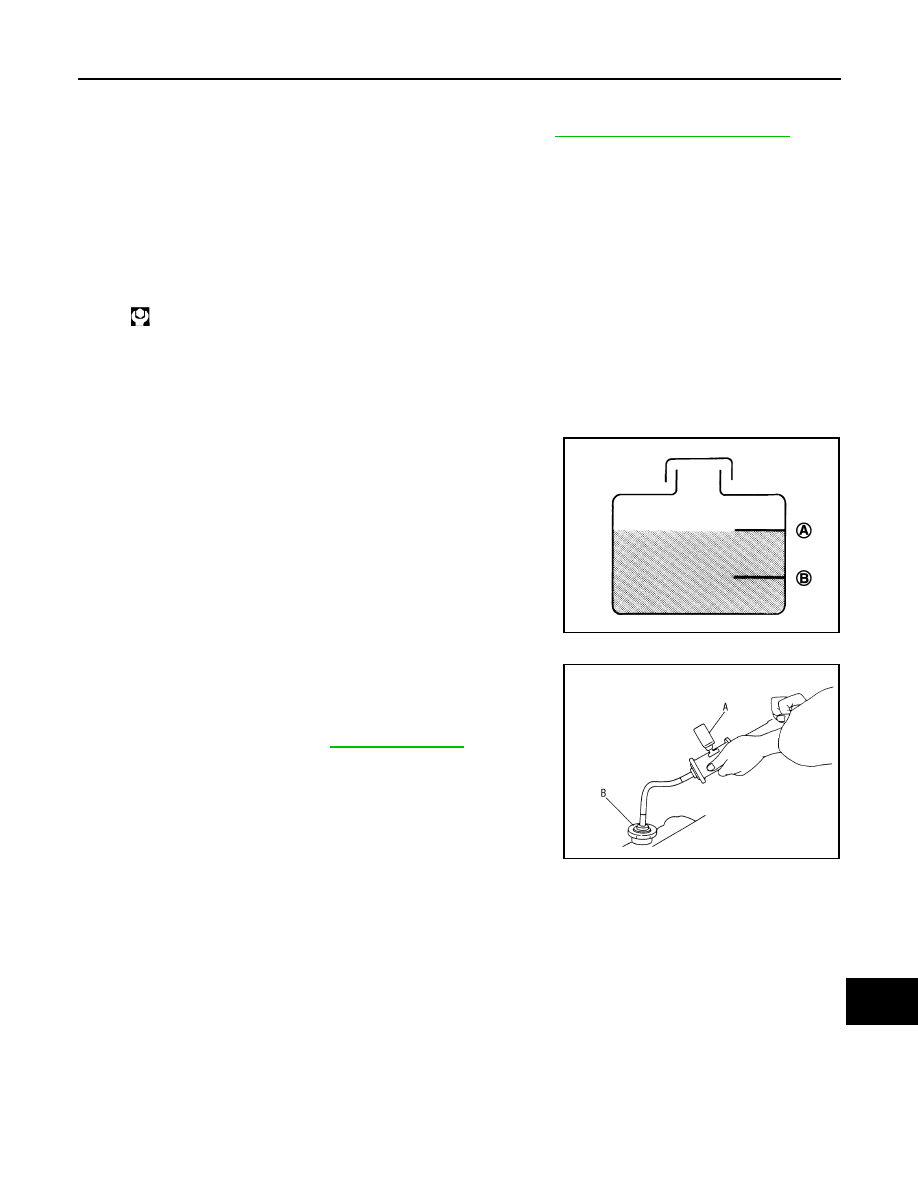

ENGINE MAINTENANCE

MA-11

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• Put a matching mark on the lock nut (A), and check turning angle with a protractor. Never visu-

ally check the tightening angle.

3.

Adjust the belt tension by turning the adjusting bolt (B). Refer to

MA-10, "DRIVE BELT : Checking"

.

CAUTION:

• When checking immediately after installation, first adjust it to the specified value. Then, after

turning crankshaft two turns or more, readjust to the specified value to avoid variation in deflec-
tion between pulleys.

• When the tension adjustment is performed, the lock nut should be in the condition at step“ 2”. If

the tension adjustment is performed when the lock nut is loosened more than the standard, the
idler pulley tilts and the correct tension adjustment cannot be performed.

4.

Tighten the lock nut.

ENGINE COOLANT

ENGINE COOLANT : Inspection

INFOID:0000000006057336

LEVEL

• Check that the reservoir tank engine coolant level is within the

“MIN” to “MAX” when the engine is cool.

• Adjust the engine coolant level if necessary.

LEAKAGE

• To check for leakage, apply pressure to the cooling system with the

radiator cap tester (commercial service tool) (A) and the radiator
cap tester adapter (commercial service tool) (B).

WARNING:

Never remove radiator cap when engine is hot. Serious burns
may occur from high-pressure engine coolant escaping from
radiator.

CAUTION:

Higher test pressure than specified may cause radiator dam-
age.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

• If anything is found, repair or replace damaged parts.

ENGINE COOLANT : Draining

INFOID:0000000006057337

WARNING:

• Never remove radiator cap when engine is hot. Serious burns may occur from high-pressure engine

coolant escaping from radiator.

• Wrap a thick cloth around the radiator cap. Slowly turn it a quarter of a turn to release built-up pres-

sure. Then turn it all the way.

: 34.8 N·m (3.5 kg-m, 26 ft-lb)

A

:  MAX

B

:  MIN

JPBIA0102ZZ

Testing pressure: Refer to

CO-26, "Radiator"

.

PBIC5121J

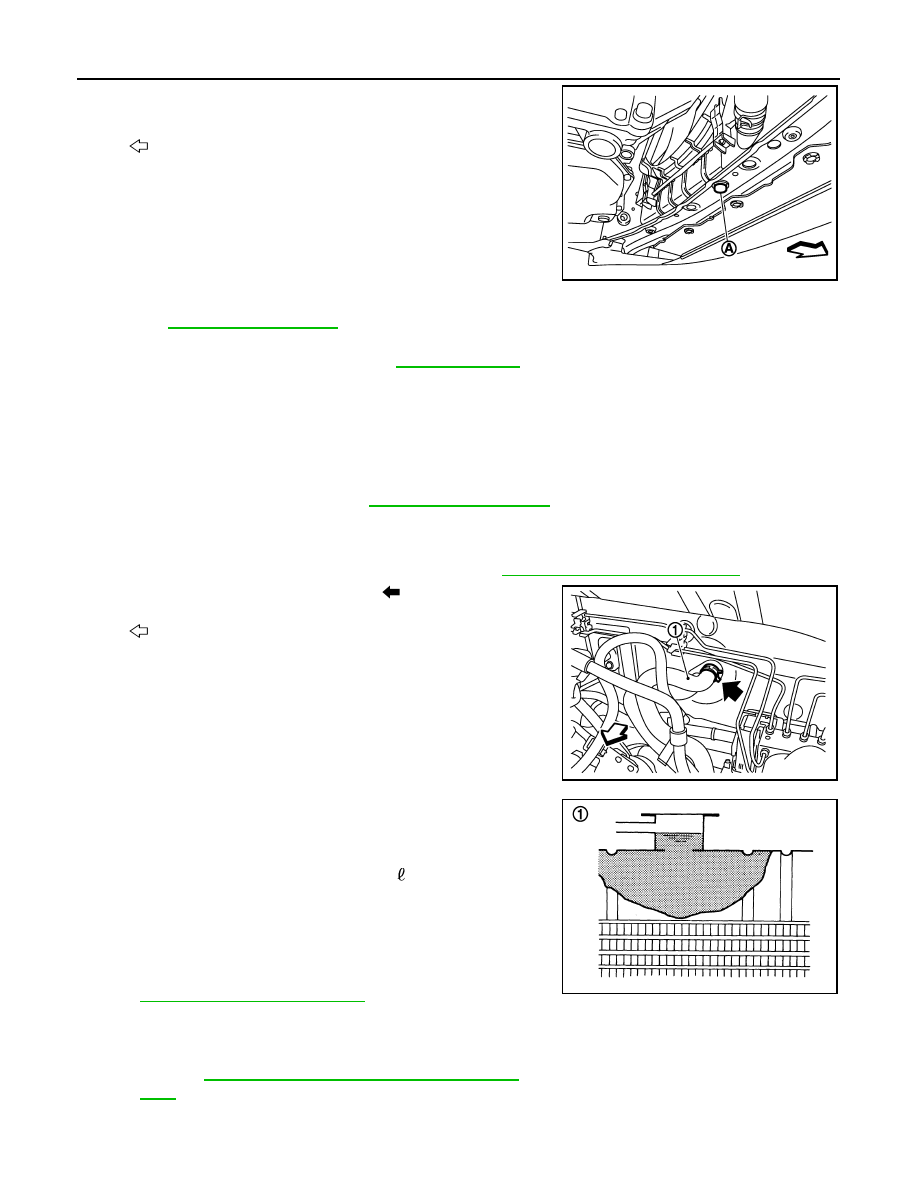

MA-12

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

1.

Open radiator drain plug (A) at the bottom of radiator, and then
remove radiator cap.

CAUTION:

Perform this step when engine is cold.
• When draining all of engine coolant in the system, open water

drain plugs on cylinder block. Refer to EM.

2.

Remove reservoir tank if necessary, and drain engine coolant and clean reservoir tank before installing.
Refer to

CO-14, "Exploded View"

.

3.

Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to

CO-11, "Flushing"

.

ENGINE COOLANT : Refilling

INFOID:0000000006057338

1.

Install reservoir tank if removed and radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

• If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM.

2.

Check that each hose clamp has been firmly tightened.

3.

Remove air duct inlet and air cleaner assembly. Refer to

EM-24, "Removal and Installation"

.

4.

Disconnect heater hose (1) at position (

) in the figure.

• Enhance heater hose as high as possible.

5.

 Fill radiator (1) to specified level.

CAUTION:

Never adhere the engine coolant to electronic equipments
(alternator etc.).
• Pour coolant slowly of less than 2   (2-1/8 US qt, 1-3/4

Imp qt) a minute to allow air in system to escape.

• When engine coolant overflows disconnected heater

hose, connect heater hose, and continue filling the engine
coolant.

• Use Genuine NISSAN Engine Coolant or equivalent in its

quality mixed with water (distilled or demineralized). Refer
to

MA-8, "Fluids and Lubricants"

.

: Vehicle front

JPBIA3336ZZ

Radiator drain plug

Refer to

CO-14, "Exploded View"

.

: Vehicle front

JPBIA3337ZZ

Engine coolant capacity
(With reservoir tank at “MAX” level)

 Refer to

CO-26, "Periodical Maintenance Specifica-

tion"

.

JPBIA0819ZZ

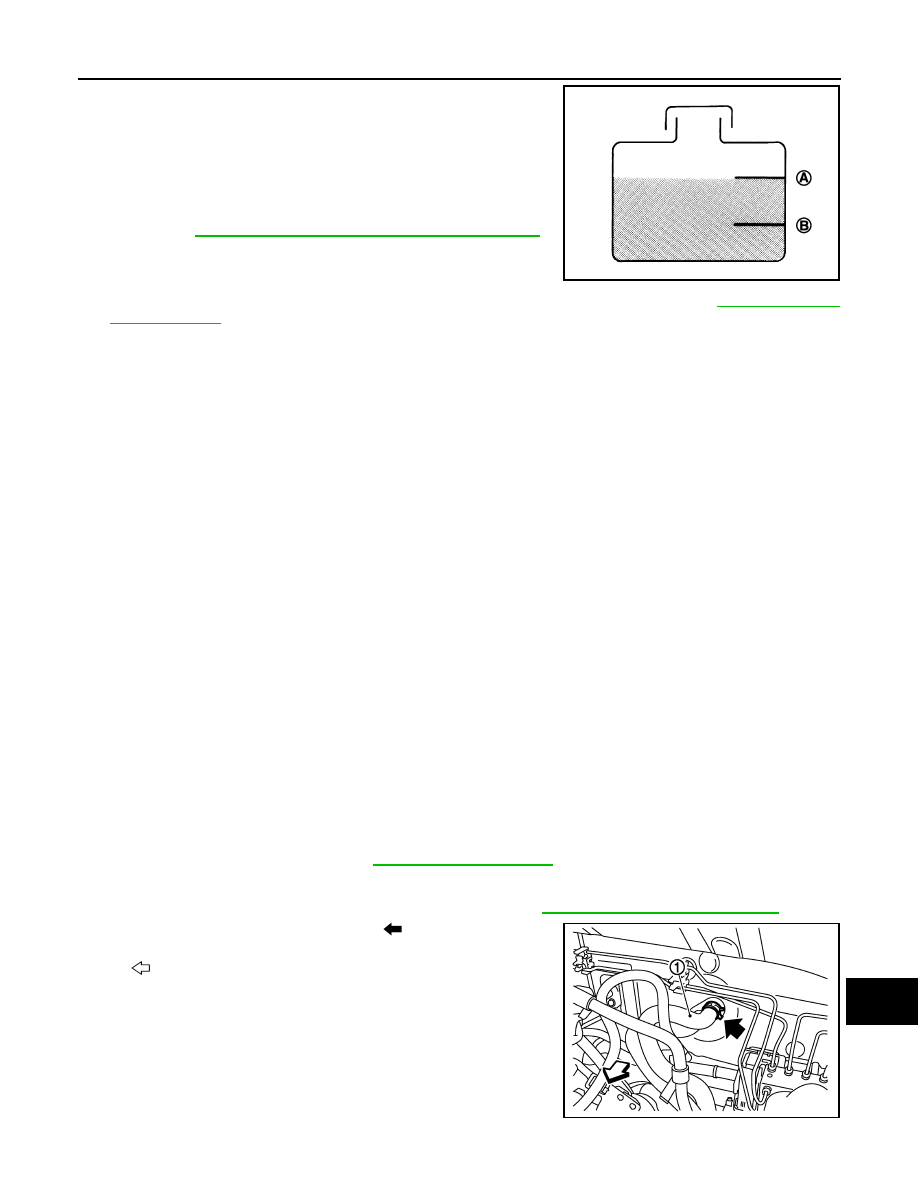

ENGINE MAINTENANCE

MA-13

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

6.

Refill reservoir tank to “MAX” level line with engine coolant.

7.

Install air duct (between air cleaner case and electric throttle control actuator). Refer to

EM-24, "Removal

and Installation"

.

8.

Install radiator cap.

9.

Warm up engine until opening thermostat. Standard for warming-up time is approximately 10 minutes at
3,000 rpm.
• Check thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.

CAUTION:

Watch water temperature gauge so as not to overheat engine.

10. Stop the engine and cool down to less than approximately 50

°

C (122

°

F).

• Cool down using fan to reduce the time.
• If necessary, refill radiator up to filler neck with engine coolant.

CAUTION:

Never adhere the engine coolant to electronic equipments (alternator etc.).

11. Refill reservoir tank to “MAX” level line with engine coolant.

12. Repeat steps 5 through 10 two or more times with radiator cap installed until engine coolant level no

longer drops.

13. Check cooling system for leakage with engine running.

14. Warm up the engine, and check for sound of engine coolant flow while running engine from idle up to

3,000 rpm with heater temperature controller set at several position between “COOL” and “WARM”.
• Sound may be noticeable at heater unit.

15. Repeat step 14 three times.

16. If sound is heard, bleed air from cooling system by repeating step 5 through 10 until reservoir tank level no

longer drops.

ENGINE COOLANT : Flushing

INFOID:0000000006057339

1.

Install reservoir tank if removed and radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

• If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM.

2.

Remove air duct inlet and air cleaner case assembly. Refer to

EM-24, "Removal and Installation"

.

3.

Disconnect heater hose (1) at position (

) in the figure.

• Enhance heater as high as possible.

A

:  MAX

B

:  MIN

Reservoir tank engine coolant capacity
(At “MAX” level)

Refer to

CO-26, "Periodical Maintenance Specification"

.

JPBIA0102ZZ

Radiator drain plug

: Refer to

CO-14, "Exploded View"

.

: Vehicle front

JPBIA3337ZZ
