IP-10

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

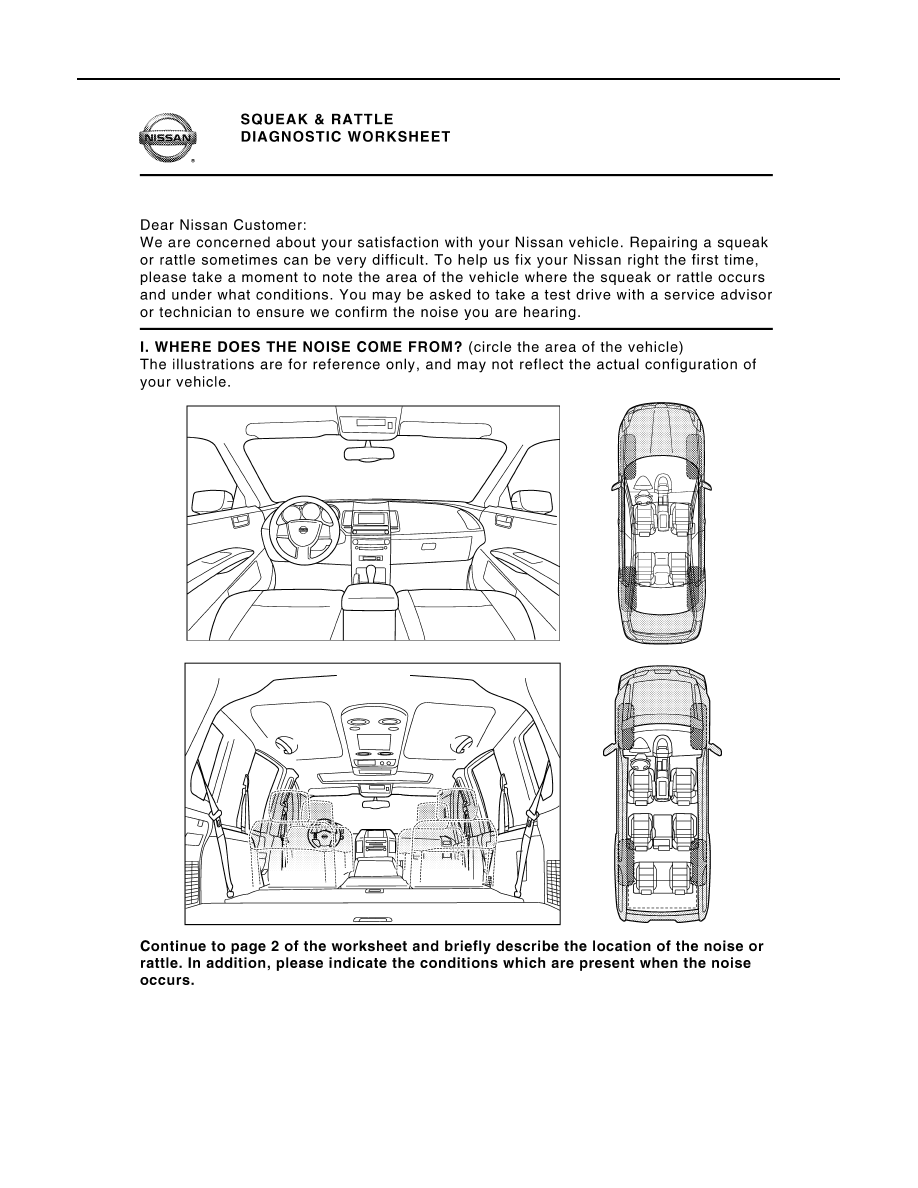

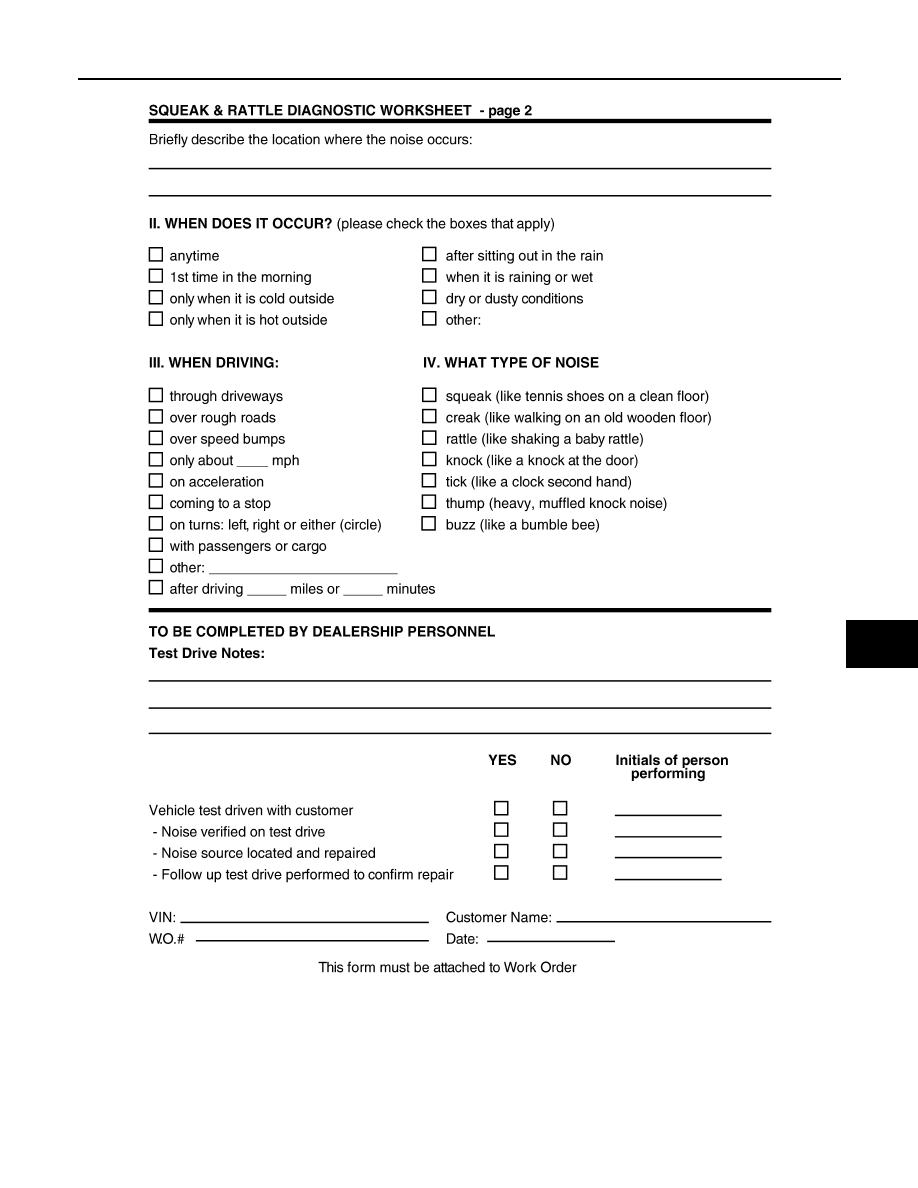

Diagnostic Worksheet

INFOID:0000000005891481

PIIB8740E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

PIIB8742E

IP-12

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

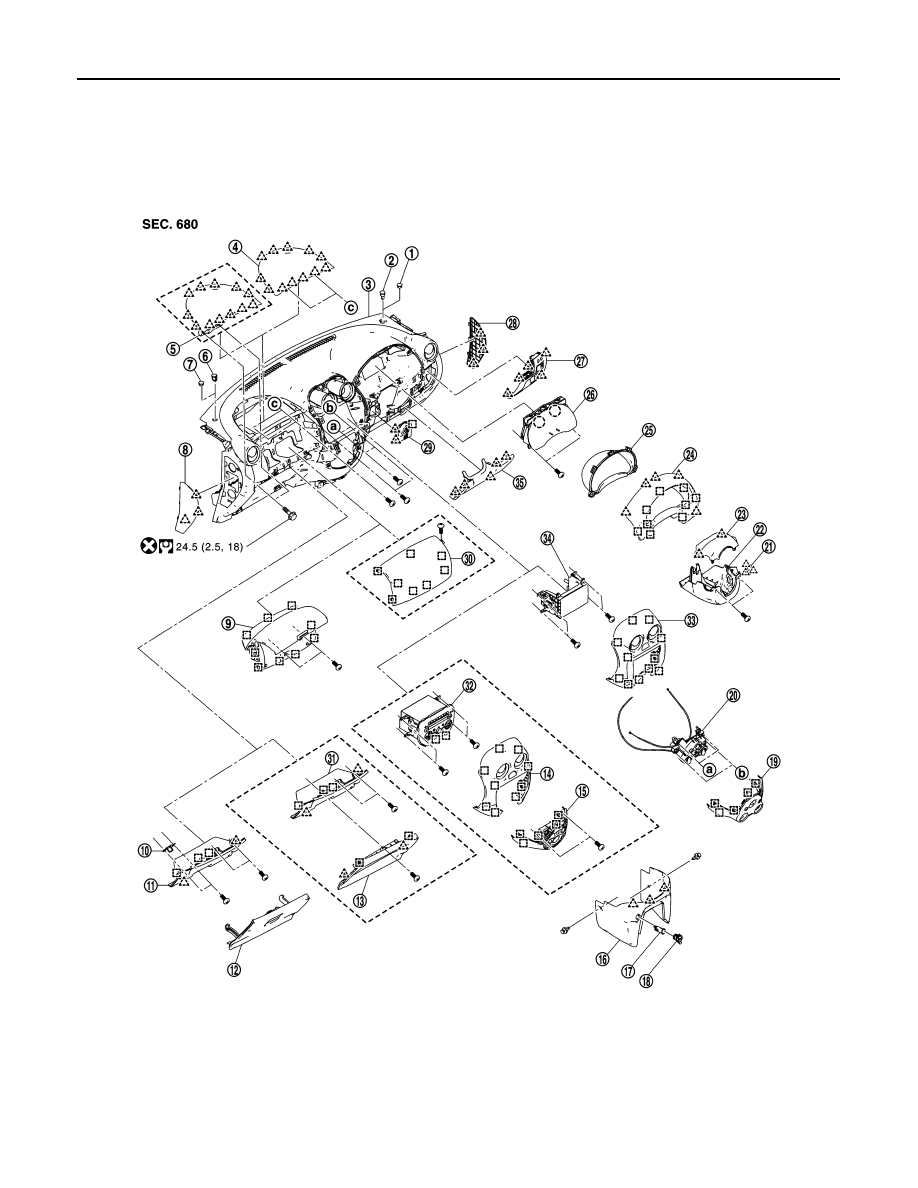

Exploded View

INFOID:0000000006022703

JMJIA3980GB

INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000006022704

WORK STEP

When removing instrument panel assembly, combination meter, and audio unit take steps as per the order
shown in the following chart.

1.

Switch panel B

2.

Optical sensor

3.

Instrument panel assembly

4.

Instrument finisher D

5.

Passenger air bag module

6.

Sunload sensor

7.

Switch panel A

8.

Instrument side finisher LH

9.

Glove upper box assembly

10. Glove box striker

11.

Glove box cover

12. Glove box lid

13. Glove box escutcheon

14. Cluster lid C

15. A/C control (with Auto A/C)

16. Instrument lower center panel

17. Inner case

18. Socket knob

19. A/C finisher

20. A/C control (with Manual A/C)

21. Steering lock escutcheon

22. Steering column lower cover

23. Steering column upper cover

24. Instrument finisher A

25. Cluster lid A

26. Combination meter

27. Switch panel

28. Instrument side finisher RH

29. Instrument finisher E

30. Instrument finisher B

31. Glove box cover

32. Audio unit

33. Cluster lid C

34. Instrument pocket

35. Instrument lower panel RH

: Clip

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

AUDIO UNIT

Center console assembly

[1]

Instrument lower center panel

[2]

Driver air bag module

[3]

Steering wheel

[4]

Steering column cover

[5]

[1]

Steering column

upper cover

Spiral cable

[6]

Combination switch

[7]

Instrument finisher A (Cluster lid A)

[8]

[2]

Combination meter

[9]

[3]

Cluster lid C

[10]

[1]

Audio unit or instrument pocket

[11]

[2]

A/C control (with Auto A/C) or A/C finisher (with Manual A/C)

[12]

A/C control fixing screws (with Manual A/C)

[13]

Instrument lower panel RH

[14]

Switch panel

[15]

Instrument finisher E

[16]

Data link connector

[17]

Hood & fuel opener lever

[18]

Front body side welt RH

[19]

Front pillar garnish RH

[20]

Instrument side finisher RH

[21]
