HAC-130

< SYSTEM DESCRIPTION >

[HEATER AND VENTILATION]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006024168

APPLICATION ITEM

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

*: This item is displayed, but is not function.

AIR CONDITIONER

Diagnosis mode

Function description

ECU Identification

BCM part number is displayed.

Self-Diagnostic Result

Displays the diagnosis results judged by BCM. Refer to

XX-XX, "*****"

.

Data Monitor

BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Work Support

Changes the setting for each system function.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

System

CONSULT-III

sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

—

INTELLIGENT KEY*

Combination switch

COMB SW

×

—

BCM

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

—

FUEL LID*

—

TPMS*

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

HAC-131

< SYSTEM DESCRIPTION >

[HEATER AND VENTILATION]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AIR CONDITIONER : CONSULT-III Function

INFOID:0000000006024169

DATA MONITOR

Display Item List

Monitor Item [Unit]

Contents

IGN SW

[On/Off]

Displays ignition switch position status as judged form ignition switch signal.

FAN ON SIG

[On/Off]

Displays the blower fan status as judged form blower fan motor switch signal.

FR DEF SW

[On/Off]

Displays the DEF status as judged from defroster position switch signal.

HAC-132

< ECU DIAGNOSIS INFORMATION >

[HEATER AND VENTILATION]

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000006043966

ECU

Reference

BCM

WITH INTELLIGENT KEY SYSTEM

BCS-18, "Reference Value"

BCS-37, "Fail-safe"

BCS-39, "DTC Inspection Priority Chart"

BCS-40, "DTC Index"

WITHOUT INTELLIGENT KEY SYSTEM

BCS-72, "Reference Value"

BCS-85, "Fail-safe"

BCS-85, "DTC Inspection Priority Chart"

BCS-86, "DTC Index"

HEATER AND VENTILATION CONTROL SYSTEM

HAC-133

< WIRING DIAGRAM >

[HEATER AND VENTILATION]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

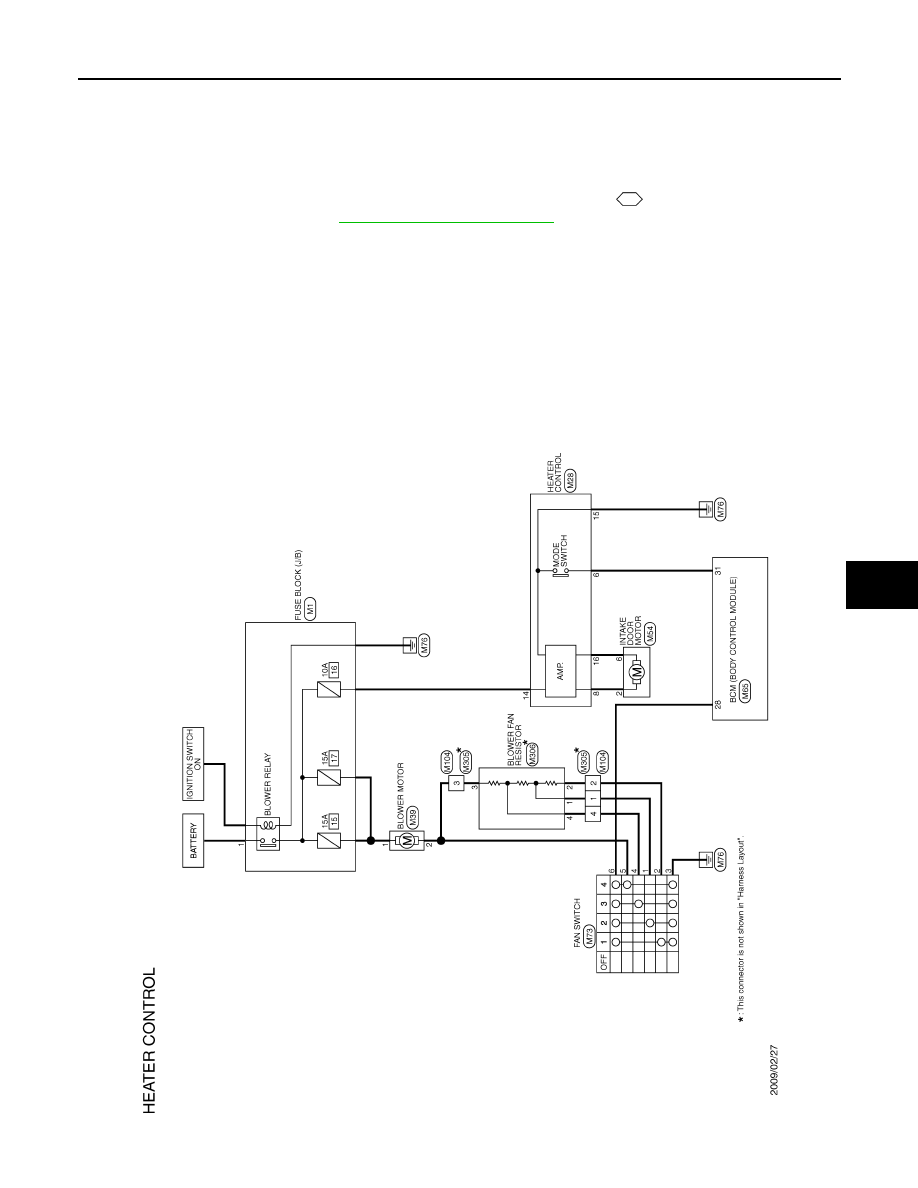

WIRING DIAGRAM

HEATER AND VENTILATION CONTROL SYSTEM

Wiring Diagram

INFOID:0000000006024182

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCIWM0496GB
