HAC-62

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

A/C ON SIGNAL

3.

CHECK THE CONTINUITY BETWEEN A/C AUTO AMP. AND GROUND

Check continuity between A/C auto amp. harness connector and ground.

Is inspection result normal?

YES

>> Replace the BCM. Refer to

XX-XX, "*****"

 (WITH I-KEY) or

XX-XX, "*****"

 (WITHOUT I-KEY).

NO

>> Repair the harnesses or connectors.

A/C auto amp.

Continuity

Connector

Terminal

M50

13

Ground

Not existed

BLOWER FAN ON SIGNAL

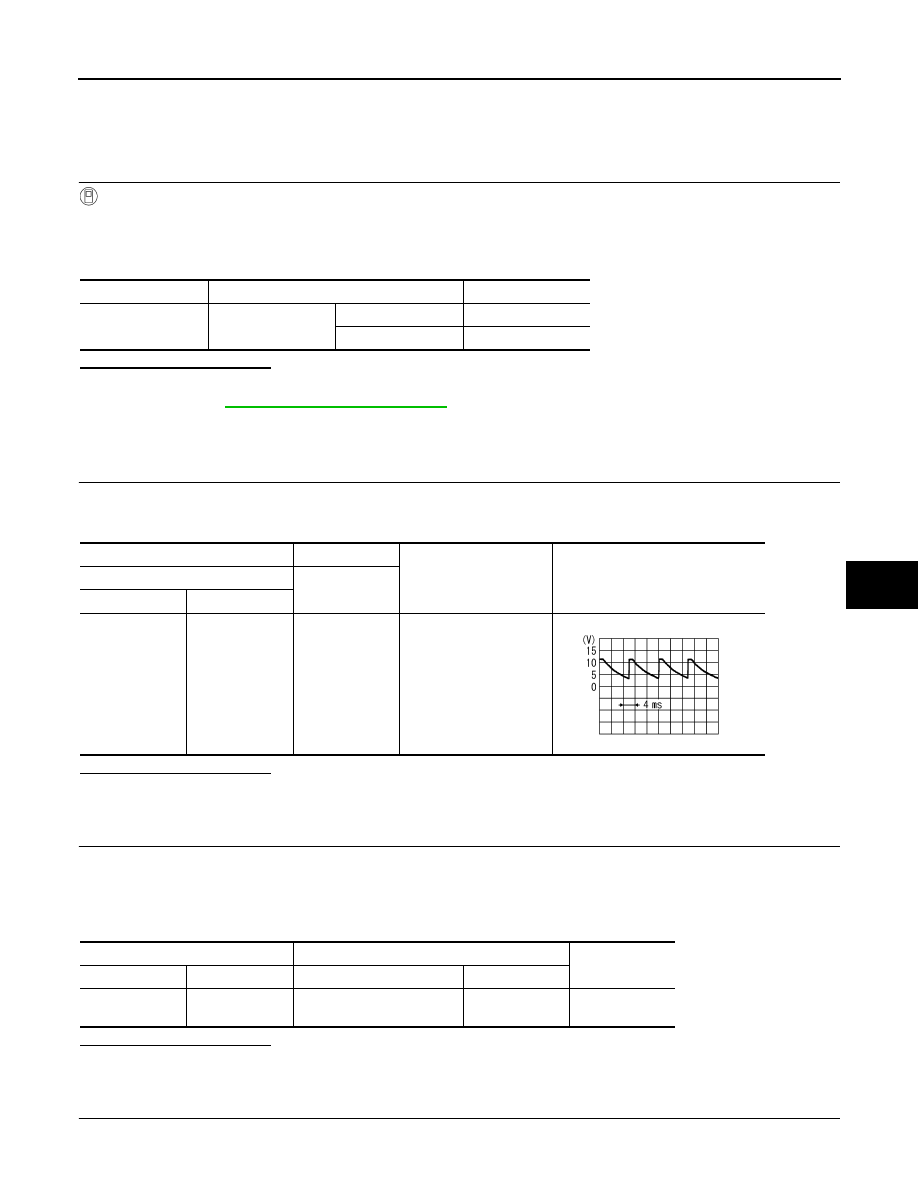

HAC-63

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

BLOWER FAN ON SIGNAL

Component Function Check

INFOID:0000000006024053

1.

CHECK BLOWER FAN ON SIGNAL

With CONSULT-III

1.

Turn the ignition switch ON.

2.

Select the “FAN REQ SIG” in “DATA MONITOR”

3.

Check the fan ON signal when the fan control switch is operated.

Is inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

HAC-63, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006024054

1.

CHECK BLOWER FAN ON SIGNAL

1.

Turn the ignition switch ON.

2.

Check output waveform between A/C auto amp. and ground with using the oscilloscope.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the A/C auto amp.

2.

CHECK CONTINUITY BETWEEN A/C AUTO AMP. AND BCM

1.

Turn the ignition switch OFF.

2.

Disconnect the A/C auto amp. connector.

3.

Disconnect the BCM connector.

4.

Check continuity A/C auto amp. harness connector and BCM harness connector.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK CONTINUITY BETWEEN A/C AUTO AMP. AND GROUND

Check continuity between A/C auto amp. harness connector and ground.

Monitor item

Condition

Status

FAN REQ SIG

Fan control switch

OFF position

Off

Except OFF position

On

(+)

(

)

Condition

Output waveform

A/C auto amp.

Connector

Terminal

M50

12

Ground

• Ignition switch ON
• Fan speed: Manual 1st

SJIA1425J

A/C auto amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M50

12

M65 (WITHOUT I-KEY)

M68 (WITH I-KEY)

28

Existed

HAC-64

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

BLOWER FAN ON SIGNAL

Is inspection result normal?

YES

>> Replace the BCM. Refer to

XX-XX, "*****"

 (WITH I-KEY) or

XX-XX, "*****"

 (WITHOUT I-KEY).

NO

>> Repair the harnesses or connectors.

A/C auto amp.

Continuity

Connector

Terminal

M50

12

Ground

Not existed

POWER SUPPLY AND GROUND CIRCUIT

HAC-65

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

POWER SUPPLY AND GROUND CIRCUIT

A/C AUTO AMP.

A/C AUTO AMP. : Diagnosis Procedure

INFOID:0000000006024055

1.

CHECK FUSE

Check 10A fuses [Nos. 3, 13 and 15, located in the fuse block (J/B)].
NOTE:
Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the fuse after repairing the applicable circuit.

2.

CHECK A/C AUTO AMP. POWER SUPPLY CIRCUIT-1

1.

Turn the ignition switch OFF.

2.

Disconnect the A/C auto amp. connector.

3.

Check voltage between A/C auto amp. harness connector and the ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK A/C AUTO AMP. POWER SUPPLY CIRCUIT-2

Check voltage A/C auto amp. harness connector and the ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK A/C AUTO AMP. CIRCUIT CONTINUITY

1.

Turn the ignition switch OFF.

2.

Check continuity between A/C auto amp. harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair the harnesses or connectors.

5.

CHECK BLOWER MOTOR RELAY POWER SUPPLY

1.

Turn the ignition switch OFF.

(+)

(

)

Voltage

A/C auto amp.

Ignition switch position

Connector

Terminal

OFF

ACC

ON

M50

1

Ground

Battery voltage

Battery voltage

Battery voltage

2

Approx. 0 V

Approx. 0 V

Battery voltage

(+)

(

)

Voltage

A/C auto amp.

Ignition switch position

Connector

Terminal

OFF

ACC

ON

M50

9

Ground

Approx. 0 V

Approx. 0 V

Battery voltage

A/C auto amp.

Continuity

Connector

Terminal

M50

21

Ground

Existed

23
