COOLER PIPE AND HOSE

HA-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

5.

Remove high-pressure pipe from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.

HA-36

< REMOVAL AND INSTALLATION >

CONDENSER

CONDENSER

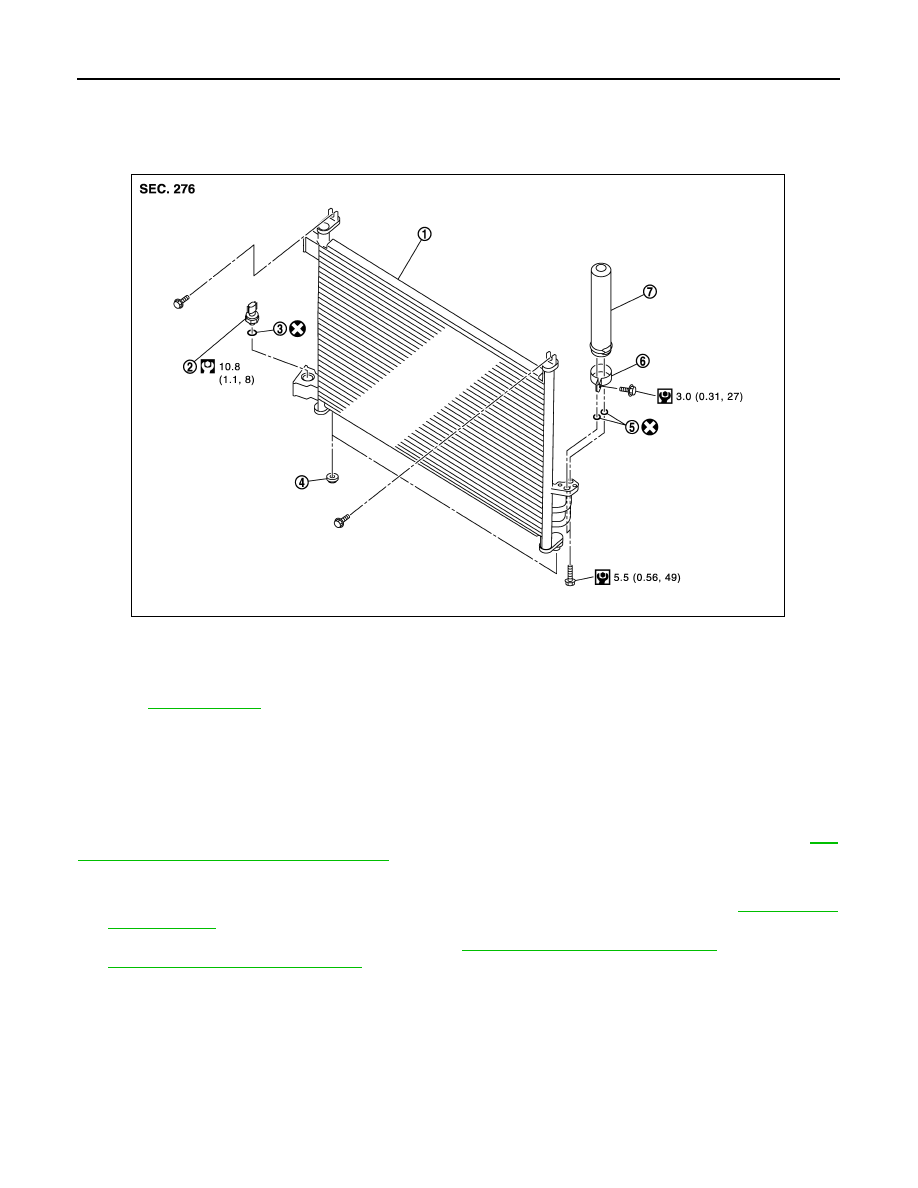

Exploded View

INFOID:0000000006032336

CONDENSER

CONDENSER : Removal and Installation

INFOID:0000000006032337

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

22, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-20, "Recy-

cle Refrigerant"

.

2.

Remove the radiator core support upper. Refer to

DLK-114, "Removal and Installation"

 (WITH I-KEY) or

DLK-219, "Removal and Installation"

 (WITHOUT I-KEY).

3.

Remove mounting bolt, and then disconnect high-pressure flexible hose from the condenser.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with suitable material such as vinyl tape to
avoid the entry of air.

4.

Remove mounting bolt, and then disconnect high-pressure pipe from the condenser.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with suitable material such as vinyl tape to
avoid the entry of air.

1.

Condenser

2.

Refrigerant pressure sensor

3.

O-ring

4.

Grommet

5.

O-ring

6.

Liquid tank bracket

7.

Liquid tank

Refer to

GI-4, "Components"

 for symbols in the figure.

JMIIA0592GB

CONDENSER

HA-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

5.

Remove the condenser from the vehicle.

CAUTION:

Be careful not to damage core surface of condenser.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Perform lubricant adjusting procedure before installing new condenser. Refer to

HA-23, "Lubricant

Adjusting Procedure for Compressor Replacement"

.

• Check for leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.

LIQUID TANK

LIQUID TANK : Removal and Installation

INFOID:0000000006032338

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

22, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-20, "Recy-

cle Refrigerant"

.

2.

Clean liquid tank and its surrounding area, and then remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

3.

Remove mounting bolts, and then remove liquid tank from the condenser.

CAUTION:

Cap or wrap the joint of the A/C piping and liquid tank with suitable material such as vinyl tape to
avoid the entry of air.

INSTALLATION

 Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:

• Check that liquid tank bracket is securely installed at protrusion of condenser. (Check that liquid

tank bracket does not move to a position below center of liquid tank.)

• Replace O-rings of the A/C piping with new ones. Then apply compressor oil to them when installing.
• Perform lubricant adjusting procedure before installing new liquid tank. Refer to

HA-23, "Lubricant

Adjusting Procedure for Compressor Replacement"

.

• Check for leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR : Removal and Installation

INFOID:0000000006032339

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

22, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-20, "Recy-

cle Refrigerant"

.

2.

Clean refrigerant pressure sensor and its surrounding area, and then remove dust and rust from refriger-
ant pressure sensor.

CAUTION:

Be sure to clean carefully.

3.

Disconnect refrigerant pressure sensor connector.

4.

Use a adjustable wrench or other tool to hold the refrigerant pressure sensor mounting block, and then
remove the refrigerant pressure sensor from the condenser.

CAUTION:

HA-38

< REMOVAL AND INSTALLATION >

CONDENSER

• Be careful not to damage liquid tank.
• Be careful not to damage core surface of condenser.
• Cap or wrap the joint of the condenser and liquid tank with suitable material such as vinyl tape to

avoid the entry of air.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.
