EXL-58

< WIRING DIAGRAM >

BACK-UP LAMP

JCLWM4453GB

DIAGNOSIS AND REPAIR WORKFLOW

EXL-59

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005912402

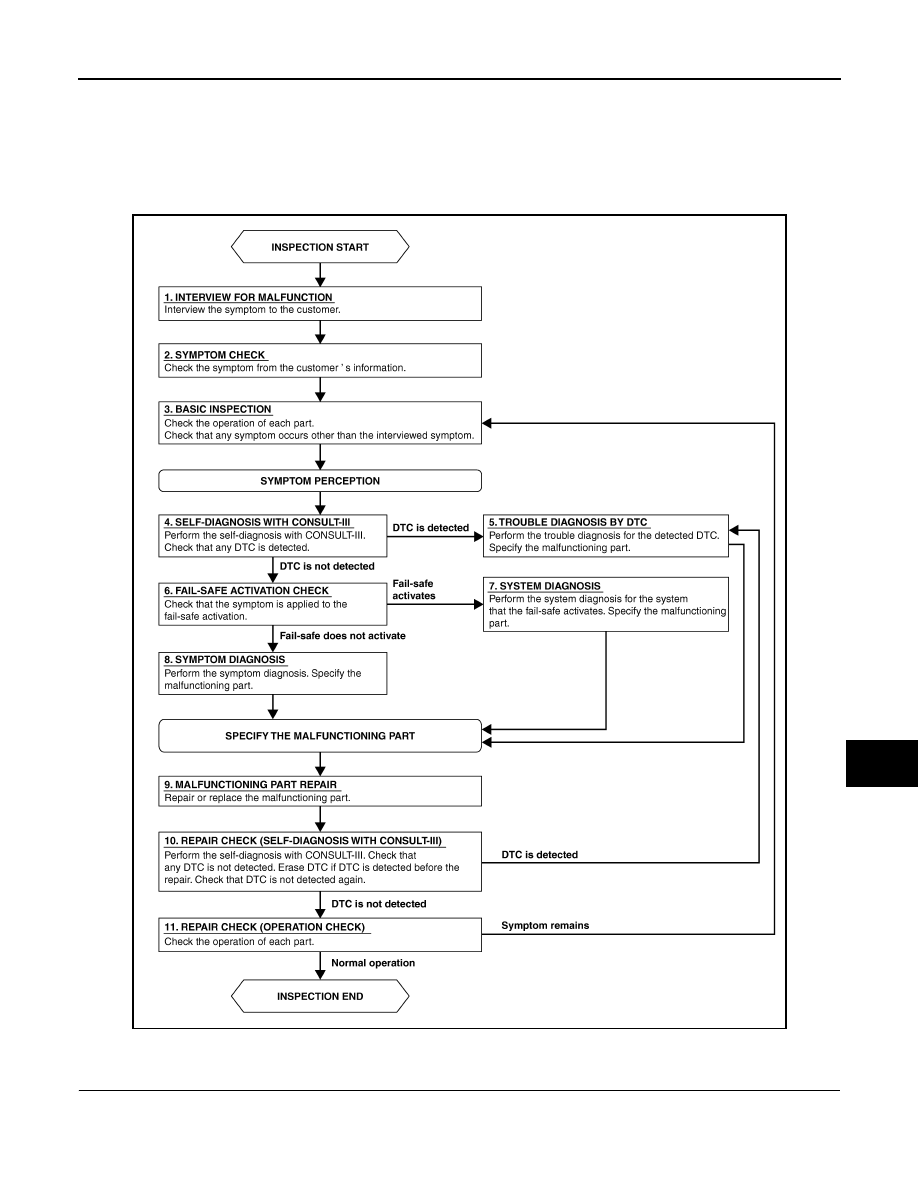

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JPLIA0313GB

EXL-60

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3.

EXTERIOR LAMP FUSE

EXL-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DTC/CIRCUIT DIAGNOSIS

EXTERIOR LAMP FUSE

Diagnosis Procedure

INFOID:0000000005912408

1.

CHECK FUSE

Check that the following fuses are not fusing.

Is the fuse fusing?

YES

>> Repair the applicable circuit. And then replace the fuse.

NO

>> The fuse is normal.

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH)

IPDM E/R

#45

10 A

Headlamp HI (RH)

IPDM E/R

#44

10 A

Headlamp LO (LH)

IPDM E/R

#42

15 A

Headlamp LO (RH)

IPDM E/R

#41

15 A

Front fog lamp

Refer to

EXL-5

#39

15 A

• Parking lamp
• Tail  lamp
• Rear side marker lamp
• License plate lamp
• Each illumination

IPDM E/R

#46

10 A

Stop lamp

FUSE BLOCK (J/B)

#38

10 A

Back-up lamp

IPDM E/R

#52 (with A/T models)

10 A

#5 (with M/T models)

10 A
