EM-82

< UNIT REMOVAL AND INSTALLATION >

[HR12DE]

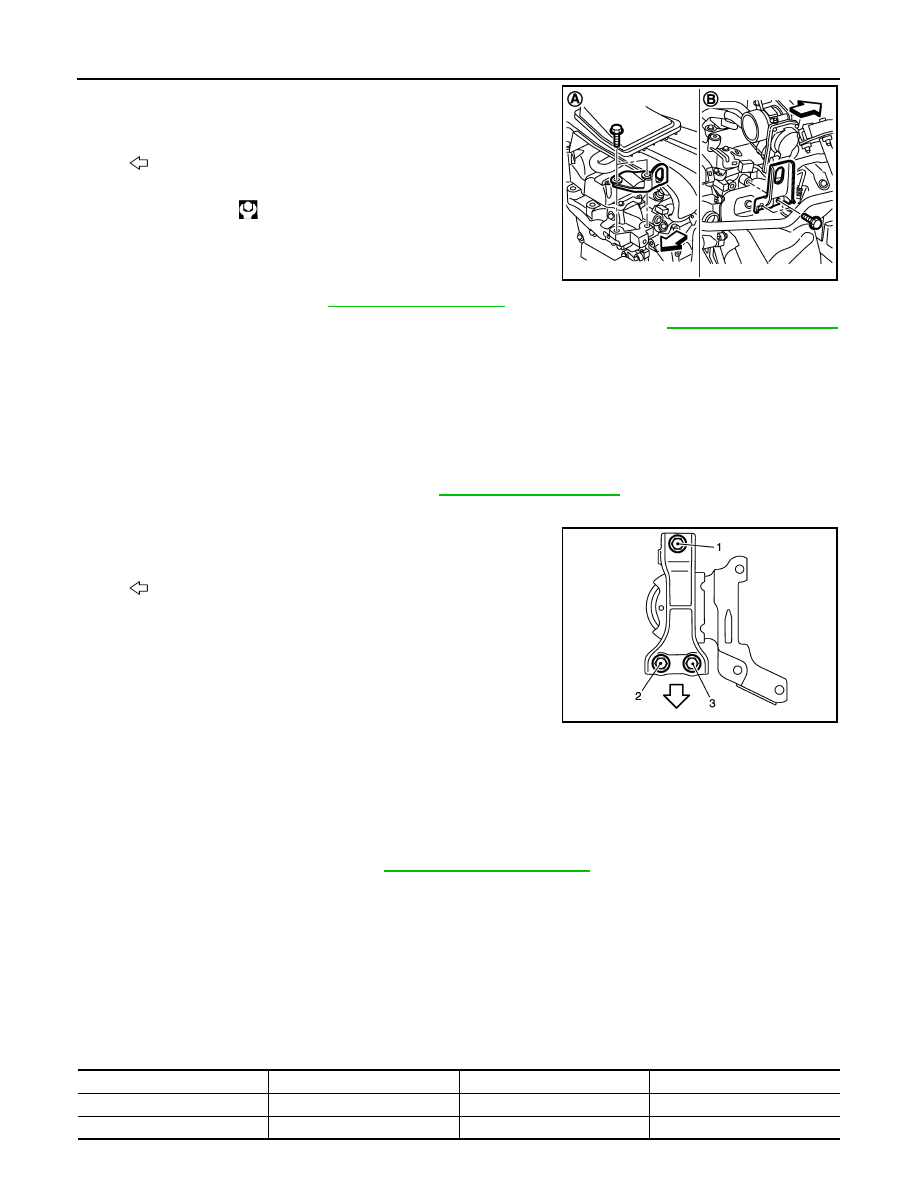

ENGINE ASSEMBLY

1.

When engine can be hoisted, install engine slinger to cylinder
head front left side (A) and rear right side (B) and support the
engine position with a hoist.

2.

Remove starter motor. Refer to

STR-18, "Exploded View"

.

3.

Lift with a hoist and separate the engine from the transaxle assembly. Refer to

TM-19, "Exploded View"

(M/T models).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never allow engine oil to get on engine mounting insulator. Be careful not to damage engine mount-

ing insulator.

• Check that each mounting insulator is seated properly, and tighten mounting nuts and bolts.
• When installation directions are specified, install parts according to the direction marks on them

referring to the figure of components. Refer to

EM-79, "Exploded View"

.

Engine Mounting Bracket (RH)

• Tighten mounting bolts in the numerical order as shown in the fig-

ure.

Inspection

INFOID:0000000005988207

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage, and exhaust gases leakage.
• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-8, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

: Engine front

Slinger bolts

: 25.0 N·m (2.6 kg-m, 18 ft-lb)

JPBIA3409ZZ

: Vehicle front

JPBIA2809ZZ

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

ENGINE ASSEMBLY

EM-83

< UNIT REMOVAL AND INSTALLATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*: Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

—

Leakage

—

EM-84

< UNIT DISASSEMBLY AND ASSEMBLY >

[HR12DE]

OIL PAN (UPPER)

UNIT DISASSEMBLY AND ASSEMBLY

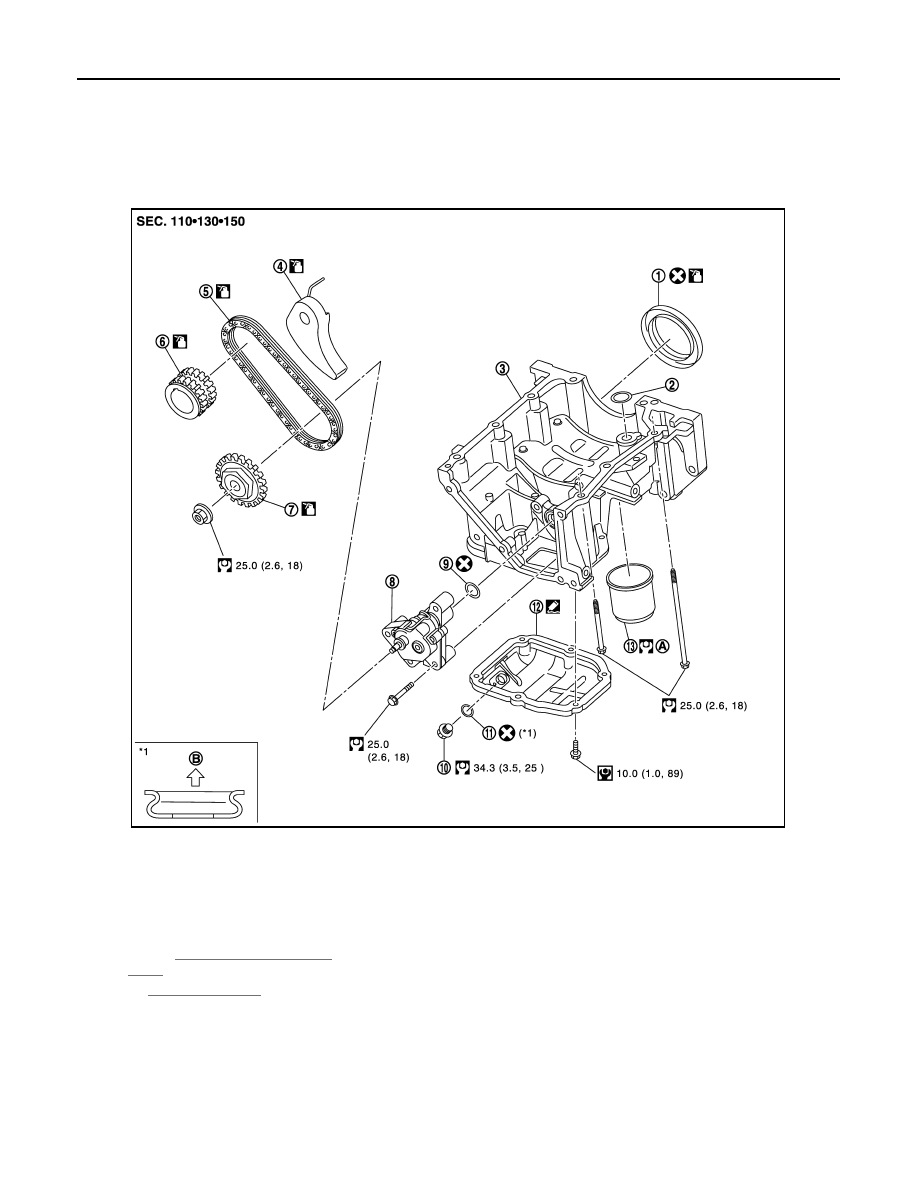

OIL PAN (UPPER)

Exploded View

INFOID:0000000005988211

1.

Rear oil seal

2.

O-ring

3.

Oil pan (upper)

4.

Oil pump chain tensioner

5.

Oil pump drive chain

6.

Crankshaft sprocket

7.

Oil pump sprocket

8.

Oil pump

9.

O-ring

10. Drain plug

11.

Drain plug washer

12. Oil pan (lower)

13. Oil filter

A.

Refer to

LU-10, "Removal and Instal-

lation"

B.

Oil pan (lower) side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3384GB

CYLINDER BLOCK

EM-85

< UNIT DISASSEMBLY AND ASSEMBLY >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

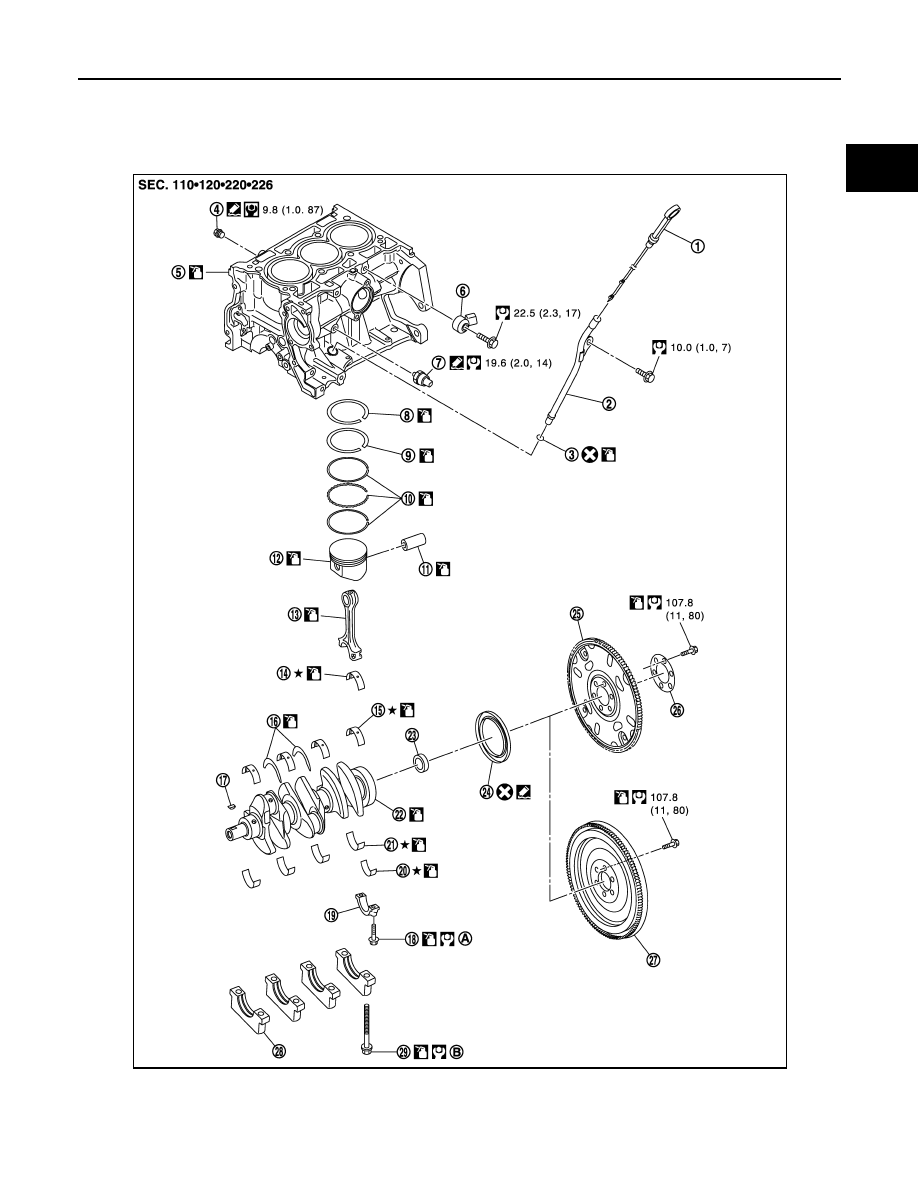

CYLINDER BLOCK

Exploded View

INFOID:0000000005988214

1.

Oil level gauge

2.

Oil level gauge guide

3.

O-ring

4.

Drain plug

5.

Cylinder block

6.

Knock sensor

7.

Oil pressure switch

8.

Top ring

9.

Second ring

JPBIA3394GB
