EVAP CANISTER

Hydraulic Layout

INFOID:0000000006001766

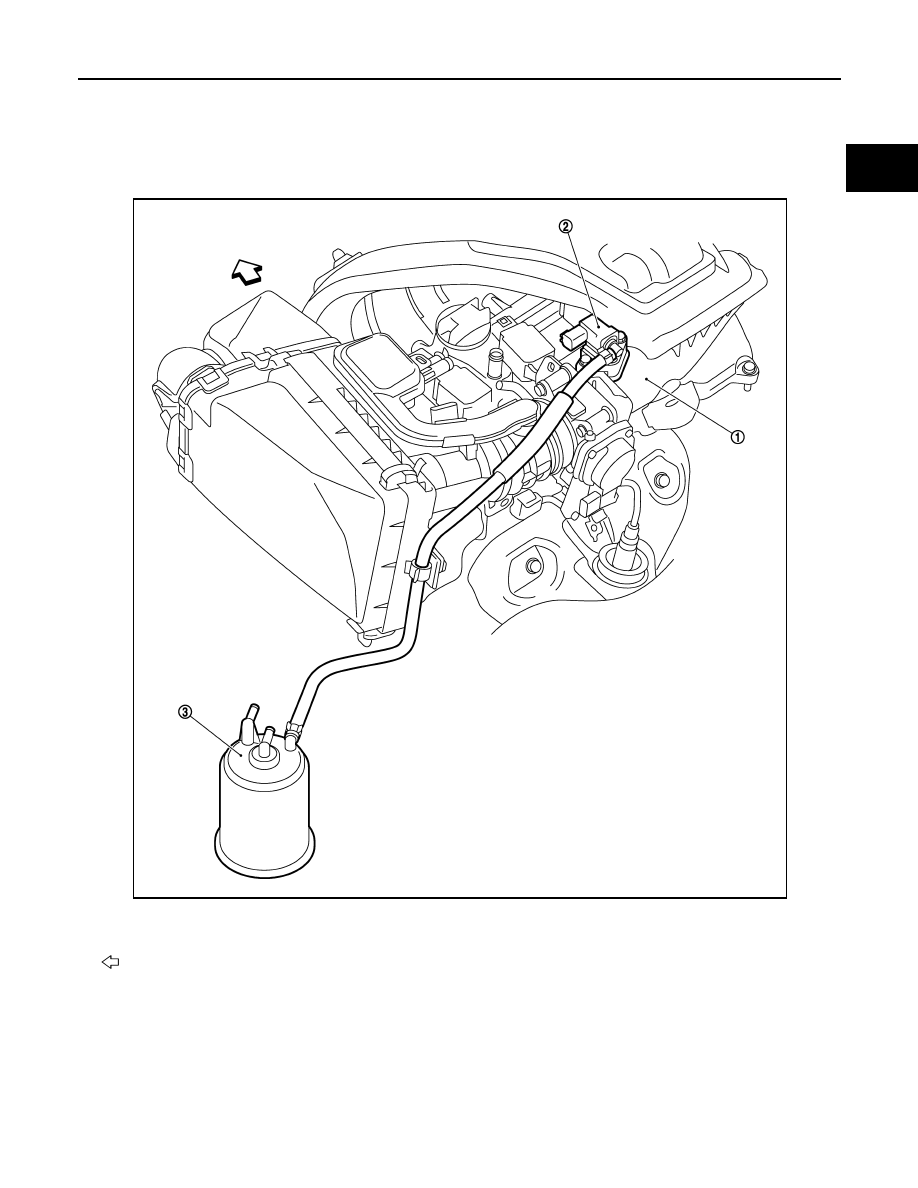

EVAPORATIVE EMISSION LINE DRAWING

NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

1.

Intake manifold collector

2.

EVAP canister purge volume control
solenoid valve

3.

EVAP canister

: Vehicle front

JPBIA3282ZZ

EC-314

< REMOVAL AND INSTALLATION >

[HR12DE (TYPE 1)]

FUEL PUMP CONTROL MODULE

FUEL PUMP CONTROL MODULE

Removal and Installation

INFOID:0000000006001767

REMOVAL

1.

Pull up passenger side floor carpet. Refer to

INT-26, "Exploded View"

.

2.

Disconnect fuel pump control module (FPCM) connector.

3.

Remove fuel pump control module (FPCM) fixing bolts.

4.

Remove fuel pump control module (FPCM).

INSTALLATION

Install in the reverse order of removal.

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-315

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000005989426

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000005989427

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000005989428

Mass Air Flow Sensor

INFOID:0000000005989429

*: Engine is warmed up to normal operating temperature and running under no load.

Condition

Specification

No load* (in Neutral position)

750

±

 50 rpm

Condition

Specification

No load* (in Neutral position)

12

±

2

°

BTDC

Condition

Specification (Using CONSULT-III or GST)

At idle

10 – 35%

At 2,500 rpm

10 – 35%

Supply voltage

Battery voltage (11 – 14 V)

Output voltage at idle

0.9 – 1.3 V*

Mass air flow (Using CONSULT-III or GST)

1.0 – 4.0 g·m/sec at idle*

2.0 – 10.0 g·m/sec at 2,500 rpm*

EC-316

< HOW TO USE THIS MANUAL >

[HR12DE (TYPE 2)]

APPLICATION NOTICE

HOW TO USE THIS MANUAL

APPLICATION NOTICE

How to Check Vehicle Type

INFOID:0000000006036624

Check the vehicle type to confirm the service information in EC section.

NOTE:
• L-jetronic is a fuel injection control method that the mass air flow sensor mounted on the air cleaner case

directly measures air volume taken into the engine (cylinder) and determines the fundamental fuel injection
amount.

• D-jetronic is a fuel injection control method to calculate air volume taken into the engine (cylinder) and deter-

mine the fundamental fuel injection amount, based on a throttle angle and an intake air pressure calculated
by the manifold absolute pressure sensor mounted on the intake manifold.

Vehicle type

Service information

Destination

Transmission

Engine control

For Thailand

M/T

L-jetronic

HR12DE (TYPE 1)

Except for Thailand

A/T, M/T

D-jetronic

HR12DE (TYPE 2)
