P2101 ELECTRIC THROTTLE CONTROL FUNCTION

EC-261

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> GO TO 3.

3.

CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF.

2.

Check voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 4.

4.

CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II

1.

Disconnect ECM harness connector.

2.

Disconnect IPDM E/R harness connector E15.

3.

Check the continuity between ECM harness connector and IPDM E/R harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E8, F1
• IPDM E/R connector E15
• Harness for open or short between IPDM E/R and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK FUSE

1.

Disconnect 15 A fuse (No. 64) from IPDM E/R.

2.

Check 15 A fuse for blown.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace 15 A fuse.

7.

CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-III

1.

Disconnect ECM harness connector.

2.

Disconnect IPDM E/R harness connector E15.

3.

Check the continuity between ECM harness connector and IPDM E/R harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> GO TO 8.

ECM

Voltage

Connector

+

−

Terminal

Terminal

F7

15

108

Battery voltage

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

E15

57

F7

15

Existed

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

E15

54

F7

2

Existed

EC-262

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

8.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E8, F1
• IPDM E/R connector E15
• Harness for open or short between IPDM E/R and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-33, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-52, "Exploded View"

.

NO

>> Repair or replace harness or connectors.

10.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1.

Turn ignition switch OFF.

2.

Disconnect electric throttle control actuator harness connector.

3.

Disconnect ECM harness connector.

4.

Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.

5.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair or replace harness or connectors.

11.

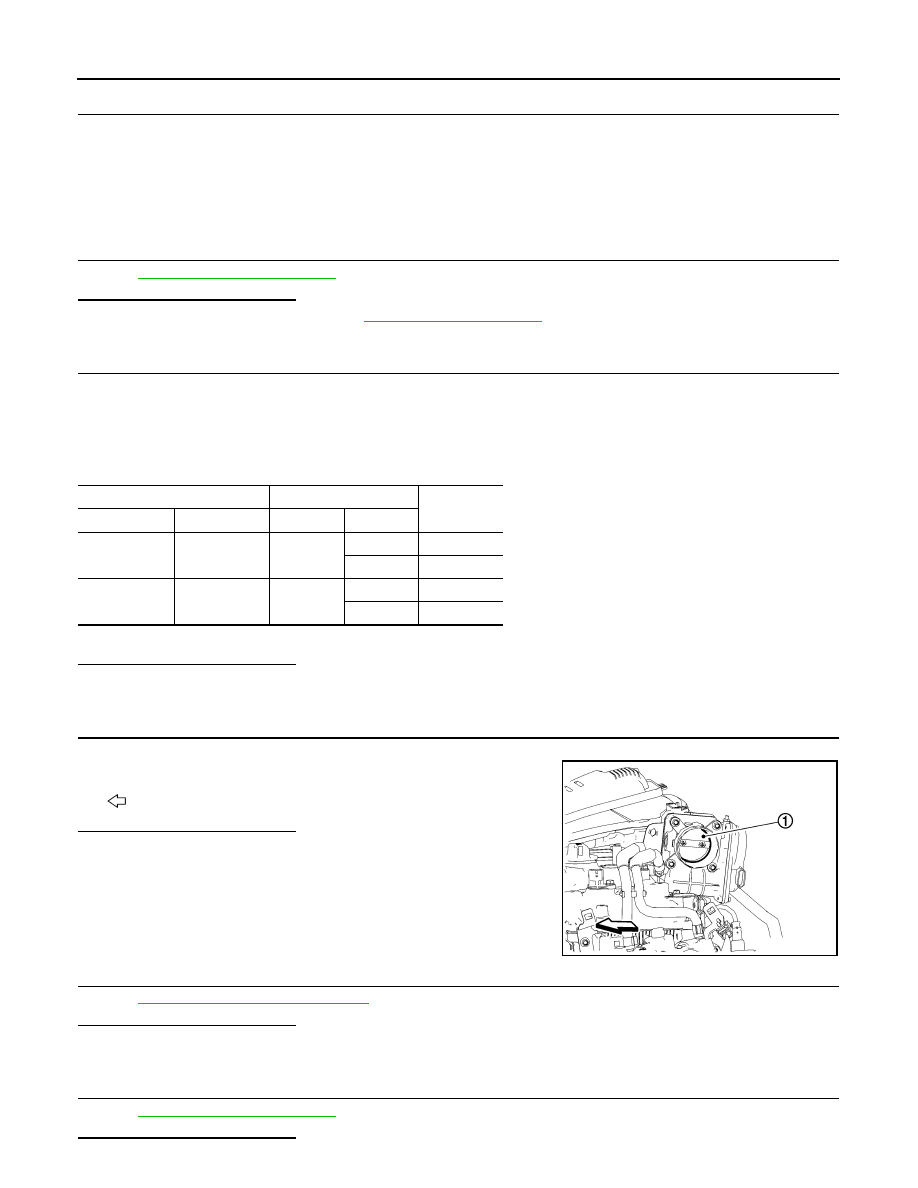

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Remove the intake air duct.

2.

Check if foreign matter is caught between the throttle valve (1)
and the housing.

-

: Vehicle front

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

12.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-263, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> GO TO 14.

13.

CHECK INTERMITTENT INCIDENT

Refer to

GI-33, "Intermittent Incident"

.

Is the inspection result normal?

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

5

F7

1

Not existed

4

Existed

F29

6

F7

1

Existed

4

Not existed

JSBIA0341ZZ

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

EC-263

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> Replace electric throttle control actuator. Refer to

EM-29, "WITH EGR CONTROL VALVE :

Exploded View"

.

NO

>> Repair or replace harness or connectors.

Component Inspection

INFOID:0000000005989351

1.

CHECK THROTTLE CONTROL MOTOR

1.

Disconnect electric throttle control actuator harness connector.

2.

Check resistance between electric throttle control actuator terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electric throttle control actuator. Refer to

EM-29, "WITH EGR CONTROL VALVE :

Exploded View"

.

Terminals

Resistance [at 25

°

C (77

°

F)]

5 and 6

Approx. 1 - 15

Ω



EC-264

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

P2118 THROTTLE CONTROL MOTOR

P2118 THROTTLE CONTROL MOTOR

DTC Logic

INFOID:0000000005989353

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 2 seconds.

2.

Start engine and let it idle for 5 seconds.

3.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-264, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000005989354

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E38. Refer to Ground Inspection in

GI-35, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect electric throttle control actuator harness connector.

2.

Disconnect ECM harness connector.

3.

Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK THROTTLE CONTROL MOTOR

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2118

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

• Harness or connectors

(Throttle control motor circuit is shorted.)

• Electric throttle control actuator

(Throttle control motor)

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

5

F7

1

Not existed

4

Existed

F29

6

F7

1

Existed

4

Not existed
