P1217 ENGINE OVER TEMPERATURE

EC-233

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1217 ENGINE OVER TEMPERATURE

DTC Logic

INFOID:0000000005989322

DTC DETECTION LOGIC

NOTE:
• If DTC P1217 is displayed with DTC U1001, first perform the trouble diagnosis for DTC U1001. Refer

to

EC-126, "DTC Logic"

.

• If DTC P1217 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-227, "DTC Logic"

.

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.

CAUTION:

When a malfunction is indicated, be sure to replace the coolant. Refer to

CO-10, "Refilling"

. Also,

replace the engine oil. Refer to

LU-8, "Refilling"

.

1.

Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to

MA-9, "Engine Coolant Mixture Ratio"

.

2.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-233, "Component Function Check"

.

NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-234, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000005989323

1.

PERFORM COMPONENT FUNCTION CHECK-I

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1217

Engine over temperature
(Overheat)

• Cooling fan does not operate properly (Over-

heat).

• Cooling fan system does not operate properly

(Overheat).

• Engine coolant was not added to the system

using the proper filling method.

• Engine coolant is not within the specified

range.

• Harness or connectors

(The cooling fan circuit is open or shorted.)

• IPDM E/R (Cooling fan relay)
• Cooling fan motor
• Radiator  hose
• Radiator
• Radiator  cap
• Reservoir tank
• Water pump
• Thermostat

EC-234

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

P1217 ENGINE OVER TEMPERATURE

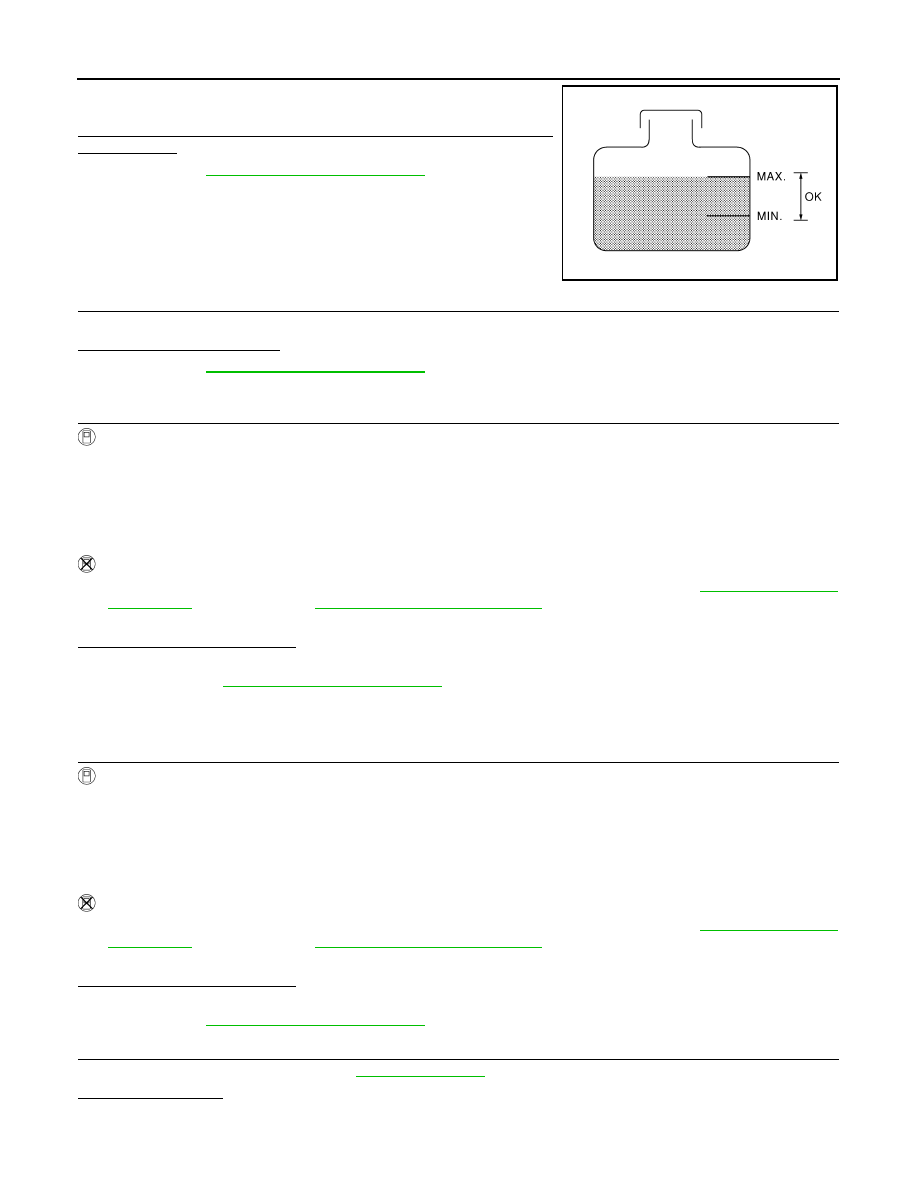

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?

YES

>> Go to

EC-234, "Diagnosis Procedure"

.

NO

>> GO TO 2

2.

PERFORM COMPONENT FUNCTION CHECK-II

Confirm whether customer filled the coolant or not.

Did customer fill the coolant?

YES

>> Go to

EC-234, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-III

With CONSULT-III

1.

Turn ignition switch ON.

2.

Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III.

3.

Touch “LOW” and “HI” on the CONSULT-III screen.

4.

Check that cooling fan operates.

NOTE:
The cooling fan operates at high speeds even when “LOW” is selected in CONSULT-III “ACTIVE TEST”.

Without CONSULT-III

1.

Perform IPDM E/R auto active test and check cooling fan motor operation. Refer to

PCS-11, "Diagnosis

Description"

 (WITH I-KEY) or

PCS-36, "Diagnosis Description"

 (WITHOUT I-KEY).

2.

Check that cooling fan operates.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

EC-234, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005989324

1.

CHECK COOLING FAN OPERATION

With CONSULT-III

1.

Turn ignition switch ON.

2.

Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III.

3.

Touch “LOW” and “HI” on the CONSULT-III screen.

4.

Check that cooling fan operates.

NOTE:
The cooling fan operates at high speeds even when “LOW” is selected in CONSULT-III “ACTIVE TEST”.

Without CONSULT-III

1.

Perform IPDM E/R auto active test and check cooling fan motor operation. Refer to

PCS-11, "Diagnosis

Description"

 (WITH I-KEY) or

PCS-36, "Diagnosis Description"

 (WITHOUT I-KEY).

2.

Check that cooling fan operates.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-281, "Diagnosis Procedure"

.

2.

CHECK COOLING SYSTEM FOR LEAK-I

Check cooling system for leak. Refer to

CO-9, "Inspection"

.

Is leakage detected?

YES

>> GO TO 3.

NO

>> GO TO 4.

SEF621W

P1217 ENGINE OVER TEMPERATURE

EC-235

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

CHECK COOLING SYSTEM FOR LEAK-II

Check the following for leak.
• Hose (Refer to

CO-25, "Inspection"

.)

• Radiator (Refer to

CO-16, "Inspection"

.)

• Water pump (Refer to

CO-19, "Inspection"

.)

>> Repair or replace malfunctioning part.

4.

CHECK RADIATOR CAP

Check radiator cap. Refer to

CO-12, "RADIATOR CAP : Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace radiator cap. Refer to

CO-14, "Exploded View"

.

5.

CHECK THERMOSTAT

Check thermostat. Refer to

CO-22, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace thermostat. Refer to

CO-21, "Exploded View"

.

6.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check engine coolant temperature sensor. Refer to

EC-144, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace engine coolant temperature sensor. Refer to

CO-23, "Exploded View"

.

7.

CHECK MAIN 12 CAUSES

If the cause cannot be isolated, check the following.

Engine

Step

Inspection item

Equipment

Standard

Reference page

OFF

1

• Blocked radiator
• Blocked condenser
• Blocked radiator grille
• Blocked bumper

• Visual

No blocking

—

2

• Coolant mixture

• Coolant tester

MA-9, "Engine Coolant Mixture Ratio"

3

• Coolant  level

• Visual

Coolant up to MAX level in
reservoir tank and radiator
filler neck

CO-9, "Inspection"

4

• Radiator cap

• Pressure tester

CO-12, "RADIATOR CAP : Inspection"

ON*

2

5

• Coolant leaks

• Visual

No leaks

CO-9, "Inspection"

ON*

2

6

• Thermostat

• Touch the upper and

lower radiator hoses

Both hoses should be hot

CO-22, "Inspection"

ON*

1

7

• Cooling fan motor

• CONSULT-III

Operating

EC-282, "Component In-
spection"

OFF

8

• Combustion gas leak

• Color checker chemical

tester 4 Gas analyzer

Negative

—

ON*

3

9

• Coolant temperature

gauge

• Visual

Gauge less than 3/4 when
driving

—

• Coolant overflow to res-

ervoir tank

• Visual

No overflow during driving
and idling

CO-9, "Inspection"

OFF*

4

10

• Coolant return from res-

ervoir tank to radiator

• Visual

Should be initial level in
reservoir tank

CO-9, "Inspection"

EC-236

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 1)]

P1217 ENGINE OVER TEMPERATURE

*1: Turn the ignition switch ON.

*2: Engine running at 3,000 rpm for 10 minutes.

*3: Drive at 90 km/h (56 MPH) for 30 minutes and then let idle for 10 minutes.

*4: After 60 minutes of cool down time.

For more information, refer to

CO-7, "Troubleshooting Chart"

.

>> INSPECTION END

OFF

11

• Cylinder head

• Straight gauge feeler

gauge

0.1 mm (0.004 in) Maxi-
mum distortion (warping)

EM-76, "Inspection"

12

• Cylinder block and pis-

tons

• Visual

No scuffing on cylinder
walls or piston

XX-XX, "*****"

Engine

Step

Inspection item

Equipment

Standard

Reference page
