ECM

EC-81

< ECU DIAGNOSIS INFORMATION >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

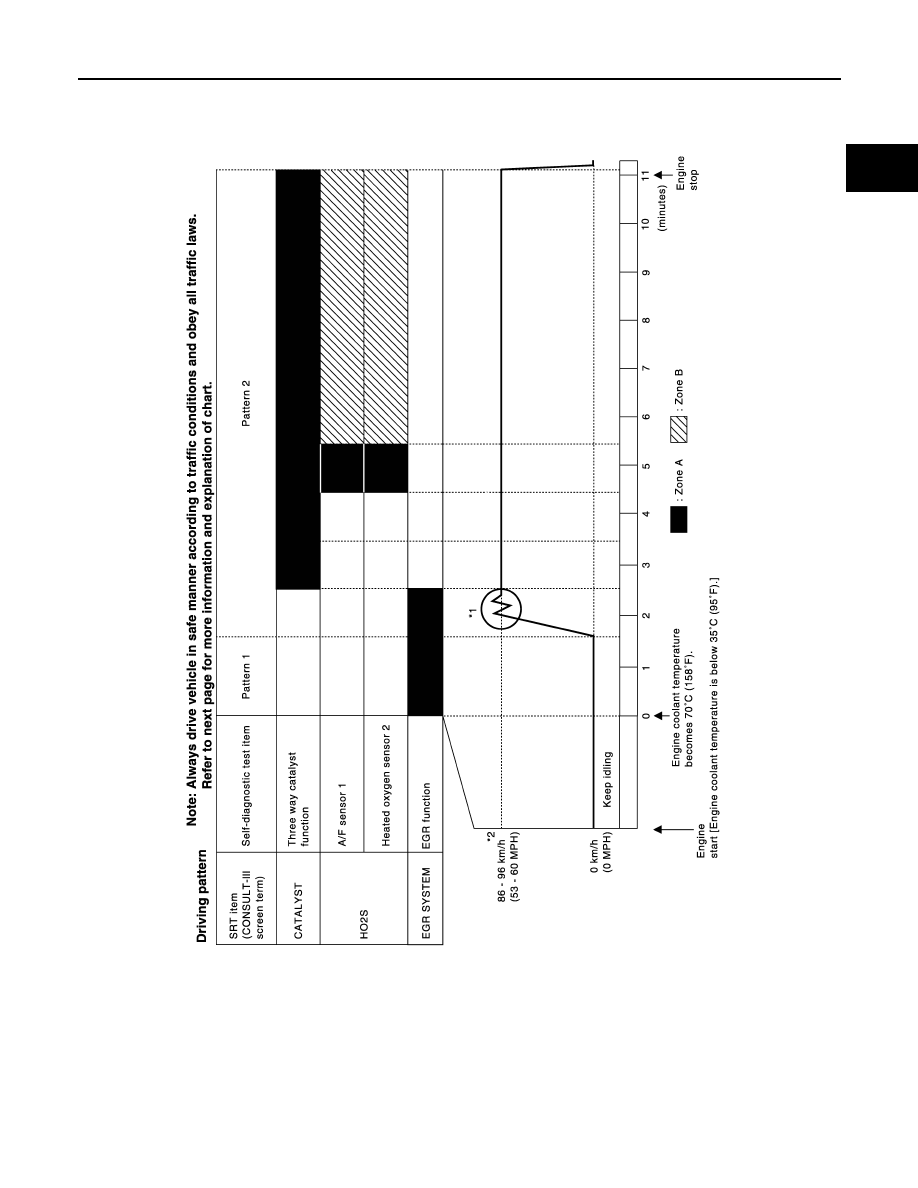

DRIVING PATTERN

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.

*: Normal conditions refer to the following:

JSBIA0417GB

EC-82

< ECU DIAGNOSIS INFORMATION >

[HR12DE (TYPE 1)]

ECM

• Sea level
• Flat road
• Ambient air temperature: 20 - 30

°

C (68 - 86

°

F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°

C (68 - 86

°

F)], diagno-

sis may also be performed.

Pattern 1:
• The engine is started at the engine coolant temperature of

−

10 to 35

°

C (14 to 95

°

F)

(where the voltage between the ECM terminal 38 and 44 is 3.0 - 4.3 V).

• The engine must be operated at idle speed until the engine coolant temperature is greater than 70

°

C

(158

°

F) (where the voltage between the ECM terminal 38 and 44 is lower than 1.4 V).

Pattern 2:
• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.

Test Value and Test Limit

INFOID:0000000006053863

The following is the information specified in Service $06 of SAE J1979/ISO 15031-5.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by On Board Monitor ID (OBDMID), Test ID (TID), Unit and
Scaling ID and can be displayed on the GST screen.
The items of the test value and test limit will be displayed with GST screen which items are provided by the
ECM. (eg., if bank 2 is not applied on this vehicle, only the items of bank 1 are displayed)

ECM

EC-83

< ECU DIAGNOSIS INFORMATION >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

HO2S

01H

Air fuel ratio (A/F) sensor 1
(Bank 1)

P0131

83H

0BH

Minimum sensor output voltage for test
cycle

P0131

84H

0BH

Maximum sensor output voltage for test
cycle

P0130

85H

0BH

Minimum sensor output voltage for test
cycle

P0130

86H

0BH

Maximum sensor output voltage for test
cycle

P0133

87H

04H

Response rate: Response ratio (Lean to
Rich)

P0133

88H

04H

Response rate: Response ratio (Rich to
Lean)

P2A00

89H

84H

The amount of shift in air fuel ratio

P2A00

8AH

84H

The amount of shift in air fuel ratio

P0130

8BH

0BH

Difference in sensor output voltage

P0133

8CH

83H

Response gain at the limited frequency

P014C

8DH

04H

O2 Sensor Slow Response - Rich to
Lean Bank 1 Sensor 1

P014C

8EH

04H

O2 Sensor Slow Response - Rich to
Lean Bank 1 Sensor 1

P014D

8FH

84H

O2 Sensor Slow Response - Lean to
Rich Bank 1 Sensor 1

P014D

90H

84H

O2 Sensor Slow Response - Lean to
Rich Bank 1 Sensor 1

P015A

91H

01H

O2 Sensor Delayed Response - Rich to
Lean Bank 1 Sensor 1

P015A

92H

01H

O2 Sensor Delayed Response - Rich to
Lean Bank 1 Sensor 1

P015B

93H

01H

O2 Sensor Delayed Response - Lean to
Rich Bank 1 Sensor 1

P015B

94H

01H

O2 Sensor Delayed Response - Lean to
Rich Bank 1 Sensor 1

02H

Heated oxygen sensor 2
(Bank 1)

P0138

07H

0CH

Minimum sensor output voltage for test
cycle

P0137

08H

0CH

Maximum sensor output voltage for test
cycle

P0138

80H

0CH

Sensor output voltage

P0139

81H

0CH

Difference in sensor output voltage

03H

Heated oxygen sensor 3
(Bank 1)

P0143

07H

0CH

Minimum sensor output voltage for test
cycle

P0144

08H

0CH

Maximum sensor output voltage for test
cycle

P0146

80H

0CH

Sensor output voltage

P0145

81H

0CH

Difference in sensor output voltage

EC-84

< ECU DIAGNOSIS INFORMATION >

[HR12DE (TYPE 1)]

ECM

HO2S

05H

Air fuel ratio (A/F) sensor 1
(Bank 2)

P0151

83H

0BH

Minimum sensor output voltage for test
cycle

P0151

84H

0BH

Maximum sensor output voltage for test
cycle

P0150

85H

0BH

Minimum sensor output voltage for test
cycle

P0150

86H

0BH

Maximum sensor output voltage for test
cycle

P0153

87H

04H

Response rate: Response ratio (Lean to
Rich)

P0153

88H

04H

Response rate: Response ratio (Rich to
Lean)

P2A03

89H

84H

The amount of shift in air fuel ratio

P2A03

8AH

84H

The amount of shift in air fuel ratio

P0150

8BH

0BH

Difference in sensor output voltage

P0153

8CH

83H

Response gain at the limited frequency

P014E

8DH

04H

O2 Sensor Slow Response - Rich to
Lean Bank 2 Sensor 1

P014E

8EH

04H

O2 Sensor Slow Response - Rich to
Lean Bank 2 Sensor 1

P014F

8FH

84H

O2 Sensor Slow Response - Lean to
Rich Bank 2 Sensor 1

P014F

90H

84H

O2 Sensor Slow Response - Lean to
Rich Bank 2 Sensor 1

P015C

91H

01H

O2 Sensor Delayed Response - Rich to
Lean Bank 2 Sensor 1

P015C

92H

01H

O2 Sensor Delayed Response - Rich to
Lean Bank 2 Sensor 1

P015D

93H

01H

O2 Sensor Delayed Response - Lean to
Rich Bank 2 Sensor 1

P015D

94H

01H

O2 Sensor Delayed Response - Lean to
Rich Bank 2 Sensor 1

06H

Heated oxygen sensor 2
(Bank 2)

P0158

07H

0CH

Minimum sensor output voltage for test
cycle

P0157

08H

0CH

Maximum sensor output voltage for test
cycle

P0158

80H

0CH

Sensor output voltage

P0159

81H

0CH

Difference in sensor output voltage

07H

Heated oxygen sensor 3
(Bank2)

P0163

07H

0CH

Minimum sensor output voltage for test
cycle

P0164

08H

0CH

Maximum sensor output voltage for test
cycle

P0166

80H

0CH

Sensor output voltage

P0165

81H

0CH

Difference in sensor output voltage

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID
