DOOR LOCK ACTUATOR

DLK-71

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> Check for internal short of each door lock actuator.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

REAR RH

REAR RH : Component Function Check

INFOID:0000000005948866

1.

CHECK FUNCTION

1.

Select “DOOR LOCK” of “BCM” using CONSULT-III.

2.

Select “DOOR LOCK” in “ACTIVE TEST” mode.

3.

Touch “ALL LOCK” or “ALL UNLK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-71, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000005948867

1.

CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear door lock assembly RH connector.

3.

Check voltage between rear door lock assembly RH harness connector and ground.

BCM

Rear door lock assembly LH

Continuity

Connector

Terminal

Connector

Terminal

M70

65

D65

1

Existed

66

2

BCM

Ground

Continuity

Connector

Terminal

M70

65

Not existed

66

(+)

(–)

Condition

Voltage

(Approx.)

Front door lock assembly

(driver side)

Connector

Terminal

M70

65

Ground

Door lock and unlock switch

Lock

12 V

66

Unlock

(+)

(–)

Condition

Voltage

(Approx.)

Rear door lock assembly RH

Connector

Terminal

D45

5

Ground

Door lock and unlock switch

Lock

12 V

6

Unlock

DLK-72

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK ACTUATOR

Is the inspection result normal?

YES

>> Replace rear door lock assembly RH.

NO

>> GO TO 2.

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1.

Disconnect BCM connector and all door lock actuator connector.

2.

Check continuity between BCM harness connector and rear door lock assembly RH harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> Check for internal short of each door lock actuator.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

BACK DOOR

BACK DOOR : Component Function Check

INFOID:0000000005948869

1.

CHECK FUNCTION

1.

Select “DOOR LOCK” of “BCM” using CONSULT-III.

2.

Select “DOOR LOCK” in “ACTIVE TEST” mode.

3.

Touch “ALL LOCK” or “ALL UNLK” to check that it works normally.

Is the inspection result normal?

YES

>> Back door lock actuator is OK.

NO

>> Refer to

DLK-72, "BACK DOOR : Diagnosis Procedure"

.

BACK DOOR : Diagnosis Procedure

INFOID:0000000005948870

1.

CHECK BACK DOOR LOCK ACTUATOR INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect back door lock assembly connector.

3.

Check voltage between back door lock assembly harness connector and ground.

BCM

Rear door lock assembly RH

Continuity

Connector

Terminal

Connector

Terminal

M70

65

D45

5

Existed

66

6

BCM

Ground

Continuity

Connector

Terminal

M70

65

Not existed

66

(+)

(–)

Condition

Voltage

(Approx.)

Front door lock assembly

(driver side)

Connector

Terminal

M70

65

Ground

Door lock and unlock switch

Lock

12 V

66

Unlock

DOOR LOCK ACTUATOR

DLK-73

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace back door lock assembly.

NO

>> GO TO 2.

2.

CHECK BACK DOOR LOCK ACTUATOR LOCK CIRCUIT

1.

Disconnect BCM connector and all door lock actuator connector.

2.

Check continuity between BCM harness connector and back door lock assembly harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> Check for internal short of each door lock actuator.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

(+)

(–)

Condition

Voltage

(Approx.)

Back door lock assembly

Connector

Terminal

D106

2

Ground

Door lock and unlock switch

Lock

Battery voltage

4

Unlock

BCM

Back door lock assembly

Continuity

Connector

Terminal

Connector

Terminal

M70

65

D106

2

Existed

66

4

BCM

Ground

Continuity

Connector

Terminal

M70

65

Not existed

66

(+)

(–)

Condition

Voltage

(Approx.)

Front door lock assembly

(driver side)

Connector

Terminal

M70

65

Ground

Door lock and unlock switch

Lock

12 V

66

Unlock

DLK-74

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

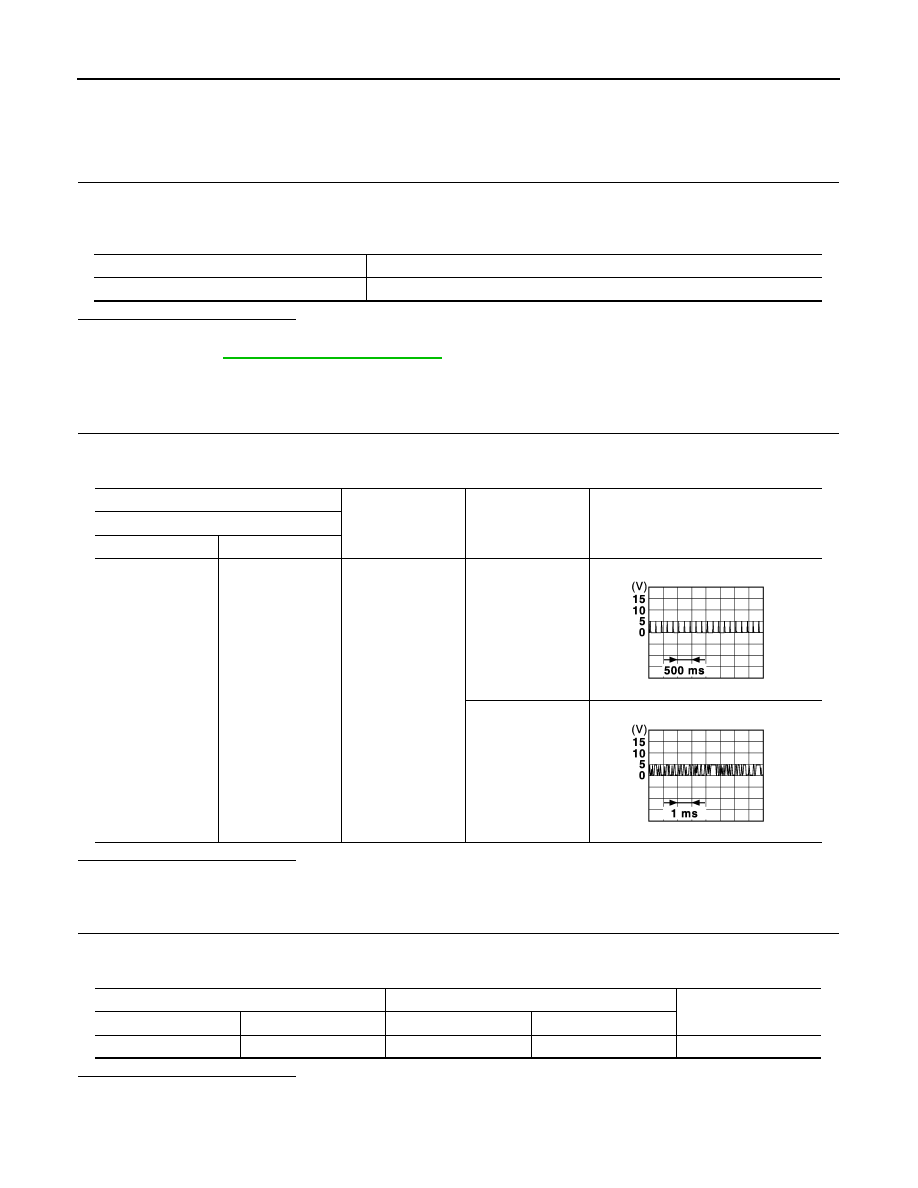

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Component Function Check

INFOID:0000000006064445

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT-III.

2.

Select “RKE OPE COUN1” in “DATA MONITOR” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Remote keyless entry receiver is OK.

NO

>> Refer to

DLK-74, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006064446

1.

CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between remote keyless entry receiver harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 1

1.

Disconnect BCM and remote keyless entry receiver connector

2.

Check continuity between BCM harness connector and remote keyless entry receiver harness connector.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace harness.

Monitor item

Condition

RKE OPE COUN1

Checks whether value changes when operating Intelligent Key

(+)

(–)

Condition

Signal

(Reference value)

Remote keyless entry receiver

Connector

Terminal

M52

2

Ground

Waiting

Signal receiving

JMKIA3838GB

JMKIA3841GB

BCM

Remote keyless entry receiver

Continuity

Connector

Terminal

Connector

Terminal

M68

20

M52

2

Existed
