DIAGNOSIS SYSTEM (BCM)
DLK-27
< SYSTEM DESCRIPTION >

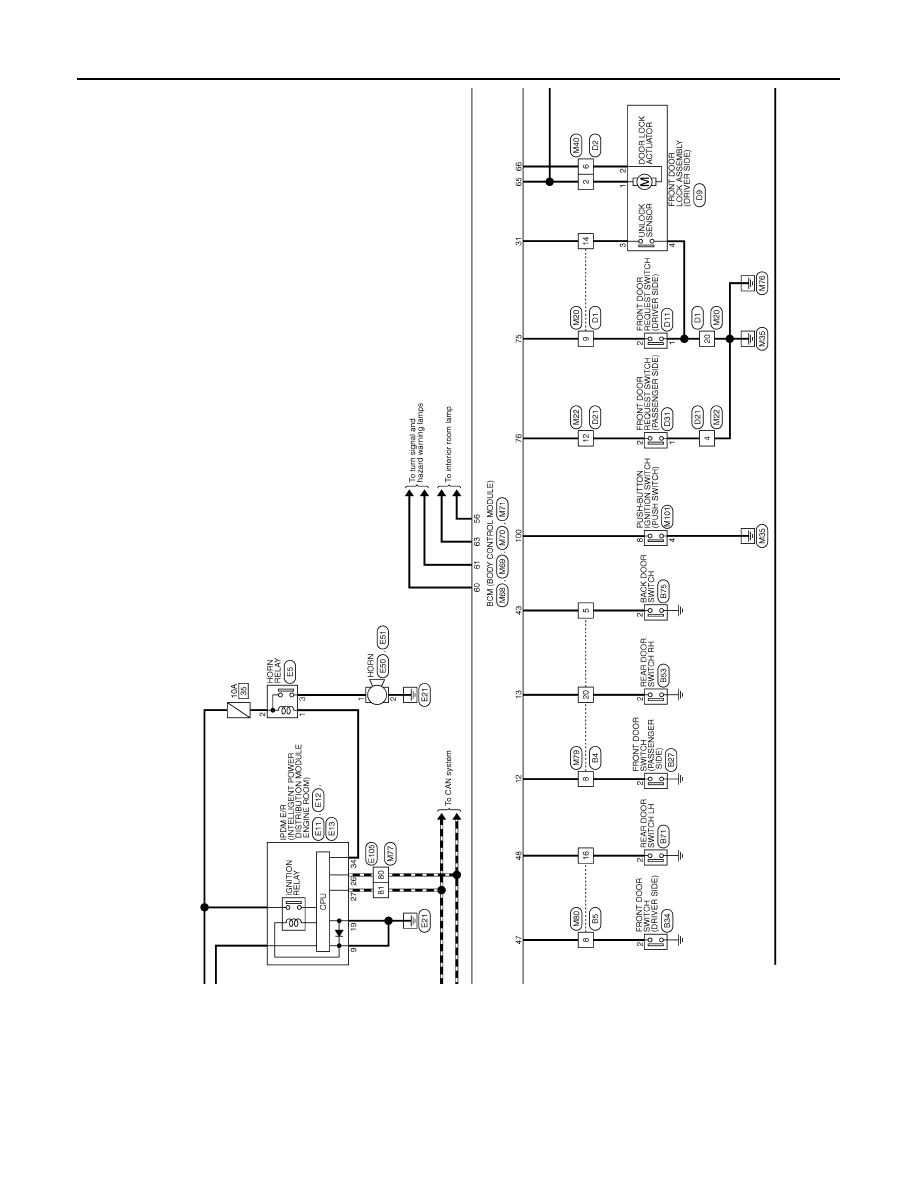

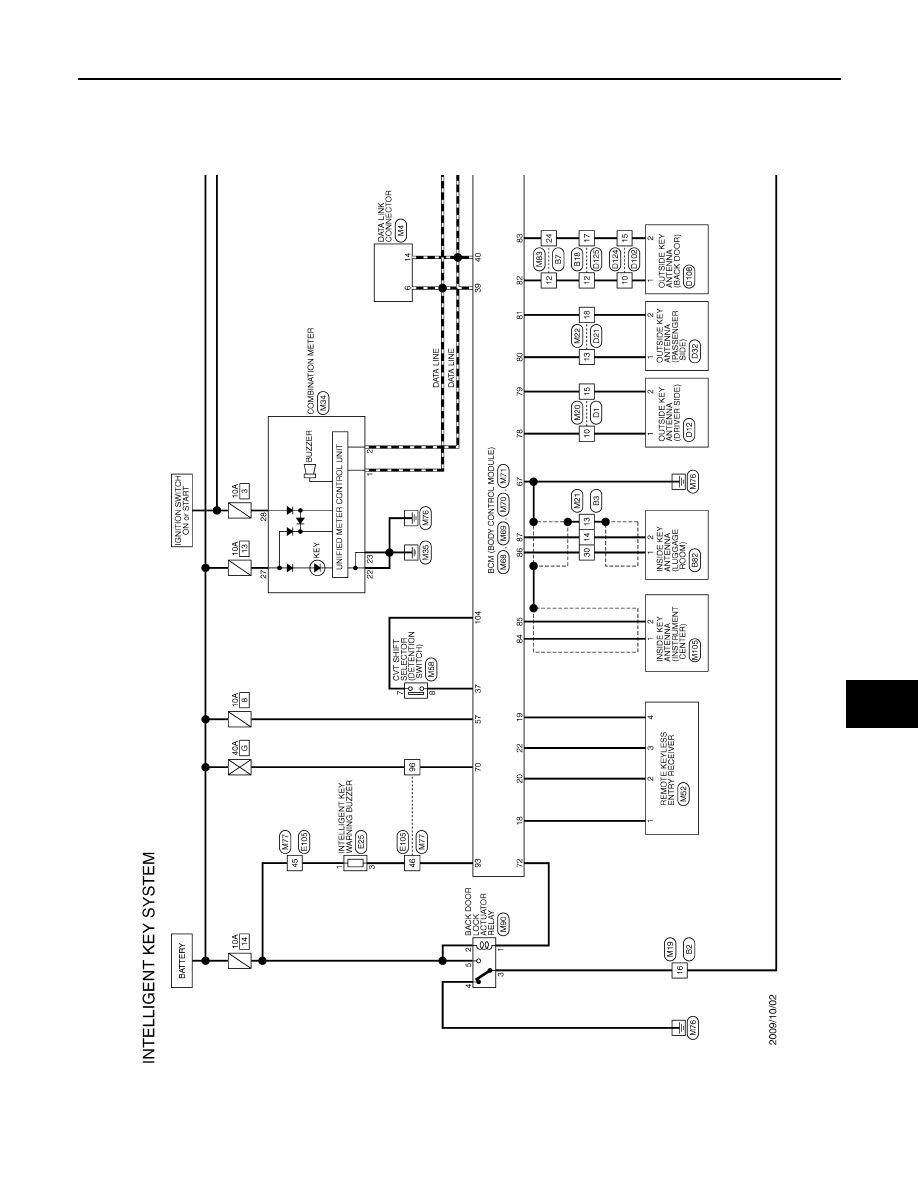

[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
TRUNK
TRUNK : CONSULT-III Function (BCM - TRUNK)
INFOID:0000000005948827
DATA MONITOR
LCD
This test is able to check meter display information
• B&P N: Engine start information indicate when CONSULT-III screen is touched
• B&P I: Engine start information indicate when CONSULT-III screen is touched
• ID NG: This item is displayed, but cannot be monitored
• ROTAT: This item is displayed, but cannot be monitored
• SFT P: Shift P warning lamp indicate when CONSULT-III screen is touched
• INSRT: This item is displayed, but cannot be monitored
• BATT: Key warning lamp indicator when CONSULT-III screen is touched
• NO KY: Key warning lamp indicator when CONSULT-III screen is touched
• OUTKEY: Engine start information indicate when CONSULT-III screen is touched
• LK WN: Engine start information indicate when CONSULT-III screen is touched
FLASHER
This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT-III screen is touched
P RANGE
This test is able to check AT shift selector power supply
• On: Operate
• Off: Non-operation
ENGINE SW ILLUMI
This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT-III screen is touched
PUSH SWITCH INDICATOR
This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-III screen is
touched
TRUNK/BACK DOOR
NOTE:
This item is indicated, but not tested
RETRACTABLE MIRROR
This test is able to check auto retractable door mirror operation
• On: Operate
• Off: Non-operation
Test item
Description
Monitor Item
Contents
PUSH SW
Indicates [On/Off] condition of push switch
UNLK SEN -DR
Indicates [On/Off] condition of unlock sensor
VEH SPEED 1
Indicates [Km/h] condition of vehicle speed signal from combination meter
TR/BD OPEN SW
NOTE:
This item is displayed, but cannot be monitored
TRNK/HAT MNTR
NOTE:
This item is displayed, but cannot be monitored
RKE-TR/BD
NOTE:
This item is displayed, but cannot be monitored
