Nissan March K13. Manual - part 53





CHG-26

< REMOVAL AND INSTALLATION >

ALTERNATOR

Type: 2607689

JMMIA0406GB

1.

Rotor assembly

2.

Retainer

3.

Front bearing

4.

Front bracket assembly

5.

Pulley

6.

Pulley nut

7.

Stator assembly

8.

Rear bearing

9.

Rear bracket assembly

10. Circuit board assembly

11.

Regulator assembly

12. Stud bolt

13. Cover

Refer to

GI-4, "Components"

 for symbols in the figure.

CHG

ALTERNATOR

CHG-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Type: A005TL0191

Removal and Installation

INFOID:0000000006057265

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-143, "Removal and Installation"

.

2.

Remove drive belt. Refer to

EM-19, "Removal and Installation"

.

3.

Remove condenser side seal. Refer to

DLK-114, "Exploded View"

.

4.

Remove A/C compressor mounting bolts, and then A/C compressor

radiator core suppurt lower

の上に仮

置きする

 (with A/C models)

 Refer to

HA-30, "Exploded View"

.

5.

Disconnect alternator connector.

6.

Remove terminal B nut and disconnect terminal B harness.

7.

Remove alternator mounting bolt upper.

8.

Remove alternator mounting bolt lower.

9.

Alternator

を車両横側から取り外す。

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Temporarily tighten the alternator bolts in order from the lower to the upper, and then tighten them in

order from the upper to the lower.

• For the alternator, the front side (pulley side) surface is the reference surface. Fit the reference sur-

face to the alternator mounting part, and then tighten the bolts.

• Be careful to tighten terminal B nut carefully.
• Install alternator, and check tension of belt. Refer to

EM-18, "Checking"

.

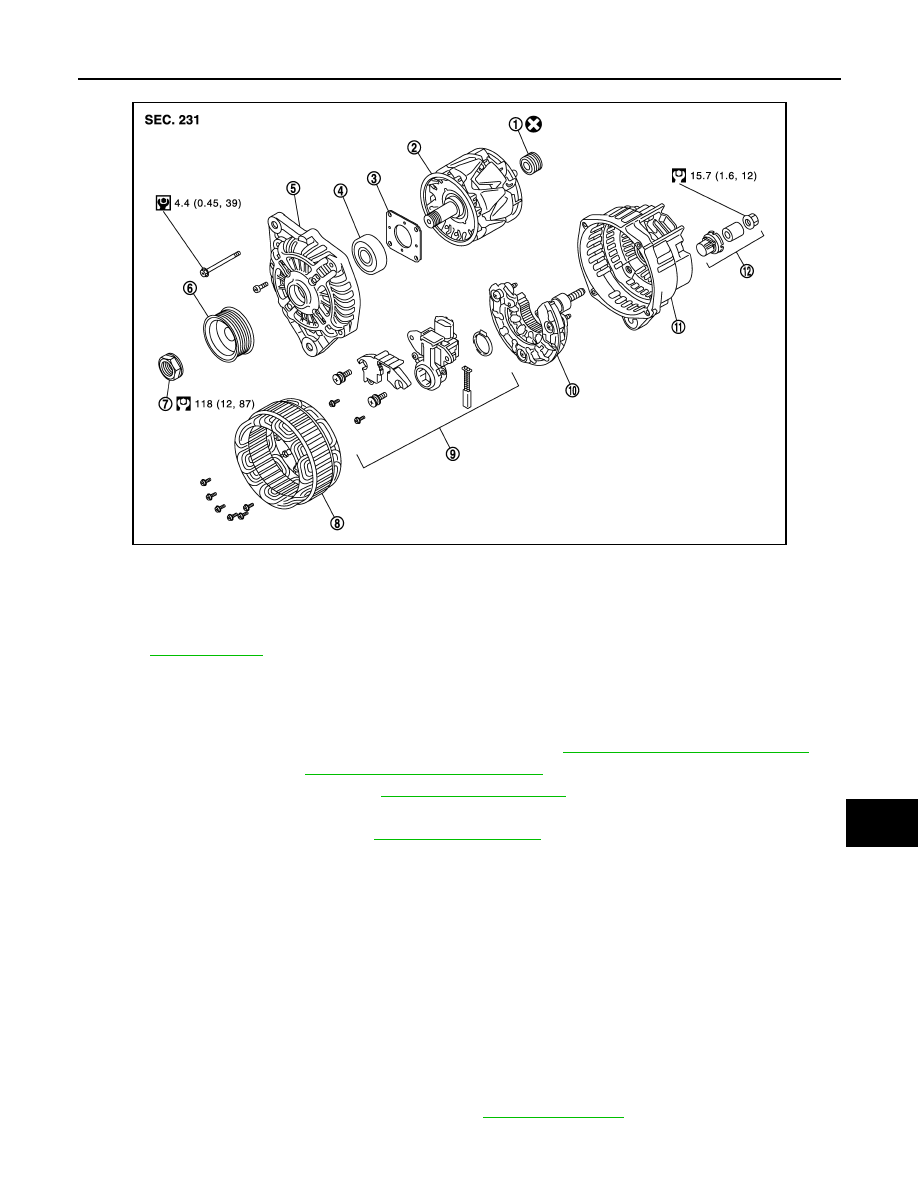

JMMIA0389GB

1.

Rear bearing

2.

Rotor assembly

3.

Retainer

4.

Front bearing

5.

Front bracket assembly

6.

Pulley

7.

Pulley nut

8.

Stator assembly

9.

IC voltage regulator assembly

10. Diode assembly

11.

Rear bracket assembly

12. Terminal set

Refer to

GI-4, "Components"

 for symbols in the figure.

CHG-28

< REMOVAL AND INSTALLATION >

ALTERNATOR

Disassembly and Assembly

INFOID:0000000006057266

DISASSEMBLY

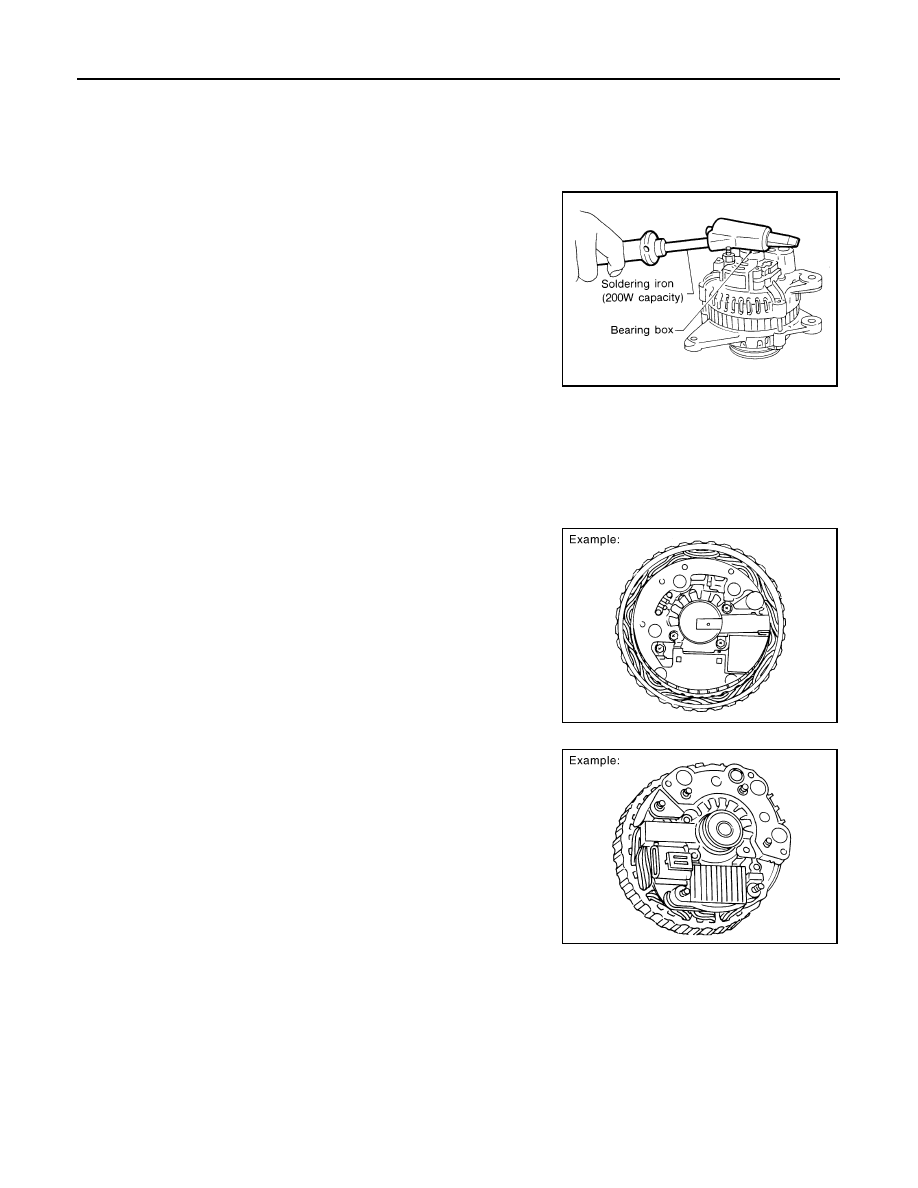

Rear Cover

NOTE:
Rear cover may be hard to remove because a ring is used to lock
outer race of rear bearing. To facilitate removal of rear cover, heat
only the bearing box section until the temperature increases to
approximately 30

°

C (86

°

F) with a soldering iron (200W capacity).

CAUTION:

Never use a heat gun, as if can damage diode assembly.

ASSEMBLY

Rear Bearing

CAUTION:

• Never reuse rear bearing. Replace with a new one.
• Never lubricate rear bearing outer race.

Rear Cover Installation

1.

Fit brush assembly, diode assembly, regulator assembly and
stator.

2.

Push brushed up with fingers and install them to rotor.
NOTE:
Take care not damage slip ring sliding surface.

Inspection

INFOID:0000000006057267

INSPECTION

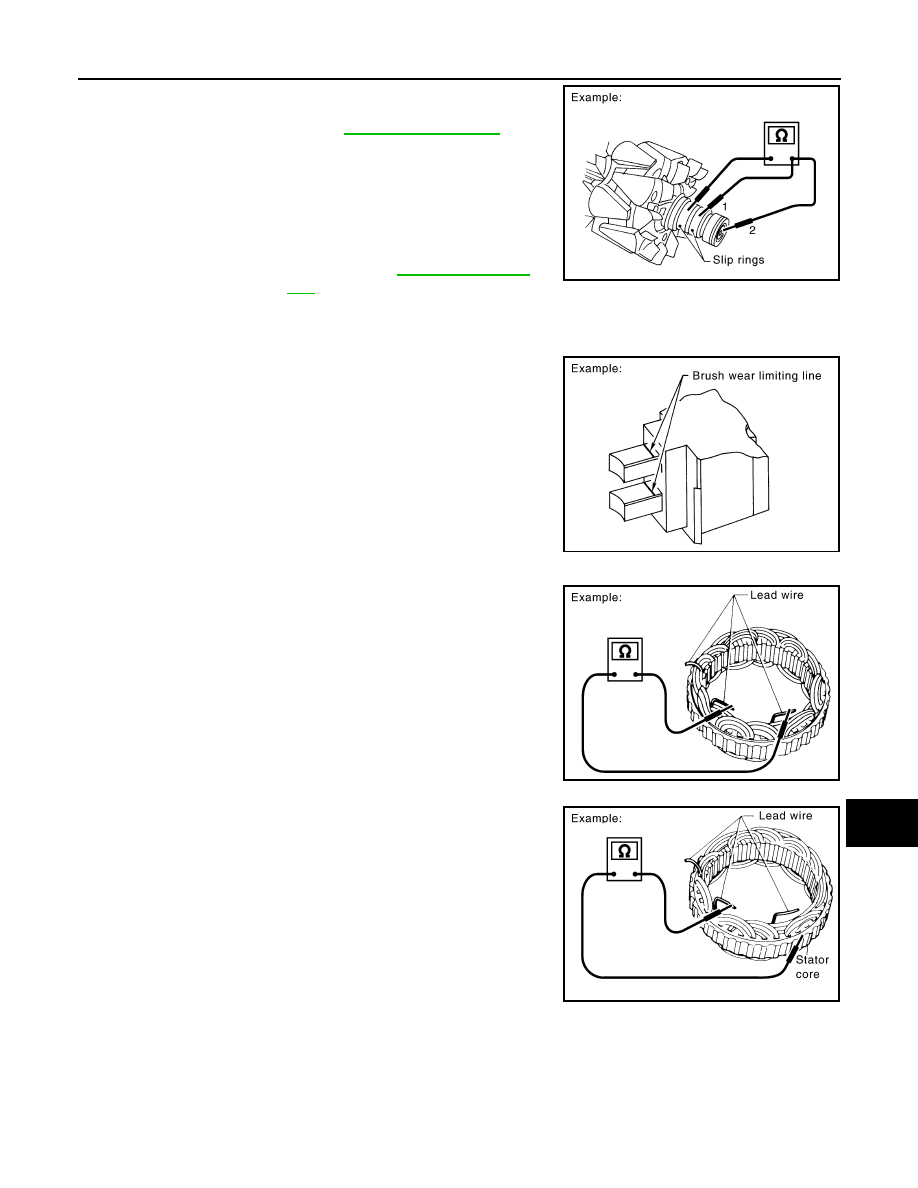

Rotor Check

SEL032Z

SKIB4529E

SKIB4530E

CHG

ALTERNATOR

CHG-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

Resistance test

• Replace the rotor if the measurement value is outside of the

specified range.

2.

Insulator test
• Replace the rotor if continuity exists.

3.

Check slip ring for wear.

• Replace the rotor if the measurement value is outside of the specified range.

Brush Check

1.

Check smooth movement of brush.
• Check brush holder and clean if it is not smooth.

2.

Check brush for wear.
• Replace brush if it is worn down to the limit line.

Stator Check

1.

Continuity test
• Replace the stator if continuity does not exist.

2.

Ground test
• Replace the stator if continuity exists.

Resistance

: Refer to SDS

CHG-30, "Alternator"

.

Slip ring minimum
outer diameter

: Refer to SDS

CHG-30, "Alterna-

tor"

.

SKIB4525E

SKIB4526E

SKIB4527E

SKIB4528E
