BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

2

BODY ALIGNMENT  ............................................

2

Description ................................................................

2

Engine Compartment ...............................................

2

Underbody ................................................................

4

Passenger Compartment .........................................

7

Rear Body ...............................................................

10

BRM-2

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Description

INFOID:0000000006024210

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check that there is no elongation, twisting, or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

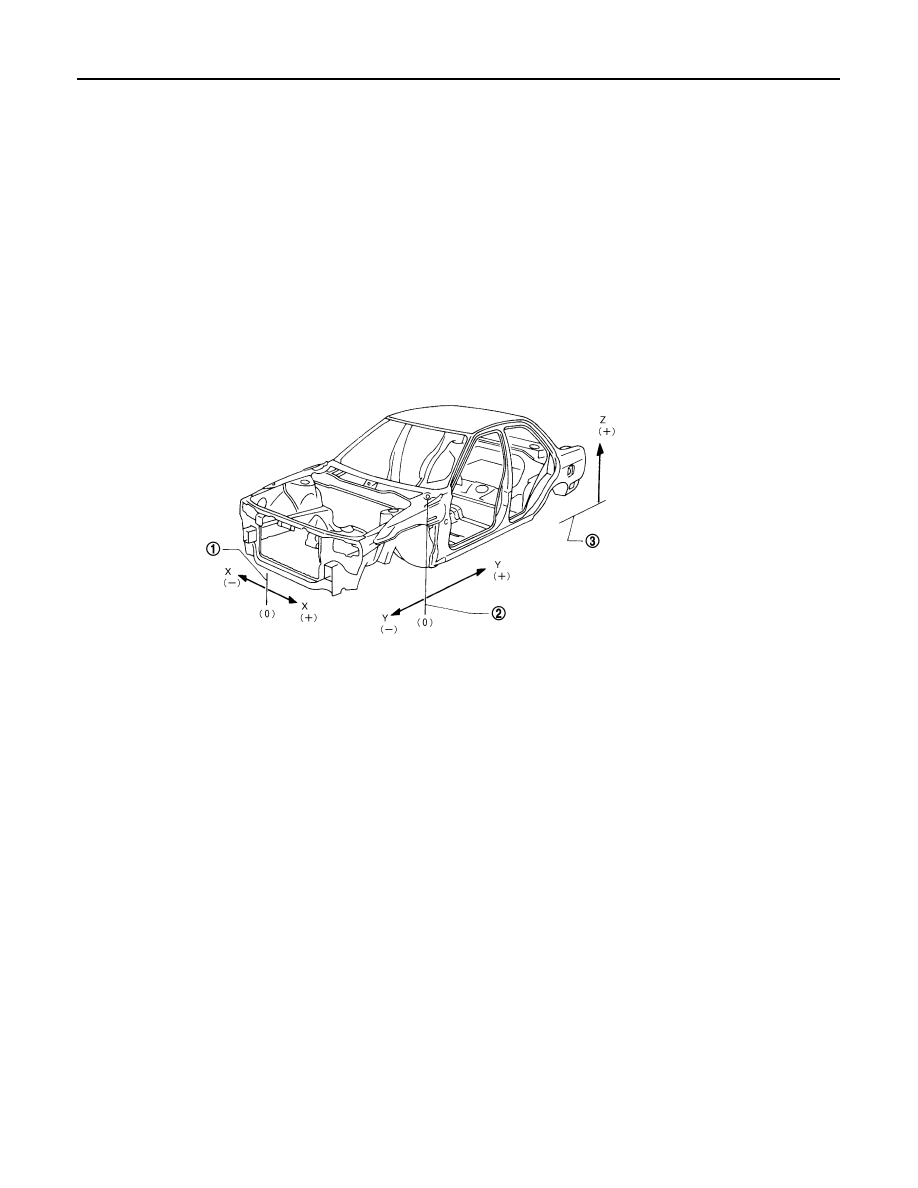

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment

INFOID:0000000006024211

Measurement

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BODY ALIGNMENT

BRM-3

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

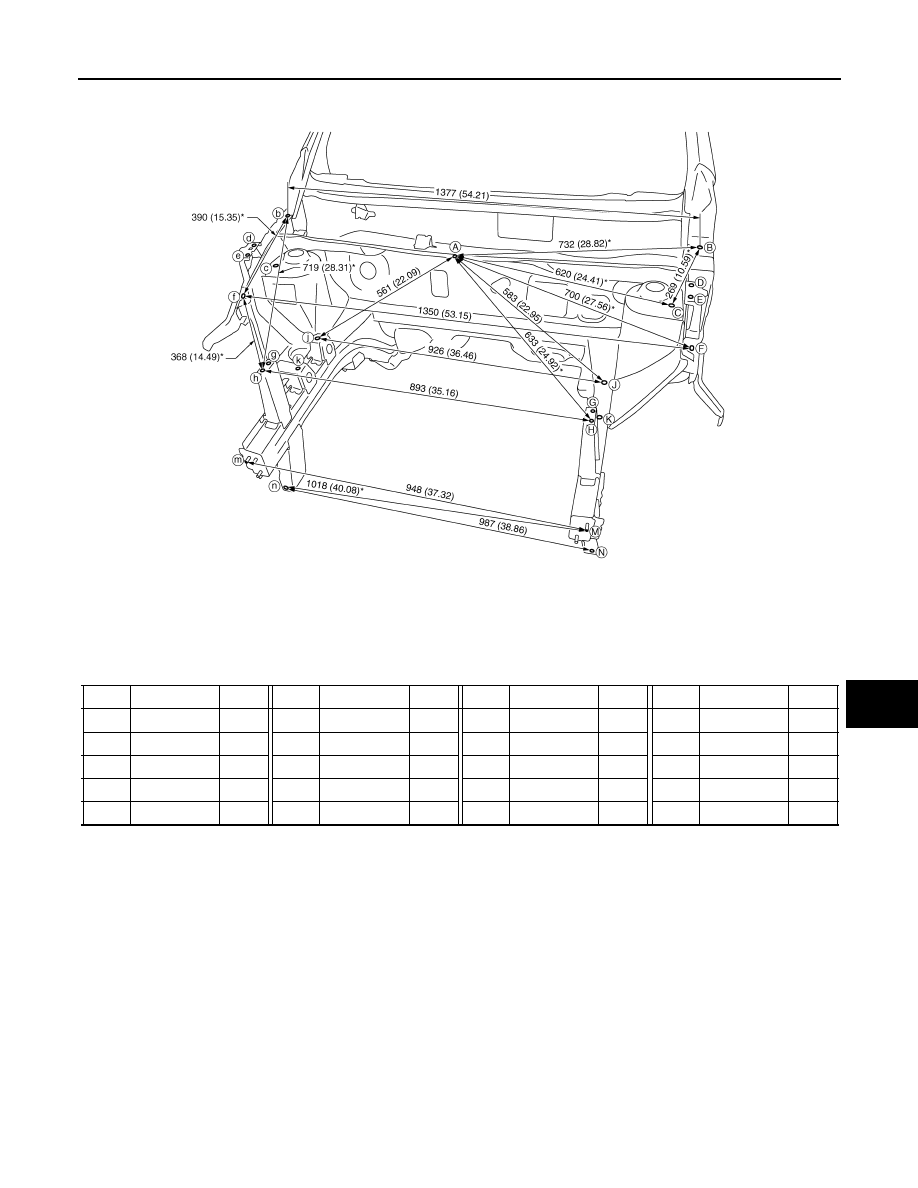

«The others»

Unit: mm (in)

Measurement Points

Unit: mm (in)

JSKIA1906GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - D

656 (25.83)*

B - f

1418 (55.83)*

D - d

1310 (51.57)

J - k

938 (36.93)

A - E

657 (25.87)*

B - G

689 (27.13)*

E - e

1304 (51.34)

j - K

930 (36.61)

A - G

612 (24.09)*

B - g

1305 (51.38)*

F - h

1158 (45.59)*

K - k

915 (36.02)

A - K

613 (24.13)

B - h

1322 (52.05)*

G - g

893 (35.16)

A - k

599 (23.58)

C - c

1228 (48.35)

G - h

894 (35.20)*

BRM-4

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

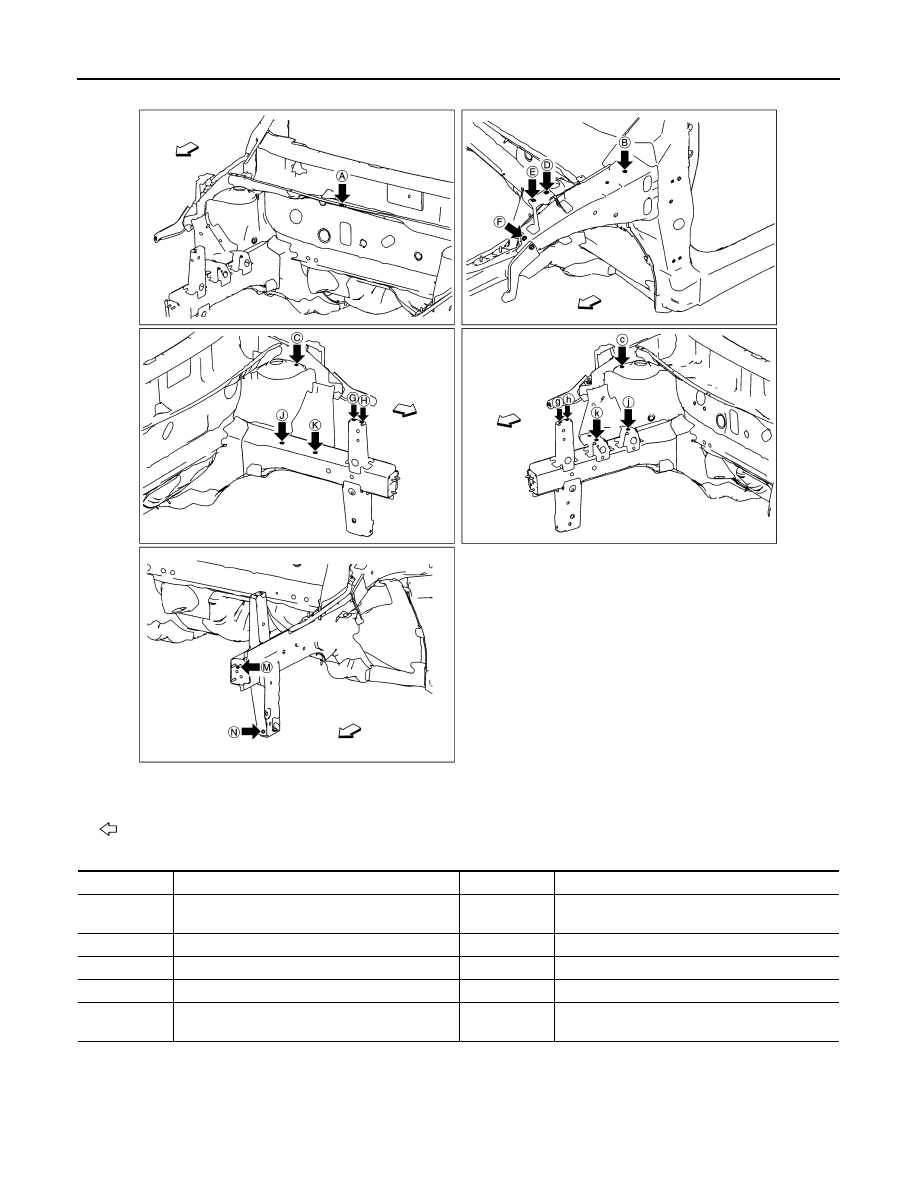

Underbody

INFOID:0000000006024212

Measurement

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

: Vehicle front

JSKIA1907ZZ

Point

Material

Point

Material

A

Upper dash hole center of center positioning
mark 8

×

6 (0.31

×

0.24)

G, g, H, h

Radiator core support side hole center

φ

7 (0.28)

B, b

Hood hinge installing hole center

φ

11 (0.43)

J, K

Front side member hole center

φ

14 (0.55)

C, c

Front strut installing hole center

φ

12 (0.47)

j, k

Engine mounting bracket hole center

φ

11 (0.43)

D, d, E, e

Front fender installing hole center

φ

7 (0.28)

M, m

Front bumper reinforcement installing bolt head

F, f

Hoodledge reinforcement hole center 13

×

10

(0.51

×

0.39)

N, n

Lower radiator core mounting bracket hole center

φ

11 (0.43)
