FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005911644

REMOVAL

1.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the screws and disconnect the connector to remove the front door speaker.

INSTALLATION

Install in the reverse order of removal.

AV-18

< REMOVAL AND INSTALLATION >

[AUDIO SYSTEM]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005911648

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2.

Remove the screws and disconnect the connector to remove the rear door speaker.

INSTALLATION

Install in the reverse order of removal.

AV

ANTENNA BASE

AV-19

< REMOVAL AND INSTALLATION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA BASE

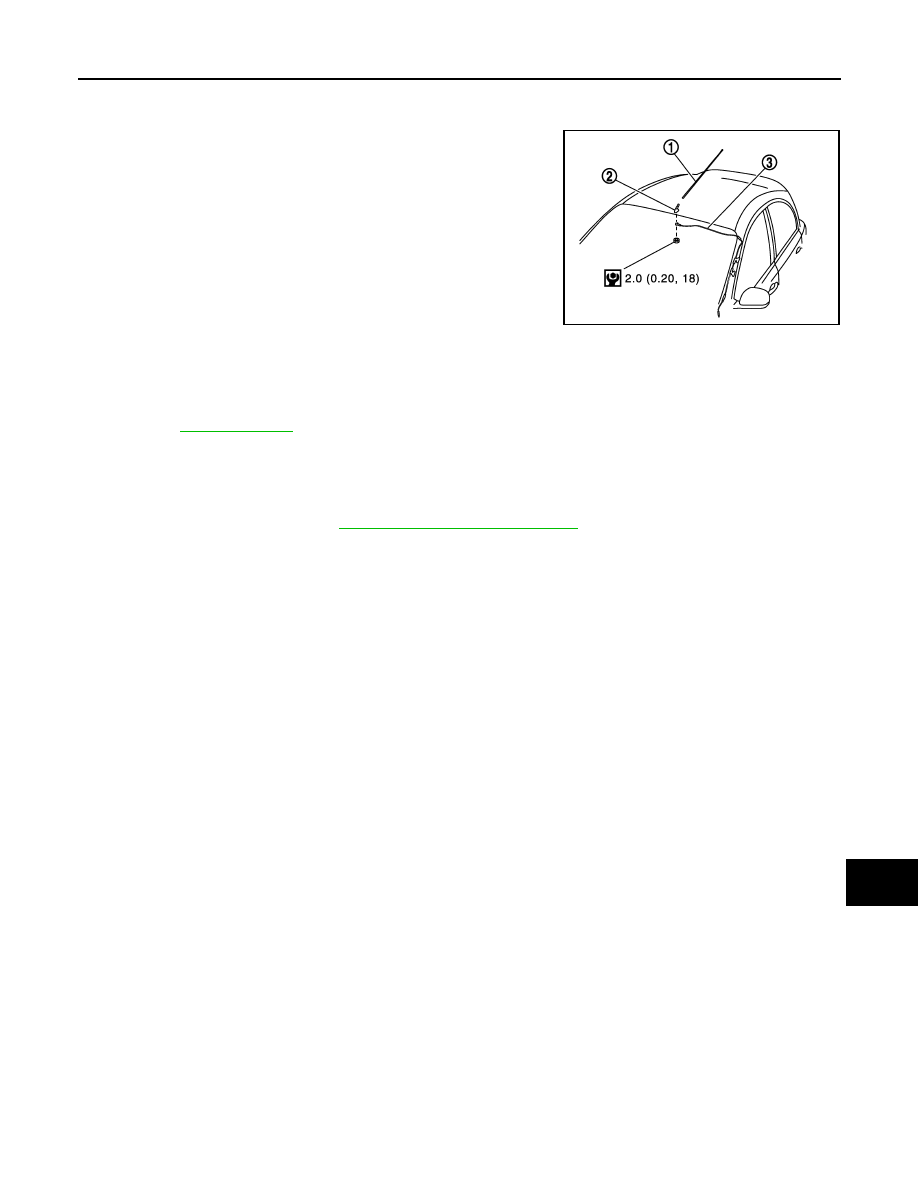

Exploded View

INFOID:0000000005911649

Removal and Installation

INFOID:0000000005911650

REMOVAL

1.

Remove the headlining. Refer to

INT-28, "Removal and Installation"

.

2.

Remove the mounting nut to remove the antenna base from the roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When antenna base mounting nut tightening torque is loose, be careful about tightening torque.
Antenna sensitivity becomes poor, and when it is excessive, roof panel may become deformed.

JSNIA3032GB

1.

Antenna rod

2.

Antenna base

3.

Antenna feeder

Refer to

GI-4, "Components"

 for symbols in the figure.

AV-20

< REMOVAL AND INSTALLATION >

[AUDIO SYSTEM]

ANTENNA FEEDER

ANTENNA FEEDER

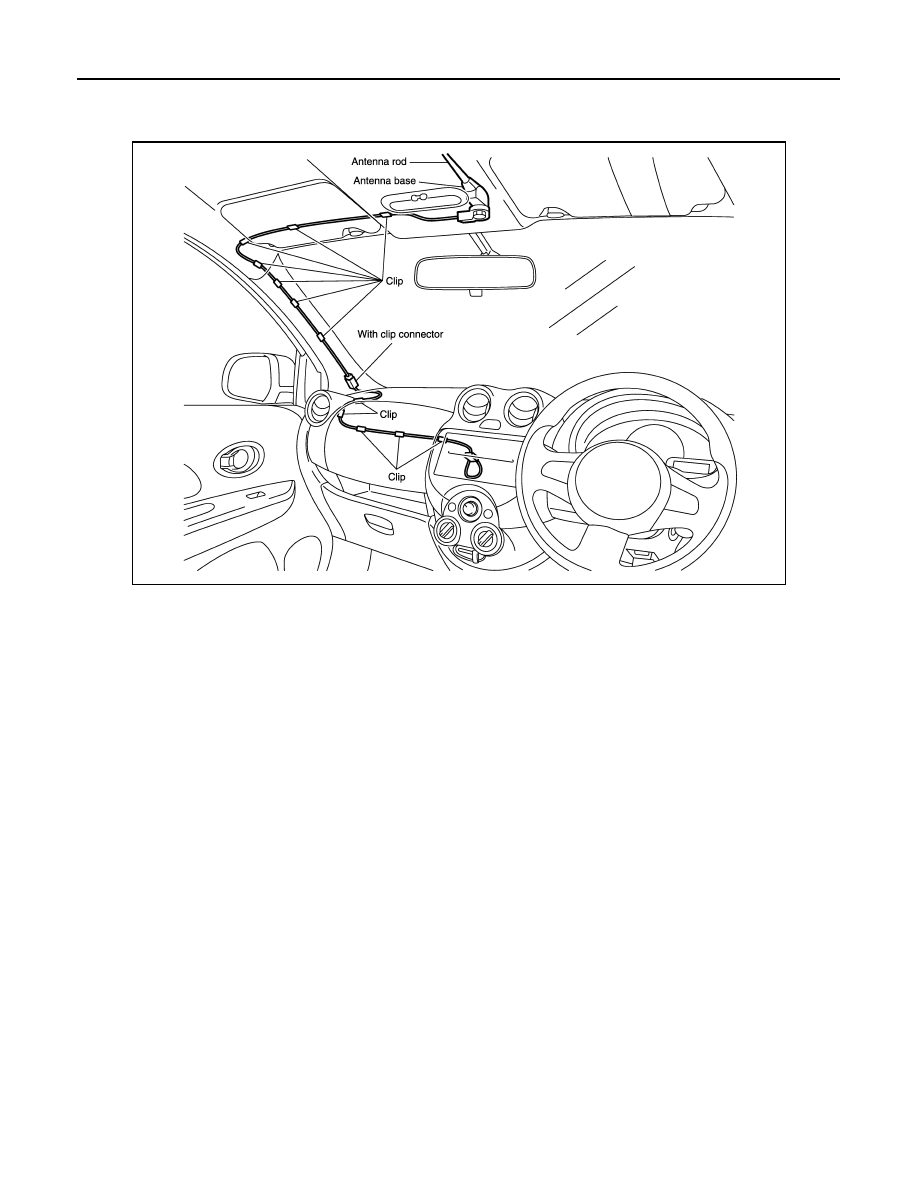

Feeder Layout

INFOID:0000000005911659

JSNIA2960GB
