Almera Tino V10 (2003 year). Manual - part 241





WHEELARCH HEIGHT (UNLADEN*1)

NLSU0041

Unit: mm (in)

SFA818A

195/65R15

205/55R16

QG18

YD22

QG18

YD22

FR

RR

FR

RR

FR

RR

FR

RR

703 (27.68)

671 (26.42)

700 (27.56)

671 (26.42)

703 (27.68)

670 (26.38)

700 (27.56)

670 (26.38)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: “Ground clearance up” model

WHEEL RUNOUT

NLSU0023

Wheel type

Aluminum

Steel wheel

Radial runout limit

mm (in)

0.3 (0.012)

0.5 (0.020)

Lateral runout limit

mm (in)

0.3 (0.012)

0.8 (0.031)

WHEEL BALANCE

NLSU0044

Maximum allowable unbalance

Dynamic (At rim flange) g (oz)

10 (0.35) (one side)

Static g (oz)

20 (0.71)

FRONT SUSPENSION

Service Data and Specifications (SDS) (Cont’d)

SU-16

SBR686C

Precautions

PRECAUTIONS

NLSU0024

I

When installing each rubber part, final tightening must be
carried out under unladen condition* with tires on ground.
Oil will shorten the life of rubber bushes. Be sure to wipe
off any spilled oil.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

I

Use flare nut wrench when removing or installing brake
tubes.

I

After installing removed suspension parts, check wheel
alignment.

I

Do not jack up at the trailing arm and lateral link.

I

Always torque brake lines when installing.

I

Lock nuts are unreusable parts; always use new ones.
When replacing, do not wipe the oil off of the new lock nut
before tightening.

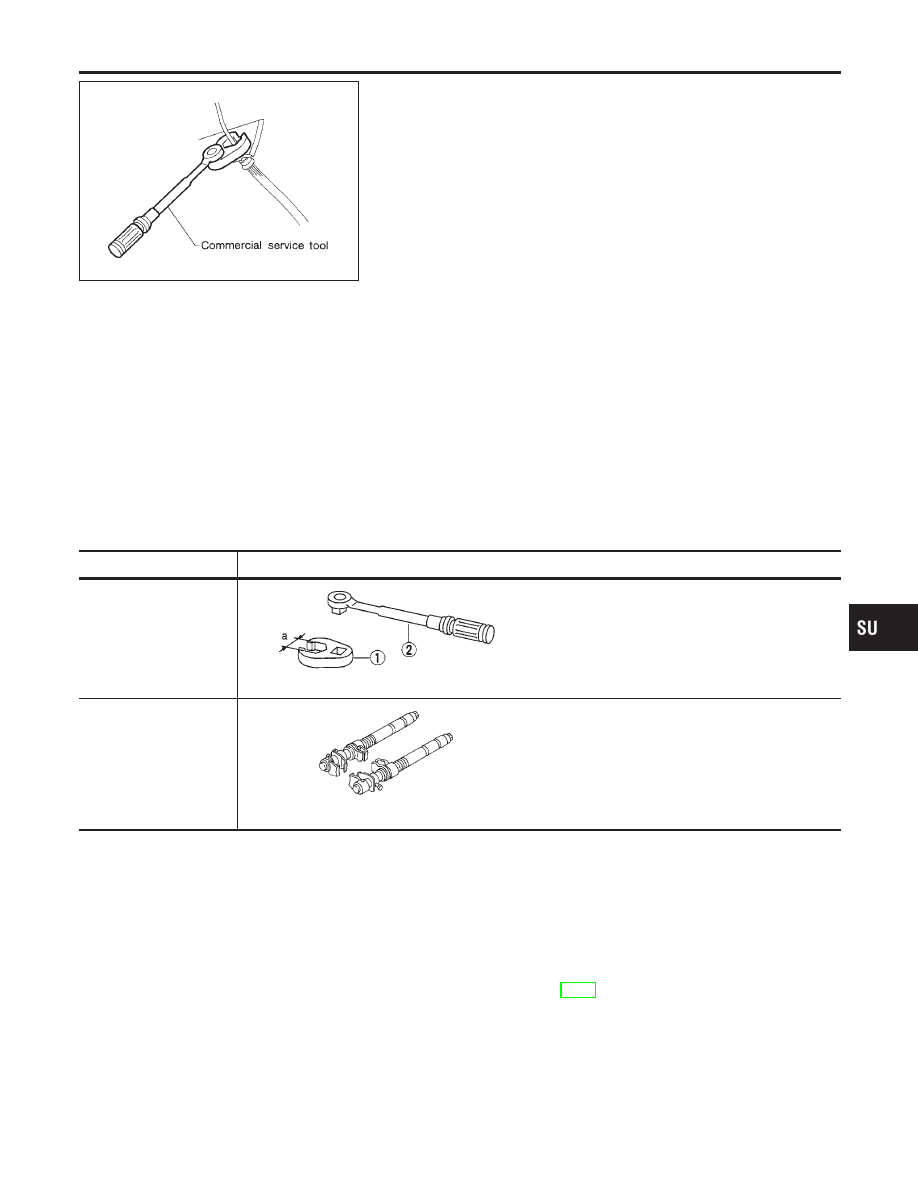

Preparation

COMMERCIAL SERVICE TOOLS

NLSU0026

Tool name

Description

Equivalent to
1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing brake piping
a: 10 mm (0.39 in)

Spring compressor

NT717

Removing and installing coil spring

Noise, Vibration and Harshness (NVH)
Troubleshooting

NLSU0027

Refer to “Noise, Vibration and Harshness (NVH) Troubleshooting”,
“FRONT SUSPENSION”, SU-4.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

Precautions

SU-17

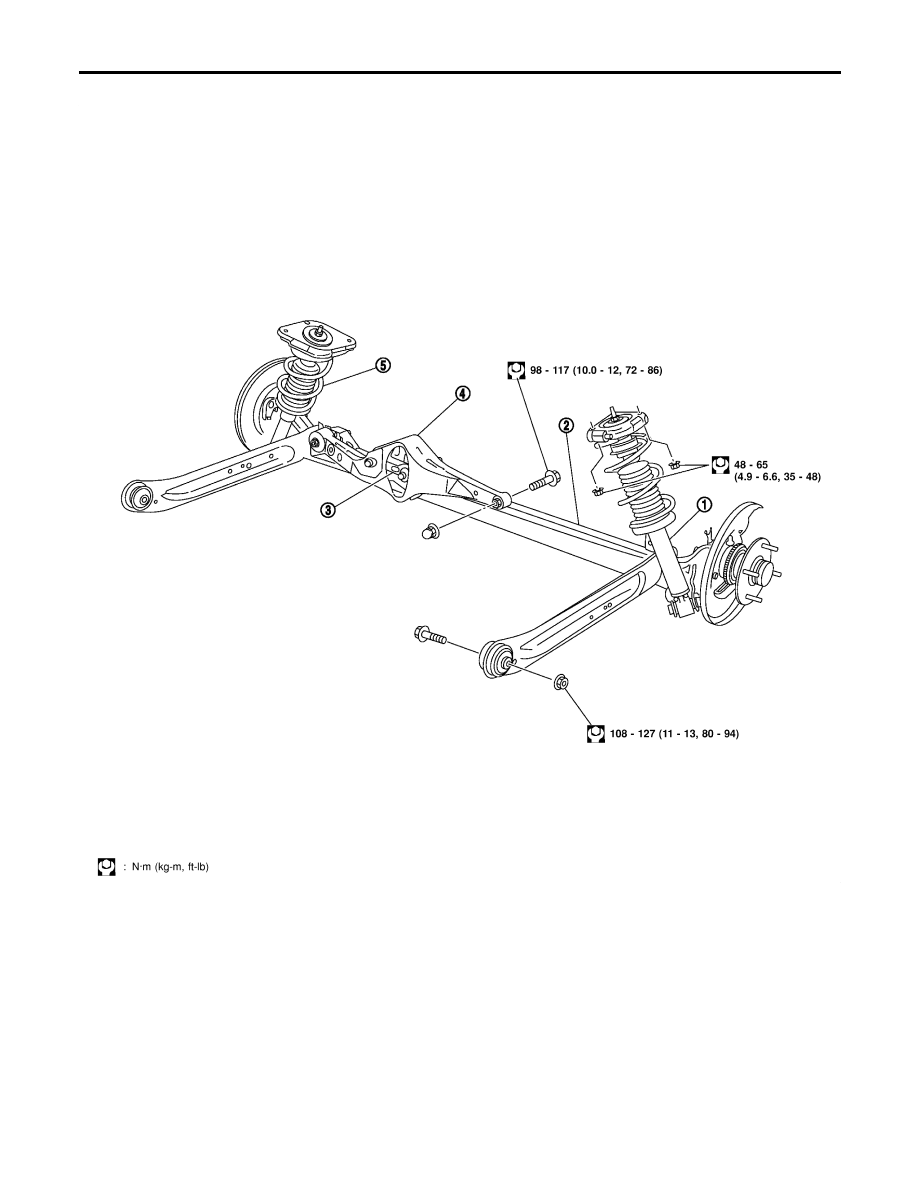

Components

NLSU0028

NRA027

1.

Shock absorber

2.

Torsion beam

3.

Control rod

4.

Lateral link

5.

Coil spring

REAR SUSPENSION

Components

SU-18

SMA525A

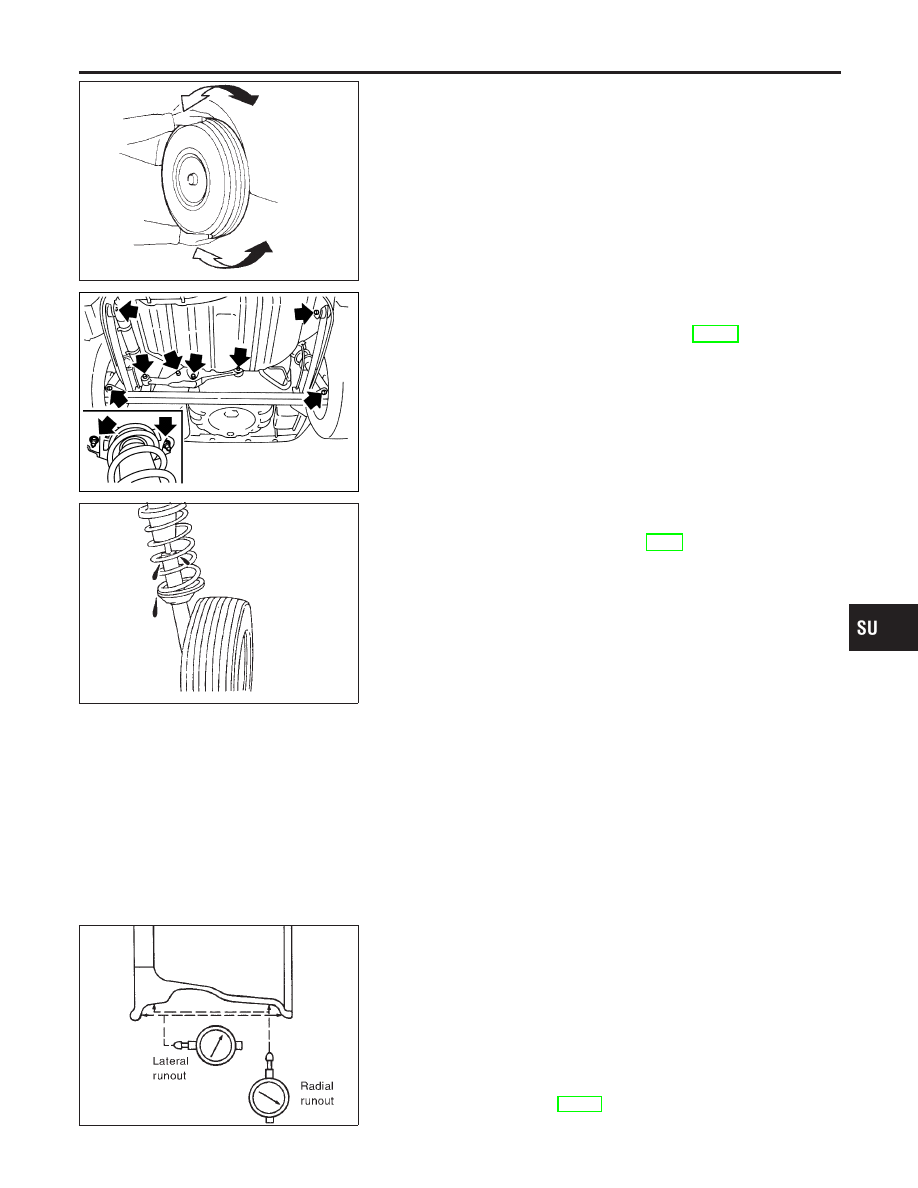

On-vehicle Service

REAR SUSPENSION PARTS

NLSU0029

Check axle and suspension parts for excessive play, wear or dam-
age.

I

Shake each rear wheel to check for excessive play.

SSU036

I

Retighten all nuts and bolts to the specified torque.

Tightening torque:

Refer to “REAR SUSPENSION”, SU-18.

SMA113

I

Check shock absorber for oil leakage or other damage.

I

Check wheelarch height. Refer to “On-vehicle Service”,
“FRONT SUSPENSION PARTS”, SU-6.

REAR WHEEL ALIGNMENT

NLSU0030

Before checking rear wheel alignment, be sure to make a prelimi-
nary inspection (Unladen*).
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand
tools and mats in designated positions.

SFA975B

Preliminary Inspection

NLSU0030S01

Aluminum wheel

NLSU0030S0101

1.

Check tires for wear and improper inflation.

2.

Check wheels for deformation, cracks and other damage. If
deformed, remove wheel and check wheel runout.

a.

Remove tire from aluminum wheel and mount on a tire balance
machine.

b.

Set dial indicator as shown in the illustration.

Wheel runout (Dial indicator value):

Refer to SDS, SU-16.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

On-vehicle Service

SU-19

3.

Check front wheel bearings for looseness.

4.

Check front suspension for looseness.

5.

Check steering linkage for looseness.

6.

Check that front shock absorbers work properly.

7.

Check vehicle posture (Unladen).

SFA981B

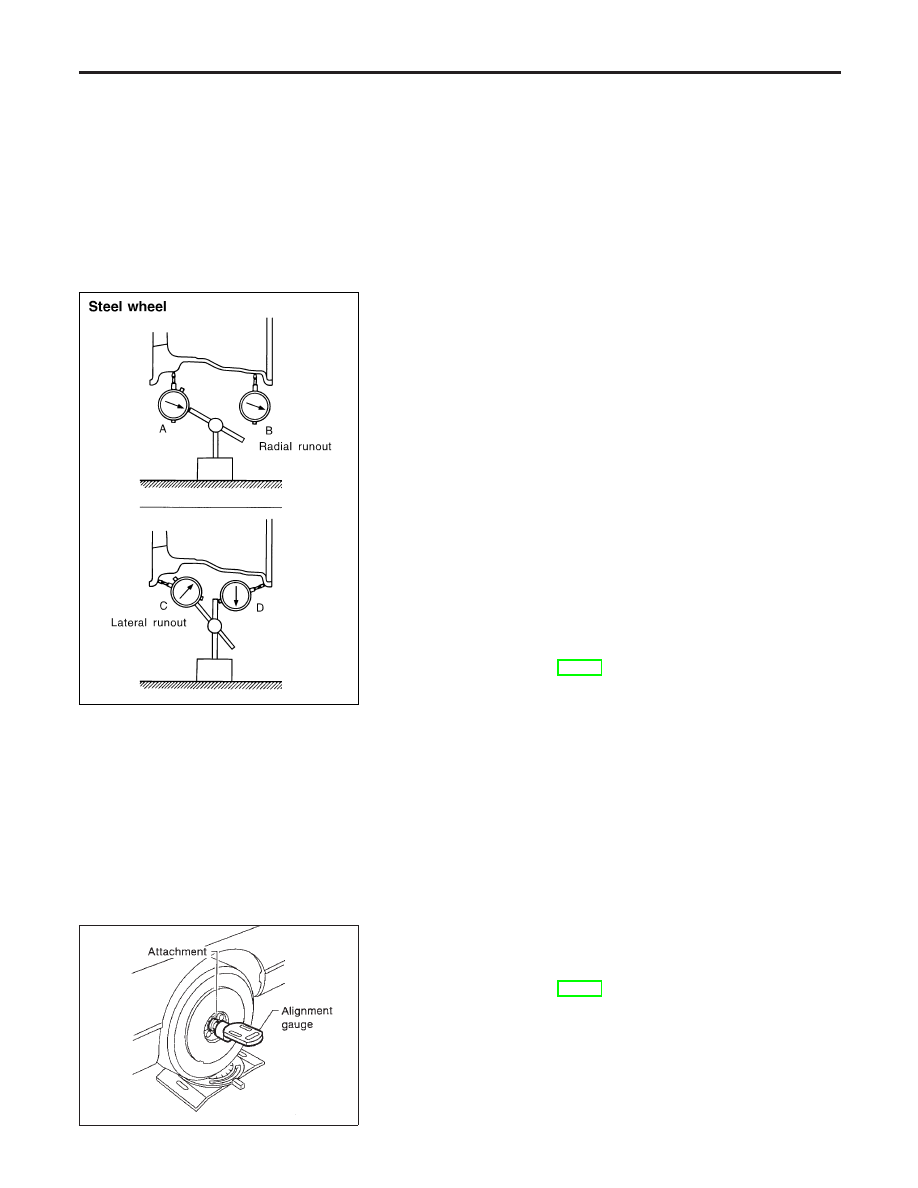

Steel wheel

NLSU0030S0102

1.

Check tires for wear and improper inflation.

2.

Check wheels for deformation, cracks and other damage.
If deformed, remove wheel and check wheel runout.

a.

Remove tire from steel wheel and mount wheel on a tire bal-
ance machine.

b.

Set two dial indicators as shown in the illustration.

c.

Set each dial indicator to 0.

d.

Rotate wheel and check dial indicators at several points
around the circumference of the wheel.

e.

Calculate runout at each point as shown below.
Radial runout = (A + B)/2
Lateral runout = (C + D)/2

f.

Select maximum positive runout value and the maximum
negative value.
Add the two values to determine total runout.
In case a positive or negative value is not available, use the
maximum value (negative or positive) for total runout.
If the total runout value exceeds the limit, replace steel wheel.

Wheel runout:

Refer to SDS, SU-16.

3.

Check front wheel bearings for looseness.

4.

Check front suspension for looseness.

5.

Check steering linkage for looseness.

6.

Check that front shock absorbers work properly.

7.

Check vehicle posture (Unladen).

SFA948A

Camber

NLSU0030S02

Camber is preset at factory and cannot be adjusted.

Camber:

Refer to SDS, SU-27.

I

If the camber is not within specification, inspect and replace
any damaged or worn rear suspension parts.

REAR SUSPENSION

On-vehicle Service (Cont’d)

SU-20

SFA614B

SFA234AC

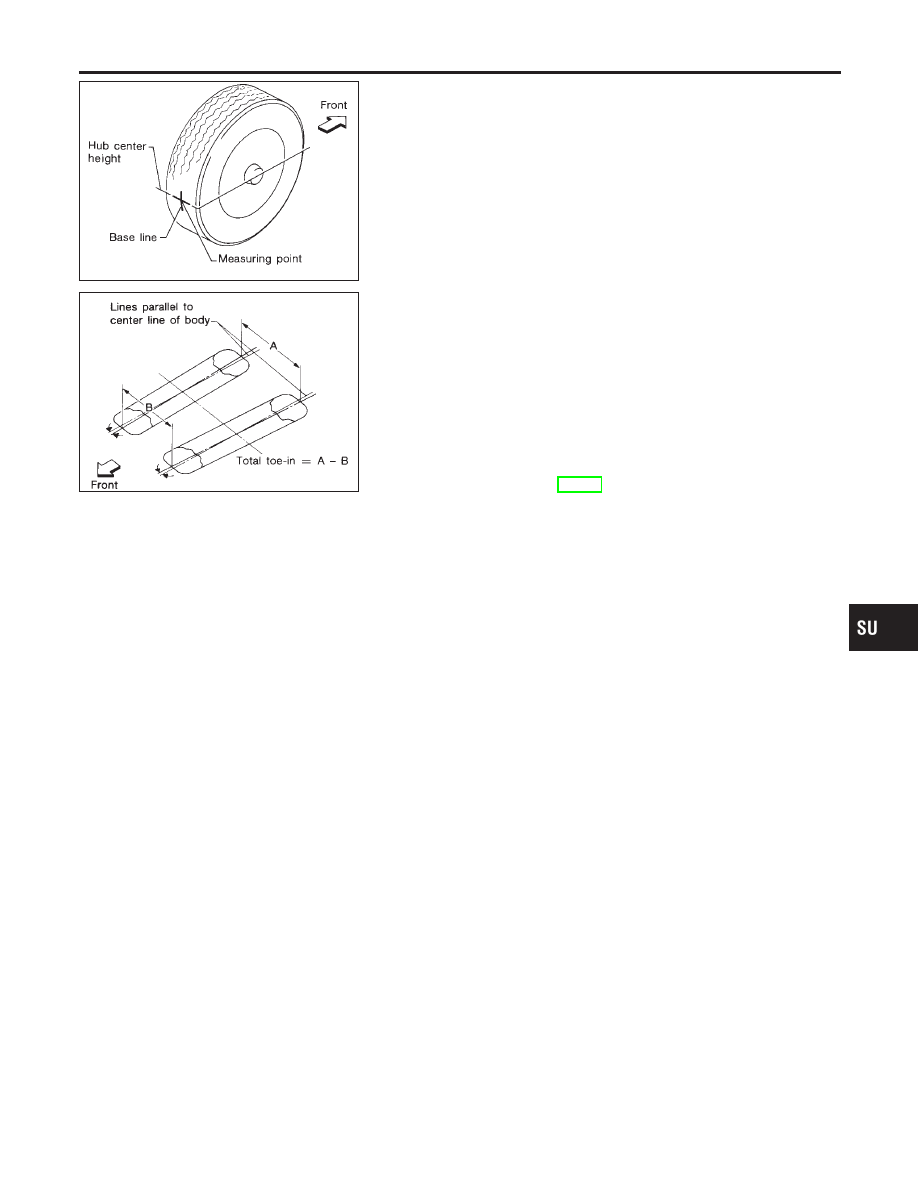

Toe-in

NLSU0030S03

Toe-in is preset at factory and cannot be adjusted.
Measure

toe-in

using

following

procedure.

If

out

of

specification, inspect and replace any damaged or worn rear
suspension parts.

WARNING:

I

Perform following procedure always on a flat surface.

I

Make sure that no person is in front of the vehicle before
pushing it.

1.

Bounce rear of vehicle up and down to stabilize the posture.

2.

Push the vehicle straight ahead about 5 m (16 ft).

3.

Put a mark on base line of the tread (rear side) of both tires at
the same height of hub center. This mark is a measuring point.

4.

Measure distance “A” (rear side).

5.

Push the vehicle slowly ahead to rotate the wheels 180
degrees (1/2 turn).

If the wheels have rotated more than 180 degrees (1/2 turn), try
the above procedure again from the beginning. Never push
vehicle backward.
6.

Measure distance “B” (front side).

Total toe-in: A − B

Refer to SDS, SU-27.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

On-vehicle Service (Cont’d)

SU-21

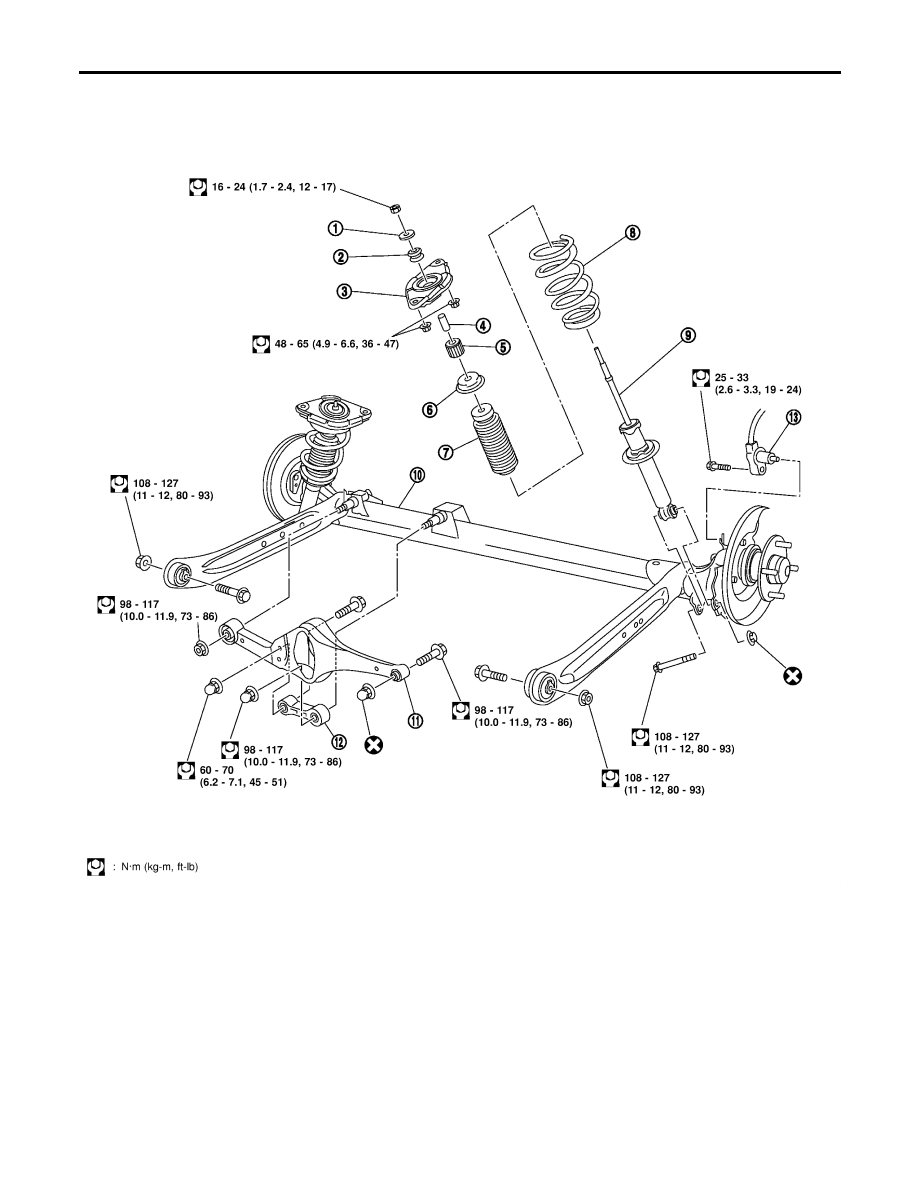

Removal and Installation

NLSU0031

NRA028

1.

Washer

2.

Bushing

3.

Shock absorber mounting bracket

4.

Collar

5.

Bushing

6.

Bound bumper cover

7.

Bound bumper

8.

Coil spring

9.

Shock absorber

10. Torsion beam
11. Lateral link
12. Control rod
13. ABS sensor

REAR SUSPENSION

Removal and Installation

SU-22

SRA695A

SSU038

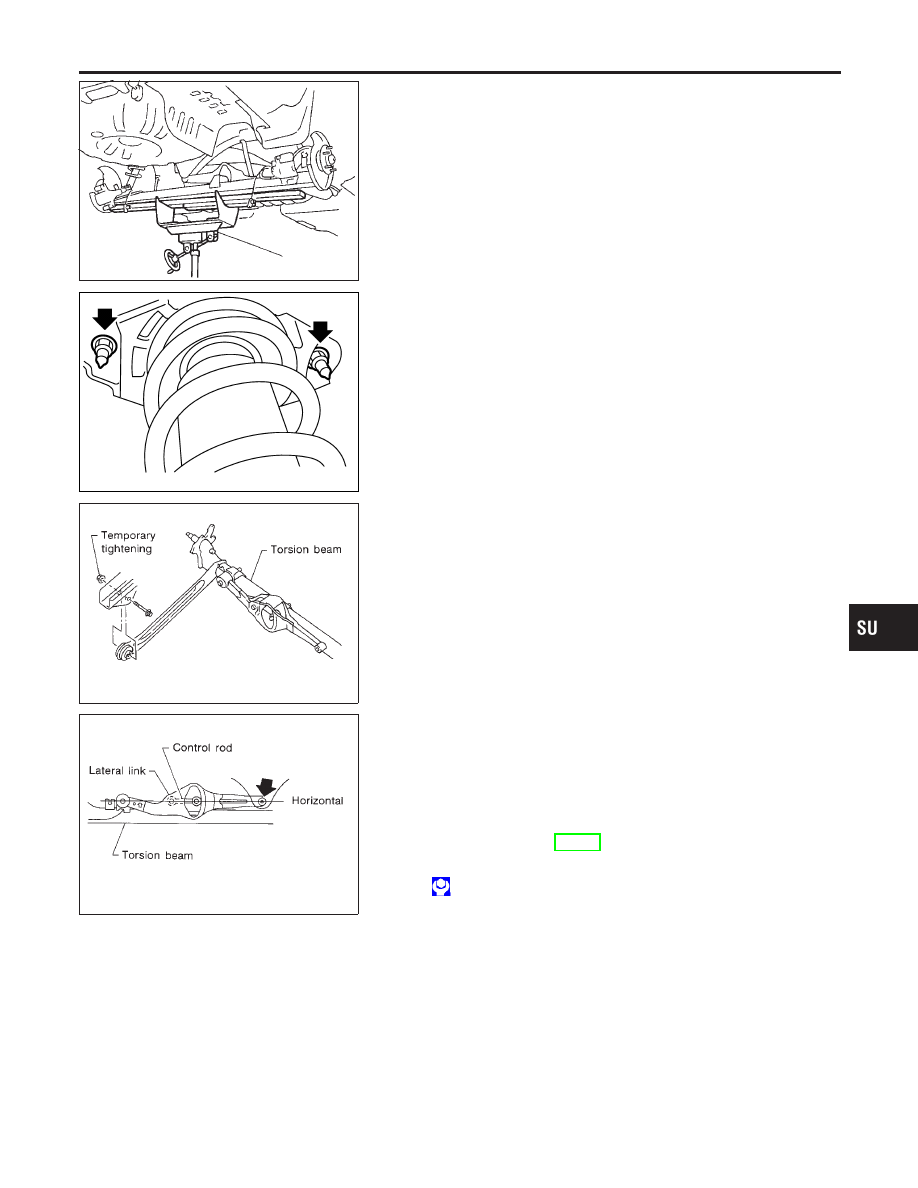

REMOVAL

NLSU0031S01

CAUTION:

I

Before removing the rear suspension assembly, discon-
nect the ABS wheel sensor from the assembly. Failure to
do so may result in damage to the sensor wires and the
sensor becoming inoperative.

I

Remove suspension assembly.

1.

Disconnect brake hydraulic lines and parking brake cable at
toggle lever. (Models with drum brakes.)

I

Drain brake fluid before disconnecting brake lines.

2.

Disconnect parking brake cable from caliper and remove brake
caliper and rotor. (Models with disc brakes.)
Suspend caliper assembly with wire so as not to stretch
brake hose.
Be careful not to depress brake pedal, or piston will pop
out.
Make sure brake hose is not twisted.

3.

Using a transmission jack, raise torsion beam a little, and
remove nuts and bolts from the trailing arm, shock absorber
assembly (lower side) and lateral link (Body side).

4.

Lower transmission jack, and remove suspension.

5.

Remove strut securing nuts (upper side). Then pull out strut
assembly.

SRA697A

INSTALLATION

NLSU0031S02

I

Install suspension assembly.

CAUTION:

Refill with new brake fluid “DOT 4”.
Never reuse drained brake fluid.
1.

Attach torsion beam, at trailing arm and lateral link, to vehicle.
Do not tighten bolts at this time.

SRA698A

2.

Using a transmission jack, place lateral link and control rod
horizontally against torsion beam. Tighten lateral link on
vehicle.

3.

Attach shock absorber assembly to vehicle. Then tighten the
lower side of shock absorber assembly.

4.

Lower torsion beam to fully extended position. Remove trans-
mission jack and tighten torsion beam, at trailing arm, to speci-
fied torque. Refer to SU-22.

5.

Install brake hydraulic lines and tighten flare nuts.

: 15 - 18 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

6.

Install ABS wheel sensor.

Coil Spring and Shock Absorber

REMOVAL AND INSTALLATION

NLSU0032

Remove shock absorber upper and lower fixing nuts.
Do not remove piston rod lock nut on vehicle.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

Removal and Installation (Cont’d)

SU-23

SRA806A

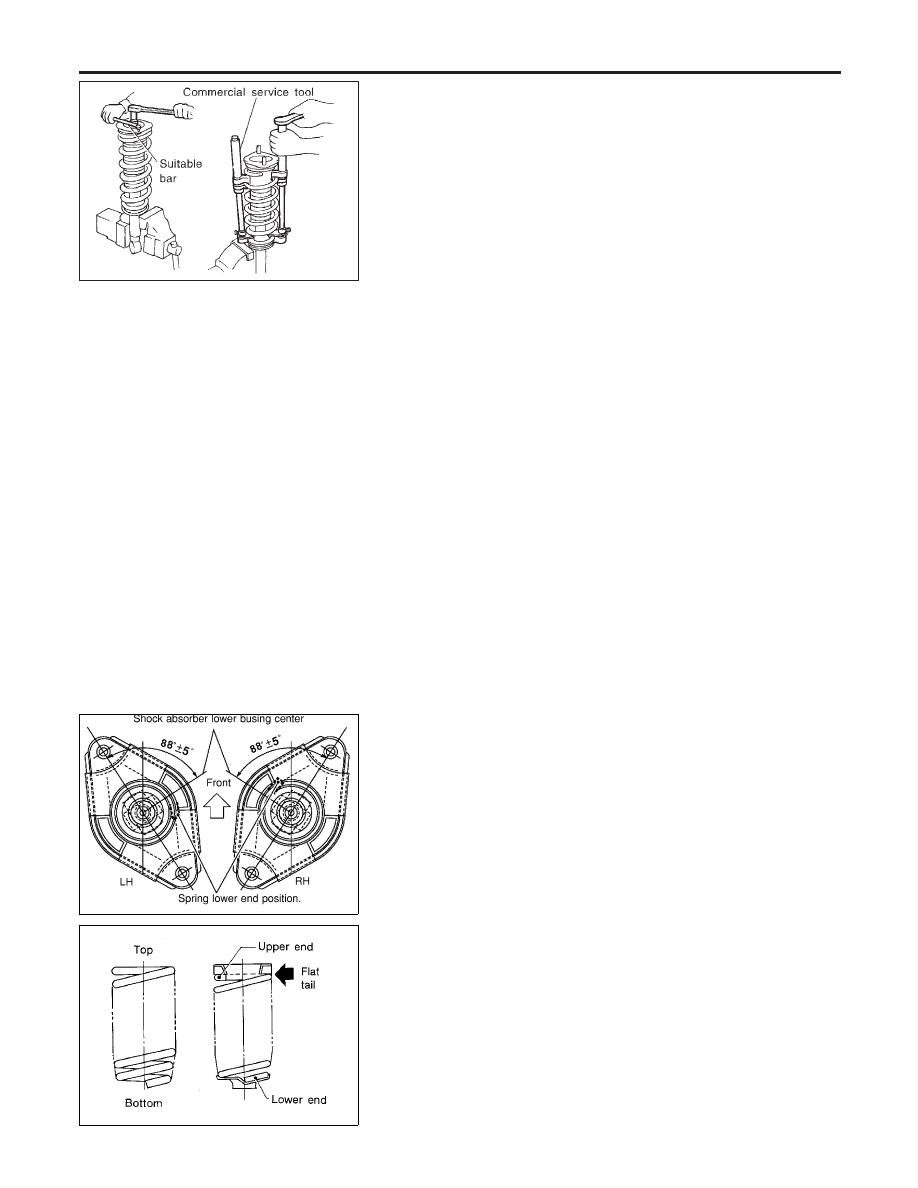

DISASSEMBLY

NLSU0033

1.

Set shock absorber in vise, then loosen piston rod lock nut.
Do not remove piston rod lock nut at this time.

2.

Compress spring with Tool so that the shock absorber upper
spring seat can be turned by hand.

WARNING:

Make sure that the pawls of the two spring compressors are
firmly hooked on the spring. The spring compressors must be
tightened alternately so as not to tilt the spring.
3.

Remove piston rod lock nut.

INSPECTION

NLSU0034

Shock Absorber Assembly

NLSU0034S01

I

Check for smooth operation through a full stroke, both com-
pression and extension.

I

Check for oil leakage on welded or gland packing portions.

I

Check piston rod for cracks, deformation or other damage.
Replace if necessary.

Upper Rubber Seat and Bushing

NLSU0034S02

Check rubber parts for deterioration or cracks.
Replace if necessary.

Coil Spring

NLSU0034S03

Check for cracks, deformation or other damage. Replace if
necessary.

NRA029

ASSEMBLY

NLSU0035

I

Locate upper spring seat as shown.

SFA436B

I

When installing coil spring, be careful not to reverse top and
bottom direction. (Top end is flat.)

I

When installing coil spring on shock absorber, it must be posi-
tioned as shown in figure at left.

CAUTION:

Do not reuse piston rod lock nut.

REAR SUSPENSION

Coil Spring and Shock Absorber (Cont’d)

SU-24

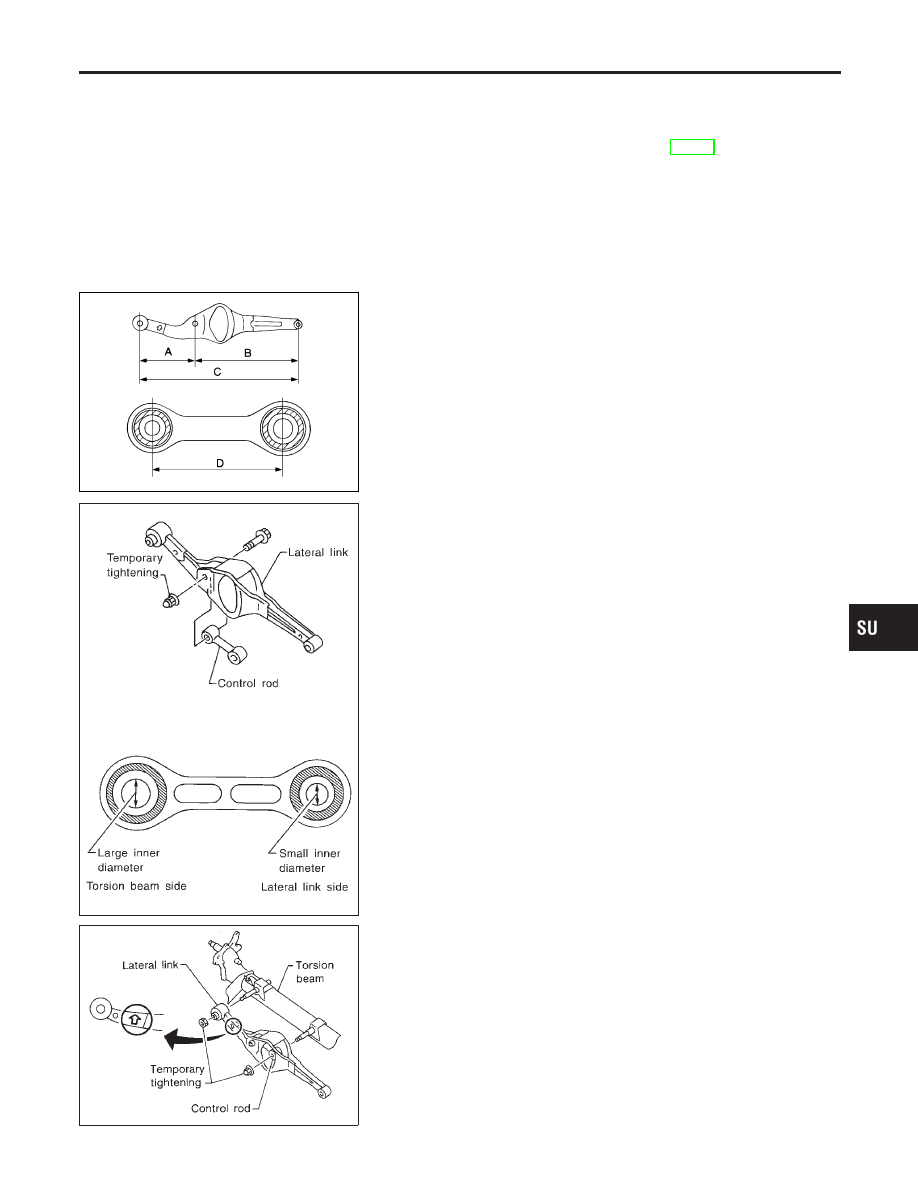

Torsion Beam, Lateral Link and Control Rod

DISASSEMBLY

NLSU0036

I

Remove torsion beam assembly. Refer to “Removal and
Installation”, “REAR SUSPENSION”, SU-23.

I

Remove lateral link and control rod from torsion beam.

ARA072

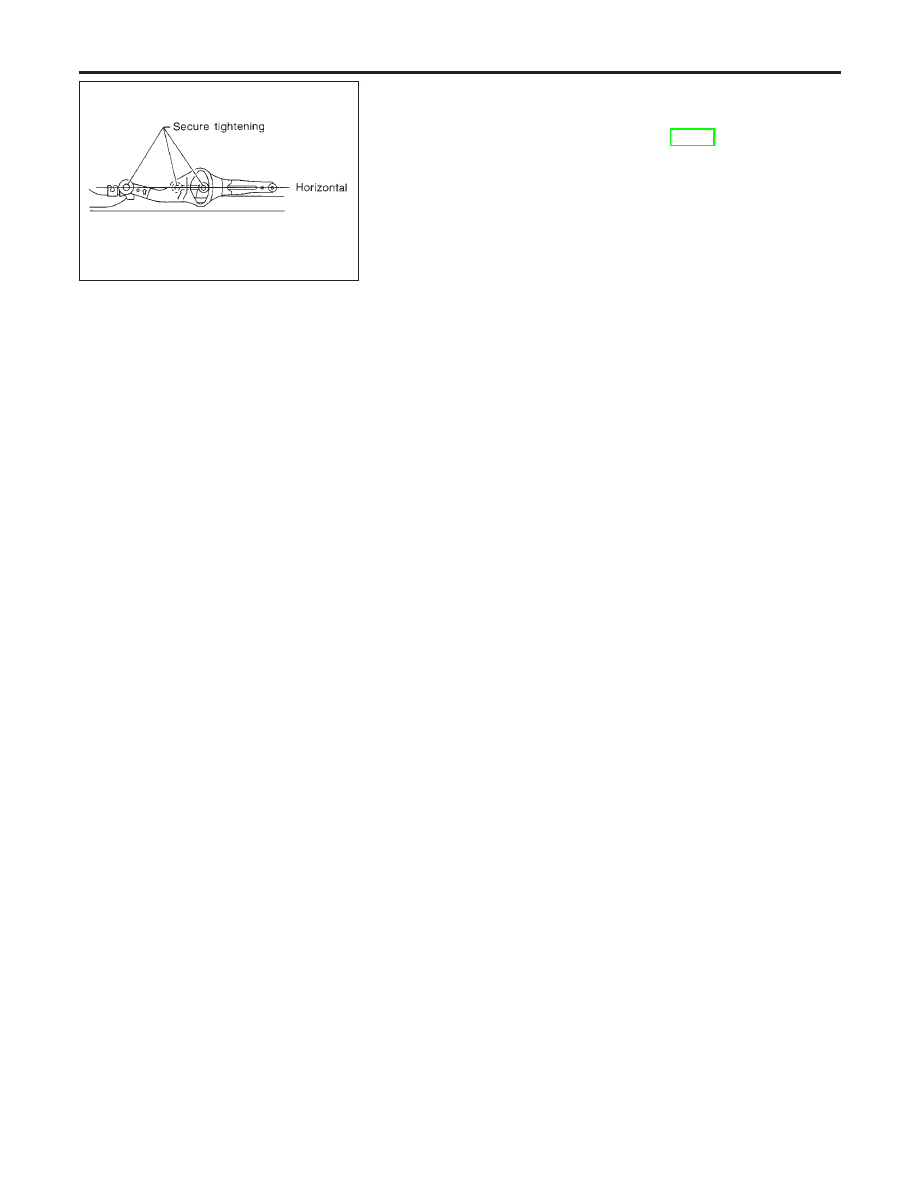

INSPECTION

NLSU0037

I

Check for cracks, distortion or other damage. Replace if nec-
essary.

Standard length:

A 207 - 208 mm (8.15 - 8.19 in)
B 394 - 395 mm (15.51 - 15.55 in)
C 601 - 603 mm (23.66 - 23.74 in)
D 106 - 108 mm (4.17 - 4.25 in)

I

Check all rubber parts for wear, cracks or deformation.
Replace if necessary.

SRA793A

ASSEMBLY

NLSU0038

1.

Temporarily assemble lateral link and control rod.

I

When installing the control rod, connect the bush with the
smaller inner diameter to the lateral link.

SRA701A

2.

Temporarily install lateral link and control rod on torsion beam.

I

When installing, place lateral link with the arrow topside.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

Torsion Beam, Lateral Link and Control Rod

SU-25

SRA702A

3.

Place lateral link and control rod horizontally against torsion
beam, and tighten to the specified torque.

4.

Install torsion beam assembly. Refer to “Removal and
Installation”, “REAR SUSPENSION”, SU-23.

REAR SUSPENSION

Torsion Beam, Lateral Link and Control Rod (Cont’d)

SU-26

Service Data and Specifications (SDS)

GENERAL SPECIFICATIONS (REAR)

=NLSU0039

Suspension type

Multi-link beam suspension

Shock absorber type

Double-acting hydraulic

REAR WHEEL ALIGNMENT (UNLADEN*)

NLSU0040

Body

Camber
Degree minute (Decimal degree)

Minimum

−1°45

(−1.75°)

Nominal

−1°00

(−1.00°)

Maximum

−0°15

(−0.25°)

Total toe-in

Distance (A − B)
mm (in)

Minimum

−3 (−0.12)

Nominal

1 (0.04)

Maximum

5 (0.20)

Angle (left plus right)
Degree minute (Decimal degree)

Minimum

−16

(−0.27°)

Nominal

5

30

(0.09°)

Maximum

26

(0.43°)

*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

Service Data and Specifications (SDS)

SU-27

NOTES















Content      ..     239      240      241
