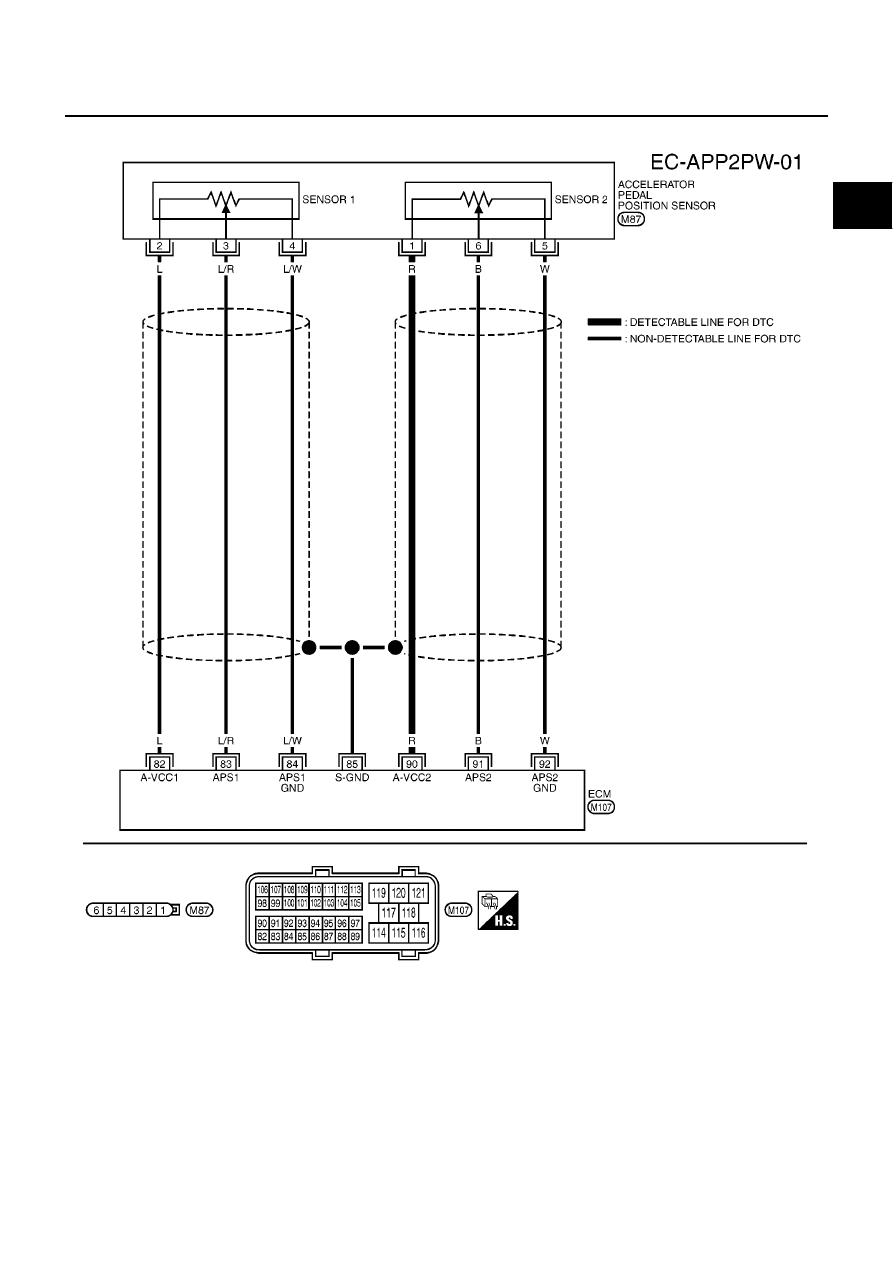

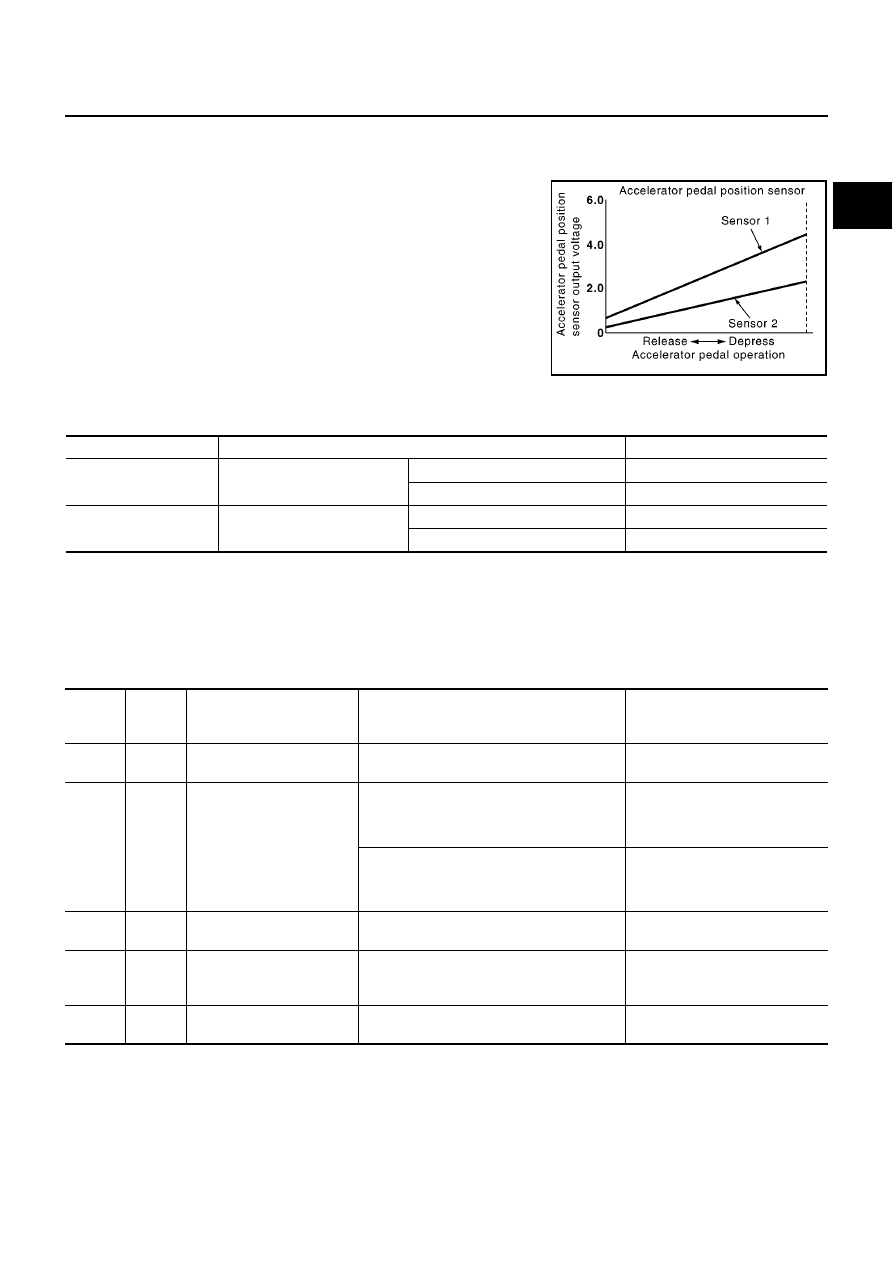

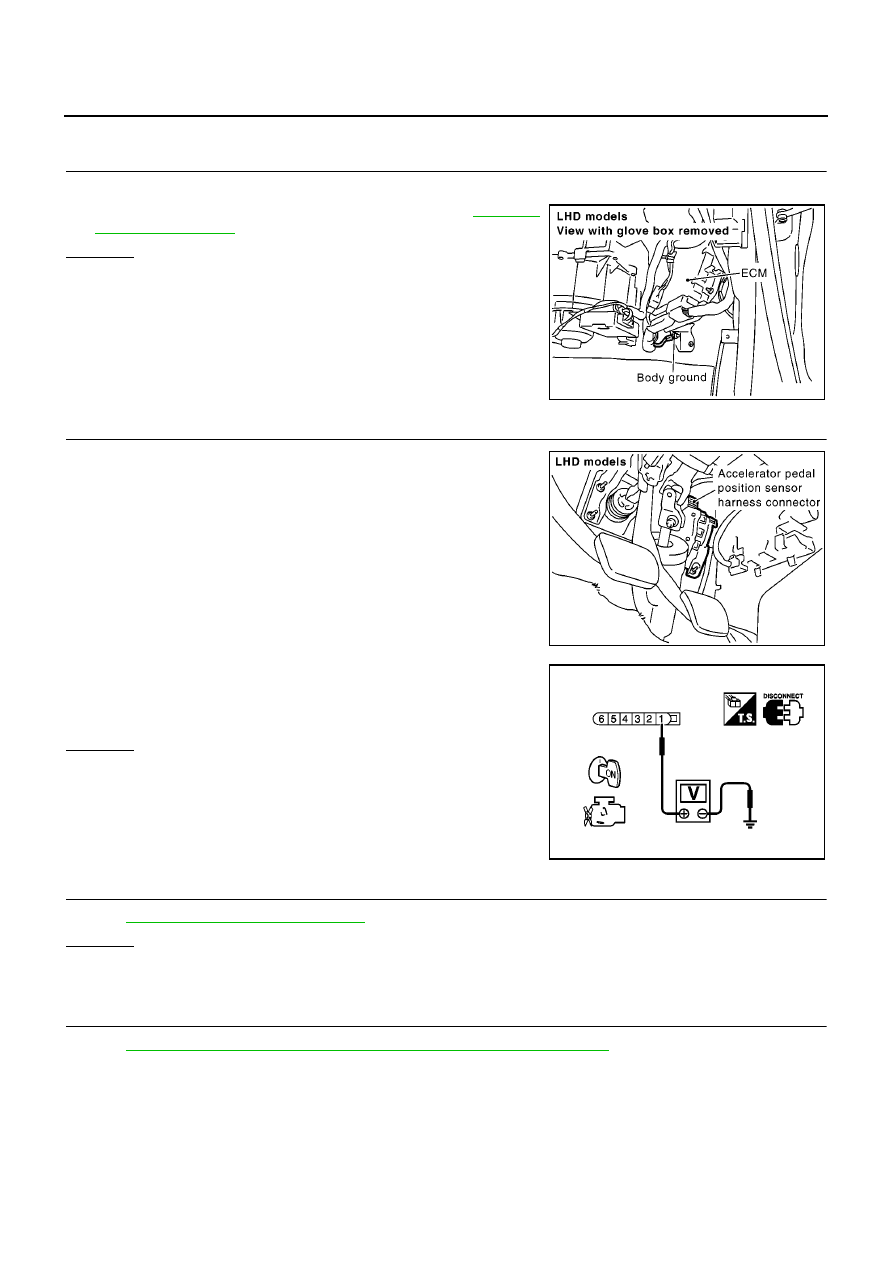

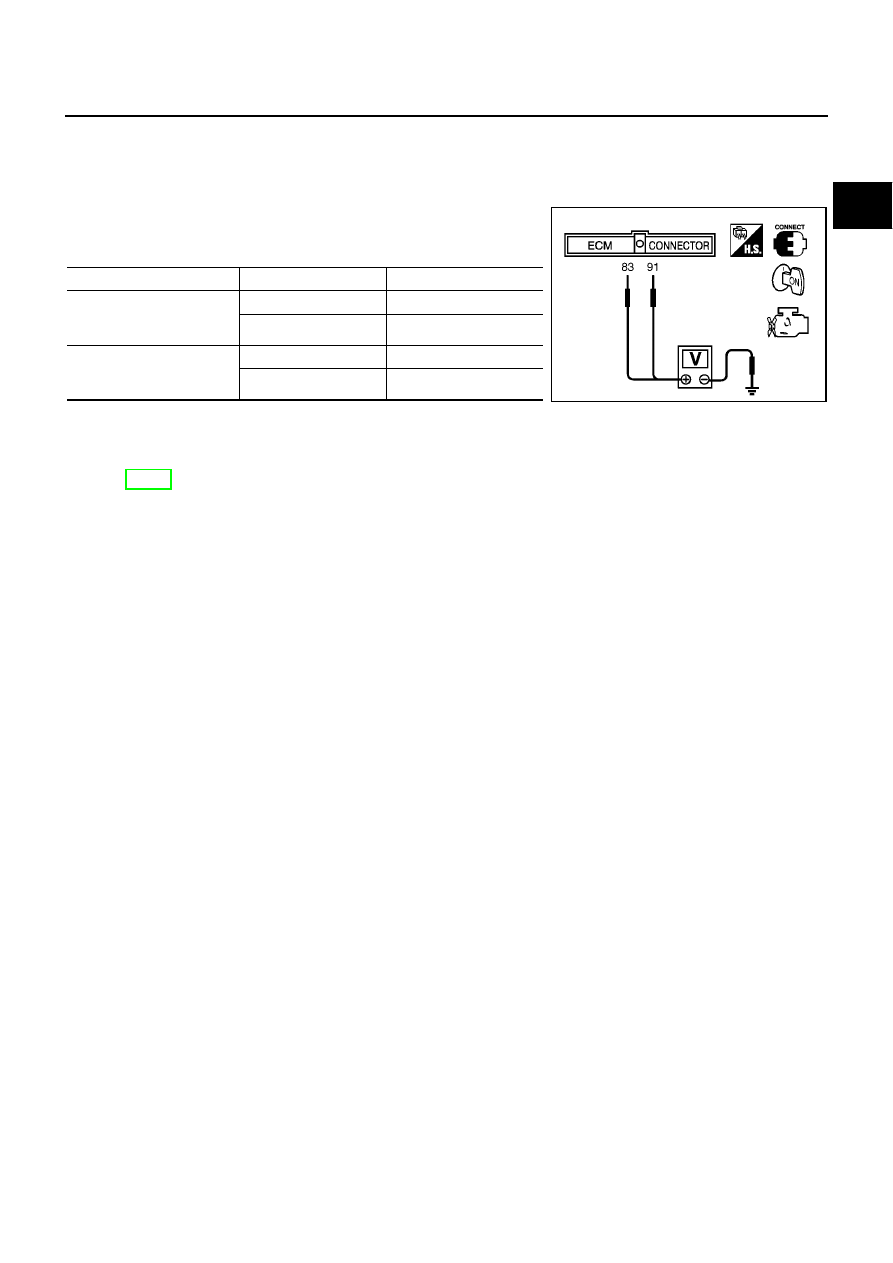

DTC P0652, P0653 SENSOR POWER SUPPLY EC-1435 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L M A EC DTC P0652, P0653 SENSOR POWER SUPPLY PFP:18002 Description EBS014Y9 The accelerator pedal position sensor is installed on the upper end CONSULT-II Reference Value in Data Monitor Mode EBS014YA Specification data are reference values. *: This signal is converted by ECM internally. Thus, it differs from ECM terminal voltage. ECM Terminals and Reference Value EBS014YB Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- PBIB1741E MONITOR ITEM CONDITION SPECIFICATION ACCEL POS SEN* ● Ignition switch: ON Accelerator pedal: Fully released 0.2 - 0.7V Accelerator pedal: Fully depressed 3.9 - 4.9V ACCEL SEN 2* ● Ignition switch: ON Accelerator pedal: Fully released 0.1 - 0.4V Accelerator pedal: Fully depressed 1.9 - 2.4V TERMI- NAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 82 L Accelerator pedal position [Ignition switch ON] Approximately 5.3V 83 L/R Accelerator pedal position [Ignition switch ON] ● Engine stopped ● Accelerator pedal: Fully released 0.5 - 1.0V [Ignition switch ON] ● Engine stopped ● Accelerator pedal: Fully depressed 4.2 - 5.2V 84 L/W Accelerator pedal position [Ignition switch ON] Approximately 0.3V 85 — Sensor ground [Ignition switch ON] Approximately 0.3V 90 R Accelerator pedal position [Ignition switch ON] Approximately 5.3V |
