SCL738

6.

Make sure each sliding part operates smoothly when with-
drawal lever is moved.

CAUTION:

Remove any excess grease with a shop towel.

GI

MA

EM

LC

EC

FE

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CLUTCH RELEASE MECHANISM

RS5F70A

Installation (Cont’d)

CL-19

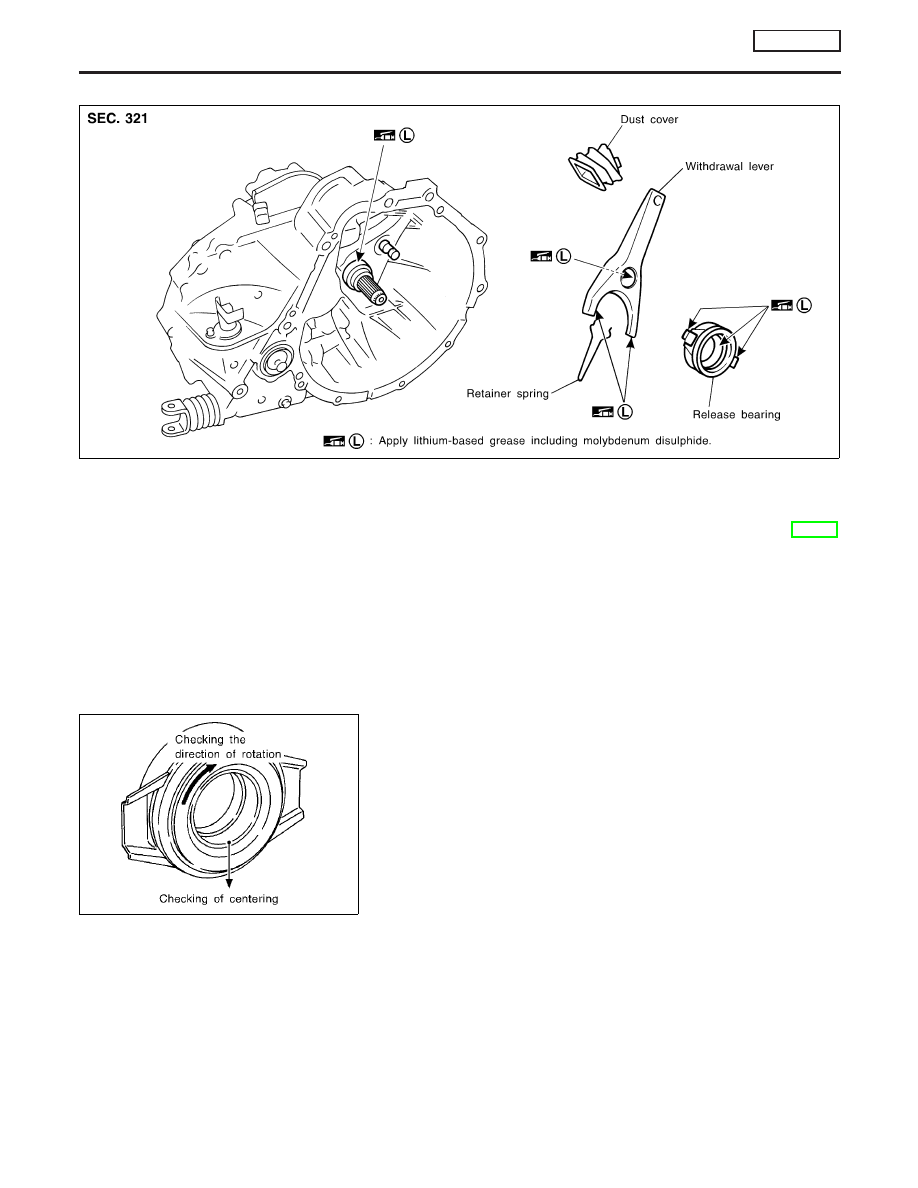

Components

NLCL0027

SCL842

Removal

NLCL0028

1.

Remove manual transaxle from vehicle. Refer to MT-21,
“Removal”.

2.

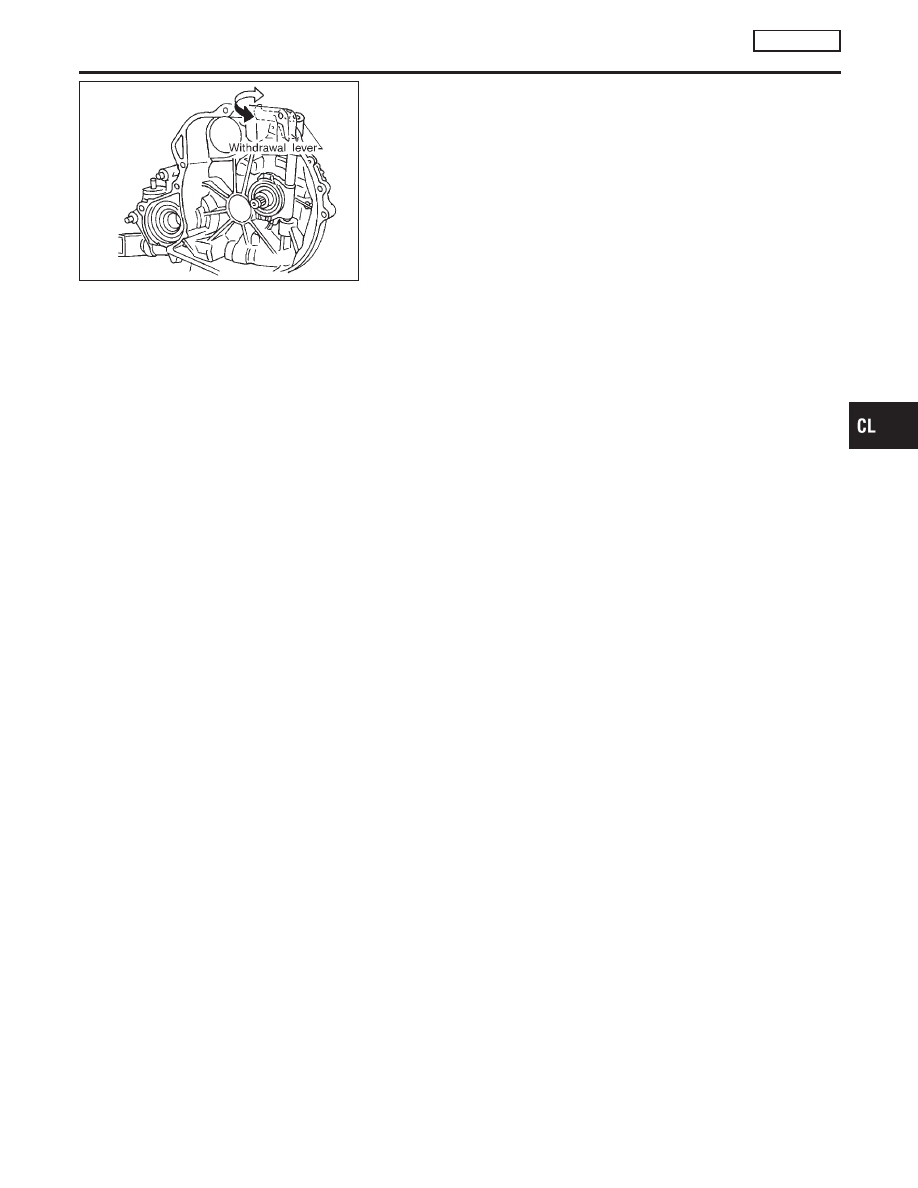

Move withdrawal lever enough to remove release bearing, and
remove release bearing from clutch withdrawal lever.

3.

Remove dust cover.

4.

Remove retainer spring from withdrawal lever.

SCL733

Inspection

NLCL0029

I

Replace the release bearing if it is seized, damaged, faulty in
rotation direction, or has poor aligning function.

I

Replace the withdrawal lever if its contact surface is worn
abnormally.

I

Replace the dust cover if it is deformed or cracked.

Installation

NLCL0030

1.

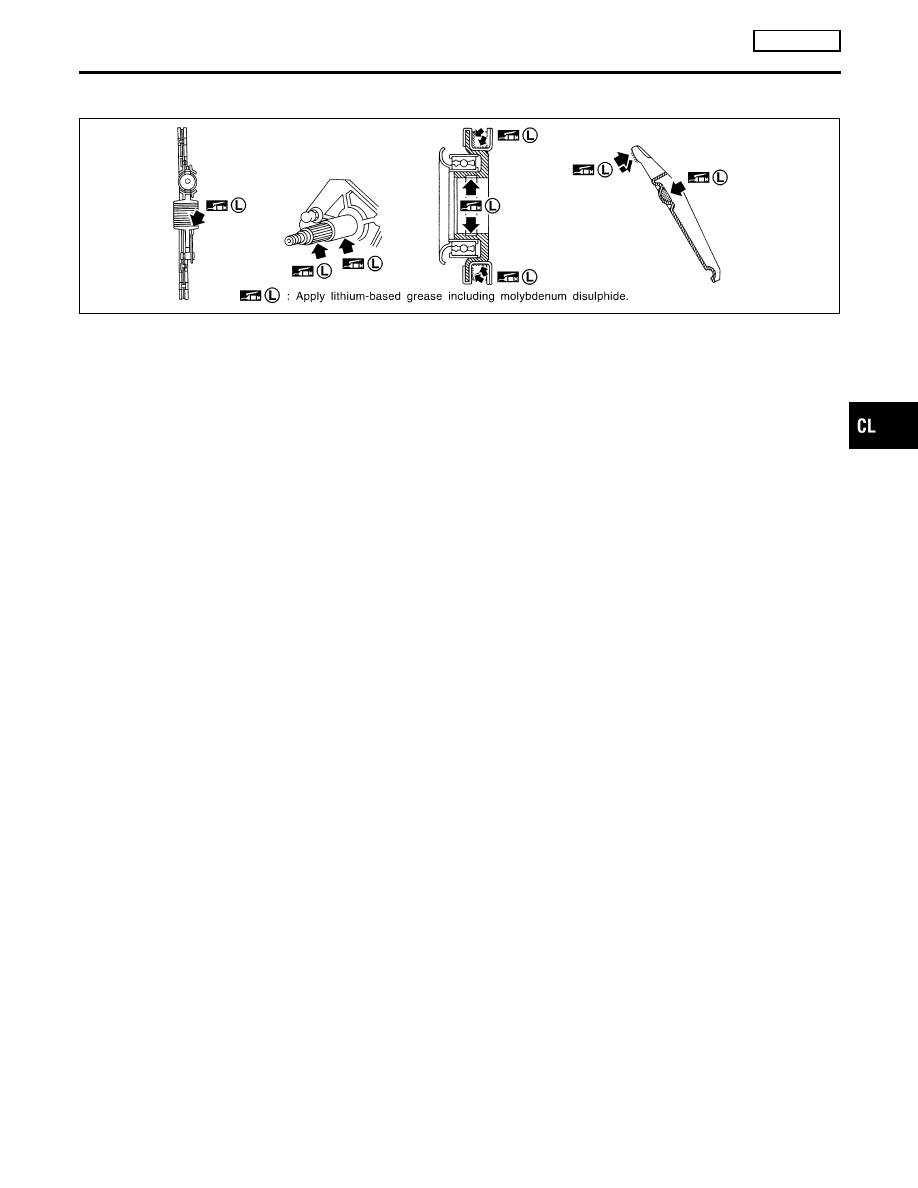

Apply a coat of grease to parts as instructed in the following
cautions and notes before installation.

CAUTION:

I

Be sure to apply grease to the clutch components.
Otherwise, abnormal noise, poor clutch disengagement,
or clutch damage may occur. Wipe the excess grease off
completely, because it may cause the clutch components
to slip and shudder.

I

Keep the clutch disc facing, pressure plate, and flywheel
free of oil and grease.

CLUTCH RELEASE MECHANISM

RS5F50A

Components

CL-20

I

Clean old grease and abrasive materials off the grease
application area.

SCL815

NOTE:

I

Equally apply a coat [approximately 1 mm (0.04 in) thick] of
clutch sleeve grease to withdrawal lever and holder spring
frictional surfaces.

I

Apply a coat of clutch sleeve grease to the grooves on contact
surfaces of the withdrawal lever ball pin and inner surface of
release bearing so that grease application, make sure that
grease is flush with grooves.

I

Equally apply a thin coat of clutch sleeve grease to release
bearing frictional surface. After grease application, install
release bearing. Wipe off excess grease forced out during
bearing installation. Remove release bearing.

2.

Installation is in the reverse order of removal.

GI

MA

EM

LC

EC

FE

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CLUTCH RELEASE MECHANISM

RS5F50A

Installation (Cont’d)

CL-21

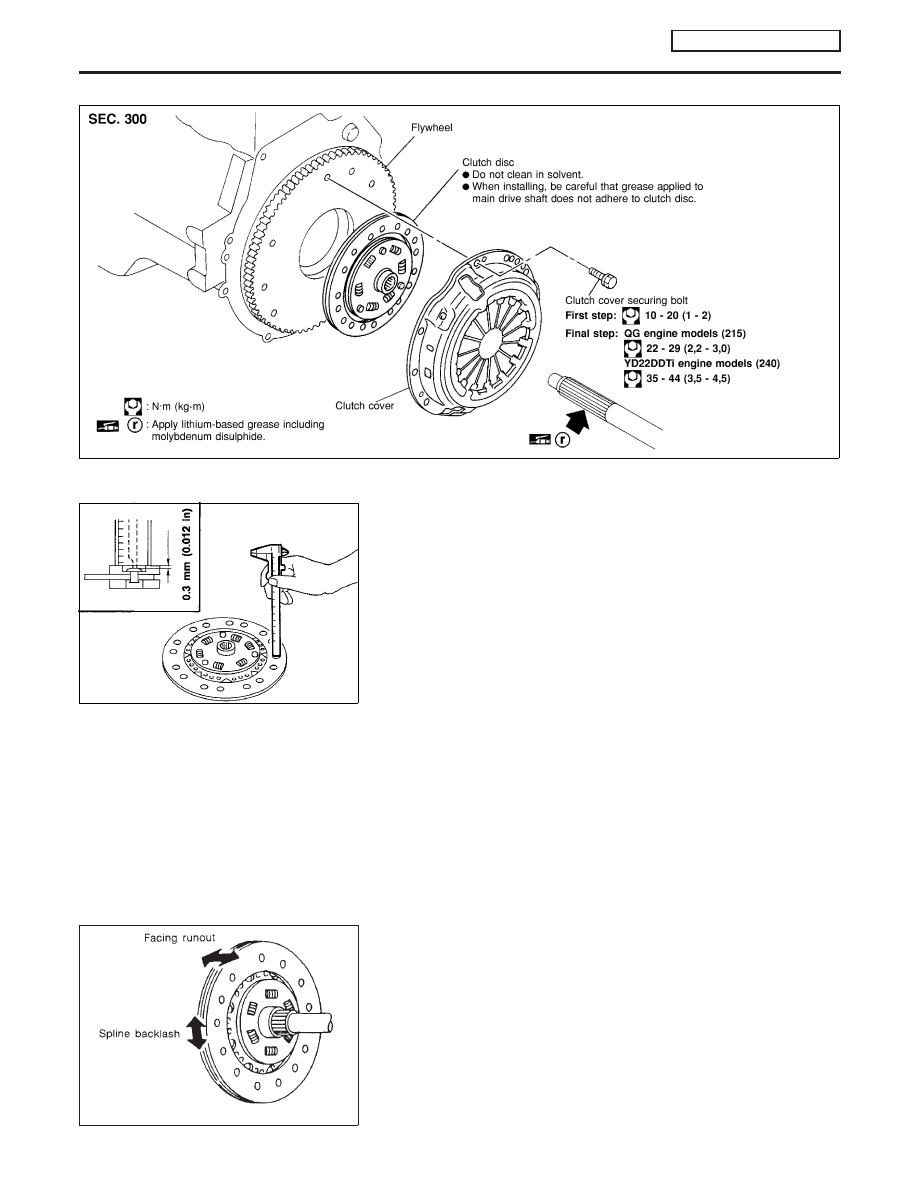

Components

NLCL0031

NCL054

SCL229

Inspection and Adjustment

NLCL0032

CLUTCH DISC

NLCL0032S01

I

Check clutch disc for wear of facing.

Wear limit of facing surface to rivet head:

MODEL 240, MODEL 215

(Part number 30100-

2F205)

0.3 mm (0.012 in)

Wearing thickness of facing:

MODEL 240, MODEL 215

(Part number 30100-

2F215)

1.3 mm (0.051 in)

SCL221

I

Check clutch disc for backlash of spline and runout of facing.

Maximum spline backlash (at outer edge of disc):

MODEL 215

0.9 mm (0.035 in)

MODEL 240

1.0 mm (0.039 in)

Runout limit:

1.0 mm (0.039 in)

Distance of runout check point (from hub center):

MODEL 215

102.5 mm (4.04 in)

MODEL 240

115 mm (4.53 in)

CLUTCH DISC, CLUTCH COVER AND

FLYWHEEL

RS5F70A, RS5F50A

Components

CL-22

I

Check clutch disc for burns, discoloration or oil or grease leak-
age. Replace if necessary.

SCL466-C

CLUTCH COVER

NLCL0032S02

I

Check clutch cover installed on vehicle for unevenness of dia-
phragm spring toe height.

Uneven limit:

MODEL 240

0.7 mm (0.028 in)

MODEL 215

(Part number 30210-BU000)

0.7 mm (0.028 in)

MODEL 215

(Part number 30210-BU010)

0.8 mm (0.031 in)

I

If out of limit, adjust the height with Tool.

AEM100

FLYWHEEL

NLCL0032S03

I

Check contact surface of flywheel for slight burns or discolora-
tion. Repair flywheel with emery paper.

I

Check flywheel runout.

Maximum allowable runout:

Refer to EM-95, “Flywheel Runout” (QG engine
models), and EM-221,
“Flywheel Runout (YD engine
models)”.

NCL055

NCL056

Installation

NLCL0033

I

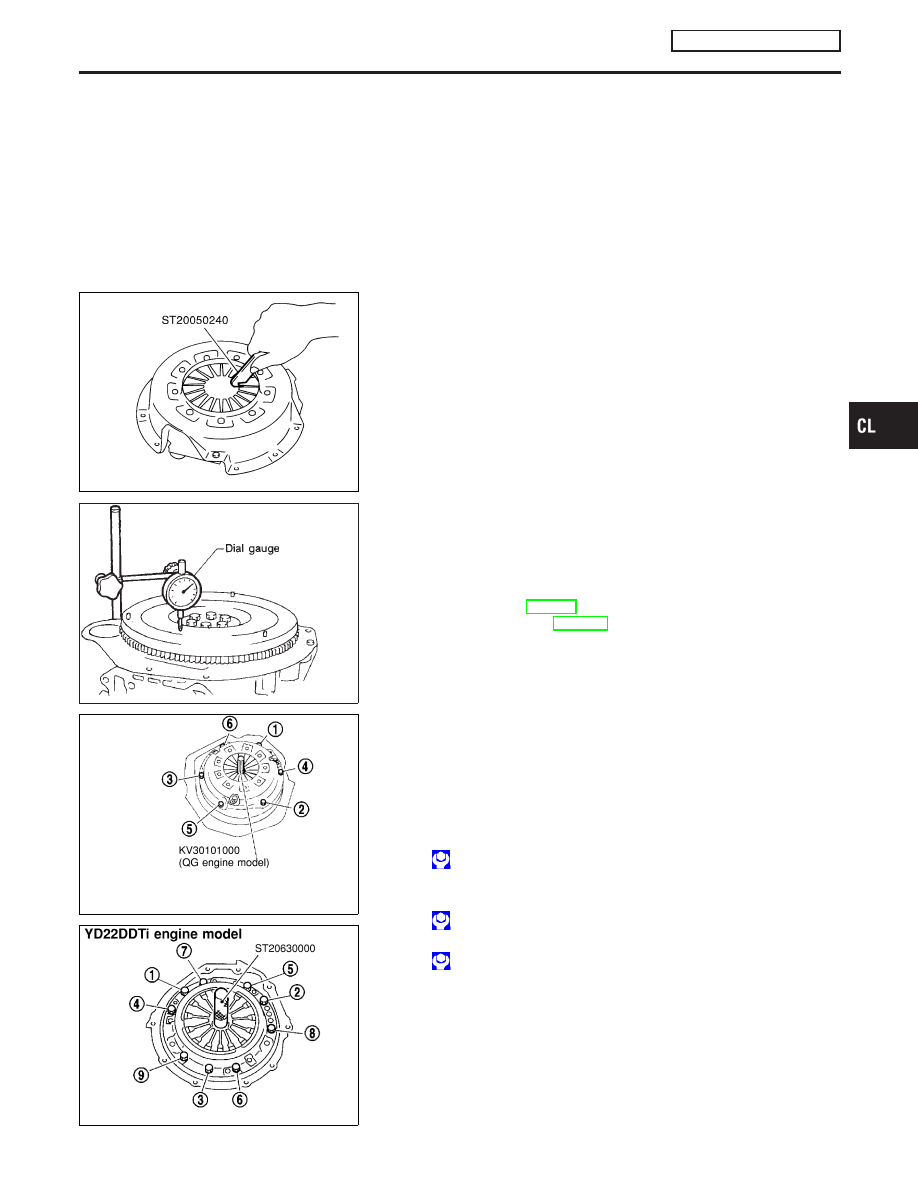

Insert Tool into clutch disc hub when installing clutch cover and
disc.

I

Be careful not to allow grease to contaminate clutch fac-
ing.

I

Tighten bolts in numerical order.

First step:

: 10 - 20 N·m (1 - 2 kg-m, 7 - 14 ft-lb)

Final step:
QG engine models (215)

: 22 - 29 N·m (2.2 - 3.0 kg-m, 15 - 21 ft-lb)

YD22DDTi engine model (240)

: 35 - 44 N·m (3.5 - 4.5 kg-m, 26 - 32 ft-lb)

GI

MA

EM

LC

EC

FE

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CLUTCH DISC, CLUTCH COVER AND

FLYWHEEL

RS5F70A, RS5F50A

Inspection and Adjustment (Cont’d)

CL-23

Clutch Control System

NLCL0034

Type of clutch control

Hydraulic

Clutch Master Cylinder

NLCL0035

Unit: mm (in)

Inner diameter

15.87 (5/8)

Clutch Operating Cylinder

NLCL0036

Unit: mm (in)

Inner diameter

19.05 (3/4)

Clutch Disc

NLCL0038

Unit: mm (in)

Engine

QG18DE

YD22DDTi

Model

215

240

Part number 30100-2F205

Part number 30100-2F215

Facing size (Outer dia.

×

inner

dia.

×

thickness)

215

×

140

×

3.5 (8.46

×

5.51

×

0.138)

216

×

153

×

3.45 (8.50

×

6.02

×

0.1358)

240

×

160

×

3.5 (9.45

×

6.30

×

0.138)

Thickness of disc assembly with
load

7.6 - 8.0 (0.299 - 0.315) with 4,904

N (500 kg, 1,103 lb)

7.3 - 7.9 (0.2874 - 0.3110) with

4,900 N (499.8 kg, 1102 lb)

7.5 - 8.1 (0.295 - 0.319) with 6,865

N (700.2 kg, 1,543.3 lb)

Wear limit of facing surface to
rivet head

0.3 (0.012)

0.3 (0.012)

Wearing thickness of facing

1.3 (0.051)

1.3 (0.051)

Runout limit of facing

1.0 (0.039)

Distance of runout check point
(from the hub center)

102.5 (4.04)

115 (4.53)

Maximum backlash of spline (at
outer edge disc)

0.9 (0.035)

1.0 (0.039)

Clutch Cover

NLCL0039

Unit: mm (in)

Engine

QG18DE

YD22DDTi

Model

215

240

Part number 30210-BU000

Part number 30210-BU010

Full-load

4,413 N (450 kg, 992 lb)

4,400 N (448.8 kg, 989.1 lb)

Uneven limit of diaphragm spring
toe height

0.7 (0.028)

0.8 (0.031)

0.7 (0.028)

Clutch Pedal

NLCL0040

Unit: mm (in)

Clutch pedal stroke “S”

155 - 160 (6.10 - 6.30)

Pedal free play “A”

1 - 3 (0.04 - 0.12)

SERVICE DATA AND SPECIFICATIONS

(SDS)

RS5F70A, RS5F50A

Clutch Control System

CL-24
