Bit

Detectable items

Description of the failure

Displayed figure on the

bit

Failure

No failure

2

Fuel level input signal

Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure.

1

0

Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure.

2

3

Water temperature input
signal

Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure.

1

0

Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure.

2

4

Outside air temperature
input signal

Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure.

1

0

Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure.

2

5

Reset buttons

Short circuit for reset buttons
When the short circuit is continu-
ously detected for 5 minutes or
more, it should be judged as
short-circuit failure.

Right side reset button has
failed.

1

0

Left side reset button has
failed.

2

Both reset buttons have
failed.

3

6

0

0

7

CPU

EEPROM failure

1

0

CPU RAM failure

2

METERS AND GAUGES

Combination Meter Self-Diagnosis (Cont’d)

EL-143

Trouble Diagnoses

NLEL0448

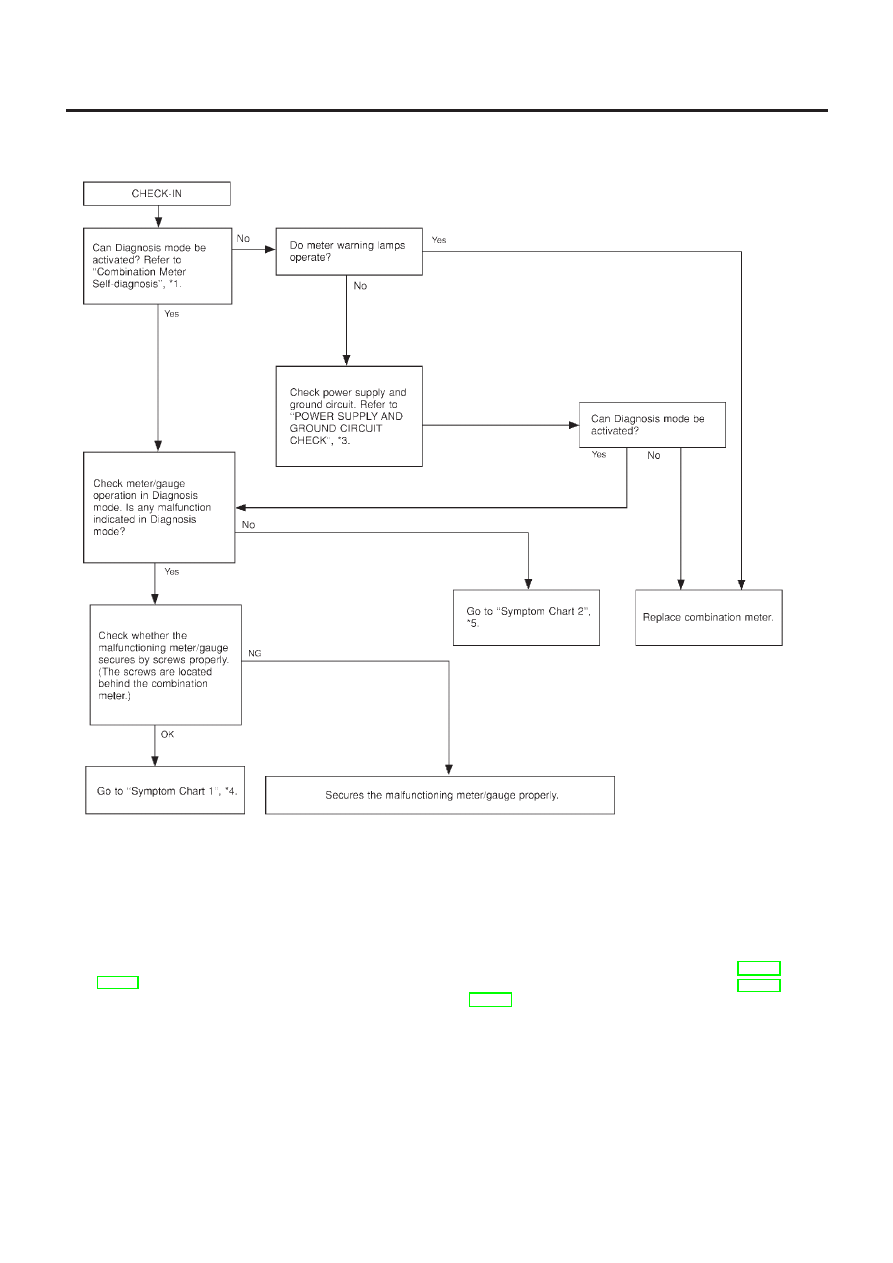

PRELIMINARY CHECK

NLEL0448S01

NEL741

*1: Combination Meter Self-Diagnosis

(EL-141)

*3: POWER SUPPLY AND GROUND

CIRCUIT CHECK (EL-146)

*4: Symptom Chart 1 (EL-145)
*5: Symptom Chart 2 (EL-145)

METERS AND GAUGES

Trouble Diagnoses

EL-144

SYMPTOM CHART

NLEL0448S02

Symptom Chart 1 (Malfunction is Indicated in
Diagnosis Mode)

NLEL0448S0201

Symptom

Possible causes

Repair order

Odo/trip meter indicates
malfunction in Diagnosis
mode.

Unified meter control unit

Replace combination meter.
(The clear lens and bulbs are reusable)

Multiple meter/gauge indi-
cate malfunction in Diag-
nosis mode.

One of speedometer/
tachometer/fuel gauge/
water temp. gauge indi-
cates malfunction in Diag-
nosis mode.

1. Meter/Gauge
2. Unified meter control unit

Symptom Chart 2 (No Malfunction is Indicated in
Diagnosis Mode)

NLEL0448S0202

Symptom

Possible causes

Repair order

One of speedometer/
tachometer/fuel gauge/
water temp. gauge is mal-
functioning.

1. Sensor signal

- Vehicle speed signal
- Engine revolution signal
- Fuel gauge
- Water temp. gauge

2. Unified meter control unit

1. Check the sensor for malfunctioning meter/gauge.

INSPECTION/VEHICLE SPEED SENSOR (Refer to
EL-147.)
INSPECTION/ENGINE REVOLUTION SIGNAL (Refer
to EL-148.)
INSPECTION/FUEL LEVEL SENSOR UNIT (Refer to
EL-149.)
INSPECTION/THERMAL TRANSMITTER (Refer to
EL-150.)

2. Replace combination meter. (The clear lens and bulbs

are reusable)

Multiple meter/gauge are
malfunctioning. (except
odo/trip meter)

Outside air temperature
indication is malfunction-
ing

1. Outside air temperature sensor signal
2. Unified meter control unit

1. Check the sensor.

INSPECTION/OUTSIDE AIR TEMPERATURE SEN-
SOR (Refer to EL-154)

2. Replace combination meter.

(The clear lens and bulbs are reusable)

Before starting trouble diagnoses below, perform PRELIMINARY
CHECK, EL-144.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-145

NEL656

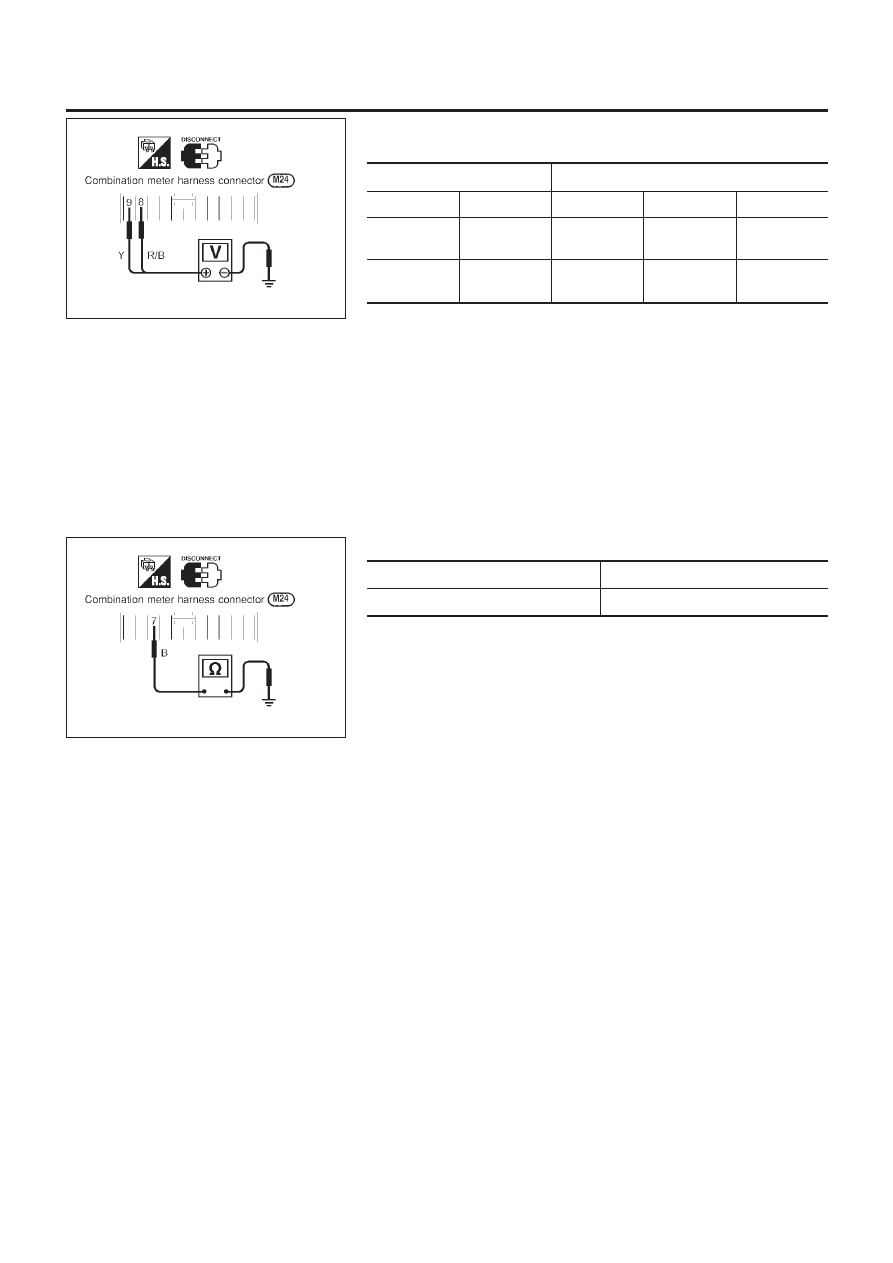

POWER SUPPLY AND GROUND CIRCUIT CHECK

=NLEL0448S03

Power Supply Circuit Check

NLEL0448S0301

Terminals

Ignition switch position

(+)

(−)

OFF

ACC

ON

8

Ground

Battery
voltage

Battery
voltage

Battery
voltage

9

Ground

0V

0V

Battery
voltage

If NG, check the following.

+

10A fuse [No. 12, located in fuse block (J/B)]

+

10A fuse [No. 30, located in fuse block (J/B)]

+

Harness for open or short between fuse and combination
meter

NEL657

Ground Circuit Check

NLEL0448S0302

Terminals

Continuity

7 - Ground

Yes

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-146

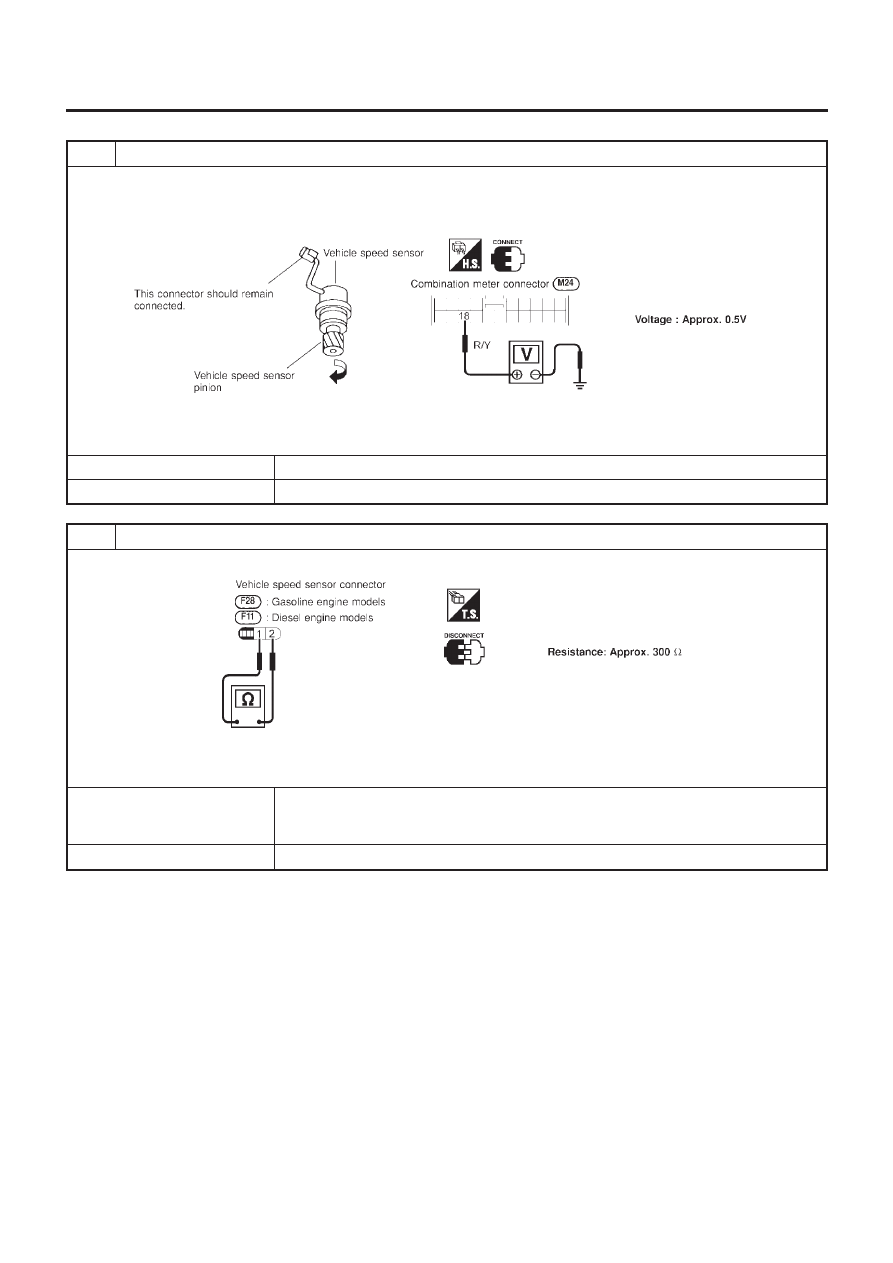

INSPECTION/VEHICLE SPEED SENSOR

=NLEL0448S04

1

CHECK VEHICLE SPEED SENSOR OUTPUT

1. Remove vehicle speed sensor from transmission.
2. Check voltage between combination meter terminal 18 and ground while quickly turning speed sensor pinion.

NEL658

OK or NG

OK

©

Vehicle speed sensor is OK.

NG

©

GO TO 2.

2

CHECK VEHICLE SPEED SENSOR

Check resistance between vehicle speed sensor terminals 1 and 2.

NEL659

OK or NG

OK

©

Check the following.

+

Harness between combination meter and vehicle speed sensor

+

Vehicle speed sensor ground circuit

NG

©

Replace vehicle speed sensor.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-147

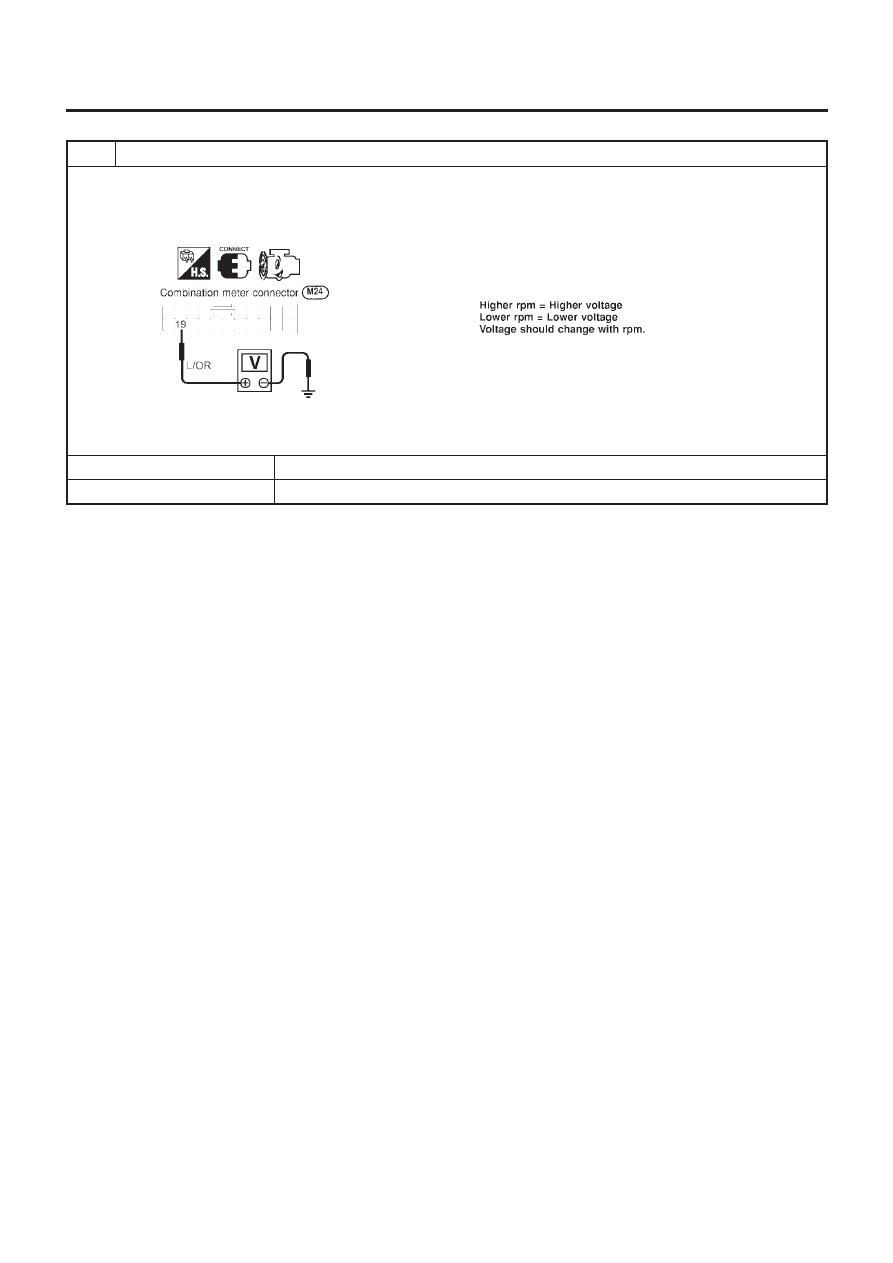

INSPECTION/ENGINE REVOLUTION SIGNAL

=NLEL0448S05

1

CHECK ECM OUTPUT

1. Start engine.
2. Check voltage between combination meter terminals 19 and ground at idle and 2,000 rpm.

NEL660

OK or NG

OK

©

Engine revolution signal is OK.

NG

©

Harness for open or short between ECM and combination meter

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-148

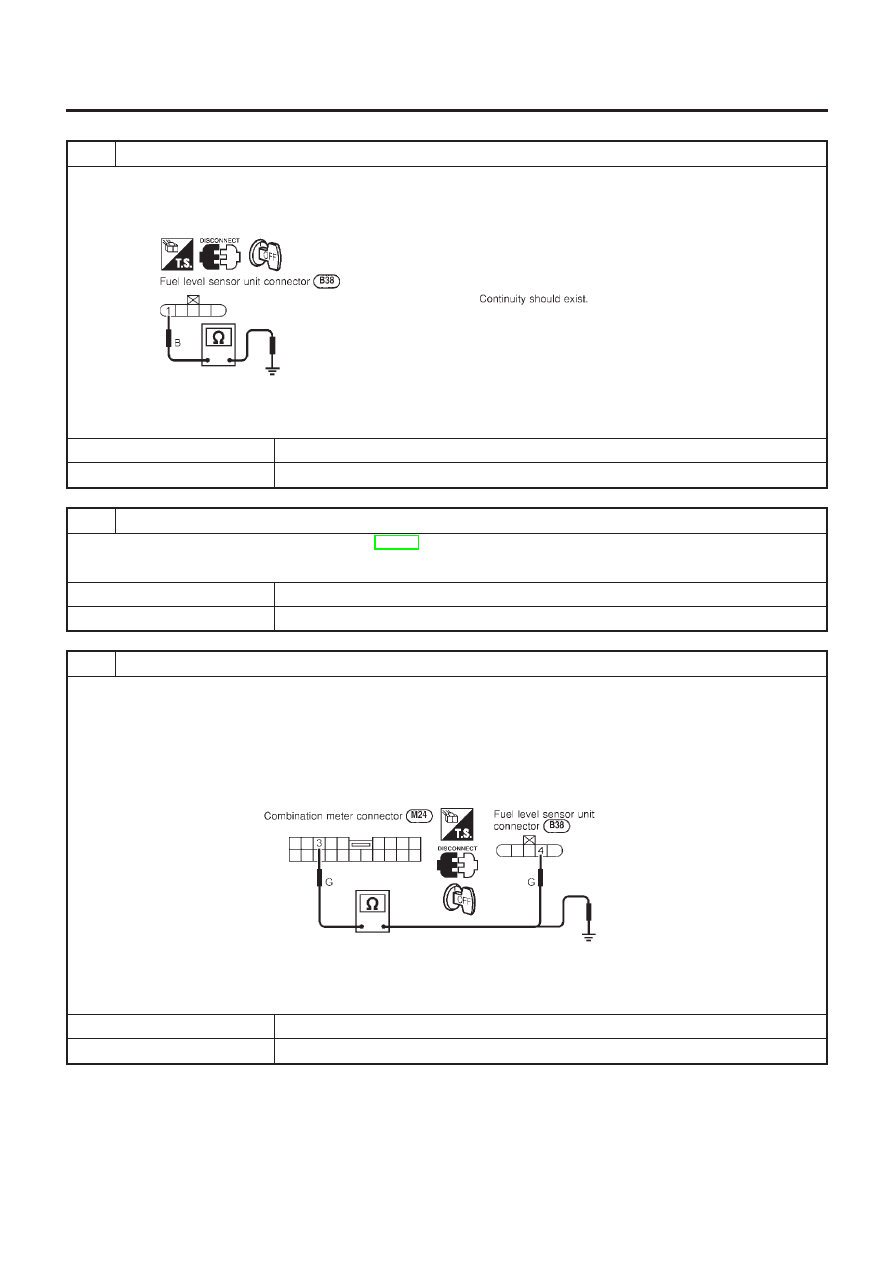

INSPECTION/FUEL LEVEL SENSOR UNIT

=NLEL0448S06

1

CHECK GROUND CIRCUIT FOR FUEL LEVEL SENSOR UNIT

Check harness continuity between fuel level sensor unit connector terminal 1 and ground.

NEL661

OK or NG

OK

©

GO TO 2.

NG

©

Repair harness or connector.

2

CHECK FUEL LEVEL SENSOR UNIT

Refer to “FUEL LEVEL SENSOR UNIT CHECK” (EL-153).

OK or NG

OK

©

GO TO 3.

NG

©

Replace fuel level sensor unit.

3

CHECK HARNESS FOR OPEN OR SHORT

1. Disconnect combination meter connector and fuel level sensor unit connector.
2. Check continuity between combination meter terminal 3 and fuel level sensor unit connector terminal 4.

Continuity should exist.

3. Check continuity between combination meter terminal 3 and ground.

Continuity should not exist.

NEL662

OK or NG

OK

©

Fuel level sensor unit is OK.

NG

©

Repair harness or connector.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-149

INSPECTION/THERMAL TRANSMITTER

=NLEL0448S07

1

CHECK THERMAL TRANSMITTER

Refer to “THERMAL TRANSMITTER CHECK” (EL-153).

OK or NG

OK

©

GO TO 2.

NG

©

Replace.

2

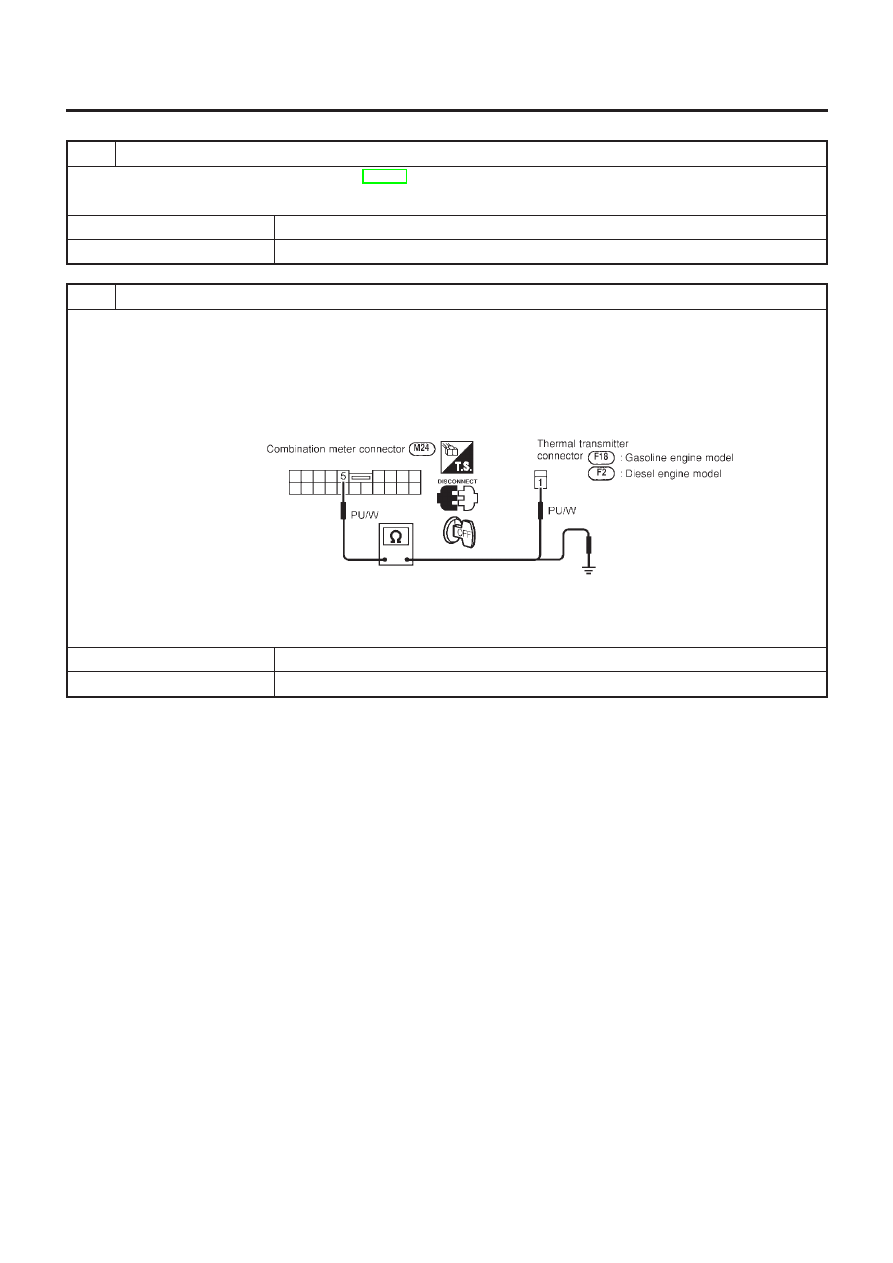

CHECK HARNESS FOR OPEN OR SHORT

1. Disconnect combination meter connector and thermal transmitter connector.
2. Check continuity between combination meter terminal 5 and thermal transmitter terminal 1.

Continuity should exist.

3. Check continuity between combination meter terminal 5 and ground.

Continuity should not exist.

NEL663

OK or NG

OK

©

Thermal transmitter is OK.

NG

©

Repair harness or connector.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-150

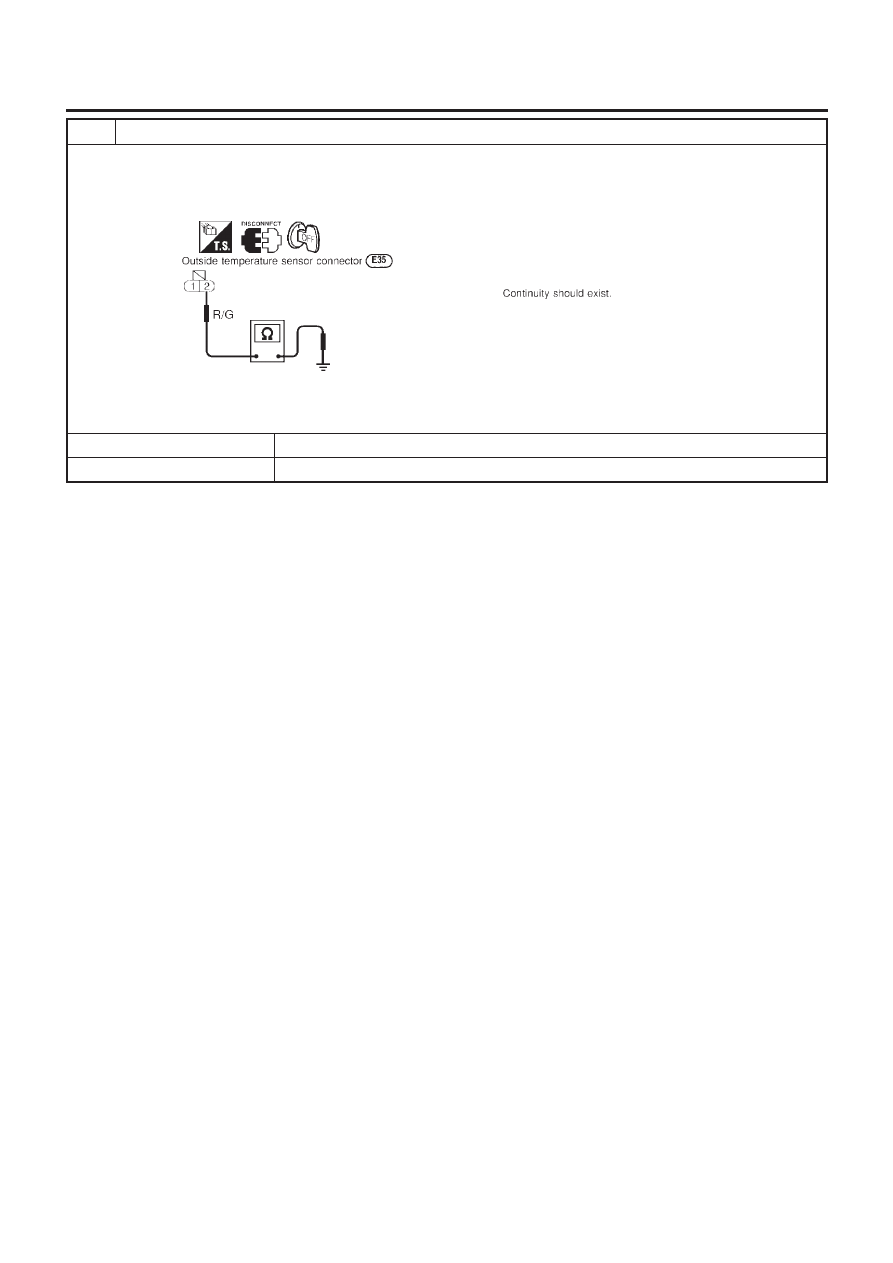

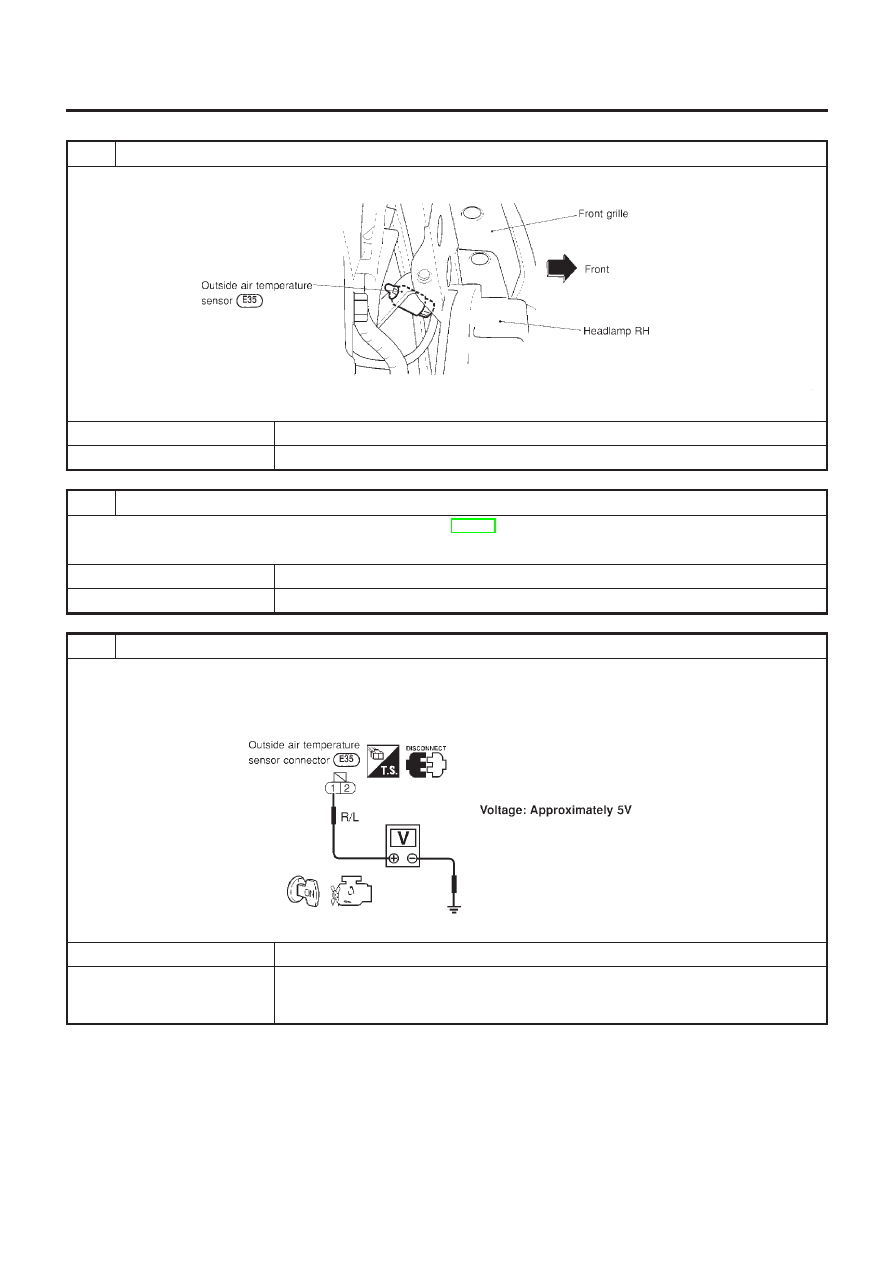

INSPECTION/OUTSIDE AIR TEMPERATURE SENSOR

=NLEL0448S11

1

CHECK OUTSIDE AIR TEMPERATURE SENSOR CONDITION

Make sure that the sensor is free of dust and dirt, etc.

NEL711

OK or NG

OK

©

GO TO 2.

NG

©

Clean the surface of the sensor.

2

CHECK OUTSIDE AIR TEMPERATURE SENSOR

Refer to “OUTSIDE AIR TEMPERATURE SENSOR CHECK” (EL-154).

OK or NG

OK

©

GO TO 3.

NG

©

Replace outside air temperature sensor.

3

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.
2. Disconnect outside air temperature sensor harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between the terminal 1 and ground.

NEL709

OK or NG

OK

©

GO TO 4.

NG

©

+

Check the harness or connectors for open or short.

+

Check combination meter.
If NG, repair or replace it.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-151

4

CHECK GROUND CIRCUIT

1. Turn ignition switch “OFF”.
2. Check harness continuity between the terminal 2 and ground.

NEL710

OK or NG

OK

©

Outside air temperature sensor is OK.

NG

©

Check the harness or connectors for open or short. If NG, repair it.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-152

SEL498X

Electrical Components Inspection

=NLEL0449

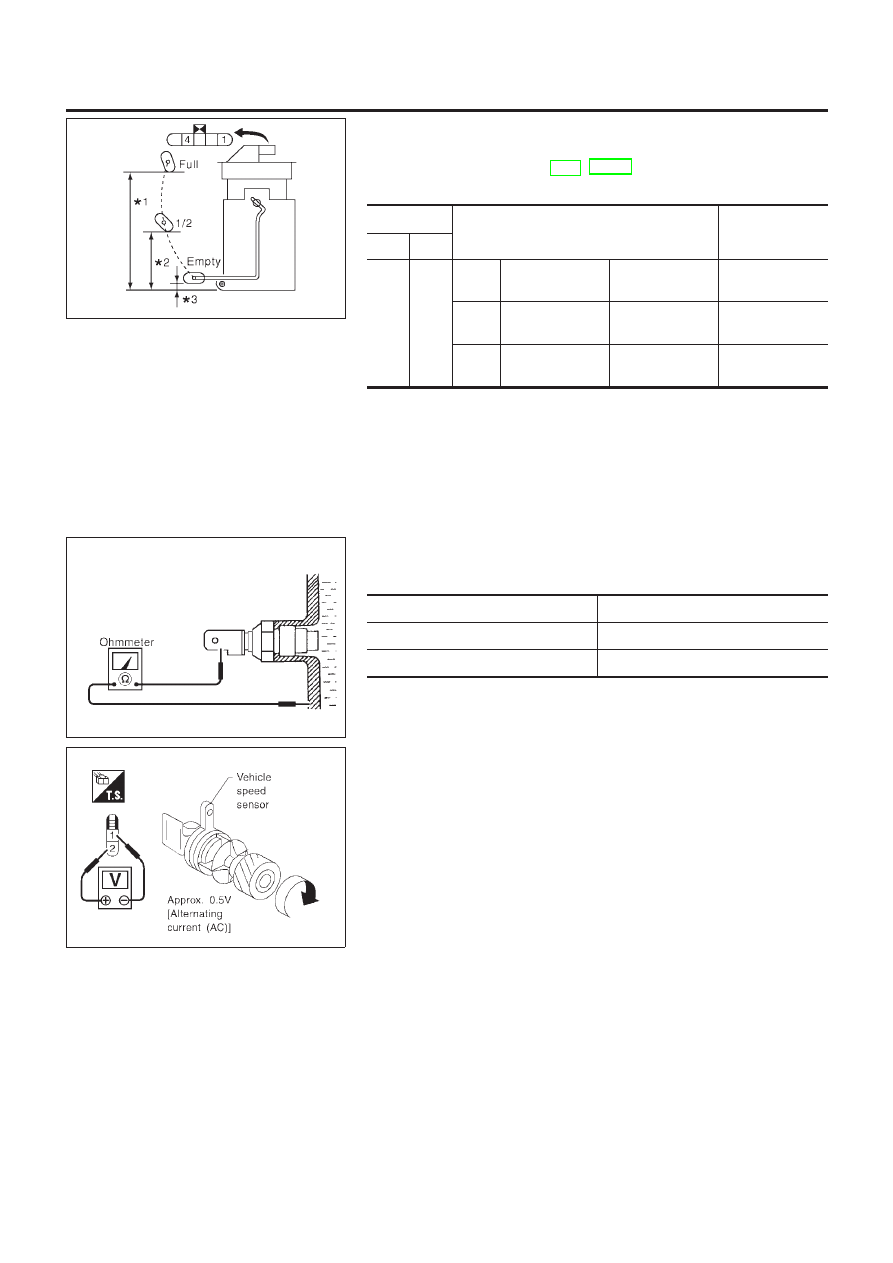

FUEL LEVEL SENSOR UNIT CHECK

NLEL0449S02

+

For removal, refer to FE-6, FE-19 “FUEL SYSTEM”.

Check the resistance between terminals 4 and 1.

Ohmmeter

Float position

mm (in)

Resistance

value

(+)

(−)

4

1

*1

Full

139.5 - 145.5

(5.49 - 5.73)

Approx. 4 - 6

*2

1/2

86.7 - 90.7 (3.41

- 3.57)

32 - 33

*3

Empty

10.1 - 12.1 (0.40

- 0.48)

80 - 83

*1 and *3: When float rod is in contact with stopper.

MEL424F

THERMAL TRANSMITTER CHECK

NLEL0449S03

Check the resistance between the terminals of thermal transmitter
and body ground.

Water temperature

Resistance

65°C (149°F)

Approx. 1,179 - 1,417

91°C (196°F)

Approx. 474 - 568

CEL219AA

VEHICLE SPEED SENSOR SIGNAL CHECK

NLEL0449S04

1.

Remove vehicle speed sensor from transmission.

2.

Turn vehicle speed sensor pinion quickly and measure voltage
across 1 and 2.

METERS AND GAUGES

Electrical Components Inspection

EL-153

SEF012P

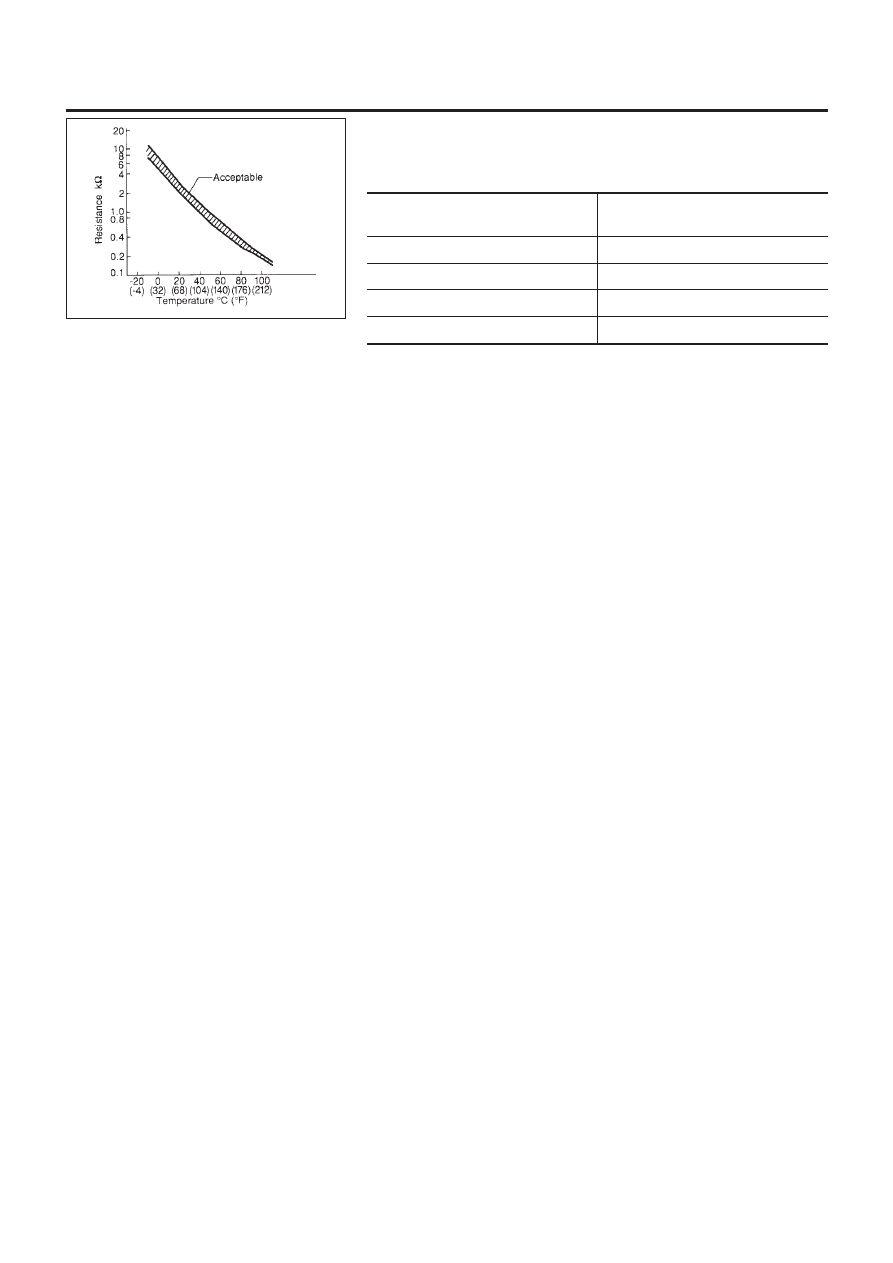

OUTSIDE AIR TEMPERATURE SENSOR CHECK

=NLEL0449S05

Check the resistance between the terminals of outside air tempera-
ture sensor.
<Reference data>

Outside air temperature

°C (°F)

Resistance

k

−20 (−4)

10.5 - 10.8

0 (32)

6.1 - 6.24

20 (68)

3.0 - 3.1

50 (122)

0.85 - 1.04

METERS AND GAUGES

Electrical Components Inspection (Cont’d)

EL-154

Schematic

NLEL0450

NEL786

WARNING LAMPS

Schematic

EL-155

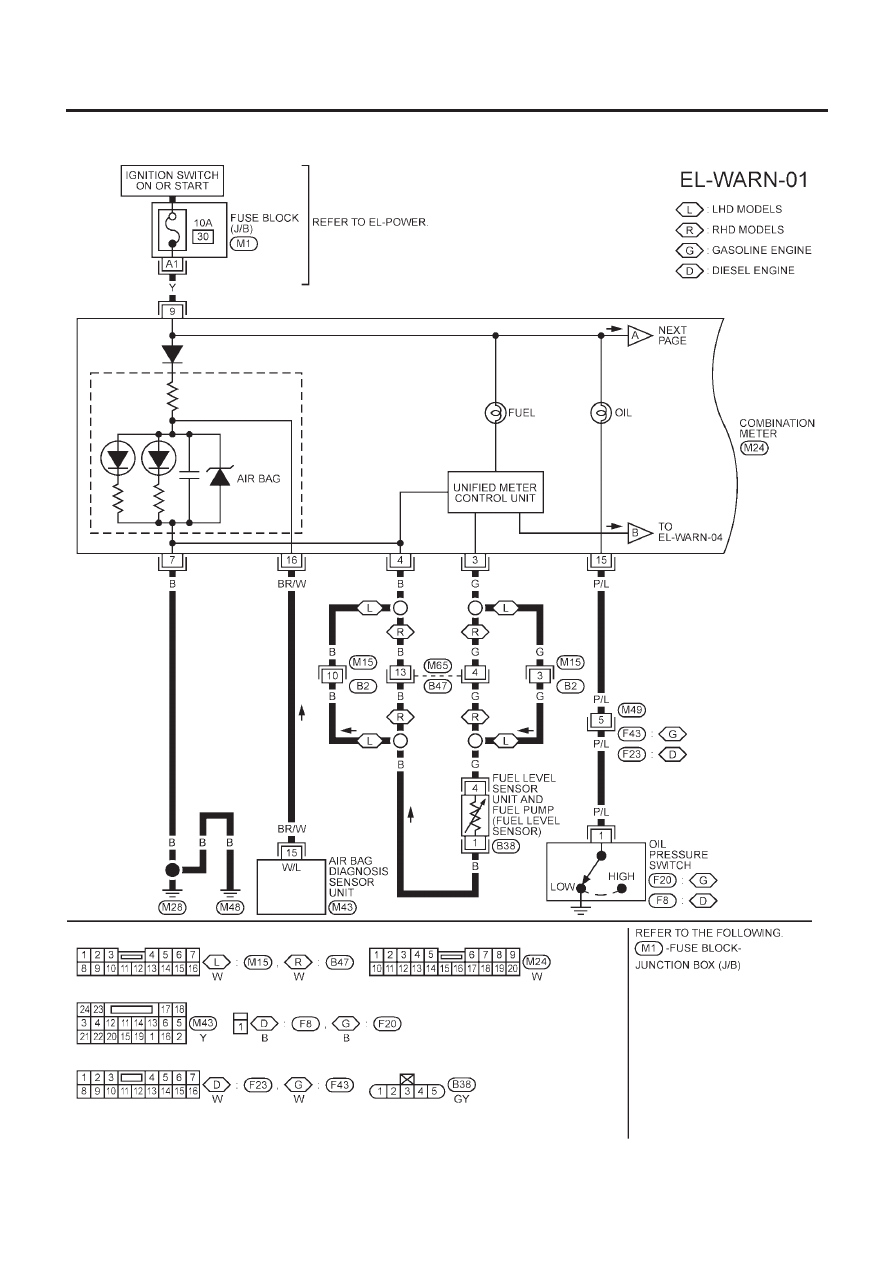

Wiring Diagram — WARN —

NLEL0451

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLEL0451S01

YEL897B

WARNING LAMPS

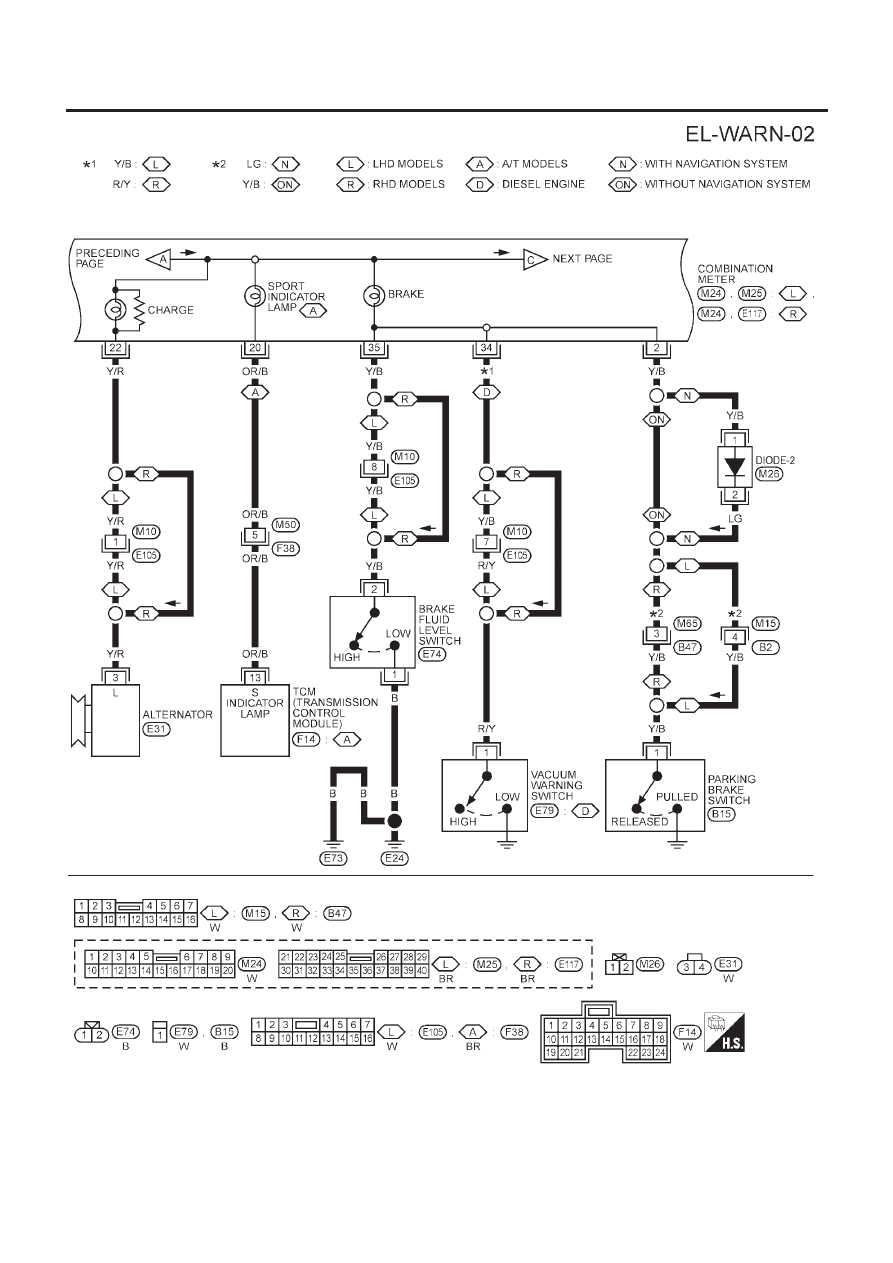

Wiring Diagram — WARN —

EL-156

YEL898B

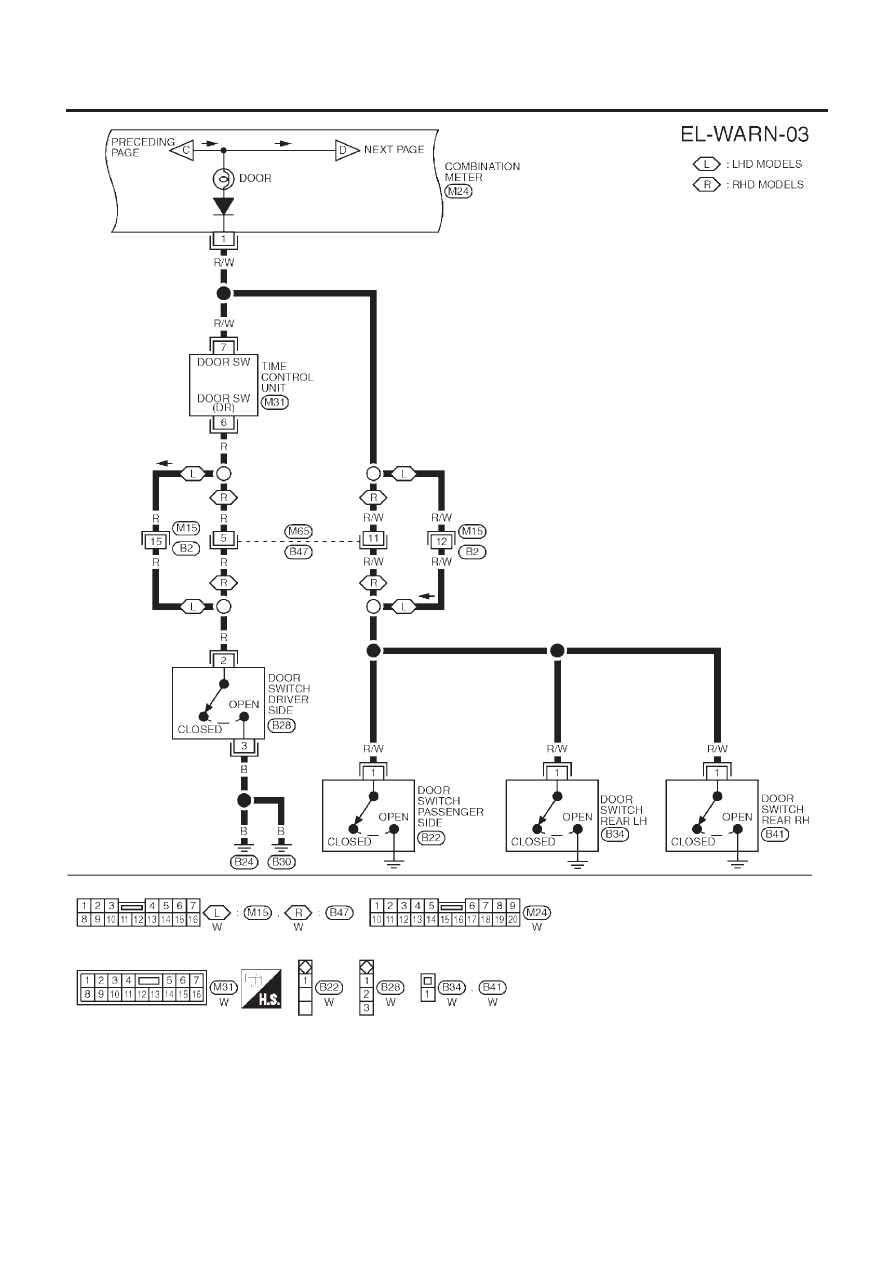

WARNING LAMPS

Wiring Diagram — WARN — (Cont’d)

EL-157

YEL899B

WARNING LAMPS

Wiring Diagram — WARN — (Cont’d)

EL-158
