Nissan Almera Tino V10 (2001 year). Manual - part 104





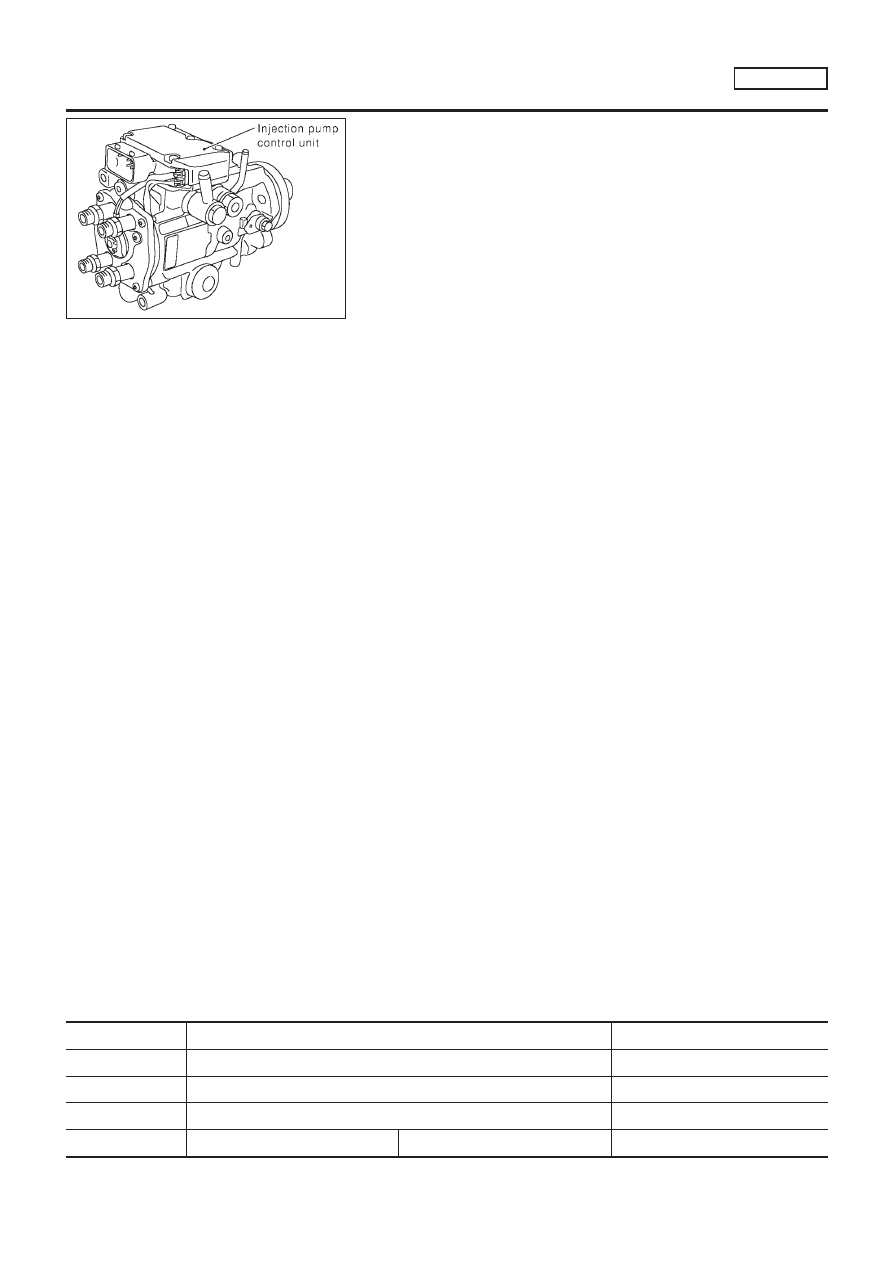

SEF437Y

Description

NLEC0714

SYSTEM DESCRIPTION

NLEC0714S01

The ECM and the electronic control fuel injection pump control unit
(abbreviated as the injection pump control unit) perform the real
time communication (signal exchange).
The ECM transmits the signals of the target fuel injection amount,
target fuel injection timing, and engine speed, etc., and receives
the signals of the pump speed and fuel temperature, etc. from the
injection pump control unit.
By those signals, the injection pump controls the optimum fuel
injection amount and injection timing of the spill valve and timing
control valve.
Injection pump control unit has an on board diagnostic system,
which detects malfunctions related to sensors or actuators built-into
electronic control fuel injection pump. These malfunction informa-
tion are transferred through the line (circuit) from injection pump
control unit to ECM.

FUEL INJECTION AMOUNT CONTROL

NLEC0714S02

In accordance with the target fuel injection amount signal from the
ECM, the injection amount is controlled by controlling the spill valve
in the injection pump and by changing the needle opening time.

FUEL INJECTION TIMING CONTROL

NLEC0714S03

Based on the target fuel injection timing signal from the ECM, the
injection timing is controlled in accordance with the timer spring by
performing the duty control of the timing control valve in the injec-
tion pump and by adjusting the pressure of the timer piston high
pressure chamber.

FUEL TEMPERATURE SENSOR

NLEC0714S04

The sensor detects the fuel temperature in the injection pump and
calibrates the injection amount change by the fuel temperature.

CAM RING POSITION SENSOR

NLEC0714S05

The sensor detects the passing of the protrusion on the sensor
wheel in the injection pump by the semiconductor magnetic resis-
tance element sensor. The cam ring position sensor synchronizes
with the cam ring, and detects the actual advance amount. The
injection pump control unit measures the injection pump revolution
by the signal of the cam ring position sensor.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0715

Remarks: Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

FUEL TEMP SEN

+

Engine: After warming up

More than 40°C (104°F)

SPILL/V

+

Engine: After warming up, idle the engine.

Approx. 12 - 13°CA

INT/A VOLUME

+

Engine: After warming up, idle the engine.

Approx. 150 - 450 mg/st

F/CUT SIGNAL

+

Engine: After warming up

Idle

ON

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

Description

EC-1225

MONITOR ITEM

CONDITION

SPECIFICATION

BARO SEN

+

Ignition switch: ON

Altitude
Approx. 0 m (0 ft): Approx. 100.62
kPa (1.0062 bar, 1.026 kg/cm

2

,

14.59 psi)
Approx. 1,000 m (3,281 ft): Approx.
88.95 kPa (0.8895 bar, 0.907
kg/cm

2

, 12.90 psi)

Approx. 1,500 m (4,922 ft): Approx.
83.16 kPa (0.8316 bar, 0.848
kg/cm

2

, 12.06 psi)

Approx. 2,000 m (6,562 ft): Approx.
78.36 kPa (0.7836 bar, 0.799
kg/cm

2

, 11.36 psi)

ECM Terminals and Reference Value

NLEC0716

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

313

L/W

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 0.1V

314

L/R

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 0.4V

316

PU

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 2.5V

317

P

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 2.5V

On Board Diagnosis Logic

NLEC0717

DTC

Malfunction is detected when ....

Check Items (Possible cause)

P1251
0704

+

Spill valve (Built-into electronic control fuel injec-
tion pump) does not function properly.

+

Harness or connectors
(Electronic control fuel injection pump circuit is
open or shorted.)

+

Electronic control fuel injection pump

SEF817Y

DTC Confirmation Procedure

NLEC0718

WITH CONSULT-II

NLEC0718S01

1)

Turn ignition switch “ON” and wait at least 2 seconds.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-1230.

WITHOUT CONSULT-II

NLEC0718S02

1)

Turn ignition switch “ON” and wait at least 2 seconds.

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

CONSULT-II Reference Value in Data Monitor Mode (Cont’d)

EC-1226

2)

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

3)

Turn ignition switch “OFF”, wait at least 5 seconds and then
turn “ON”.

4)

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with
ECM.

5)

If DTC is detected, go to “Diagnostic Procedure”, EC-1230.

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

DTC Confirmation Procedure (Cont’d)

EC-1227

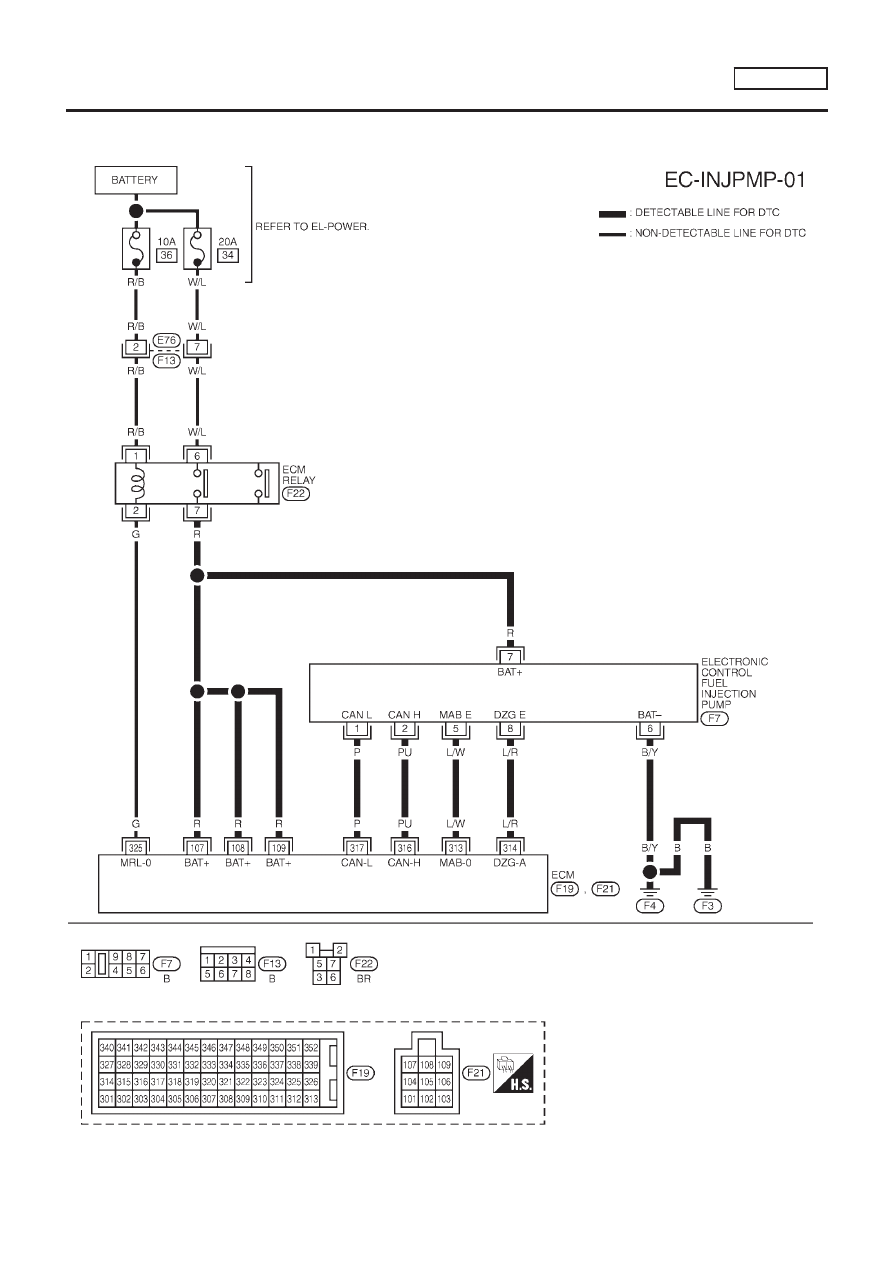

Wiring Diagram

NLEC0719

MODELS WITH ECM IN ENGINE COMPARTMENT

NLEC0719S01

YEC726

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

Wiring Diagram

EC-1228

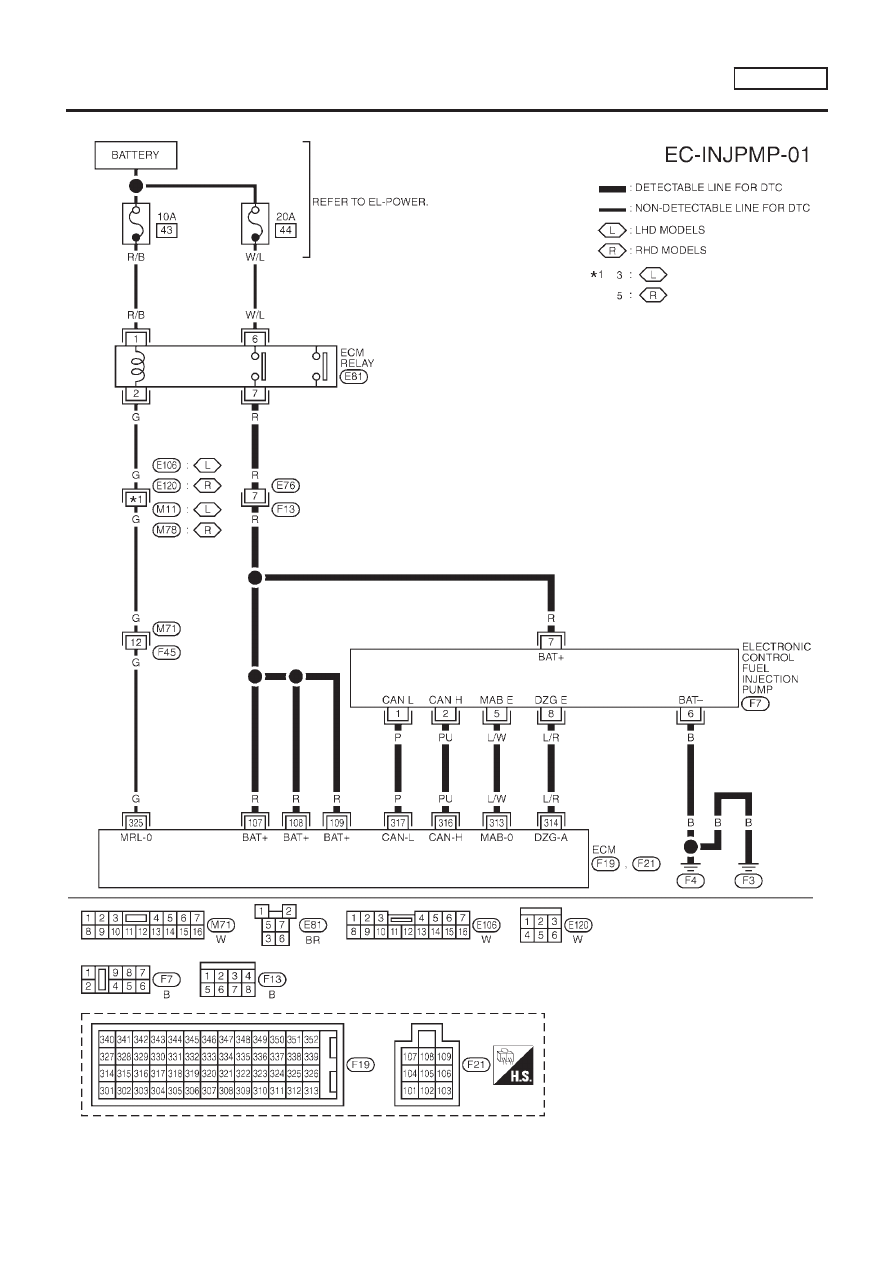

MODELS WITH ECM IN CABIN

NLEC0719S02

YEC862

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

Wiring Diagram (Cont’d)

EC-1229

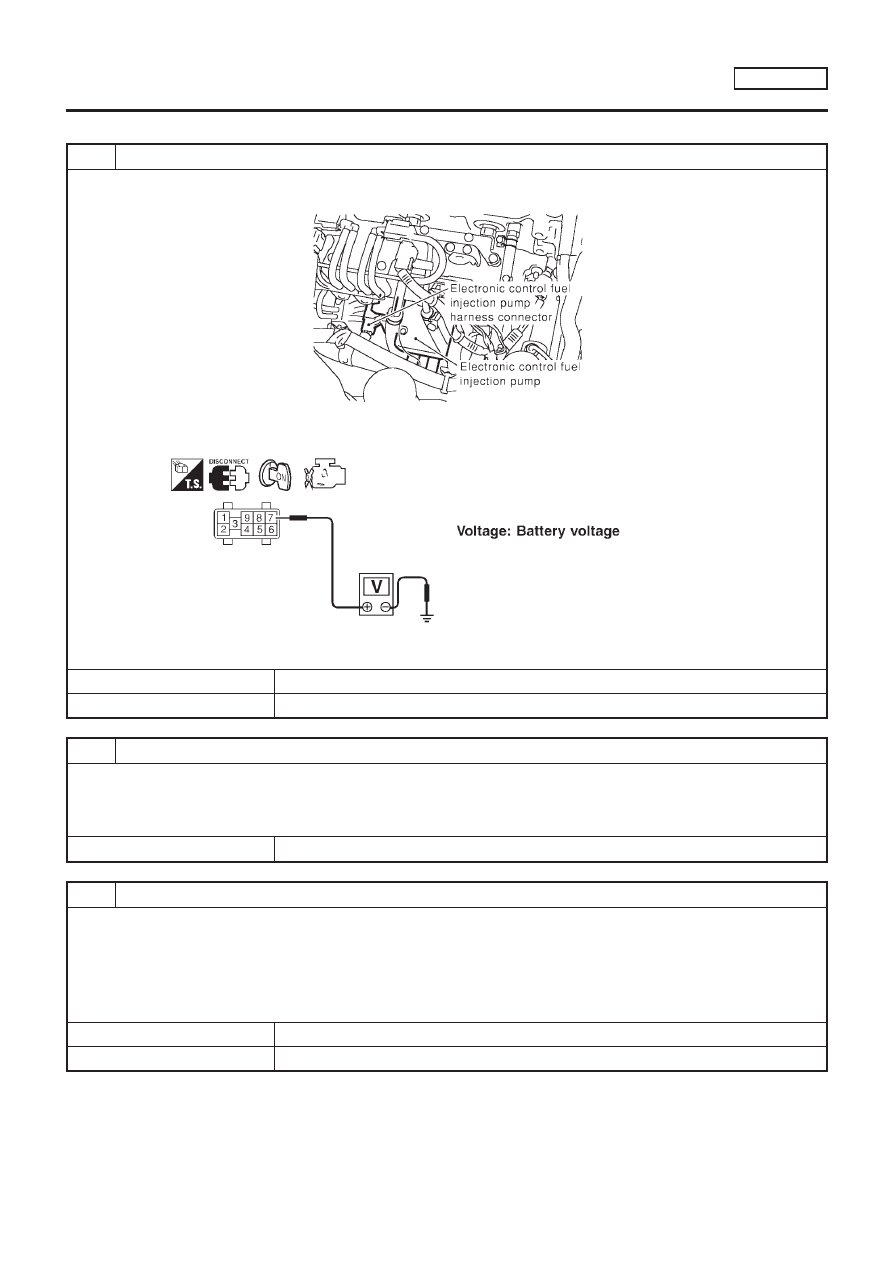

Diagnostic Procedure

NLEC0720

1

CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect electronic control fuel injection pump harness connector.

SEF390Y

3. Turn ignition switch “ON”.
4. Check voltage between electronic control fuel injection pump terminal 7 and ground.

SEF438Y

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

+

Harness connectors E76, F13 (where fitted)

+

Harness for open or short between electronic control fuel injection pump and ECM

+

Harness for open or short between electronic control fuel injection pump and ECM relay

©

Repair open circuit or short to ground or short to power in harness or connectors.

3

CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Check harness continuity between electronic control fuel injection pump terminal 6 and ground. Refer to Wiring Dia-

gram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

Diagnostic Procedure

EC-1230

4

CHECK COMMUNICATION LINE FOR OPEN AND SHORT

1. Check continuity between the following terminals. Refer to Wiring Diagram.

MTBL0462

Continuity should exist.

2. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 5.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-1135.

OK or NG

OK

©

Replace electronic control fuel injection pump.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1251 P4·SPILL/V CIRC

YD22DDTI

Diagnostic Procedure (Cont’d)

EC-1231

SEF437Y

Description

NLEC0700

SYSTEM DESCRIPTION

NLEC0700S01

The ECM and the electronic control fuel injection pump control unit
(abbreviated as the injection pump control unit) perform the real
time communication (signal exchange).
The ECM transmits the signals of the target fuel injection amount,
target fuel injection timing, and engine speed, etc., and receives
the signals of the pump speed and fuel temperature, etc. from the
injection pump control unit.
By those signals, the injection pump controls the optimum fuel
injection amount and injection timing of the spill valve and timing
control valve.
Injection pump control unit has an on board diagnostic system,
which detects malfunctions related to sensors or actuators built-into
electronic control fuel injection pump. These malfunction informa-
tion are transferred through the line (circuit) from injection pump
control unit to ECM.

FUEL INJECTION AMOUNT CONTROL

NLEC0700S02

In accordance with the target fuel injection amount signal from the
ECM, the injection amount is controlled by controlling the spill valve
in the injection pump and by changing the needle opening time.

FUEL INJECTION TIMING CONTROL

NLEC0700S03

Based on the target fuel injection timing signal from the ECM, the
injection timing is controlled in accordance with the timer spring by
performing the duty control of the timing control valve in the injec-
tion pump and by adjusting the pressure of the timer piston high
pressure chamber.

FUEL TEMPERATURE SENSOR

NLEC0700S04

The sensor detects the fuel temperature in the injection pump and
calibrates the injection amount change by the fuel temperature.

CAM RING POSITION SENSOR

NLEC0700S05

The sensor detects the passing of the protrusion on the sensor
wheel in the injection pump by the semiconductor magnetic resis-
tance element sensor. The cam ring position sensor synchronizes
with the cam ring, and detects the actual advance amount. The
injection pump control unit measures the injection pump revolution
by the signal of the cam ring position sensor.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0701

Remarks: Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

FUEL TEMP SEN

+

Engine: After warming up

More than 40°C (104°F)

SPILL/V

+

Engine: After warming up, idle the engine.

Approx. 12 - 13°CA

INT/A VOLUME

+

Engine: After warming up, idle the engine.

Approx. 150 - 450 mg/st

F/CUT SIGNAL

+

Engine: After warming up

Idle

ON

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

Description

EC-1232

MONITOR ITEM

CONDITION

SPECIFICATION

BARO SEN

+

Ignition switch: ON

Altitude
Approx. 0 m (0 ft): Approx. 100.62
kPa (1.0062 bar, 1.026 kg/cm

2

,

14.59 psi)
Approx. 1,000 m (3,281 ft): Approx.
88.95 kPa (0.8895 bar, 0.907
kg/cm

2

, 12.90 psi)

Approx. 1,500 m (4,922 ft): Approx.
83.16 kPa (0.8316 bar, 0.848
kg/cm

2

, 12.06 psi)

Approx. 2,000 m (6,562 ft): Approx.
78.36 kPa (0.7836 bar, 0.799
kg/cm

2

, 11.36 psi)

ECM Terminals and Reference Value

NLEC0702

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

313

L/W

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 0.1V

314

L/R

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 0.4V

316

PU

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 2.5V

317

P

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 2.5V

On Board Diagnosis Logic

NLEC0703

DTC

Malfunction is detected when ....

Check Items (Possible cause)

P1337
0702

+

Injection pump control unit input signal [Crank-
shaft position sensor (TDC) signal] processing
function is malfunctioning.

+

Harness or connectors
(Electronic control fuel injection pump circuit is
open or shorted.)

+

Electronic control fuel injection pump

SEF817Y

DTC Confirmation Procedure

NLEC0704

WITH CONSULT-II

NLEC0704S01

1)

Turn ignition switch “ON” and wait at least 2 seconds.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

4)

If DTC P0335 is detected, go to “Diagnostic procedure”,
EC-1169.
If DTC P1337 is detected, go to “Diagnostic Procedure”,
EC-1237.

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

CONSULT-II Reference Value in Data Monitor Mode (Cont’d)

EC-1233

WITHOUT CONSULT-II

NLEC0704S02

1)

Turn ignition switch “ON” and wait at least 2 seconds.

2)

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

3)

Turn ignition switch “OFF”, wait at least 5 seconds and then
turn “ON”.

4)

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with
ECM.

5)

If DTC P0335 is detected, go to “Diagnostic Procedure”,
EC-1169.
If DTC P1337 is detected, go to “Diagnostic Procedure”,
EC-1237.

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

DTC Confirmation Procedure (Cont’d)

EC-1234

Wiring Diagram

NLEC0705

MODELS WITH ECM IN ENGINE COMPARTMENT

NLEC0705S01

YEC726

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

Wiring Diagram

EC-1235

MODELS WITH ECM IN CABIN

NLEC0705S02

YEC862

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

Wiring Diagram (Cont’d)

EC-1236

Diagnostic Procedure

NLEC0706

1

CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect electronic control fuel injection pump harness connector.

SEF390Y

3. Turn ignition switch “ON”.
4. Check voltage between electronic control fuel injection pump terminal 7 and ground.

SEF438Y

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

+

Harness connectors E76, F13 (where fitted)

+

Harness for open or short between electronic control fuel injection pump and ECM

+

Harness for open or short between electronic control fuel injection pump and ECM relay

©

Repair open circuit or short to ground or short to power in harness or connectors.

3

CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Check harness continuity between electronic control fuel injection pump terminal 6 and ground. Refer to Wiring Dia-

gram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

Diagnostic Procedure

EC-1237

4

CHECK COMMUNICATION LINE FOR OPEN AND SHORT

1. Check continuity between the following terminals. Refer to Wiring Diagram.

MTBL0462

Continuity should exist.

2. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 5.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-1135.

OK or NG

OK

©

Replace electronic control fuel injection pump.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1337 P2·DTC PULSE SIG

YD22DDTI

Diagnostic Procedure (Cont’d)

EC-1238

SEF437Y

Description

NLEC0693

SYSTEM DESCRIPTION

NLEC0693S01

The ECM and the electronic control fuel injection pump control unit
(abbreviated as the injection pump control unit) perform the real
time communication (signal exchange).
The ECM transmits the signals of the target fuel injection amount,
target fuel injection timing, and engine speed, etc., and receives
the signals of the pump speed and fuel temperature, etc. from the
injection pump control unit.
By those signals, the injection pump controls the optimum fuel
injection amount and injection timing of the spill valve and timing
control valve.
Injection pump control unit has an on board diagnostic system,
which detects malfunctions related to sensors or actuators built-into
electronic control fuel injection pump. These malfunction informa-
tion are transferred through the line (circuit) from injection pump
control unit to ECM.

FUEL INJECTION AMOUNT CONTROL

NLEC0693S02

In accordance with the target fuel injection amount signal from the
ECM, the injection amount is controlled by controlling the spill valve
in the injection pump and by changing the needle opening time.

FUEL INJECTION TIMING CONTROL

NLEC0693S03

Based on the target fuel injection timing signal from the ECM, the
injection timing is controlled in accordance with the timer spring by
performing the duty control of the timing control valve in the injec-
tion pump and by adjusting the pressure of the timer piston high
pressure chamber.

FUEL TEMPERATURE SENSOR

NLEC0693S04

The sensor detects the fuel temperature in the injection pump and
calibrates the injection amount change by the fuel temperature.

CAM RING POSITION SENSOR

NLEC0693S05

The sensor detects the passing of the protrusion on the sensor
wheel in the injection pump by the semiconductor magnetic resis-
tance element sensor. The cam ring position sensor synchronizes
with the cam ring, and detects the actual advance amount. The
injection pump control unit measures the injection pump revolution
by the signal of the cam ring position sensor.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0694

Remarks: Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

FUEL TEMP SEN

+

Engine: After warming up

More than 40°C (104°F)

SPILL/V

+

Engine: After warming up, idle the engine.

Approx. 12 - 13°CA

INT/A VOLUME

+

Engine: After warming up, idle the engine.

Approx. 150 - 450 mg/st

F/CUT SIGNAL

+

Engine: After warming up

Idle

ON

DTC P1341 P1·CAM POS SEN

YD22DDTI

Description

EC-1239

MONITOR ITEM

CONDITION

SPECIFICATION

BARO SEN

+

Ignition switch: ON

Altitude
Approx. 0 m (0 ft): Approx. 100.62
kPa (1.0062 bar, 1.026 kg/cm

2

,

14.59 psi)
Approx. 1,000 m (3,281 ft): Approx.
88.95 kPa (0.8895 bar, 0.907
kg/cm

2

, 12.90 psi)

Approx. 1,500 m (4,922 ft): Approx.
83.16 kPa (0.8316 bar, 0.848
kg/cm

2

, 12.06 psi)

Approx. 2,000 m (6,562 ft): Approx.
78.36 kPa (0.7836 bar, 0.799
kg/cm

2

, 11.36 psi)

ECM Terminals and Reference Value

NLEC0695

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

313

L/W

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 0.1V

314

L/R

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 0.4V

316

PU

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 2.5V

317

P

Electronic control fuel
injection pump

[Engine is running]

+

Warm-up condition

+

Idle speed

Approximately 2.5V

On Board Diagnosis Logic

NLEC0696

DTC

Malfunction is detected when ....

Check Items (Possible cause)

P1341
0701

+

An improper voltage signal from cam position
sensor (Built-into electronic control fuel injection
pump) is sent to injection pump control unit.

+

Harness or connectors
(Electronic control fuel injection pump circuit is
open or shorted.)

+

Electronic control fuel injection pump

SEF817Y

DTC Confirmation Procedure

NLEC0697

WITH CONSULT-II

NLEC0697S01

1)

Turn ignition switch “ON” and wait at least 2 seconds.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-1244.

WITHOUT CONSULT-II

NLEC0697S02

1)

Turn ignition switch “ON” and wait at least 2 seconds.

DTC P1341 P1·CAM POS SEN

YD22DDTI

CONSULT-II Reference Value in Data Monitor Mode (Cont’d)

EC-1240















Content      ..     102      103      104      105     ..
