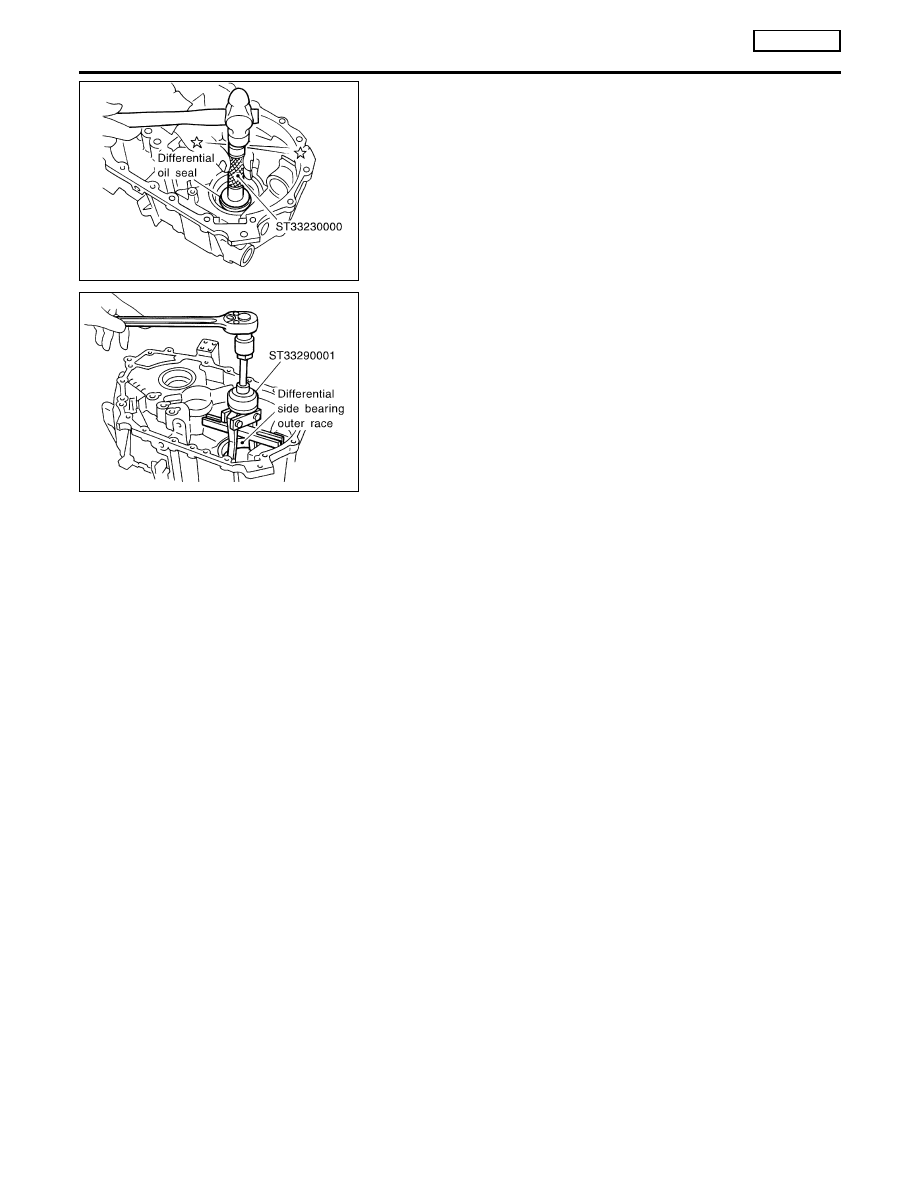

30. Remove differential oil seal from housing.

SMT670DB

31. Remove differential side outer race from housing.

DISASSEMBLY

RS5F70A

Clutch Housing (Cont’d)

MT-34

SMT759D

Input Shaft and Gears

DISASSEMBLY

NLMT0056

1.

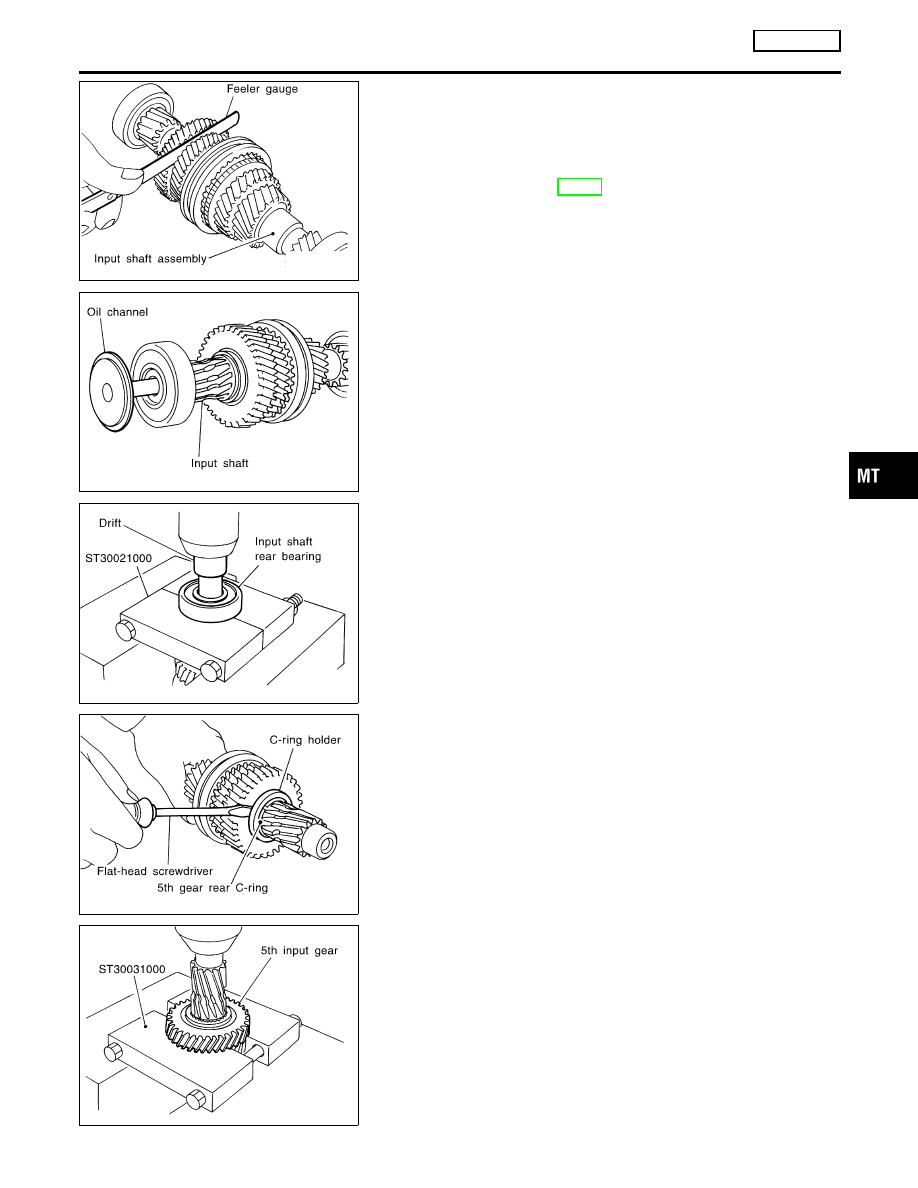

Before disassembly, measure the end plays of 3rd and 4th
input gears.

Gear end play:

Refer to SDS, MT-90.

I

If end play is not within specification, disassemble and check
the parts.

SMT671D

2.

Remove oil channel from input shaft rear bearing.

SMT672DB

3.

Press out input shaft rear bearing.

SMT673D

4.

Remove C-ring holder.

5.

Remove 5th gear rear C-ring.

SMT674DB

6.

Remove 5th input gear from input shaft.

7.

Remove 5th gear front C-ring.

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

RS5F70A

Input Shaft and Gears

MT-35

SMT675DB

8.

Remove 4th input gear, baulk ring, 4th gear needle bearing,
and 4th gear C-ring from input shaft.

9.

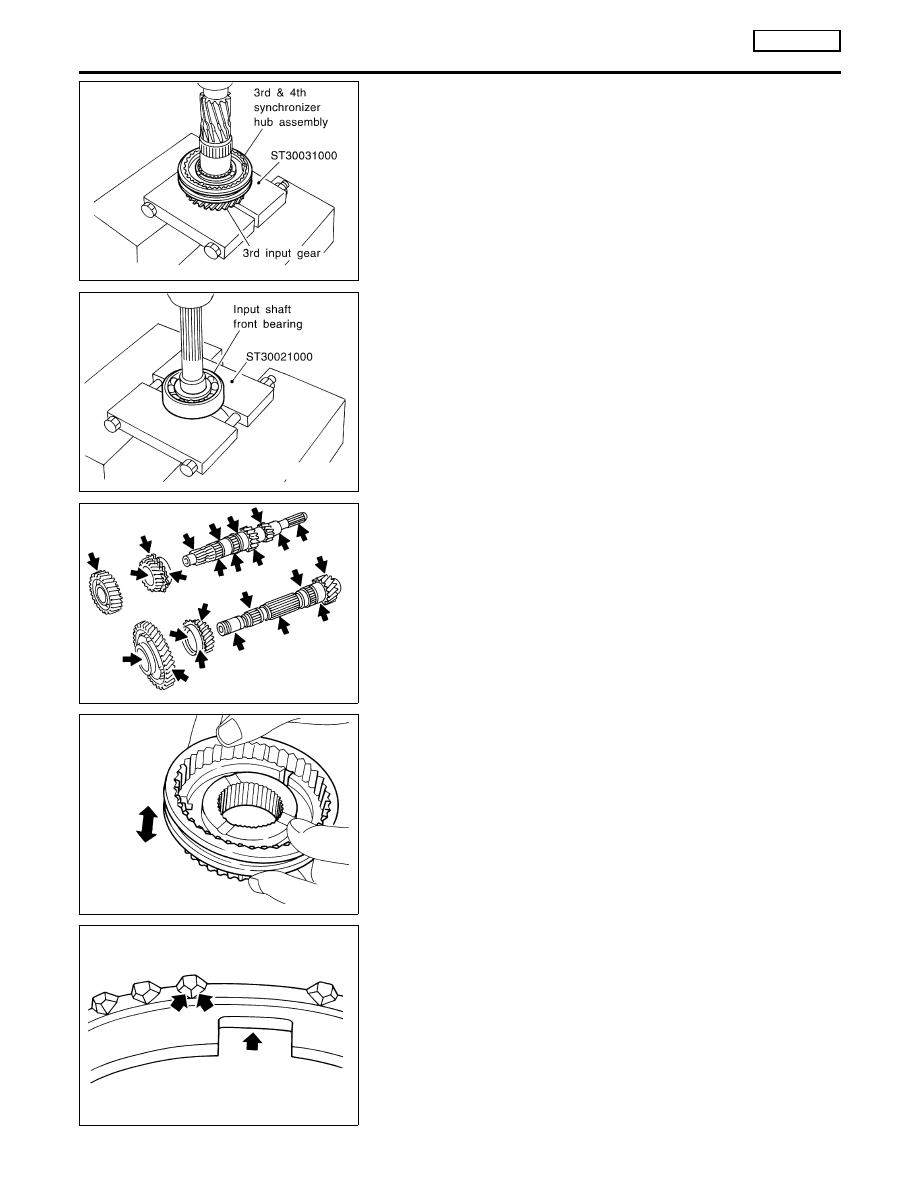

Press out both 3rd & 4th synchronizer hub assembly and 3rd
input gear from input shaft.

10. Remove 3rd gear needle bearing.

SMT676DB

11. Press out input shaft front bearing from input shaft.

SMT693D

INSPECTION

NLMT0057

Input Shaft and Gears

NLMT0057S01

I

Check shaft for cracks, wear or bending.

I

Check gears for excessive wear, chips or cracks.

SMT637A

Synchronizers

NLMT0057S02

I

Check spline area of coupling sleeves, hubs and gears for
wear or cracks.

I

Check baulk rings for cracks or deformation.

I

Check insert springs for wear or deformation.

SMT867D

I

If any crack, damage, or excessive wear is found on cam face
of baulk ring or working face of insert, replace it.

REPAIR FOR COMPONENT PARTS

RS5F70A

Input Shaft and Gears (Cont’d)

MT-36

SMT841D

I

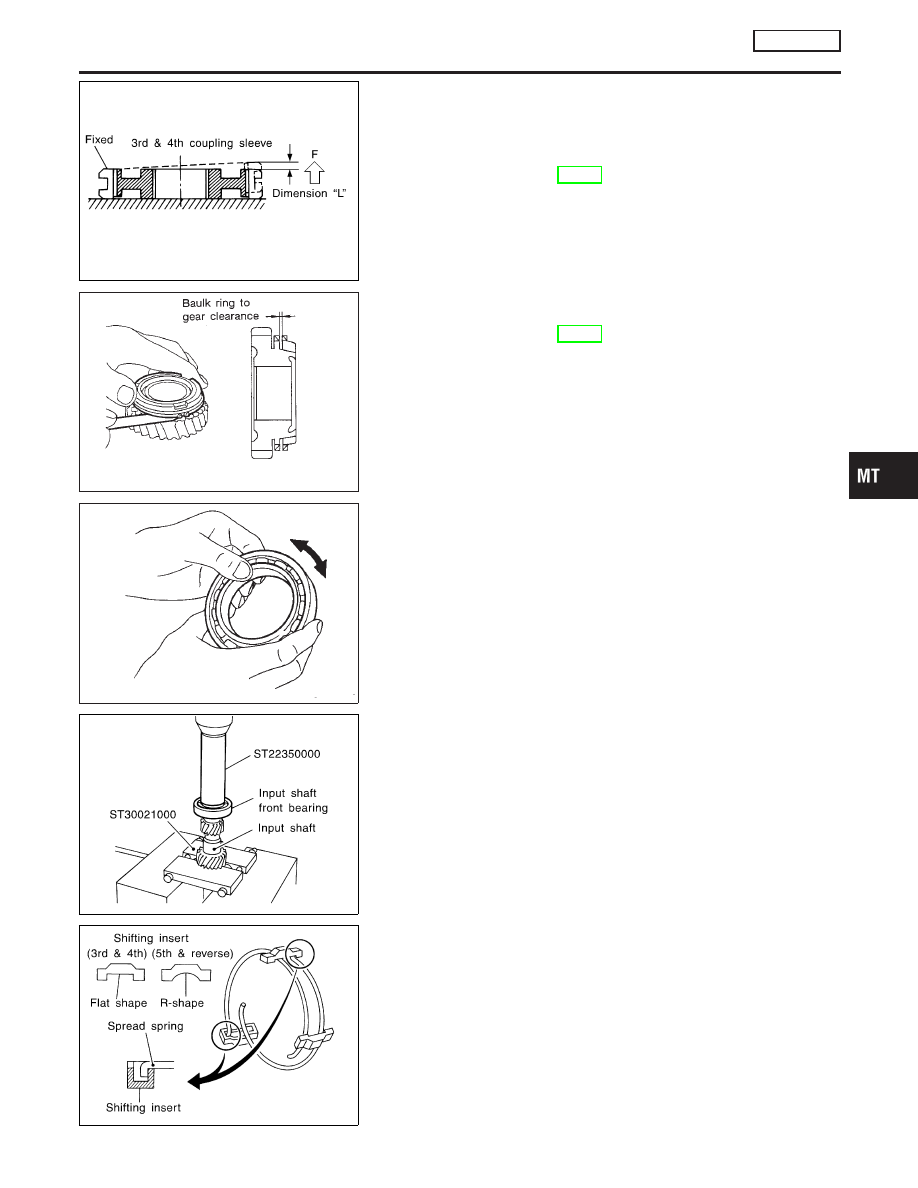

Measure the movement (play, dimension “L”) of 3rd & 4th cou-
pling sleeve with their end fixed and the other end lifted as
shown in the figure. If the movement exceeds specification,
replace the sleeve.

Coupling sleeve length “L”:

Refer to SDS, MT-90.

SMT140

I

Measure clearance between baulk ring and gear.

Clearance between baulk ring and gear:

Refer to SDS, MT-90.

SMT148A

Bearing

NLMT0057S03

I

Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.

SMT696DB

ASSEMBLY

NLMT0058

1.

Press on input shaft front bearing.

2.

Install 3rd gear needle, 3rd input gear and 3rd gear baulk ring
bearing to input shaft.

SMT694D

3.

Install spread spring, shifting insert, and 3rd & 4th synchronizer
hub onto 3rd & 4th coupling sleeve.

I

Pay attention to the shape of spread spring and shifting insert
for correct assembly.
Do not install spread spring hook onto the same shifting insert.

CAUTION:

Do not reuse 3rd & 4th synchronizer hub.
