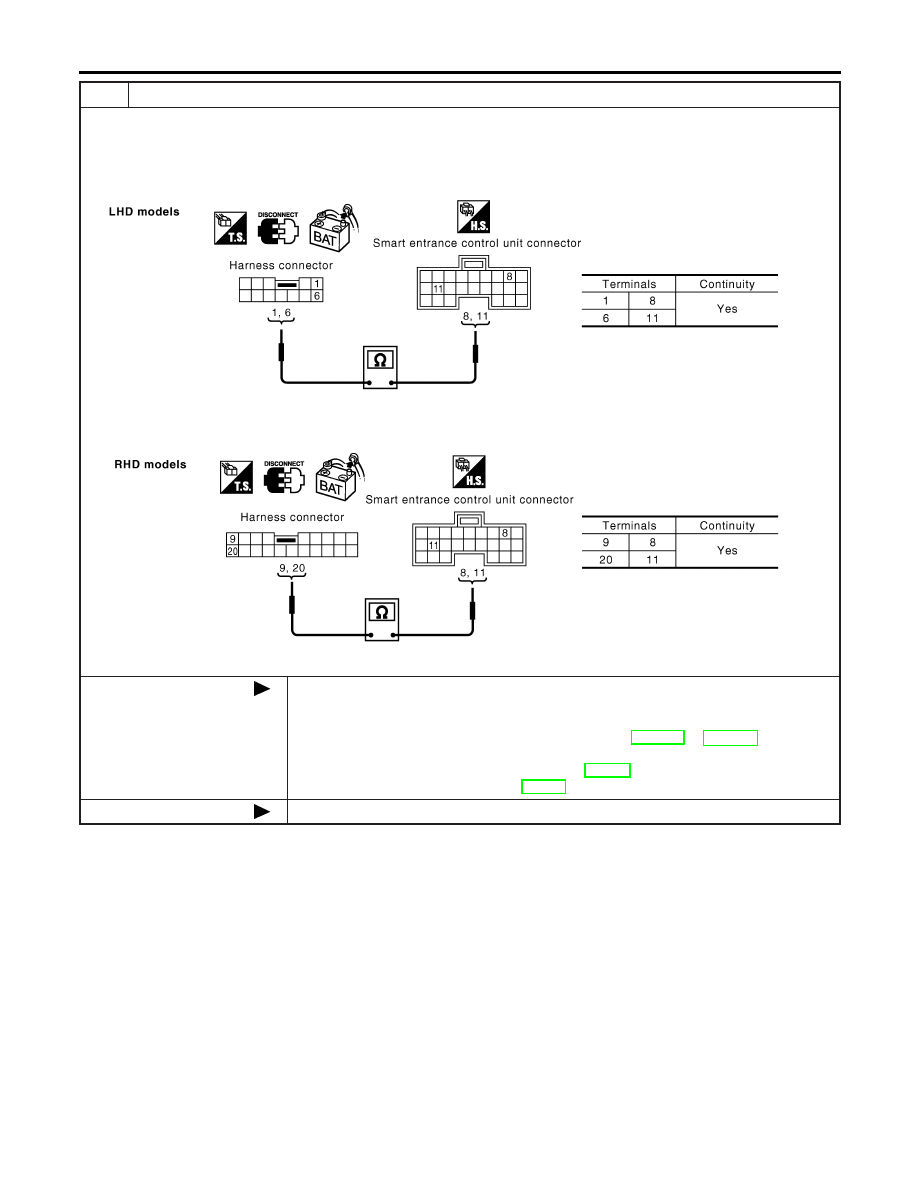

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Check the following.
LHD models

Continuity between harness connector M82 terminals 1 (L), 6 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R)

YEL420E

RHD models

Continuity between harness connector M80 terminals 9 (L), 20 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R)

YEL421E

OK or NG

OK

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to the fol-
lowing.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (EC-1011 or EC-1318) for
“ENGINE”

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

NG

Repair harness.

CAN SYSTEM (TYPE 3)

Trouble Diagnoses (Cont’d)

EL-524

ECM CIRCUIT CHECK

=NLEL0651S07

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of ECM for damage, bend and loose connection (control module side and harness

side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M107 terminals 95 (L) and 87 (R).

YEL438E

OK or NG

OK

©

Replace ECM.

NG

©

Repair harness between ECM and ABS actuator and electric unit (control unit).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 3)

Trouble Diagnoses (Cont’d)

EL-525

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) CIRCUIT CHECK

=NLEL0651S08

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose connec-

tion (control unit side and harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (control unit) harness connector E143 terminals 11 (L) and 15

(R).

YEL423E

OK or NG

OK

©

Replace TCM.

NG

©

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E125 (LHD models).

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E145 (RHD models).

CAN SYSTEM (TYPE 3)

Trouble Diagnoses (Cont’d)

EL-526

STEERING ANGLE SENSOR CIRCUIT CHECK

=NLEL0651S10

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of steering angle sensor for damage, bend and loose connection (sensor side and

harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

CHECK HARNESS FOR OPEN CIRCUIT
