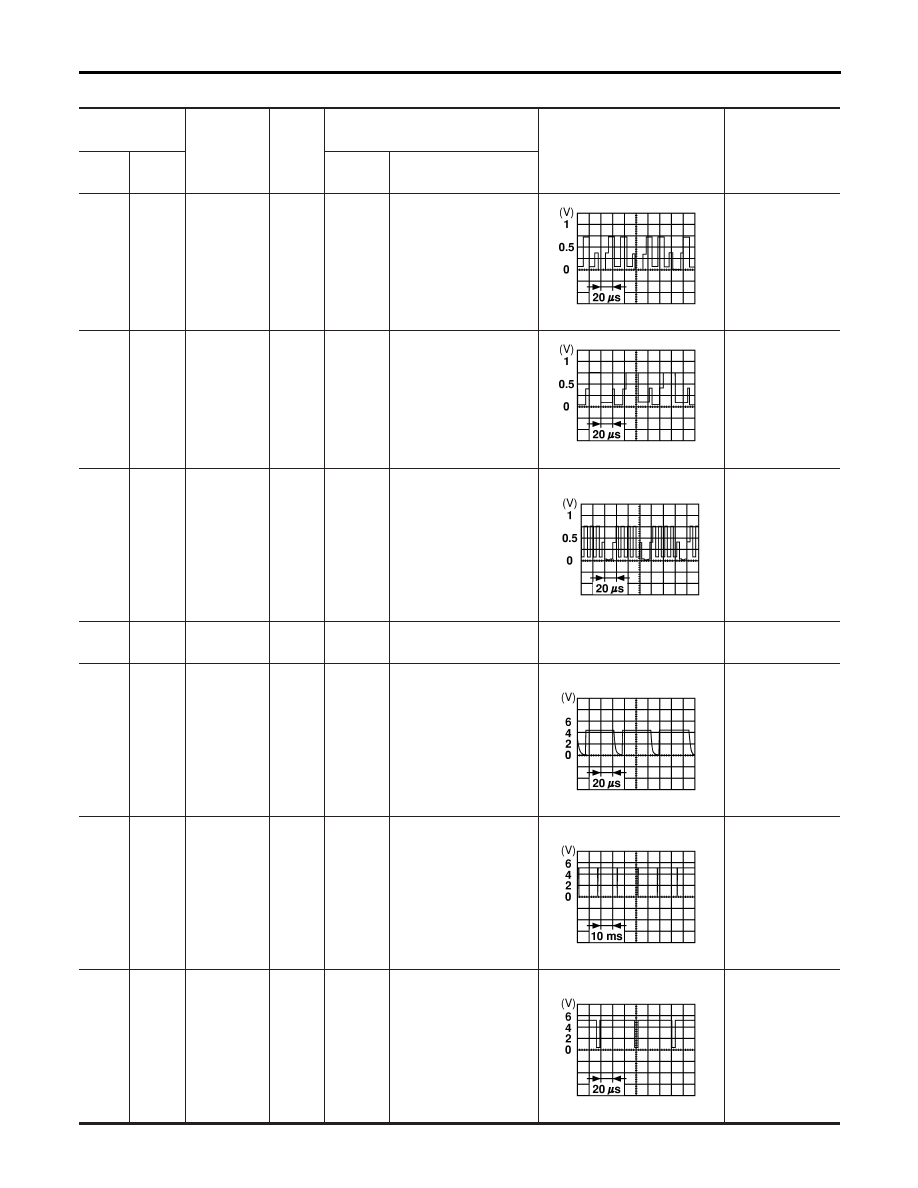

Terminals and Reference Value for Display

NLEL0601

Terminal No.

(wire color)

Item

Signal

input/

output

Condition

Voltage

Example of

symptom

+

−

Ignition

switch

Operation

1 (Y)

4

RGB signal

(R: red)

Input

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT function.

SKIA0165E

RGB screen
looks bluish.

2 (W)

4

RGB signal

(G: green)

Input

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT function.

SKIA0166E

RGB screen
looks reddish.

3 (L)

4

RGB signal

(B: blue)

Input

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT function.

SKIA0167E

RGB screen
looks yellowish.

4

—

Shield

ground

—

—

—

—

—

5

(BR)

4

Horizontal

synchroniz-

ing signal

Output

ON

Select“ Display” in “Set-

ting” mode and display

the rear view picture on

the screen.

SKIA0163E

Superimposed
screen is not
shown.

6 (B)

4

Vertical syn-

chronizing

signal

Output

ON

—

SKIA0161E

Superimposed
screen is rolling.

7 (G)

4

RGB syn-

chronizing

signal

Input

ON

Press the “MAP” switch.

SKIA0164E

RGB screen is
rolling.

NAVIGATION SYSTEM

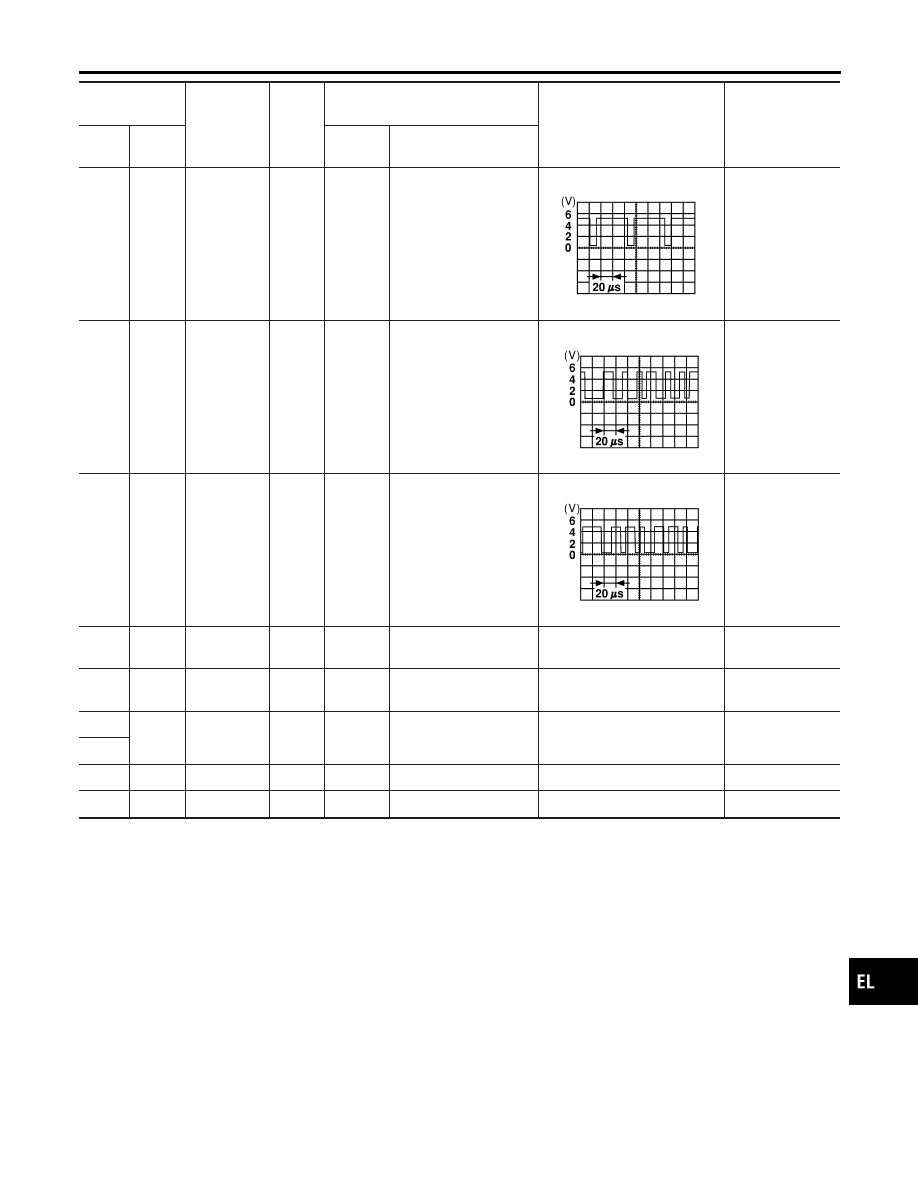

Terminals and Reference Value for Display

EL-404

Terminal No.

(wire color)

Item

Signal

input/

output

Condition

Voltage

Example of

symptom

+

−

Ignition

switch

Operation

8 (R)

4

RGB area

signal

Input

ON

Press the “info” switch.

SKIA0162E

RGB screen is
not shown.

12

(W)

ground

Communica-

tion signal

(-)

Input/

output

ON

—

SKIA0176E

System does not
work properly.

13 (B)

ground

Communica-

tion signal

(+)

Input/

output

ON

—

SKIA0175E

System does not
work properly.

14

—

Shield

ground

—

—

—

—

—

19 (P)

ground

ACC signal

Input

ACC

—

Battery voltage

Screen is not
shown.

21 (Y)

ground

Battery

power

Input

OFF

—

Battery voltage

Screen is not
shown.

23 (Y)

22 (B)

ground

Ground

—

ON

—

Approx. 0V

—

24 (B) ground

Ground

—

ON

—

Approx. 0V

—

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

Terminals and Reference Value for Display (Cont’d)

EL-405

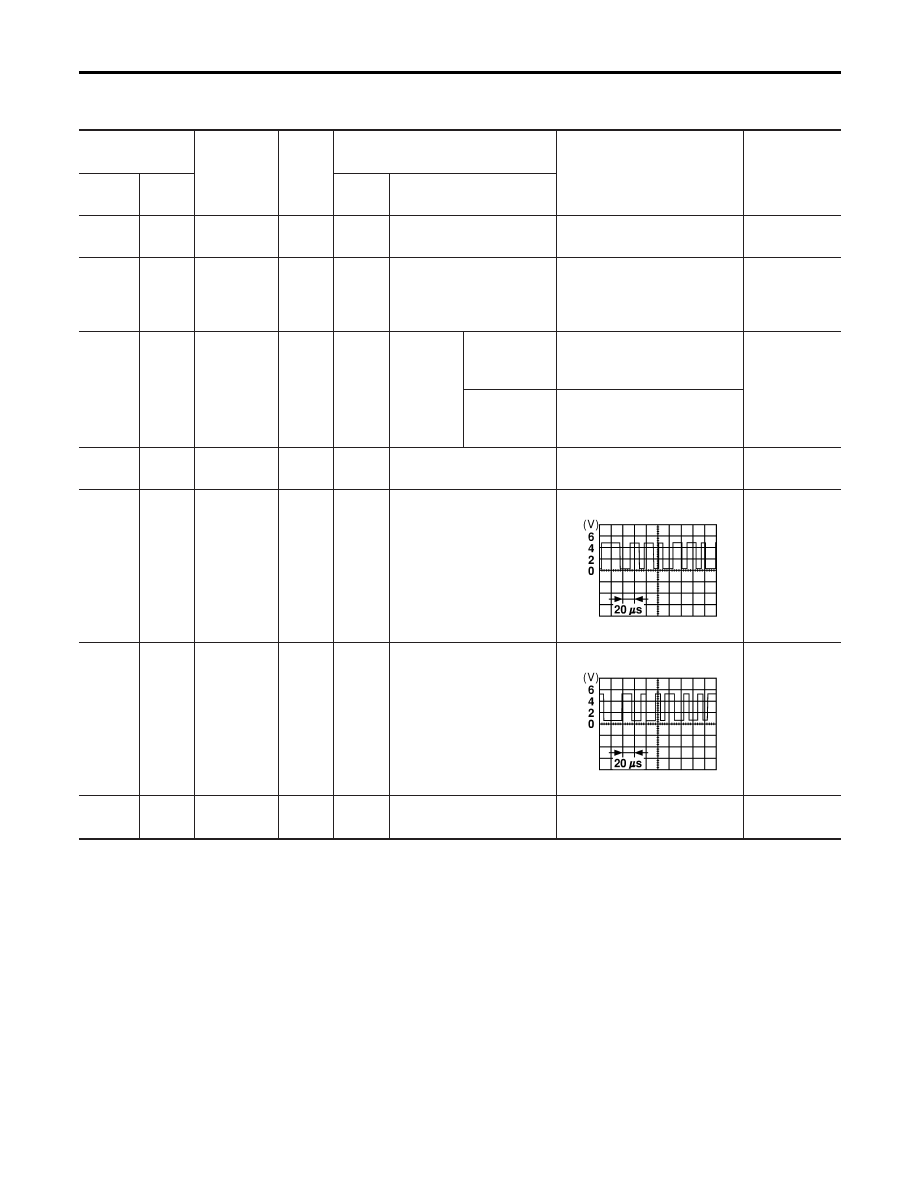

Terminals and Reference Value for
Multifunction Switch

=NLEL0602

Terminal No.

(wire color)

Item

Signal

input/

output

Condition

Voltage

Example of

symptom

+

−

Ignition

switch

Operation

1 (B)

ground

Ground

—

ON

—

—

All operations
do not work.

2 (BR)

ground

Illumination
control sig-
nal

Input

ON

Illumination control switch
is operated by lighting
switch in 1st position.

Changes between approx. 0

and approx. 12V.

Multifunction

Switch illumi-

nation cannot
be controlled.

4 (Y/R)

ground

Illumination

control sig-

nal

Input

ON

Lighting

switch ON

(position 1)

Optical sensor

is exposed to

light.

Approx. 3.5V or more

Screen does
not switch
between day-
time mode
and nighttime
mode.

Optical sensor

is not exposed

to light.

Approx. 1.5V or less

6 (P)

ground

ACC

Input

ACC

—

Battery voltage

All operations
do not work.

11 (L)

12 (B)

ground

Communica-

tion signal

(+)

Input/

output

ON

—

SKIA0175E

System does
not work prop-
erly.

13 (P)

14 (W)

ground

Communica-

tion signal

(-)

Input/

output

ON

—

SKIA0176E

System does
not work prop-
erly.

15
16

ground

Shield

ground

—

ON

—

—

—

NAVIGATION SYSTEM

Terminals and Reference Value for Multifunction Switch

EL-406

Self-Diagnosis Function

=NLEL0603

DESCRIPTION

NLEL0603S01

I

Diagnosis function consists of the self-diagnosis mode performed automatically and the confirmation/
adjustment mode operated manually.

I

Self-diagnosis mode checks connections between all units and performs individual unit diagnosis for all
units in system. Results are displayed on LCD display.

I

Check/adjustment mode is used to perform trouble diagnosis that require operation and judgment by an
operator (trouble that cannot be automatically judged by the system), to check/change the set value, and
to display the error record of the navigation system.

SELF-DIAGNOSIS ITEM

NLEL0603S02

Mode

Diagnosis content

Self-diagnosis

I

Control unit diagnosis (DVD-ROM drive will not be diagnosed when no
map DVD-ROM is in it.)

I

Performs diagnosis of connections between C/U and GPS antenna and
between C/U and all units.

Confirmation/
adjustment

Display

Color tone and shading of the screen can be checked by the display of a
color bar and a gray scale.

Vehicle signals

The following signals can be diagnosed: vehicle speed, parking brake,
light, IGN (IGN SW), and reverse.

History of Errors

Displays the navigation system-related problems that occurred in the past
and the number of their occurrence. When a trouble symptom is selected,
the time and place of the latest occurrence will be shown.

Auto Climate Control

All A/C screen displays on LCD monitor and the A/C SW indicator lamp
are illuminated.

Navigation

Display Longitude &
Latitude

Display the map. Use the joystick to adjust position. Longitude and latitude
will be displayed.

Angle adjustment

Corrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.

Distance adjustment

Corrects difference between the current-location mark on the display and
actual position of the vehicle.

Initialize Location

Location memorized by AV and NAVI control unit can be initialized in this
mode.

Service

Service schedule can be changed in this mode.
