Nissan Almera Tino V10. Manual - part 727





YEL141E

AUDIO

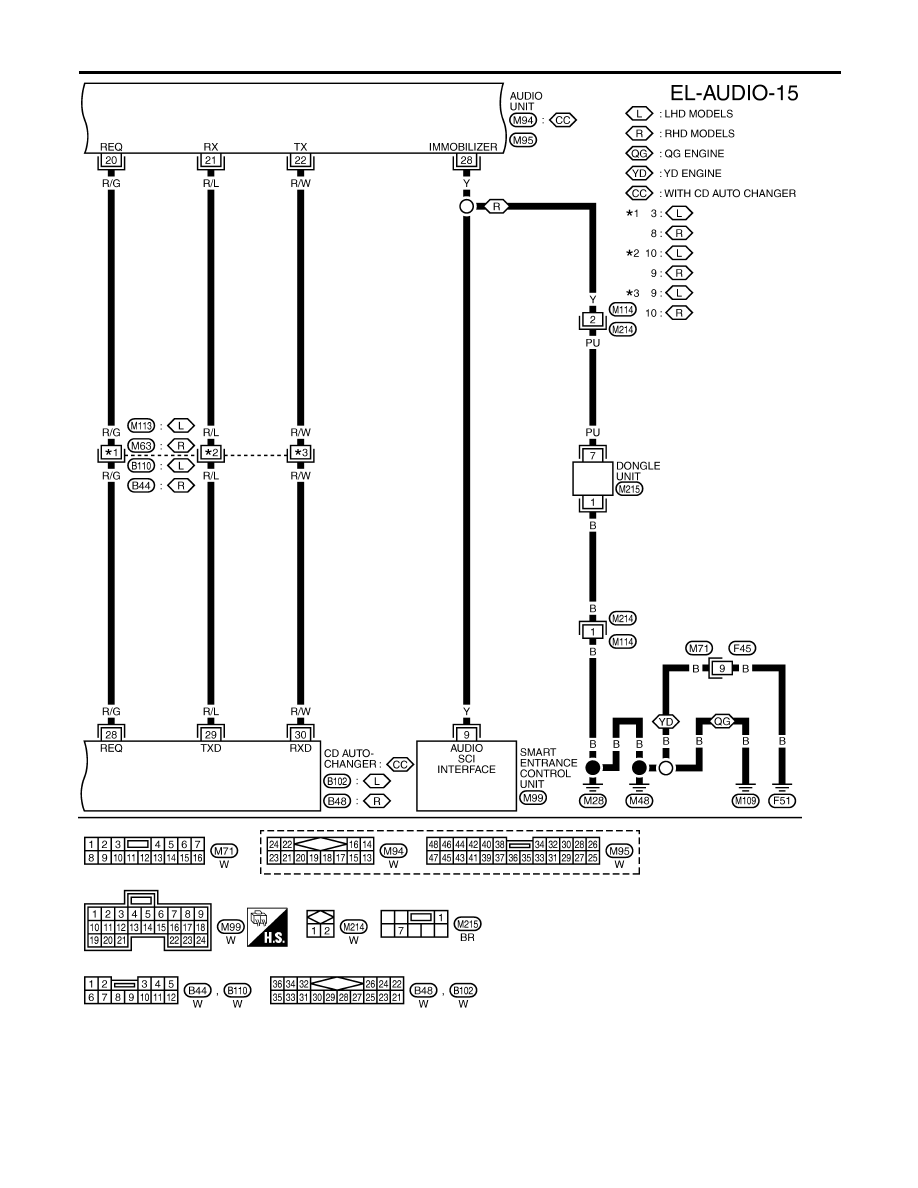

Wiring Diagram — AUDIO — (Cont’d)

EL-204

YEL983D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUDIO

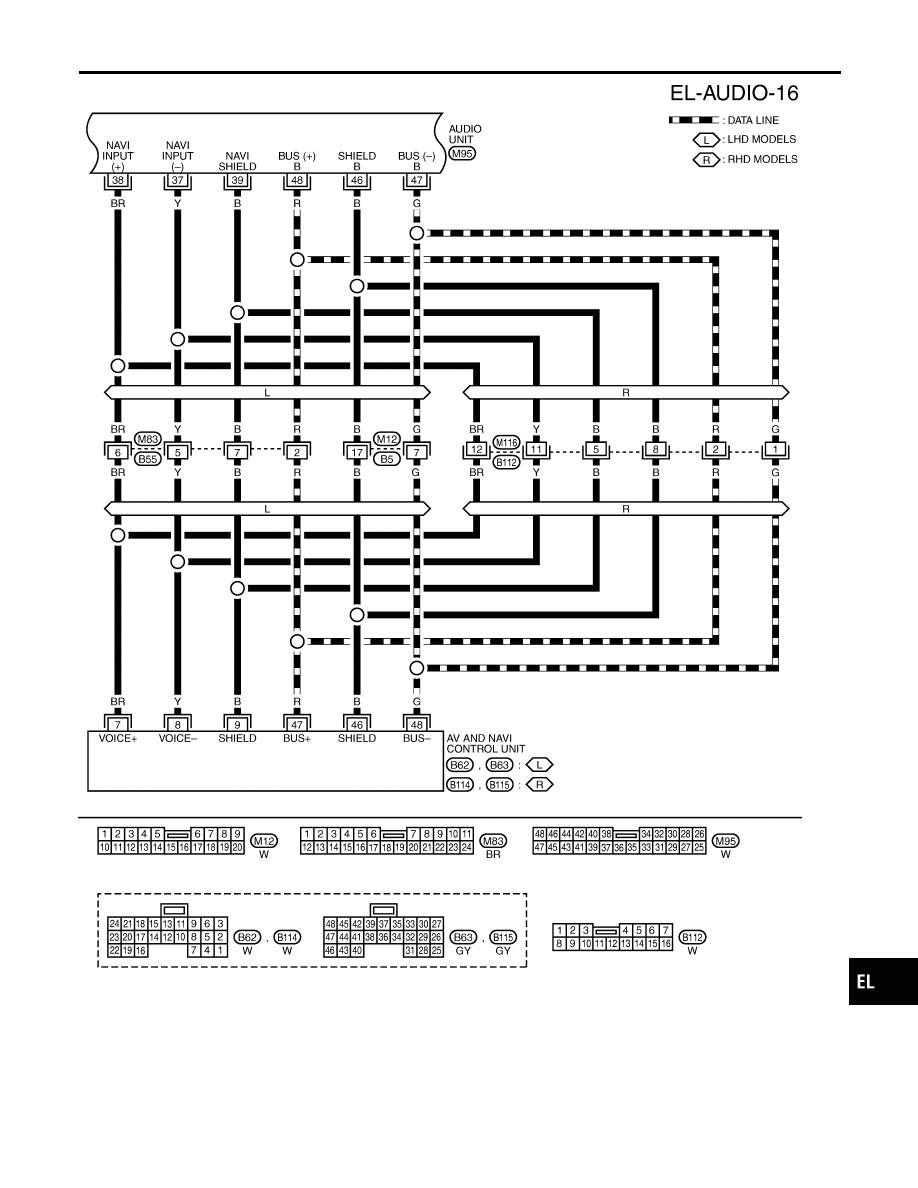

Wiring Diagram — AUDIO — (Cont’d)

EL-205

YEL984D

AUDIO

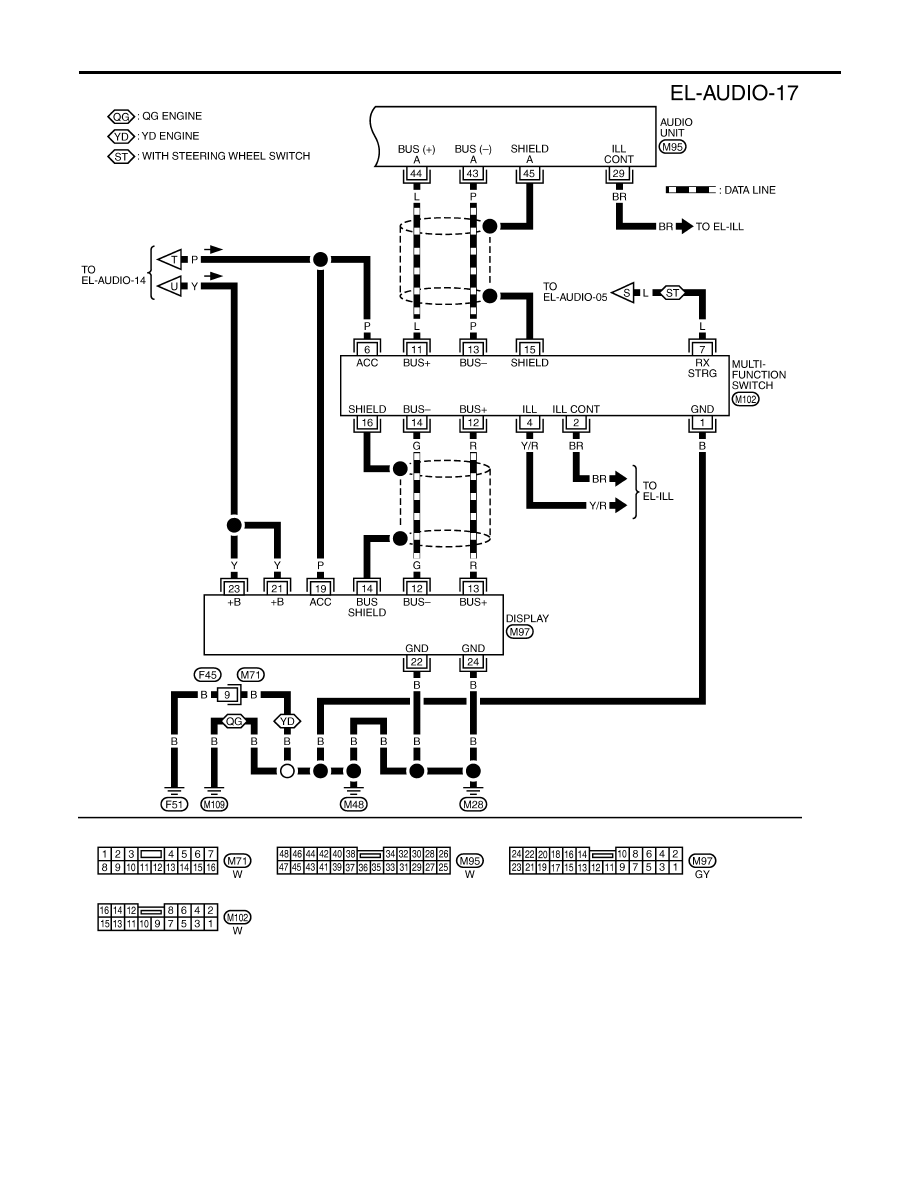

Wiring Diagram — AUDIO — (Cont’d)

EL-206

Trouble Diagnosis

NLEL0544

SELF-DIAGNOSIS FUNCTION

NLEL0544S01

Description

NLEL0544S0101

I

Diagnosis function consists of the self-diagnosis mode, and the “CONFIRMATION/ADJUSTMENT” mode.

I

Self-diagnosis mode checks for connection among audio unit, and CD auto changer and analyzes each
unit, then displays the results.

Diagnosis Item

NLEL0544S0102

Mode

Description

Self-diagnosis

I

Check that communication lines between system components are properly connected.

I

Perform the unit diagnosis of audio unit and CD auto changer.

SELF-DIAGNOSIS MODE

NLEL0544S02

Operation Procedure

NLEL0544S0201

I

To start the self-diagnosis mode and to check the diagnostic result, EL-407 for models with navigation
system, or EL-225 (LCD) for models without navigation system.

MALFUNCTION WITH RADIO, TAPE, AND CD

NLEL0544S03

Symptom

Check items

Possible cause

Inoperative

I

Make sure that the ignition switch is in the ACC
position.

I

Audio unit

I

Audio unit power circuit

No sound

I

Make sure that the volume is not turned down.

I

Make sure that the balance and fader control knobs
are centered.

I

Audio unit

I

Audio unit power circuit

I

Speaker

I

Sound signal circuit between
speaker and audio unit

Poor sound

I

Make sure that the bass and treble adjustment
knobs are centered.

I

Audio unit

I

CD auto changer

I

Speaker

Noisy

I

Audio unit

I

CD auto changer

I

Each electrical equipment

FOR RADIO ONLY

NLEL0544S04

Symptom

Check items

Possible cause

No sound

I

Make sure that the radio is tuned to a station’s fre-
quency.

I

Audio unit

I

Antenna feeder

I

Roof antenna

Noisy

I

Make sure that the radio is tuned to a station’s fre-
quency.

I

Make sure that the signal of the received station is
not weak.

I

Check whether or not the malfunction occurs only in
a particular area. (Note)

I

Audio unit

I

Antenna feeder

I

Roof antenna

I

Noise prevention parts

I

Each electrical equipment

I

Wire harness of each piece of elec-
trical equipment

Selected radio stations stored in
memory are deleted

I

Audio unit

I

Audio unit power circuit

NOTE:

I

This is noise resulting from variations in field strength, such as fading noise and multi-path noise, or
external noise from trains and other sources. It is not a malfunction.

Fading noise: This noise occurs because of variations in the field strength in a narrow range due to
mountains or buildings blocking the signal.

Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the
antenna at a different time from the waves which reflect off of mountains or buildings.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUDIO

Trouble Diagnosis

EL-207
