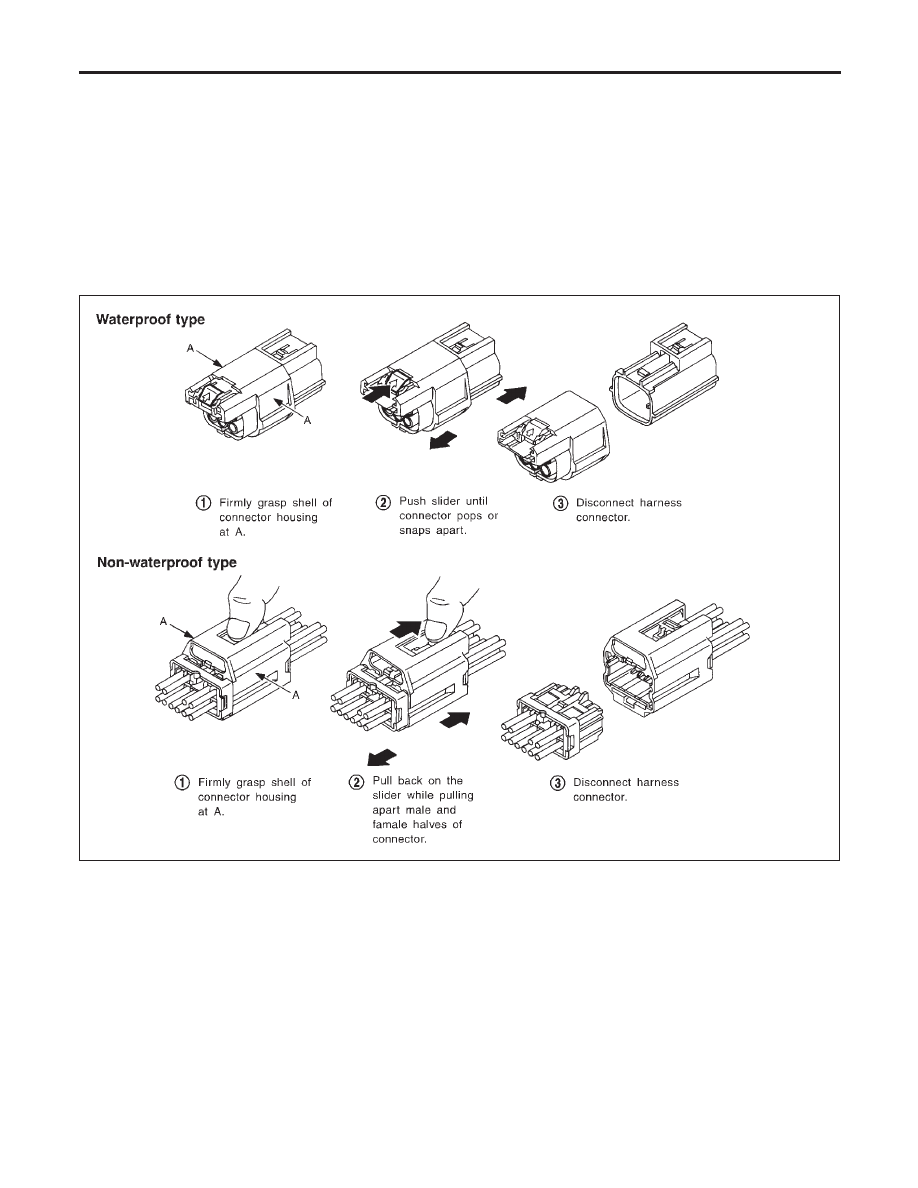

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

=NLEL0003S02

I

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

I

The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.

I

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.

CAUTION:

I

Do not pull the harness or wires when disconnecting the connector.

I

Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

SEL769V

HARNESS CONNECTOR

Description (Cont’d)

EL-8

Description

NLEL0004

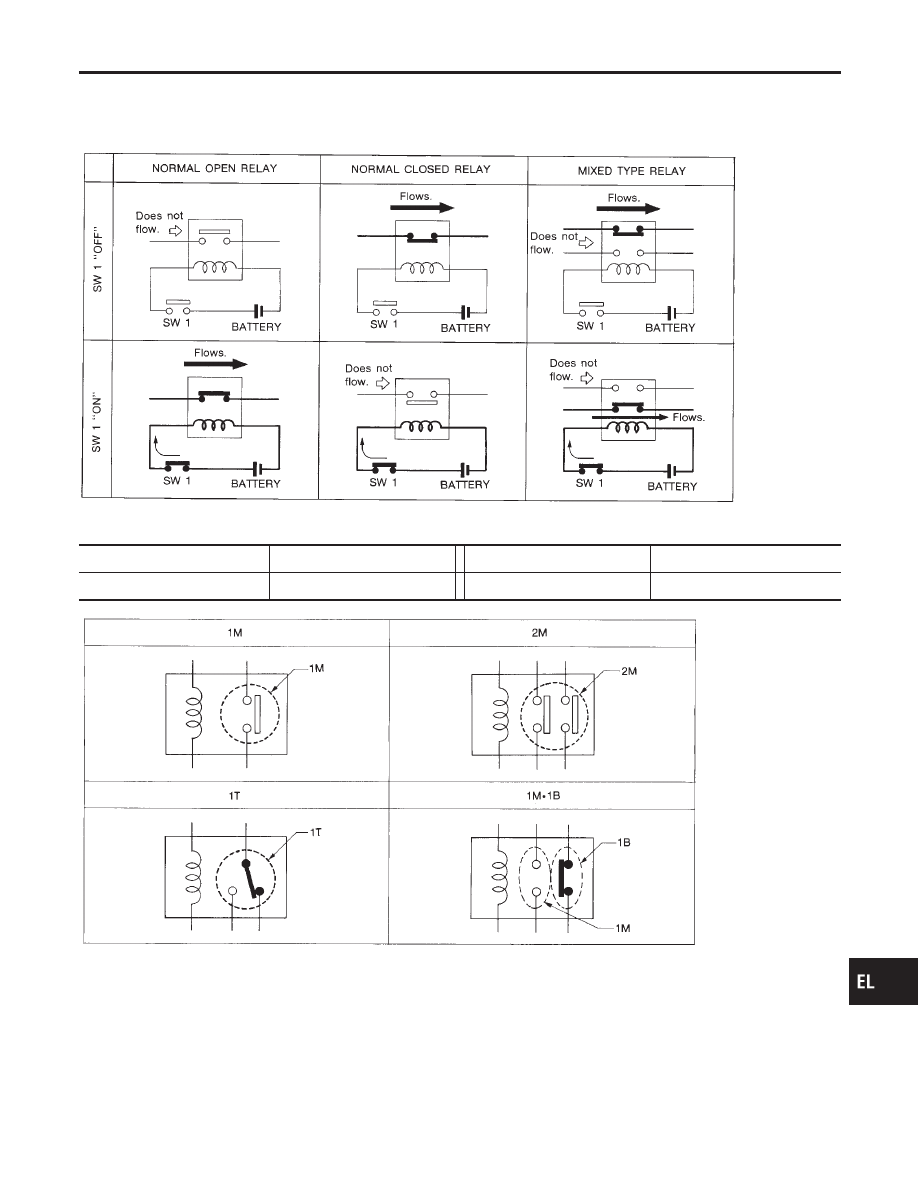

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

NLEL0004S01

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

SEL881H

TYPE OF STANDARDIZED RELAYS

NLEL0004S02

1M

1 Make

2M

2 Make

1T

1 Transfer

1M·1B

1 Make 1 Break

SEL882H

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

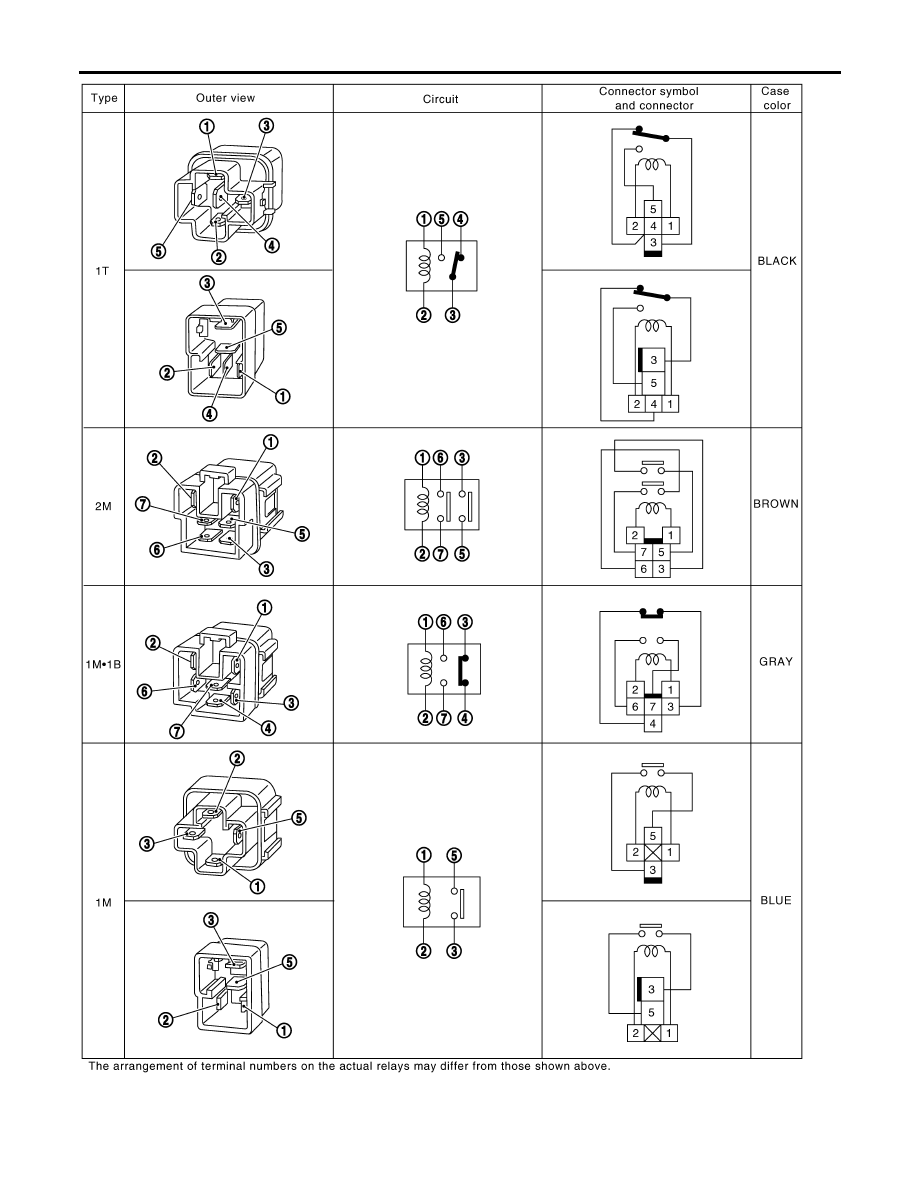

STANDARDIZED RELAY

Description

EL-9

GEL264

STANDARDIZED RELAY

Description (Cont’d)

EL-10

NOTE:

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER SUPPLY ROUTING

EL-11
