Nissan Almera Tino V10. Manual - part 669





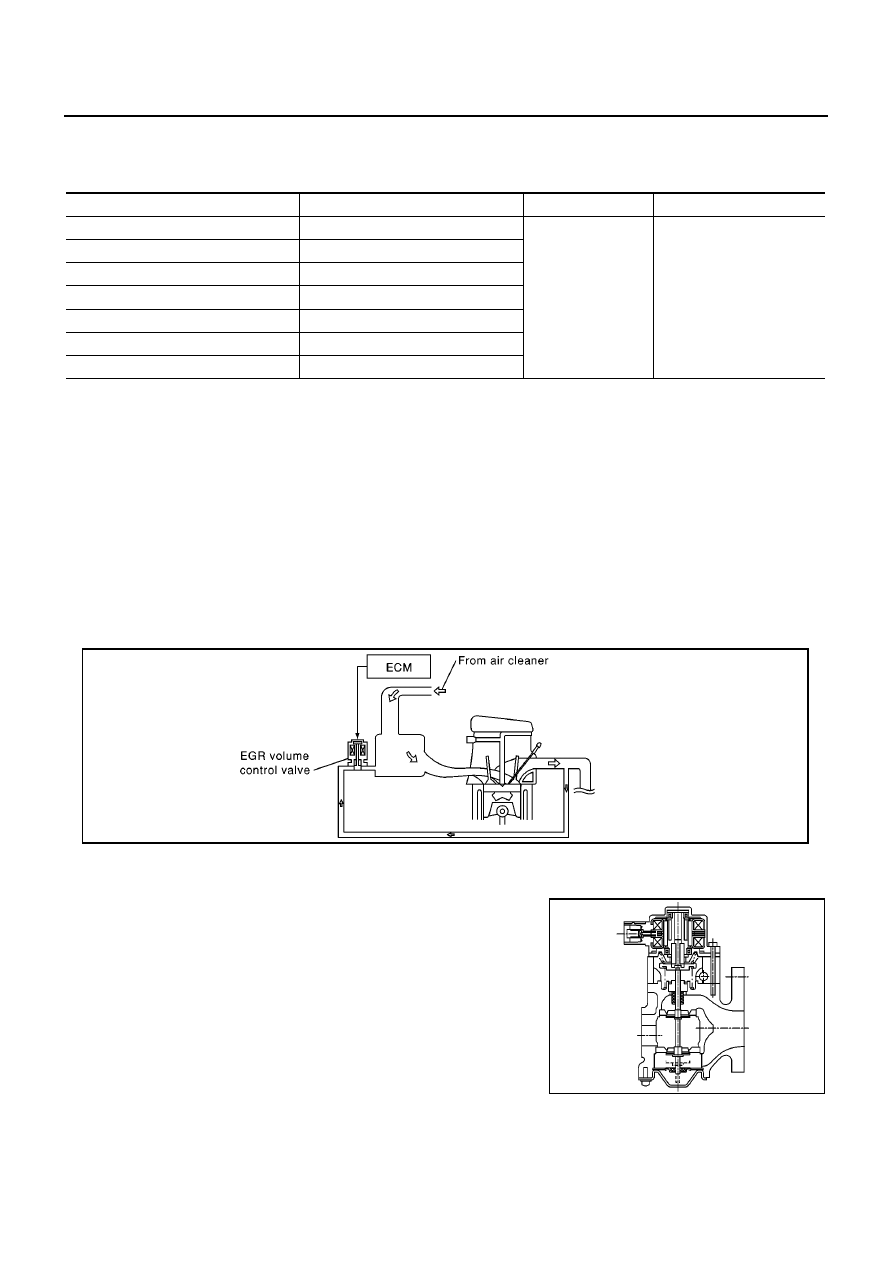

EC-1502

[YD (WITHOUT EURO-OBD)]

EGR VOLUME CONTROL SYSTEM

EGR VOLUME CONTROL SYSTEM

PFP:14710

Description

EBS0151B

SYSTEM DESCRIPTION

*: This signal is sent to the ECM through CAN communication line.

This system controls flow rate of EGR led from exhaust manifold to intake manifold. The opening of the EGR
by-pass passage in the EGR volume control valve changes to control the flow rate. A built-in step motor
moves the valve in steps corresponding to the ECM output pulses. The opening of the valve varies for opti-
mum engine control. The optimum value stored in the ECM is determined by considering various engine con-
ditions.
The EGR volume control valve remains close under the following conditions.

Engine stopped

Engine starting

Low engine coolant temperature

Excessively high engine coolant temperature

High engine speed

Wide open throttle

COMPONENT DESCRIPTION
EGR Volume Control Valve

The EGR volume control valve uses a step motor to control the flow
rate of EGR from exhaust manifold. This motor has four winding
phases. It operates according to the output pulse signal of the ECM.
Two windings are turned ON and OFF in sequence. Each time an
ON pulse is issued, the valve opens or closes, changing the flow
rate. When no change in the flow rate is needed, the ECM does not
issue the pulse signal. A certain voltage signal is issued so that the
valve remains at that particular opening.

Sensor

Input Signal to ECM

ECM Function

Actuator

Crankshaft position sensor

Engine speed

EGR volume control

EGR volume control valve

Vehicle speed sensor*

Vehicle speed

Engine coolant temperature sensor

Engine coolant temperature

Ignition switch

Start signal

Accelerator pedal position sensor

Accelerator pedal position

Mass air flow sensor

Amount of intake air

Air conditioner switch*

Air conditioner operation

SEF908Y

SEF411Y

EGR VOLUME CONTROL SYSTEM

EC-1503

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

CONSULT-II Reference Value in Data Monitor Mode

EBS0151C

Specification data are reference values.

ECM Terminals and Reference Value

EBS0151D

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MONITOR ITEM

CONDITION

SPECIFICATION

EGR VOL CON/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-load

After one minute at idle

More than 10 steps

Revving engine from idle to 3,600 rpm

0 step

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

25
26
27
28

GY
W/L
OR/B
GY/B

EGR volume control valve

[Engine is running]

Warm-up condition

Idle speed

0.1 - 14V
(Voltage signals of each ECM
terminals differ according to the
control position of EGR volume
control valve.)

105

113

G
G

ECM relay (self-shutoff)

[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition switch
OFF

Approximately 1.2V

[Ignition switch OFF]

More than a few seconds after turning ignition
switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R

Power supply for ECM

[Ignition switch ON]

BATTERY VOLTAGE
(11 - 14V)

EC-1504

[YD (WITHOUT EURO-OBD)]

EGR VOLUME CONTROL SYSTEM

Wiring Diagram

EBS0151E

MBWA0622E

EGR VOLUME CONTROL SYSTEM

EC-1505

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

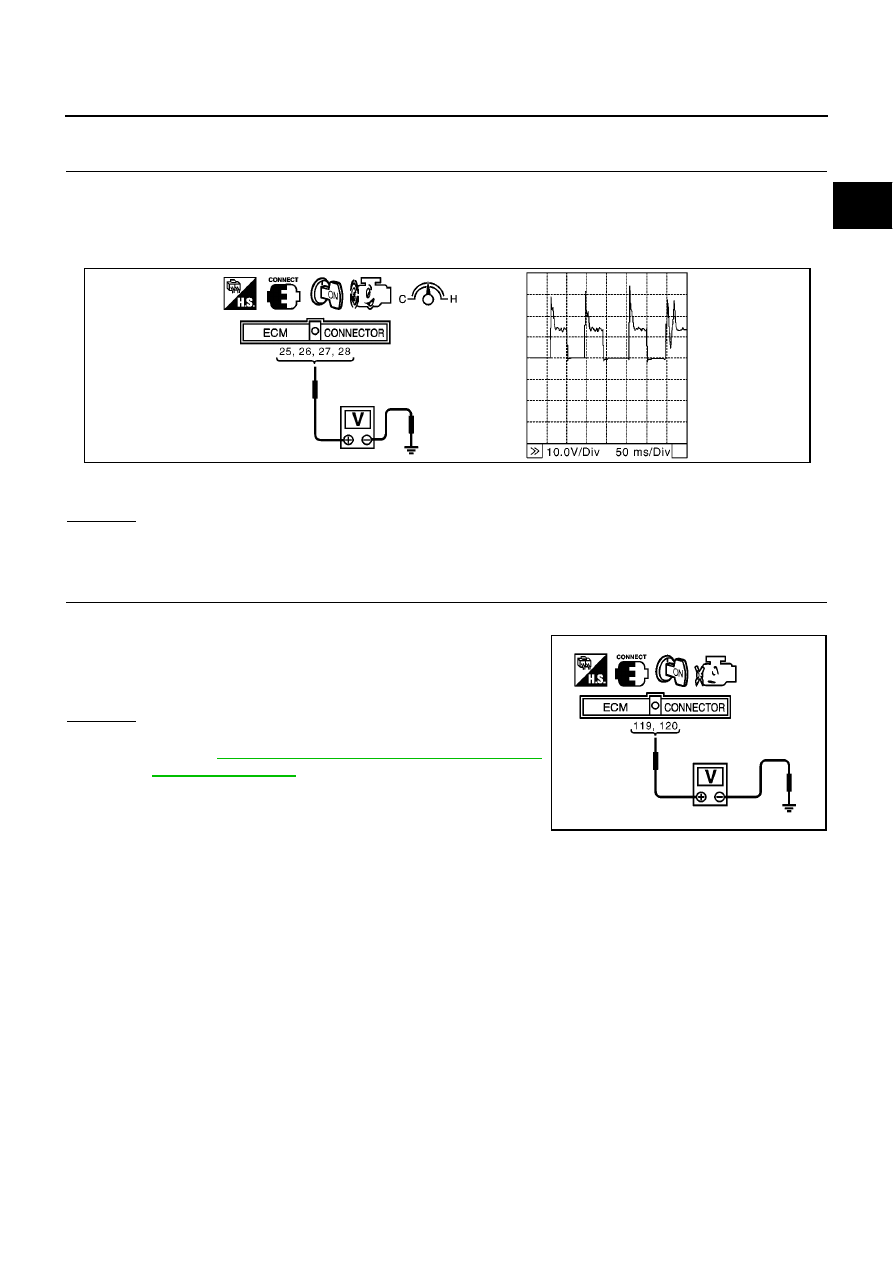

Diagnostic Procedure

EBS0151F

1.

CHECK EGR VOLUME CONTROL SYSTEM OVERALL FUNCTION

1.

Turn ignition switch OFF.

2.

Set the oscilloscope probe between ECM terminals 25, 26, 27, 28 and ground.

3.

Start engine and let it idle.

4.

Check the oscilloscope screen when revving engine up to 3,200 rpm and return to idle.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK EGR VOLUME CONTROL VALVE POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF, wait at least 10 seconds and then turn ON.

2.

Check voltage between ECM terminals 119, 120 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> Go

to

EC-1310,

"MAIN

POWER

SUPPLY

AND

GROUND CIRCUIT"

.

The pulse signal as shown in the figure should appear.

MBIB0617E

Voltage: Battery voltage

MBIB1096E
