EC-1434

[YD (WITHOUT EURO-OBD)]

DTC P0642, P0643 SENSOR POWER SUPPLY

Component Inspection

EBS014Y7

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

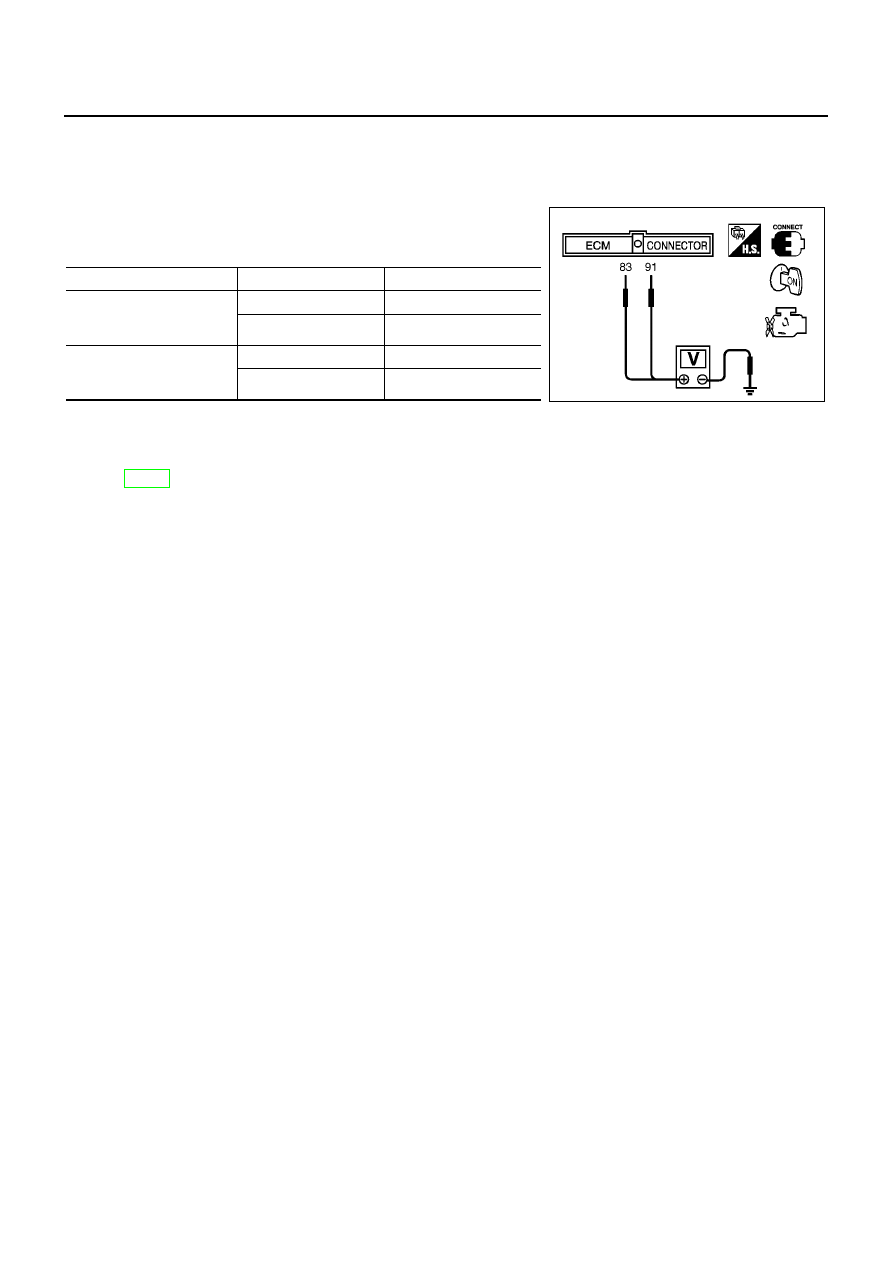

Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.

4.

If NG, replace accelerator pedal assembly.

Removal and Installation

EBS014Y8

ACCELERATOR PEDAL

Refer to FE-16, “ACCELERATOR CONTROL SYSTEM”.

Terminal

Accelerator pedal

Voltage

83

(Accelerator pedal position

sensor 1)

Fully released

0.5 - 1.0V

Fully depressed

4.2 - 5.2V

91
(Accelerator pedal position
sensor 2)

Fully released

0.4 - 0.7V

Fully depressed

2.2 - 2.7V

MBIB0615E

DTC P0652, P0653 SENSOR POWER SUPPLY

EC-1435

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0652, P0653 SENSOR POWER SUPPLY

PFP:18002

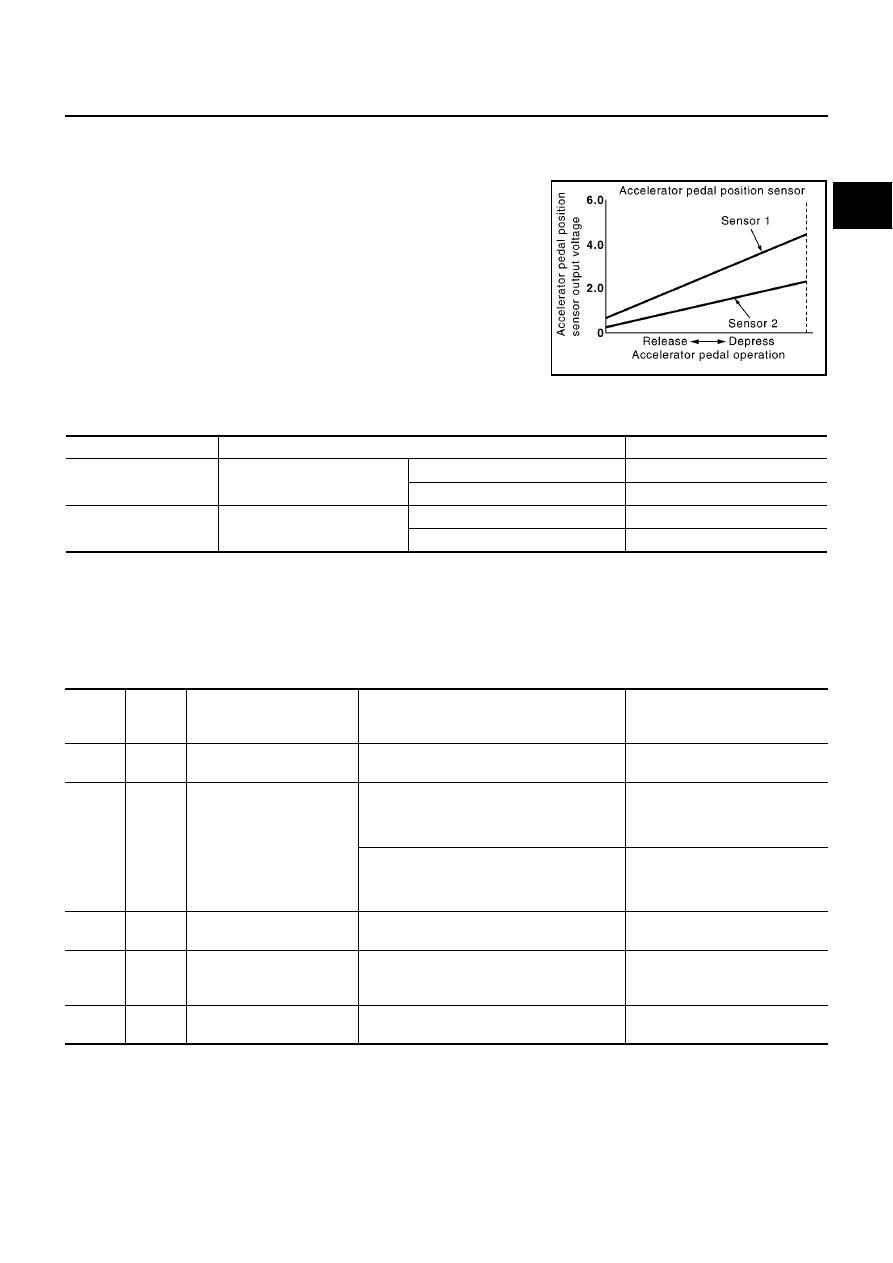

Description

EBS014Y9

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.

CONSULT-II Reference Value in Data Monitor Mode

EBS014YA

Specification data are reference values.

*: This signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

ECM Terminals and Reference Value

EBS014YB

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL POS SEN*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.2 - 0.7V

Accelerator pedal: Fully depressed

3.9 - 4.9V

ACCEL SEN 2*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.1 - 0.4V

Accelerator pedal: Fully depressed

1.9 - 2.4V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

82

L

Accelerator pedal position
sensor 1 power supply

[Ignition switch ON]

Approximately 5.3V

83

L/R

Accelerator pedal position
sensor 1

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal: Fully released

0.5 - 1.0V

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal: Fully depressed

4.2 - 5.2V

84

L/W

Accelerator pedal position
sensor 1 ground

[Ignition switch ON]

Approximately 0.3V

85

—

Sensor ground
(Accelerator pedal position
sensor shield circuit)

[Ignition switch ON]

Approximately 0.3V

90

R

Accelerator pedal position
sensor 2 power supply

[Ignition switch ON]

Approximately 5.3V

EC-1436

[YD (WITHOUT EURO-OBD)]

DTC P0652, P0653 SENSOR POWER SUPPLY

On Board Diagnosis Logic

EBS014YC

The MI will not light up for these self-diagnoses.

DTC Confirmation Procedure

EBS014YD

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-1438, "Diagnostic Procedure"

.

91

B

Accelerator pedal position
sensor 2

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal: Fully released

0.4 - 0.7V

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal: Fully depressed

2.2 - 2.7V

92

W

Accelerator pedal position
sensor 2 ground

[Ignition switch ON]

Approximately 0.3V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0652

Accelerator pedal position sensor
2 power supply circuit low

ECM detects a voltage of power source for
the APP sensor 2 is excessively low.

●

Harness or connectors
(The APP sensor 2 power supply circuit
is open or shorted.)

●

Accelerator pedal position sensor
(Accelerator pedal position sensor 2)

P0653

Accelerator pedal position sensor
2 power supply circuit high

ECM detects a voltage of power source for
the APP sensor 2 is excessively high.

SEF817Y

DTC P0652, P0653 SENSOR POWER SUPPLY

EC-1437

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

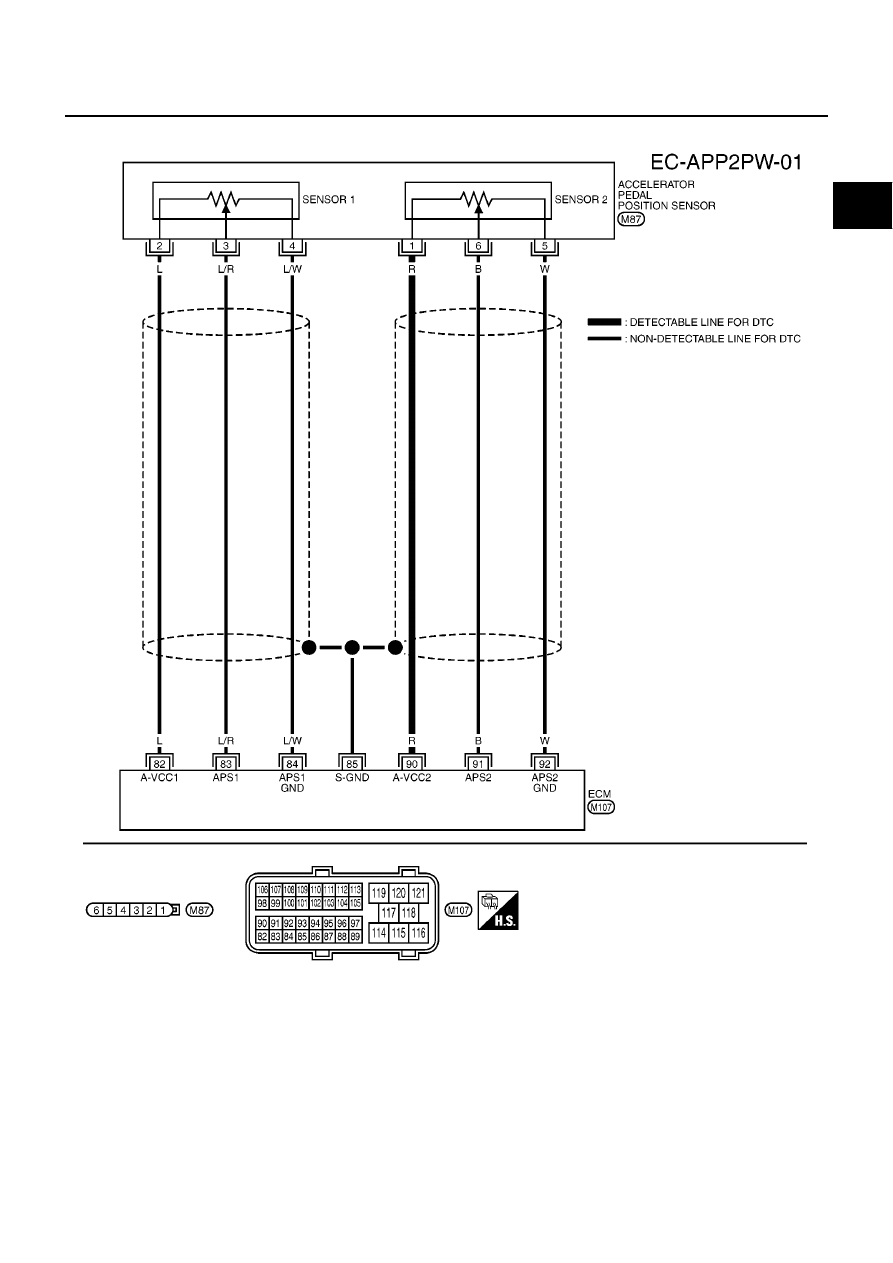

Wiring Diagram

EBS014YE

YEC523A
