EC-494

[QG (WITH EURO-OBD)]

DTC P1227, P1228 APP SENSOR

DTC P1227, P1228 APP SENSOR

PFP:18002

Component Description

EBS00QSH

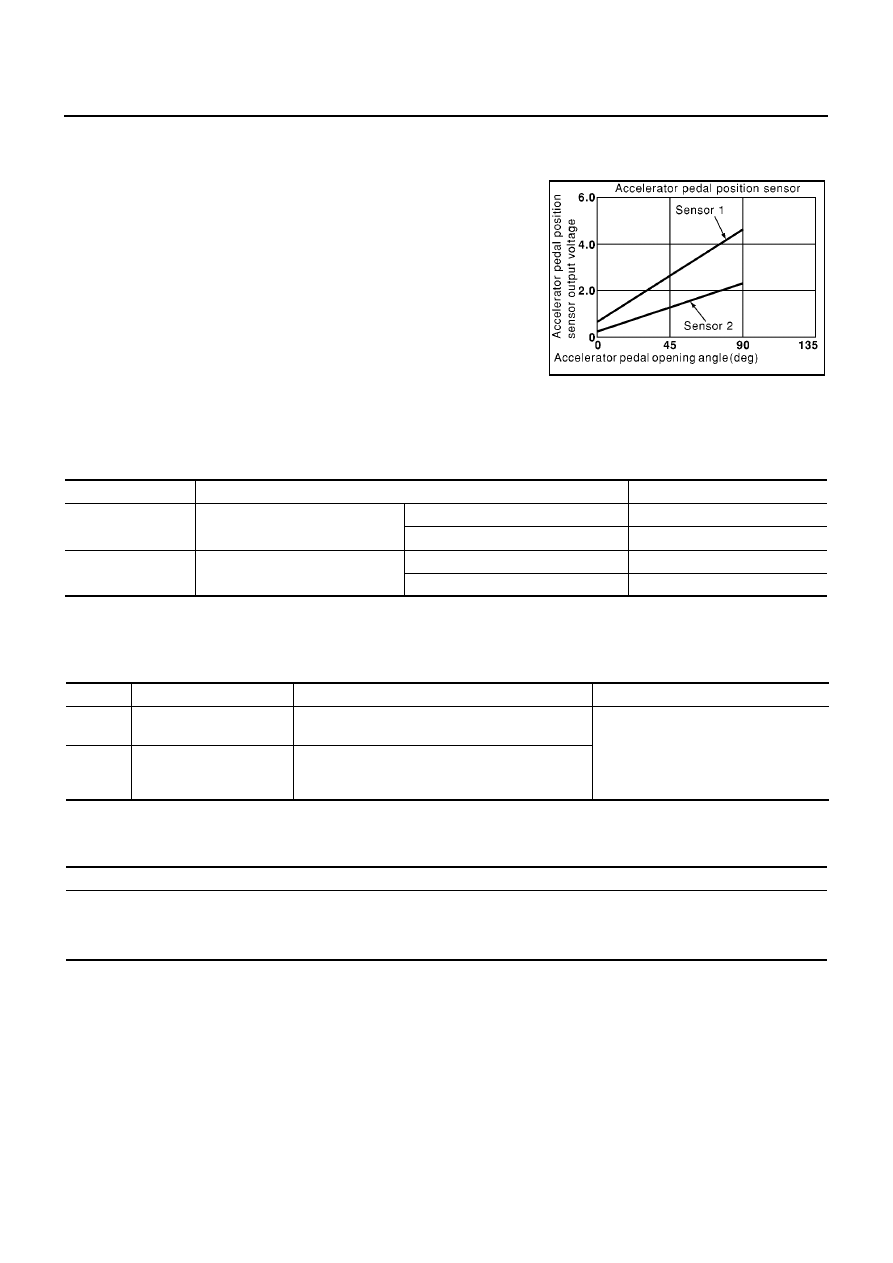

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

CONSULT-II Reference Value in Data Monitor Mode

EBS00QSI

Specification data are reference values.

*: Accelerator pedal position sensor 2 signals converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00QSJ

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QSK

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

PBIB0146E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN1

ACCEL SEN2

*

Ignition switch: ON
(engine stopped)

Accelerator pedal: Fully released

0.41 - 0.71V

Accelerator pedal: Fully depressed

More than 4.2V

CLSD THL POS

Ignition switch: ON

Accelerator pedal: Fully released

ON

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1227
1227

Accelerator pedal position
sensor 2 circuit low input

An excessively low voltage from the APP sensor 2
is sent to ECM.

Harness or connectors
(The APP sensor 2 circuit is open or
shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 2)

P1228
1228

Accelerator pedal position
sensor 2 circuit high input

An excessively high voltage from the APP sensor 2
is sent to ECM.

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P1227, P1228 APP SENSOR

EC-495

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

WITH CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-497, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

EC-496

[QG (WITH EURO-OBD)]

DTC P1227, P1228 APP SENSOR

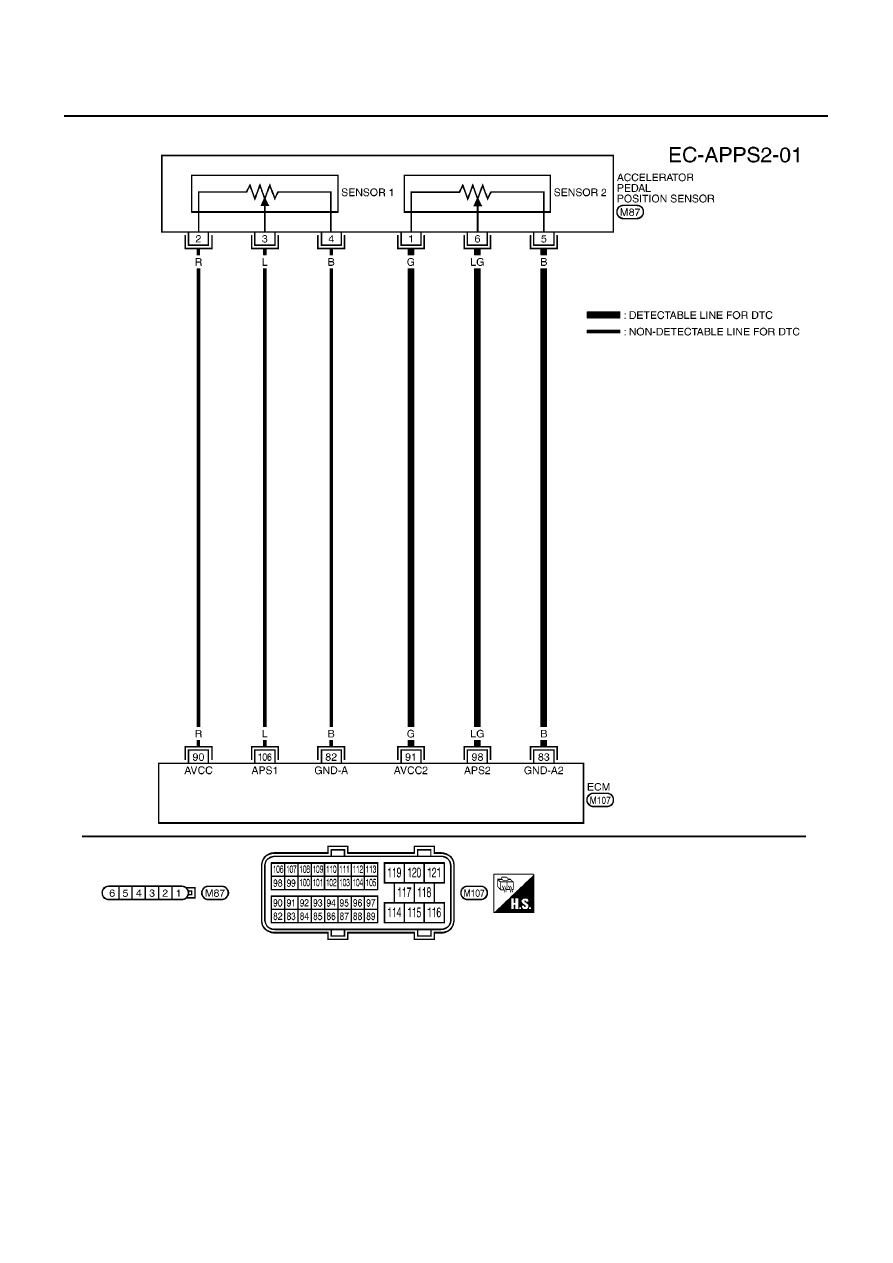

Wiring Diagram

EBS00QSL

YEC468A

DTC P1227, P1228 APP SENSOR

EC-497

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00QSM

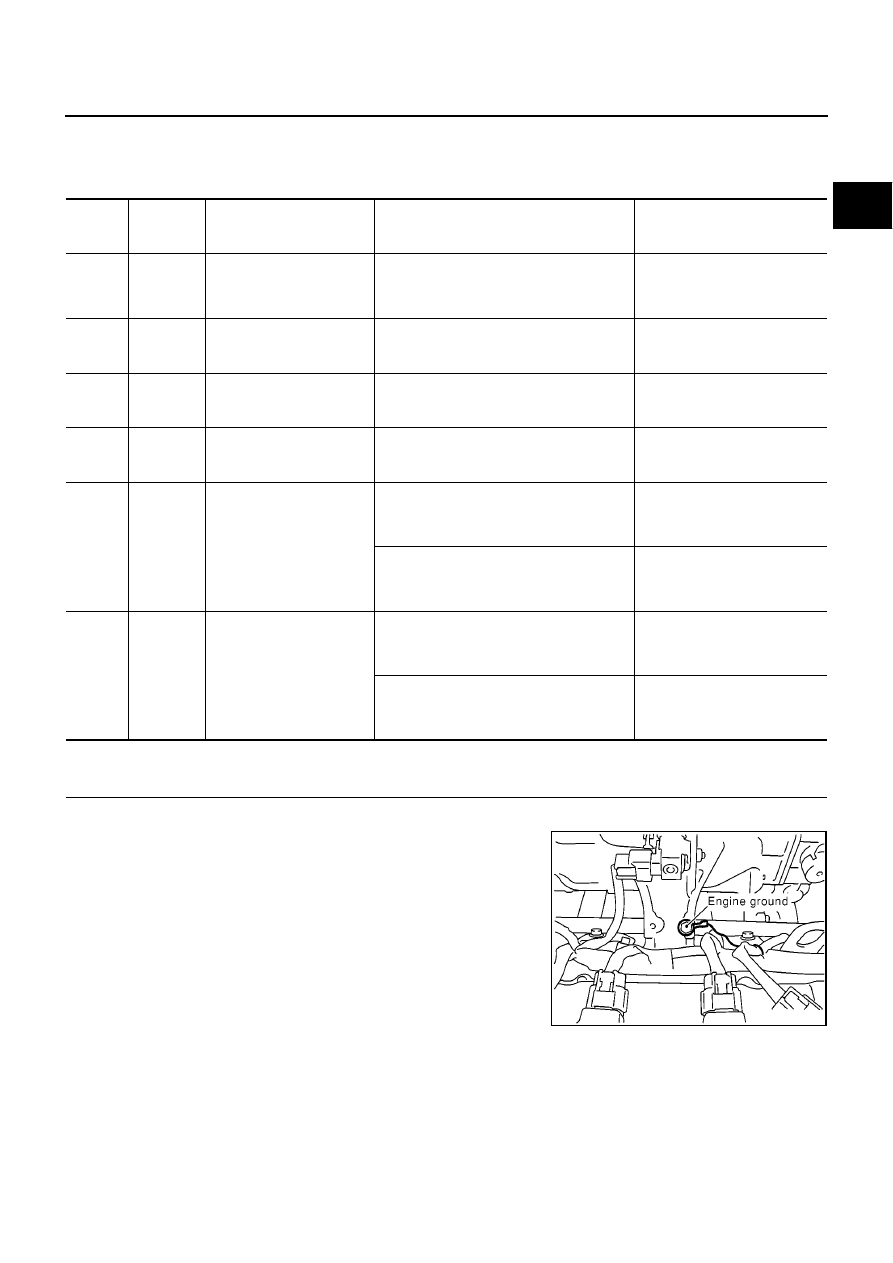

1.

RETIGHTEN GROUND SCREWS

1.

Turn ignition switch “OFF”.

2.

Loosen and retighten engine ground screws.

>> GO TO 2.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

82

B

Sensor ground
(Accelerator pedal position
sensor 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

83

B

Sensor ground
(Accelerator pedal position
sensor 2)

[Ignition switch “ON”]

Approximately 0V

90

R

Sensor power supply
(Accelerator pedal position
sensor 1)

[Ignition switch “ON”]

Approximately 5V

91

G

Sensor power supply
(Accelerator pedal position
sensor 2)

[Ignition switch “ON”]

Approximately 5V

98

LG

Accelerator pedal position
sensor 2

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully released

0.17 - 0.34V

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully depressed

More than 1.95V

106

L

Accelerator pedal position
sensor 1

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully released

0.35 - 0.67V

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully depressed

More than 3.9V

MBIB0095E
