Nissan Almera Tino V10. Manual - part 364





EC-282

[QG (WITH EURO-OBD)]

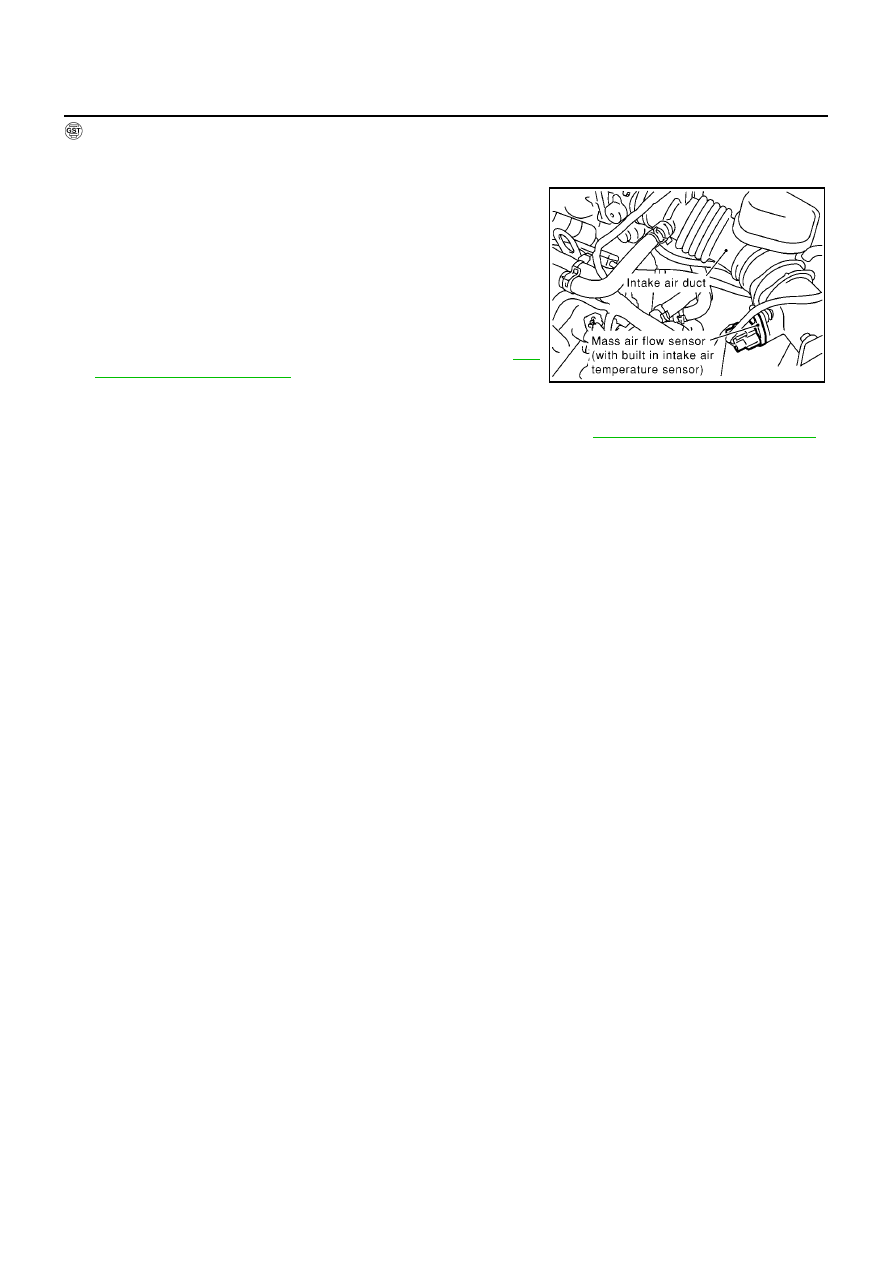

DTC P0171 FUEL INJECTION SYSTEM FUNCTION (M/T MODELS)

WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch “OFF” and wait at least 10 seconds.

3.

Disconnect mass air flow sensor harness connector. Then
restart and run engine for at least 5 seconds at idle speed.

4.

Stop engine and reconnect mass air flow sensor harness con-
nector.

5.

Select “MODE 3” with GST. Make sure DTC P0102 is detected.

6.

Select “MODE 4” with GST and erase the DTC P0102.

7.

Start engine again and let it idle for at least 10 minutes.

8.

Select “MODE 7” with GST. The 1st trip DTC P0171 should be
detected at this stage, if a malfunction exists. If so, go to

EC-

284, "Diagnostic Procedure"

.

9.

If it is difficult to start engine at step 7, the fuel injection system
has a malfunction.

10. Crank engine while depressing accelerator pedal. If engine starts, go to

EC-284, "Diagnostic Procedure"

.

If engine does not start, check exhaust and intake air leak visually.

MBIB0096E

DTC P0171 FUEL INJECTION SYSTEM FUNCTION (M/T MODELS)

EC-283

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

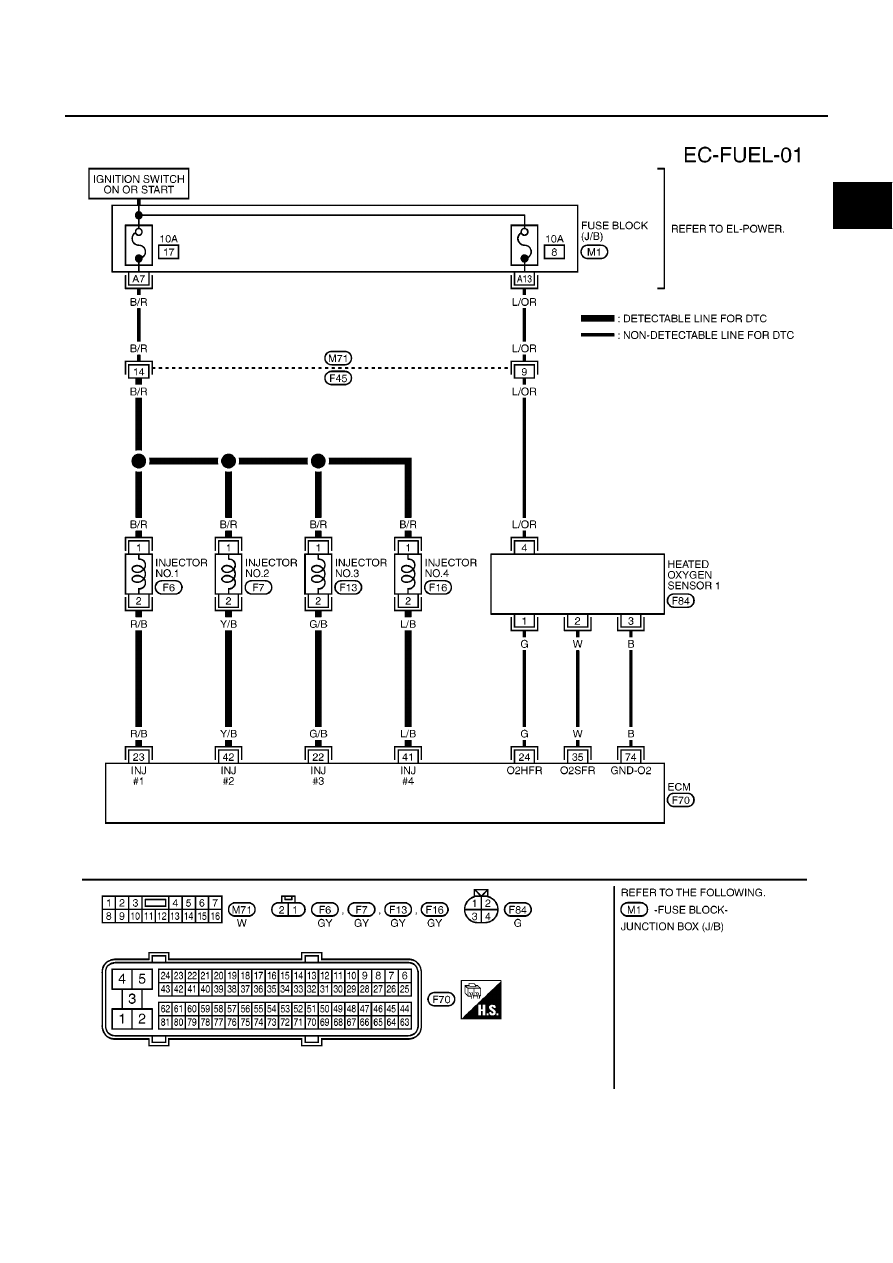

Wiring Diagram

EBS00QLP

YEC449A

EC-284

[QG (WITH EURO-OBD)]

DTC P0171 FUEL INJECTION SYSTEM FUNCTION (M/T MODELS)

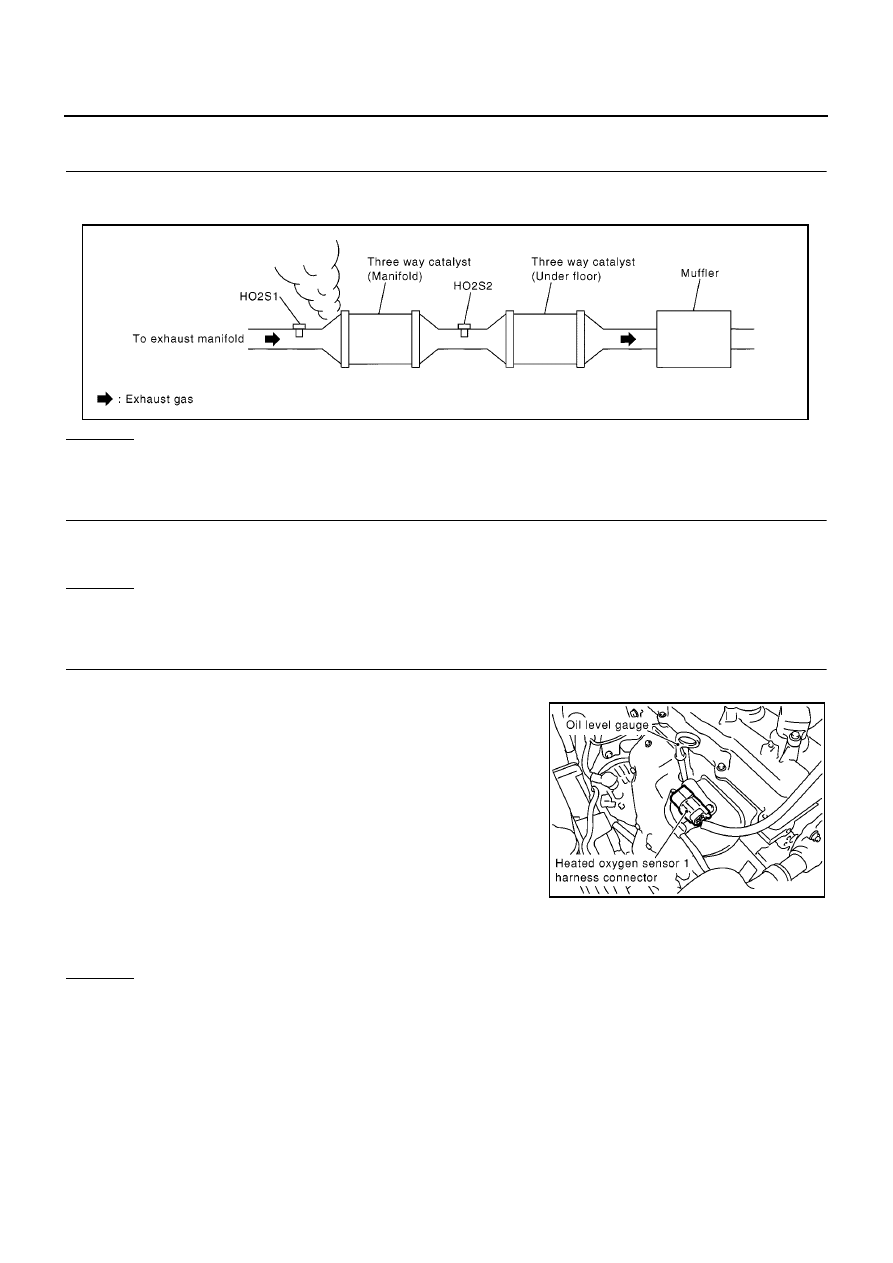

Diagnostic Procedure

EBS00QLQ

1.

CHECK EXHAUST GAS LEAK

1.

Start engine and run it at idle.

2.

Listen for an exhaust gas leak before three way catalyst (Manifold).

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace.

2.

CHECK FOR INTAKE AIR LEAK AND PCV HOSE

1.

Listen for an intake air leak after the mass air flow sensor.

2.

Check PCV hose connection.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK HEATED OXYGEN SENSOR 1 CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect heated oxygen sensor 1 (HO2S1) harness connec-
tor.

3.

Disconnect ECM harness connector.

4.

Check harness continuity between ECM terminal 35 and HO2S1
terminal 2, ECM terminal 74 and HO2S1 terminal 3.
Refer to Wiring Diagram.

5.

Check harness continuity between ECM terminals 35 or HO2S1
terminals 2 and ground.
Refer to Wiring Diagram.

6.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

SEC502D

Continuity should exist.

Continuity should not exist.

MBIB0091E

DTC P0171 FUEL INJECTION SYSTEM FUNCTION (M/T MODELS)

EC-285

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

CHECK FUEL PRESSURE

1.

Release fuel pressure to zero. Refer to

EC-52, "FUEL PRESSURE RELEASE"

.

2.

Install fuel pressure gauge and check fuel pressure. Refer to

EC-52, "FUEL PRESSURE CHECK"

.

OK or NG

OK

>> GO TO 5.

NG

>> Follow the construction of “FUEL PRESSURE CHECK”.

5.

CHECK MASS AIR FLOW SENSOR

With CONSULT-II

1.

Install all removed parts.

2.

Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-II.

With GST

1.

Install all removed parts.

2.

Check mass air flow sensor signal in MODE 1 with GST.

OK or NG

OK

>> GO TO 6.

NG

>> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or

engine grounds. Refer to

EC-178, "DTC P0102, P0103 MAF SENSOR"

.

At idling: Approximately 350 kPa (3.5 bar, 3.57 kg/cm

2

, 51 psi)

1.0 - 4.0 g·m/sec:

at idling

5.0 - 10.0 g·m/sec:

at 2,500 rpm

1.0 - 4.0 g·m/sec:

at idling

5.0 - 10.0 g·m/sec:

at 2,500 rpm
