EC-210

[QG (WITH EURO-OBD)]

DTC P0133 HO2S1 (M/T MODELS)

7.

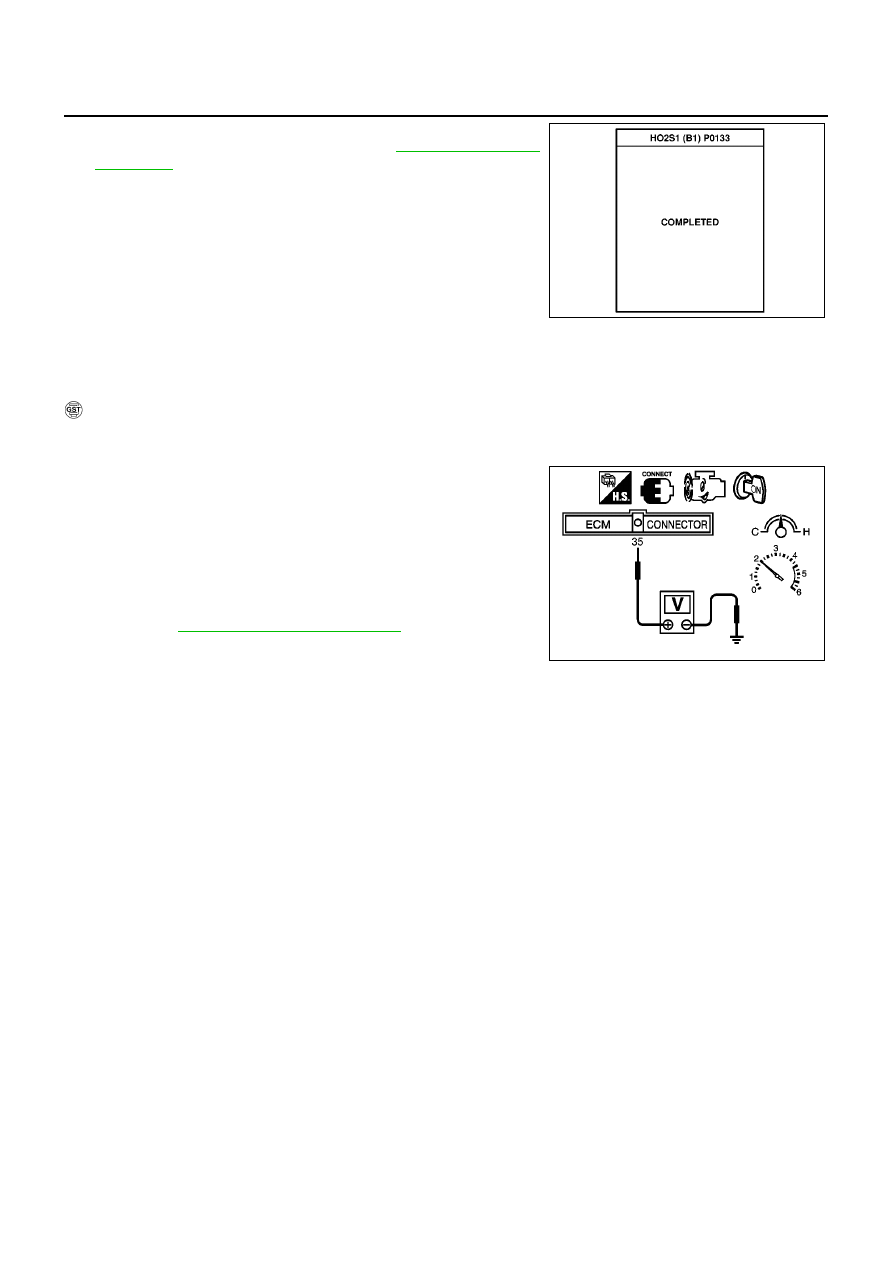

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”. If “NG” is displayed, refer to

EC-212, "Diagnostic

Procedure"

.

Overall Function Check

EBS00QJT

Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a
DTC might not be confirmed.

WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Set voltmeter probes between ECM terminal 35 (HO2S1 signal) and engine ground.

3.

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V more
than 5 times within 10 seconds.

4.

If NG, go to

EC-212, "Diagnostic Procedure"

.

SEF658Y

1 time:

0 - 0.3V

0.6 - 1.0V

0 - 0.3V

2 times:

0 - 0.3V

0.6 - 1.0V

0 - 0.3V

0.6 - 1.0V

0 - 0.3V

MBIB0018E

DTC P0133 HO2S1 (M/T MODELS)

EC-211

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

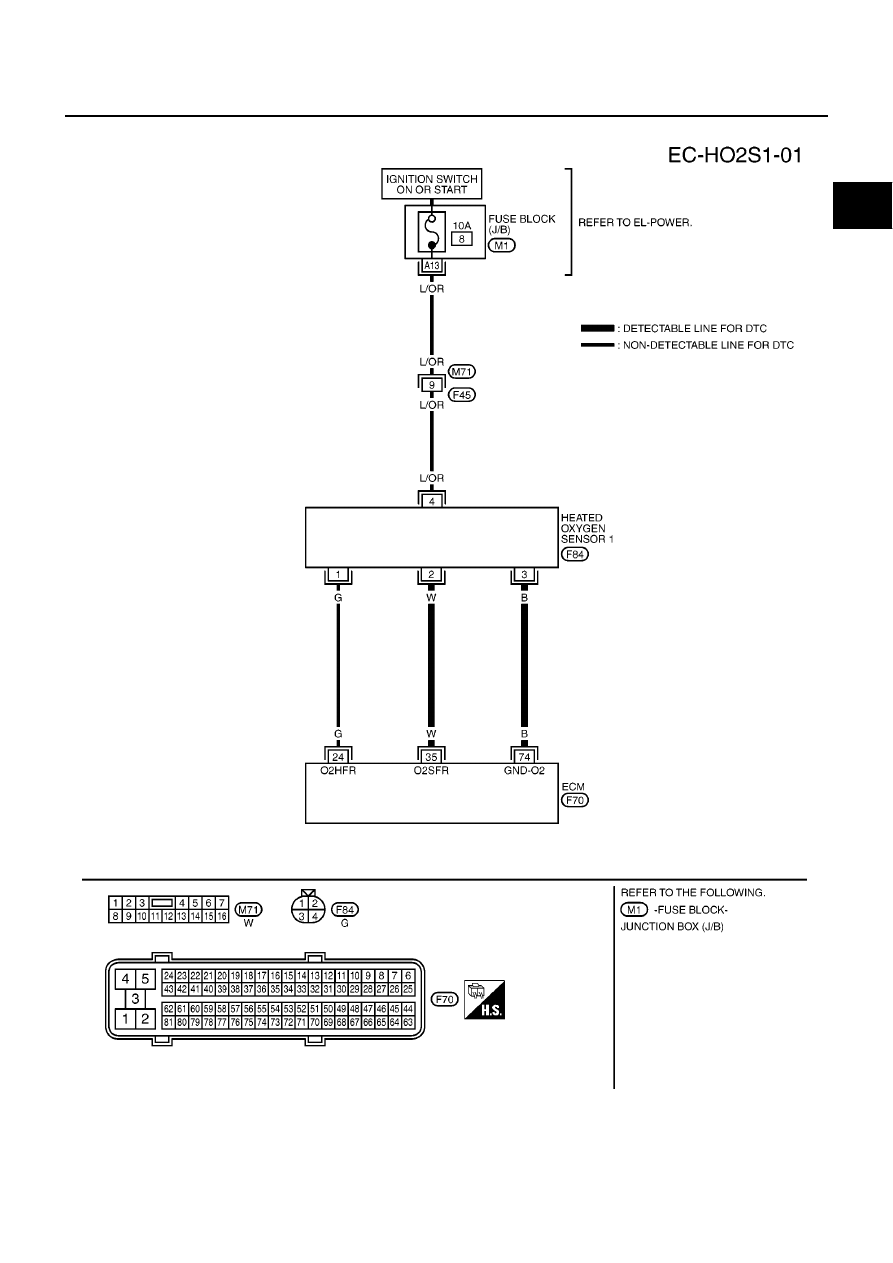

Wiring Diagram

EBS00QJU

YEC443A

EC-212

[QG (WITH EURO-OBD)]

DTC P0133 HO2S1 (M/T MODELS)

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00QJV

1.

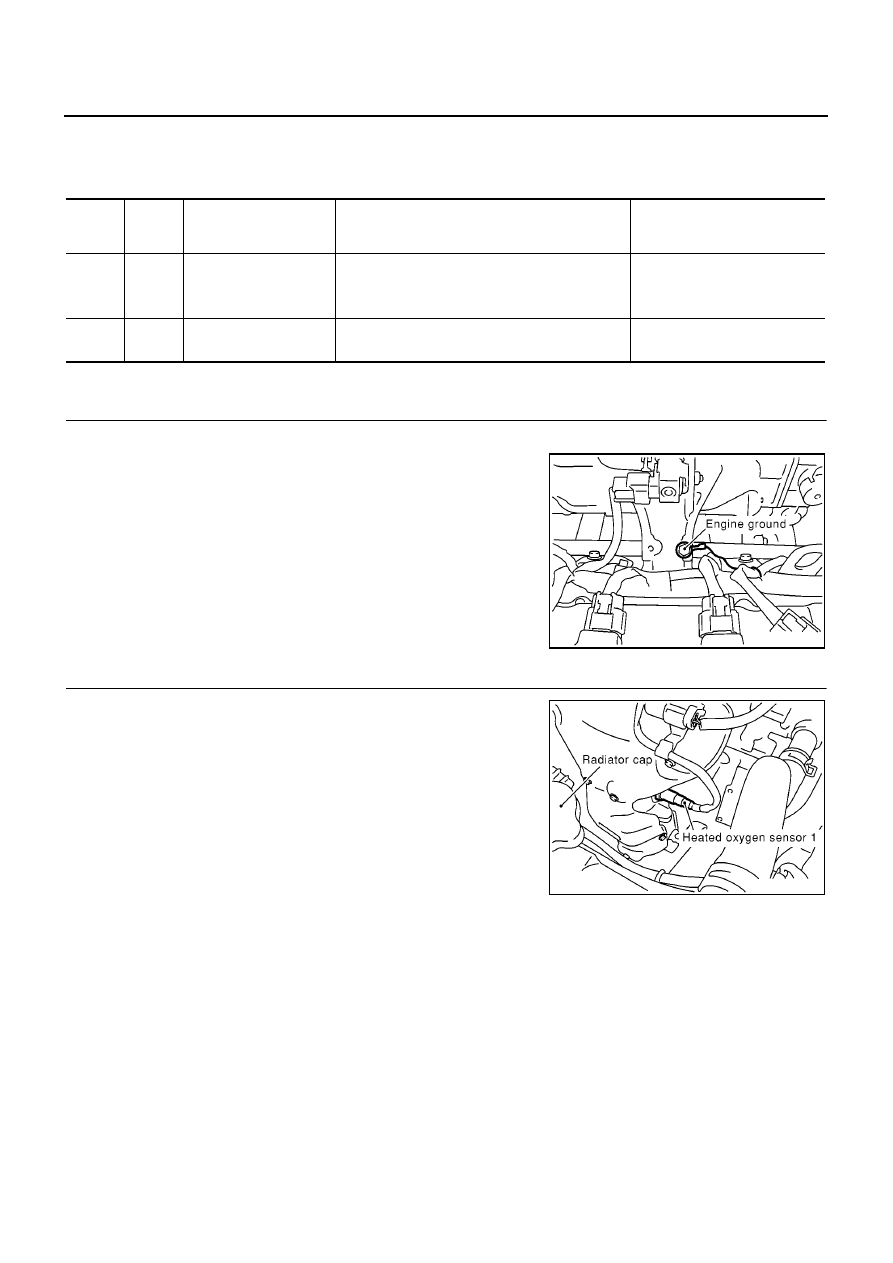

RETIGHTEN GROUND SCREWS

1.

Turn ignition switch “OFF”.

2.

Loosen and retighten engine ground screws.

>> GO TO 2.

2.

RETIGHTEN HEATED OXYGEN SENSOR 1

Loosen and retighten heated oxygen sensor 1.

>> GO TO 3.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

35

W

Heated oxygen sensor 1

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm.

0 - Approximately 1.0V
(Periodically change)

74

B

Sensors' ground
(Heated oxygen sensor)

[Engine is running]

Idle speed

Approximately 0V

MBIB0095E

Tightening torque: 40 - 60 N·m (4.1 - 6.2 kg-m, 30 - 44 ft-lb)

MBIB0098E

DTC P0133 HO2S1 (M/T MODELS)

EC-213

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

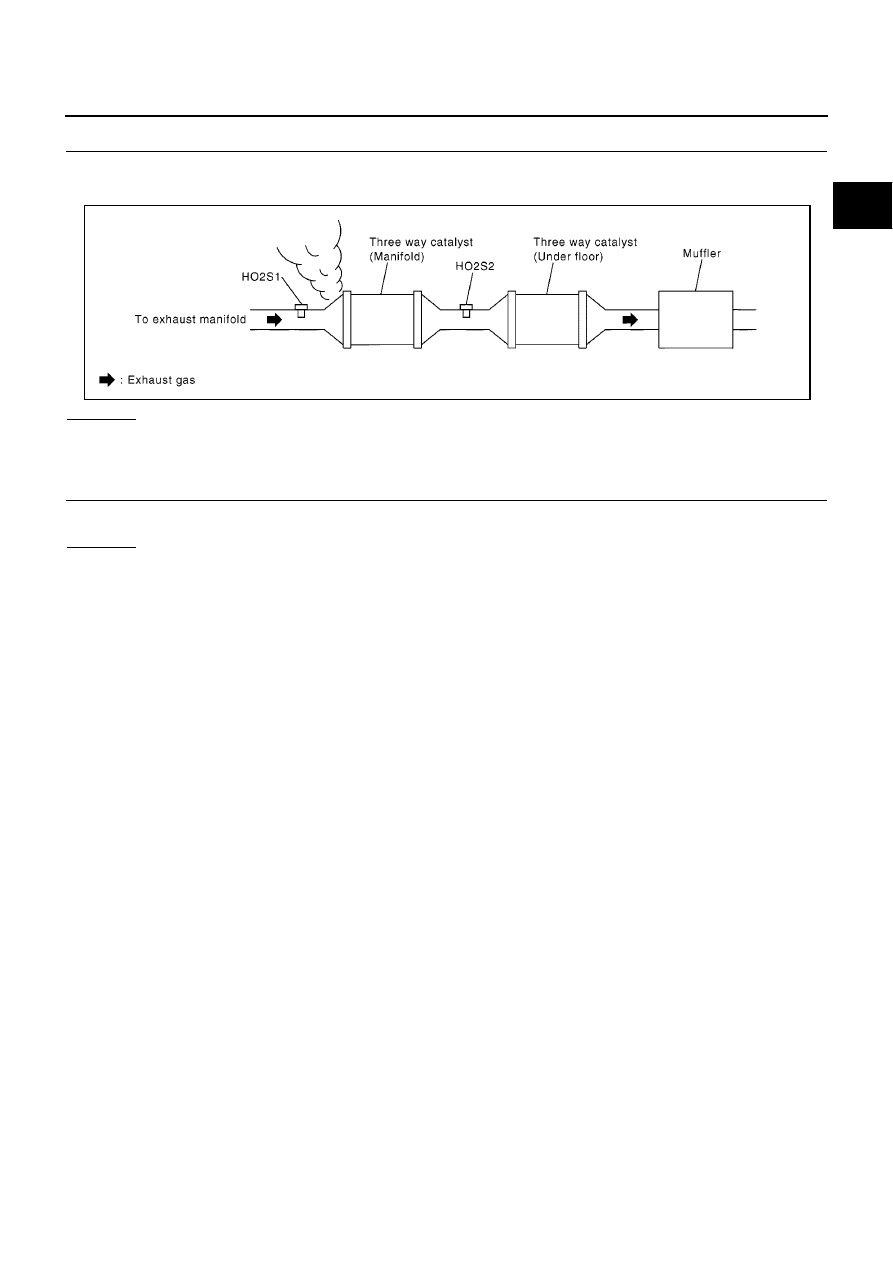

CHECK FOR EXHAUST GAS LEAK

1.

Start engine and run it at idle.

2.

Listen for an exhaust gas leak before three way catalyst (Manifold).

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

4.

CHECK FOR INTAKE AIR LEAK

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace.

SEC502D
