Nissan Almera Tino V10. Manual - part 327





EC-134

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

PFP:00031

Description

EBS00QH8

The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)

Testing Condition

EBS00QH9

Vehicle driven distance: More than 5,000 km (3,017 miles)

Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm

2

, 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30

°

C (68 - 86

°

F)

Engine coolant temperature: 75 - 95

°

C (167 - 203

°

F)

Transmission: Warmed-up

*1

Electrical load: Not applied

*2

Engine speed: Idle

*1: For A/T models, after the engine is warmed up to normal operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60

°

C (140

°

F).

For M/T models, after the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
*2: Rear window defogger switch, air conditioner switch, lighting switch are “OFF”. Steering wheel is straight
ahead.

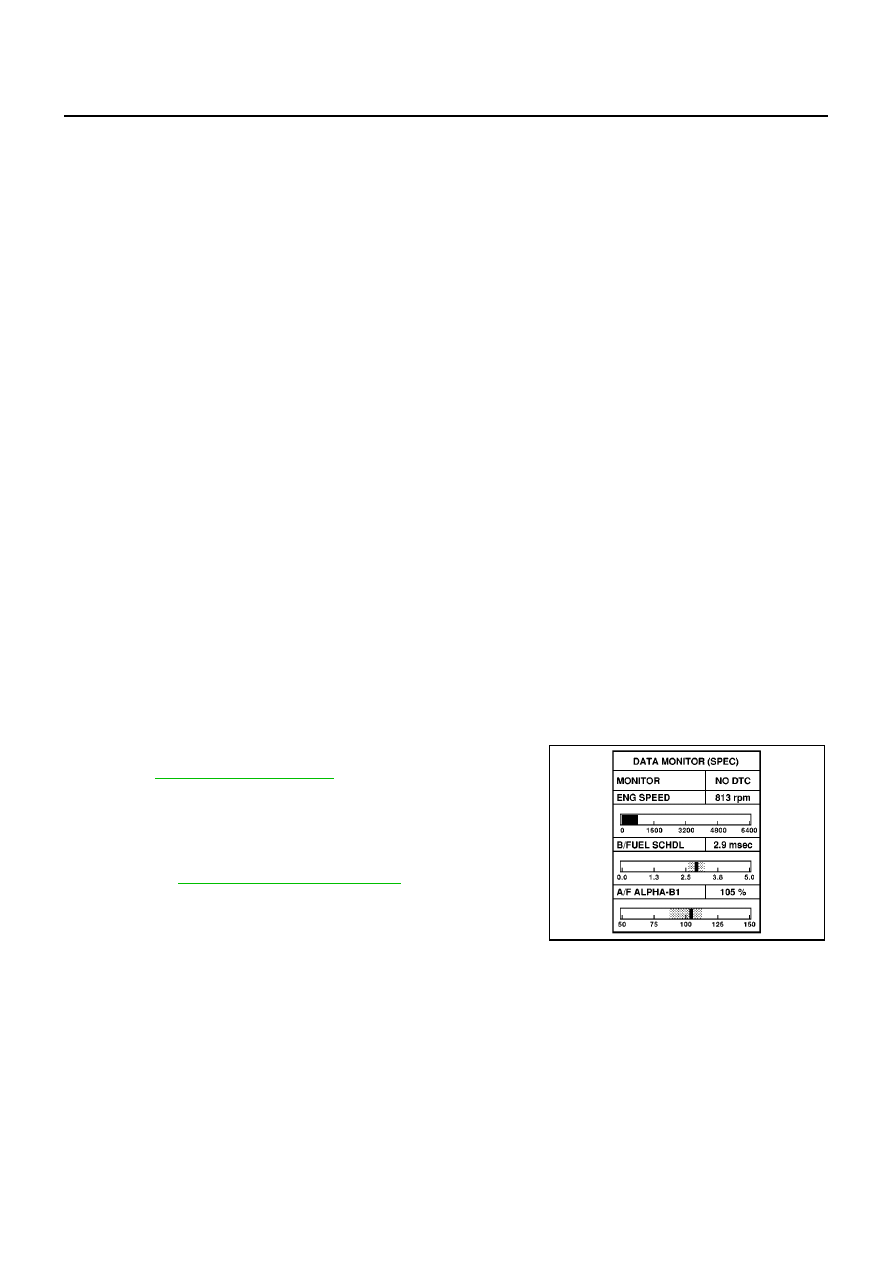

Inspection Procedure

EBS00QHA

NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.

1.

Perform

EC-87, "Basic Inspection"

.

2.

Confirm that the testing conditions indicated above are met.

3.

Select “B/FUEL SCHDL”, “A/F ALPHA-B1/B2” and “MAS A/F
SE-B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.

4.

Make sure that monitor items are within the SP value.

5.

If NG, go to

EC-135, "Diagnostic Procedure"

.

SEF601Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-135

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

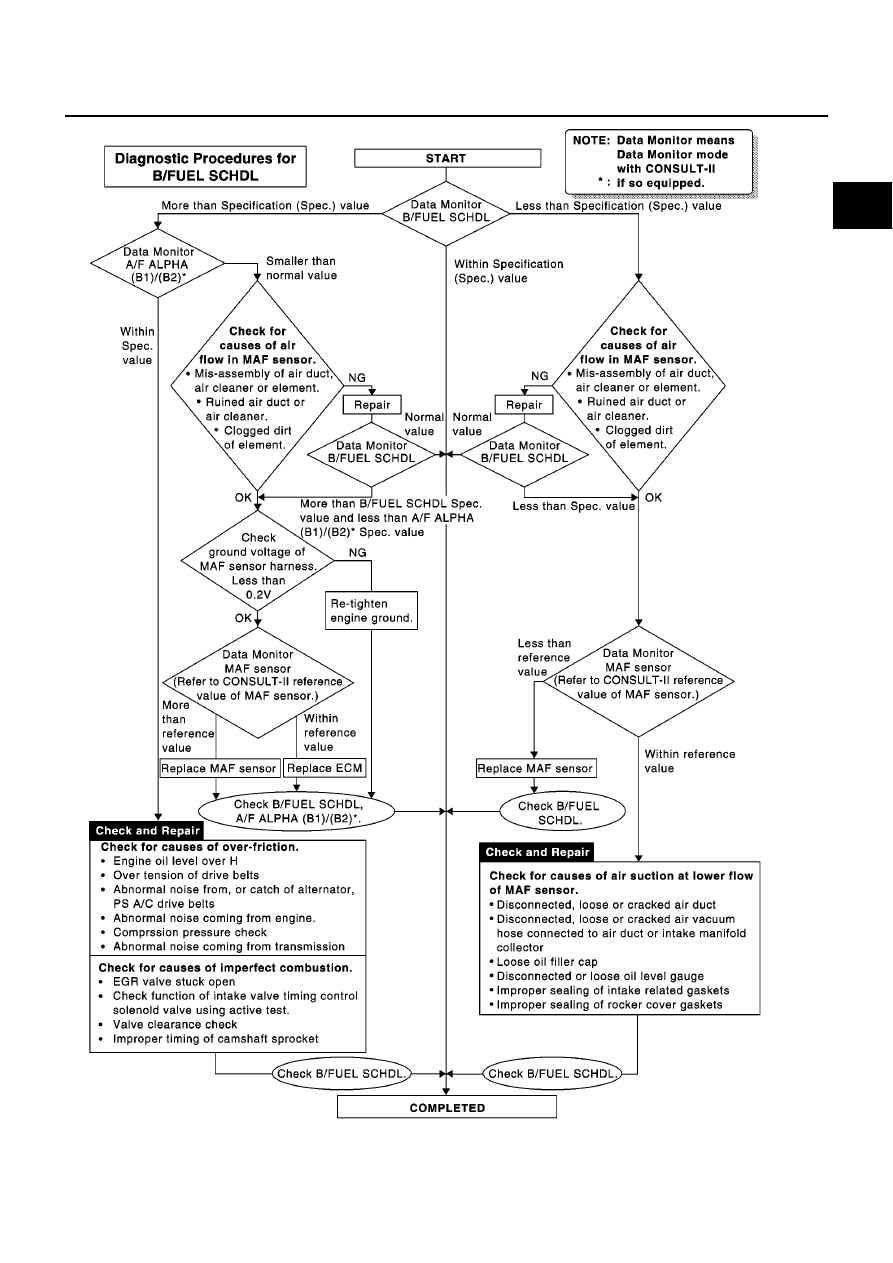

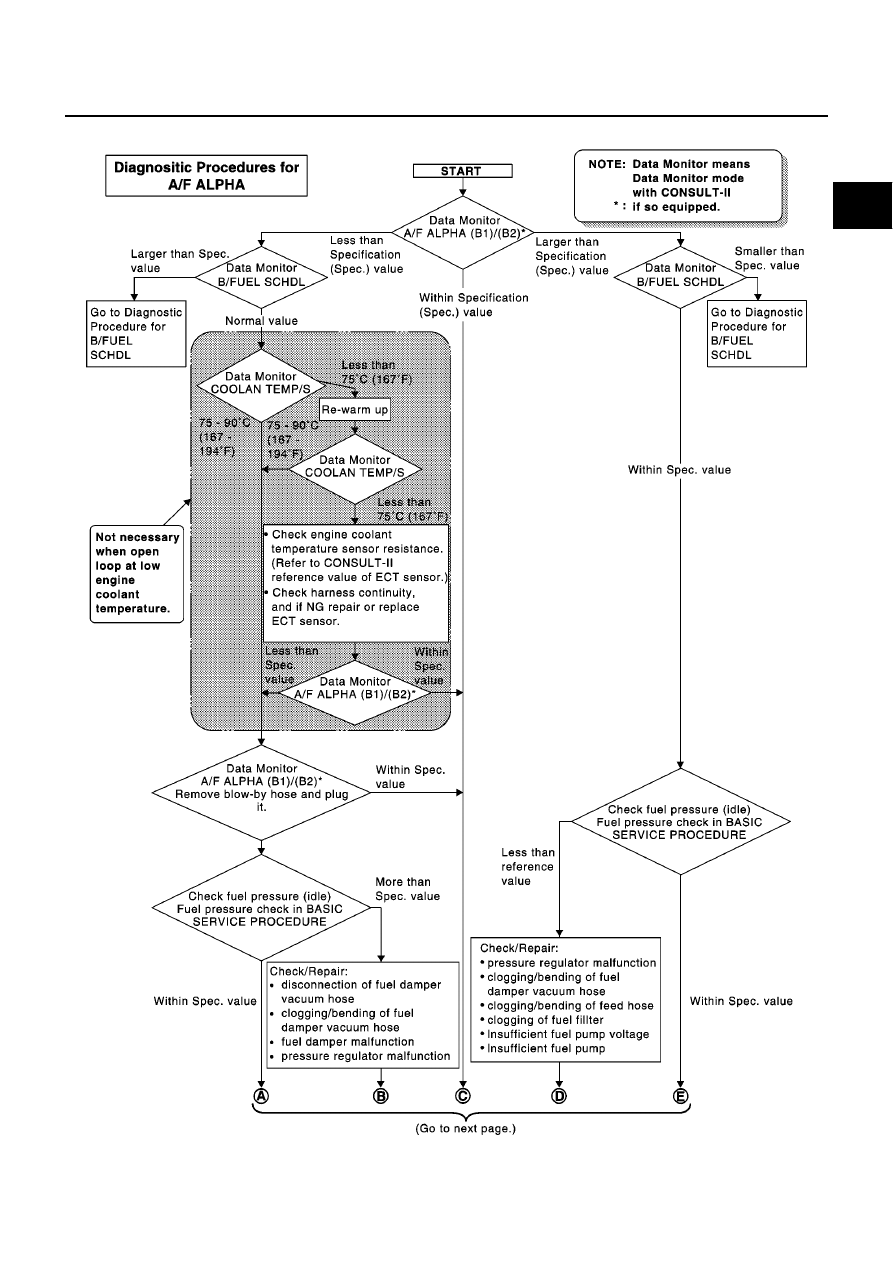

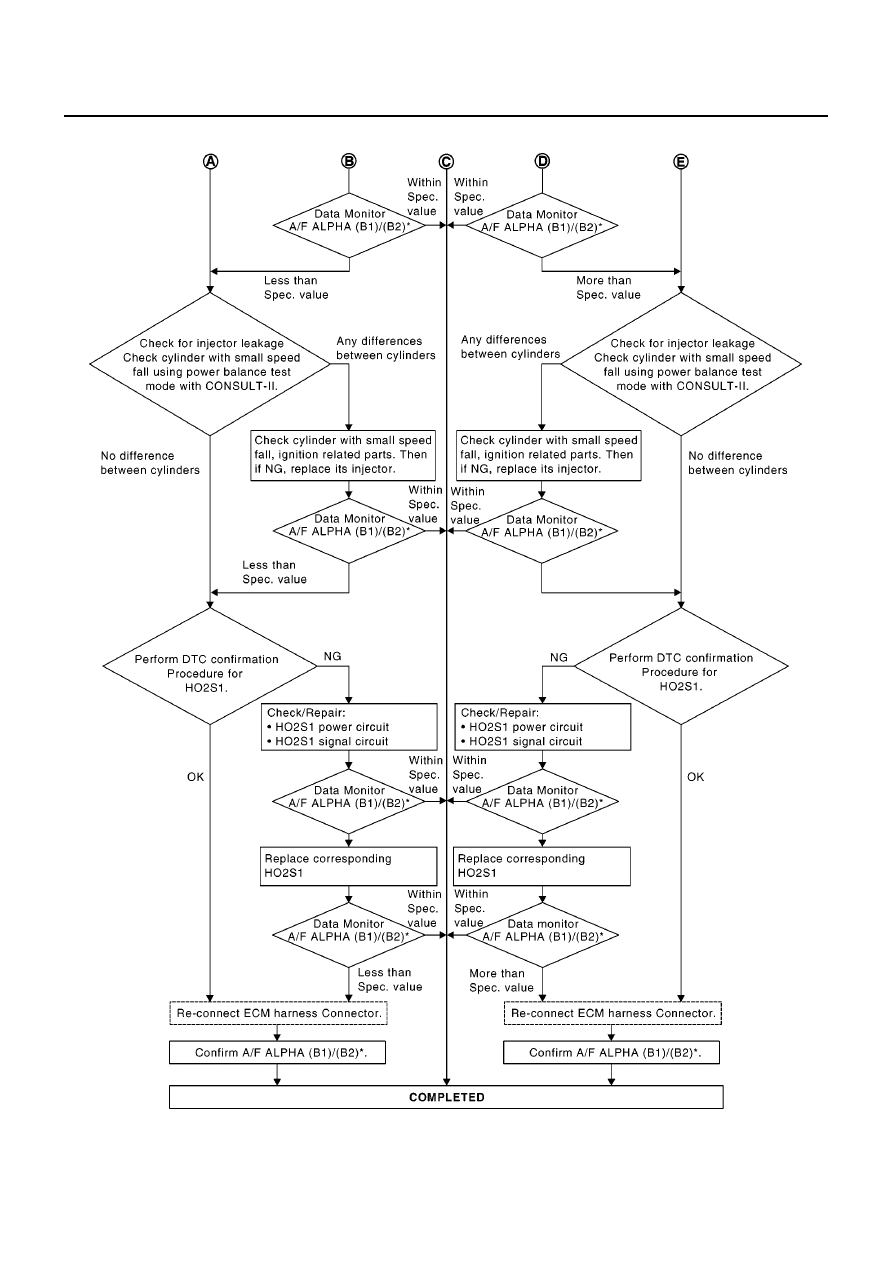

Diagnostic Procedure

EBS00QHB

SEF613ZD

EC-136

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

SEF768Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-137

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

SEF615ZA
