Nissan Almera Tino V10. Manual - part 208





ATC-28

AIR CONDITIONER CONTROL

System Description

EJS00303

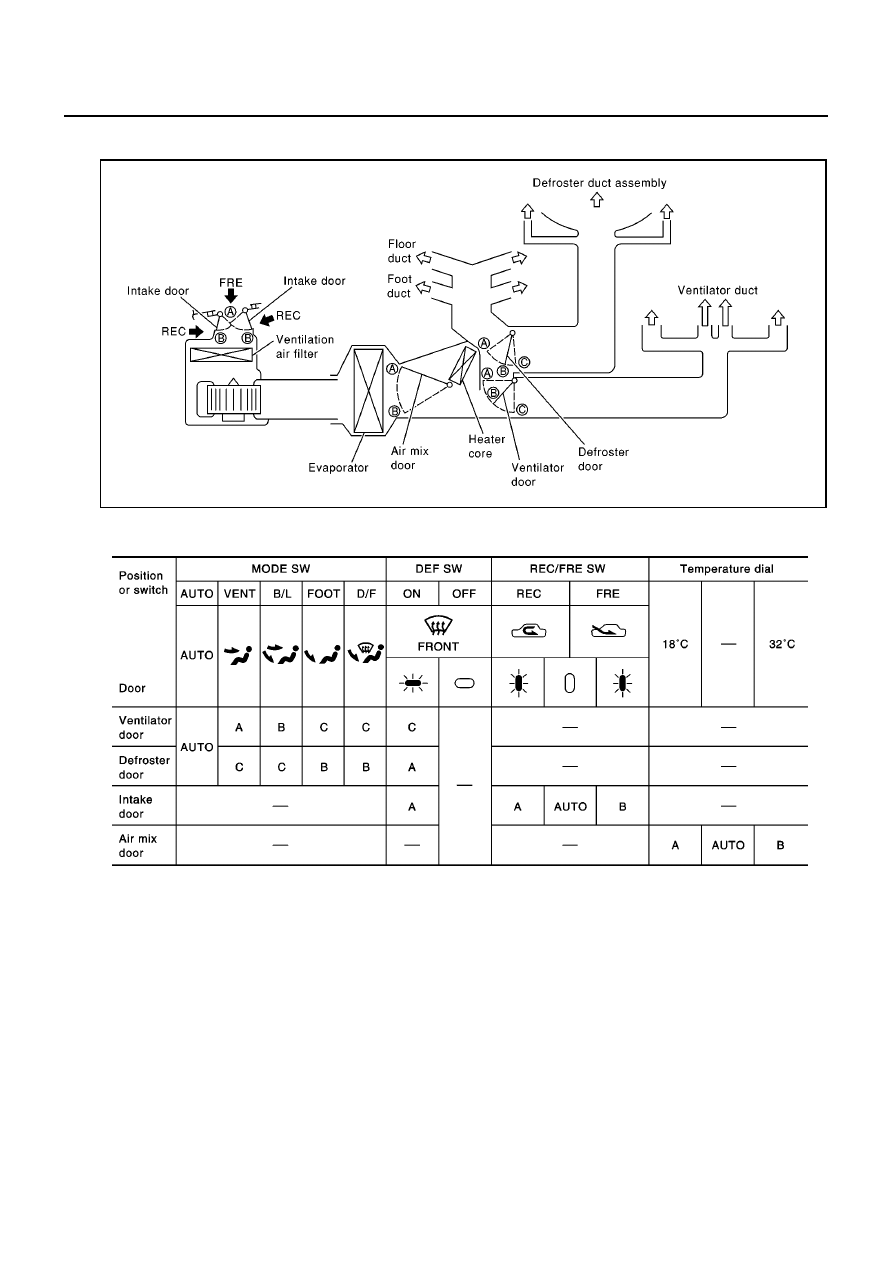

SWITCHES AND THEIR CONTROL FUNCTION

RHA592H

RJIA1677E

TROUBLE DIAGNOSIS

ATC-29

C

D

E

F

G

H

I

K

L

M

A

B

ATC

TROUBLE DIAGNOSIS

PFP:00004

How to Perform Trouble Diagnoses for Quick and Accurate Repair

EJS00304

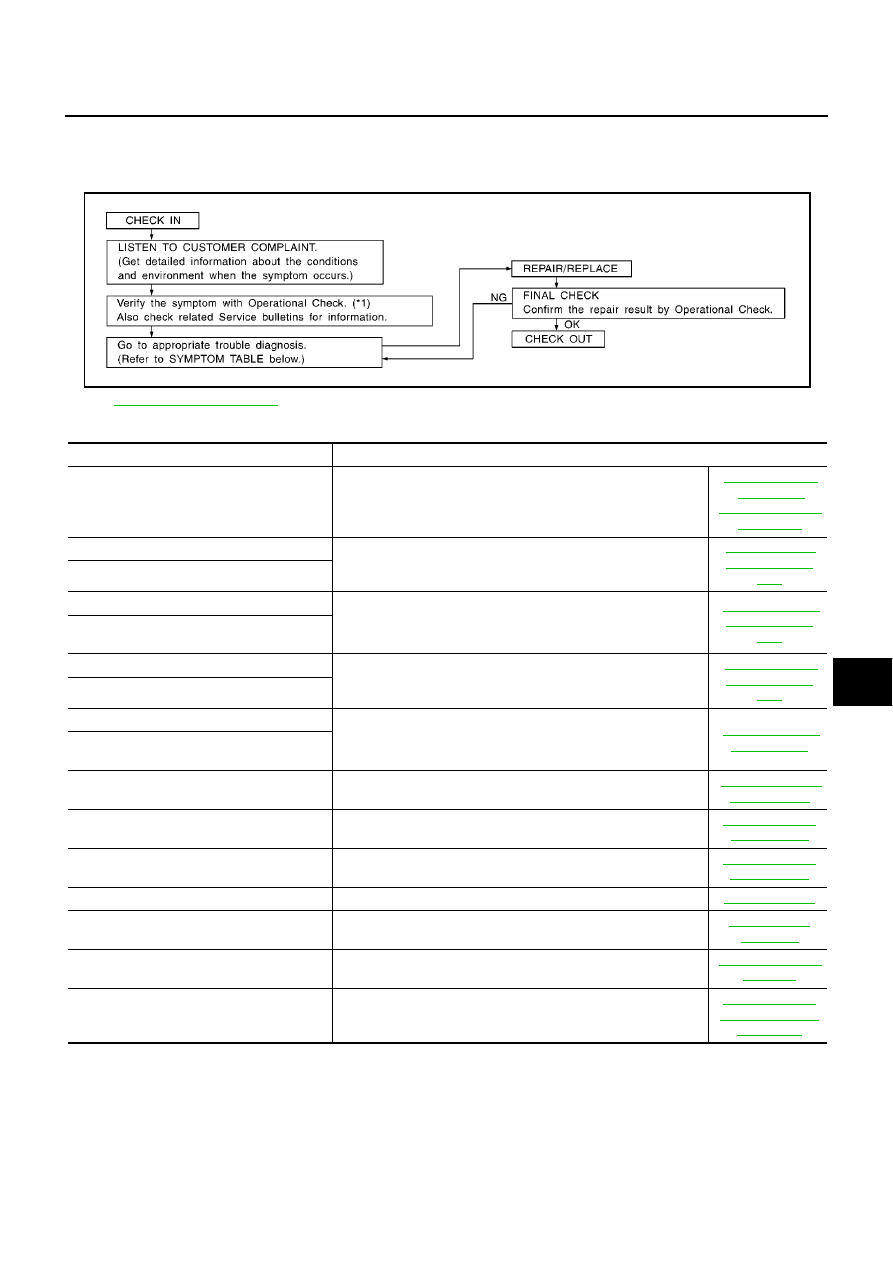

WORK FLOW

SYMPTOM TABLE

*1

ATC-50, "Operational Check"

SHA900E

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

ATC-54, "Power

Supply and

Ground Circuit for

Auto Amp."

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor. (LAN)

ATC-59, "Mode

Door Motor Cir-

cuit"

Mode door motor does not operate normally.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor. (LAN)

ATC-62, "Air Mix

Door Motor Cir-

cuit"

Air mix door motor does not operate nor-
mally.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.(LAN)

ATC-65, "Intake

Door Motor Cir-

cuit"

Intake door motor does not operate normally.

Blower motor operation is malfunctioning.

Go to Trouble Diagnosis Procedure for Blower Motor.

ATC-68, "Blower

Motor Circuit"

Blower motor operation is malfunctioning
under out of starting fan speed control.

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

ATC-74, "Magnet

Clutch Circuit"

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

ATC-82, "Insuffi-

cient Cooling"

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

ATC-90, "Insuffi-

cient Heating"

Noise

Go to Trouble Diagnosis Procedure for Noise.

ATC-92, "Noise"

Self-diagnosis cannot be performed.

Go to Trouble Diagnosis Procedure for Self-diagnosis.

ATC-93, "Self-

diagnosis"

Memory function does not operate.

Go to Trouble Diagnosis Procedure for Memory Function.

ATC-94, "Memory

Function"

A/C system cannot be controlled.

Go to Trouble Diagnosis Procedure for Multiplex Communication
Circuit.

ATC-104, "Multi-

plex Communica-

tion Circuit"

ATC-30

TROUBLE DIAGNOSIS

Component Parts and Harness Connector Location

EJS00305

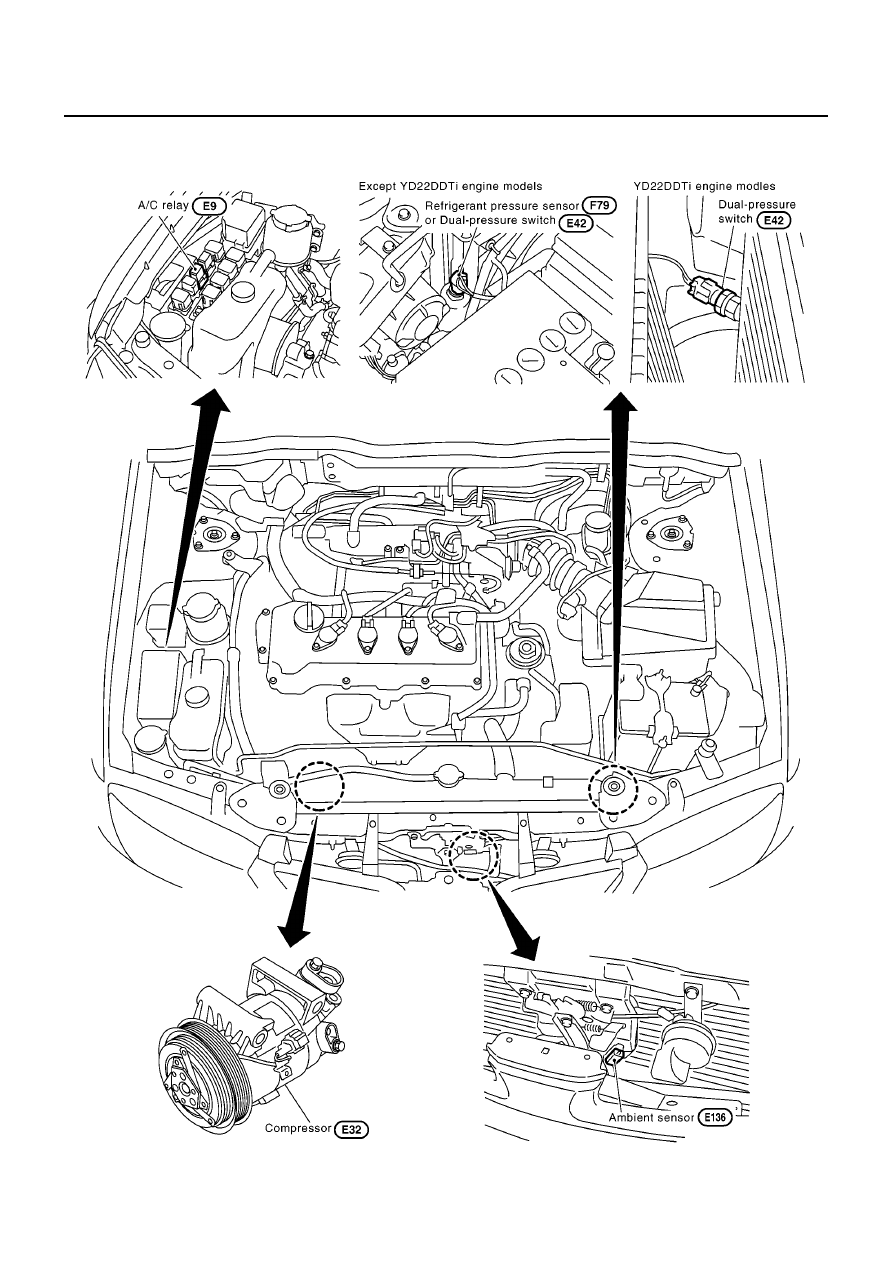

ENGINE COMPARTMENT

RJIA2322E

TROUBLE DIAGNOSIS

ATC-31

C

D

E

F

G

H

I

K

L

M

A

B

ATC

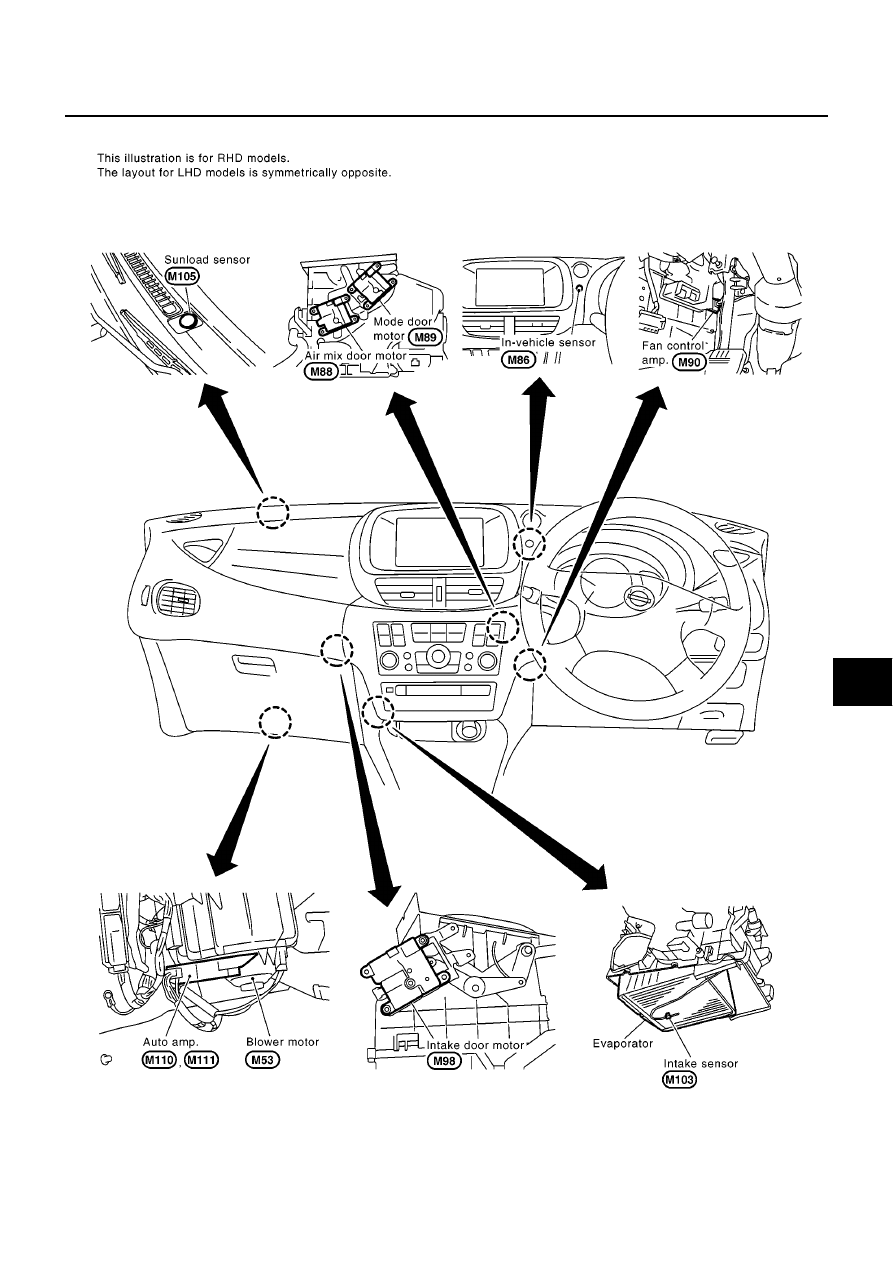

PASSENGER COMPARTMENT

RJIA2323E
