AT-52

[EURO-OBD]

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

3.

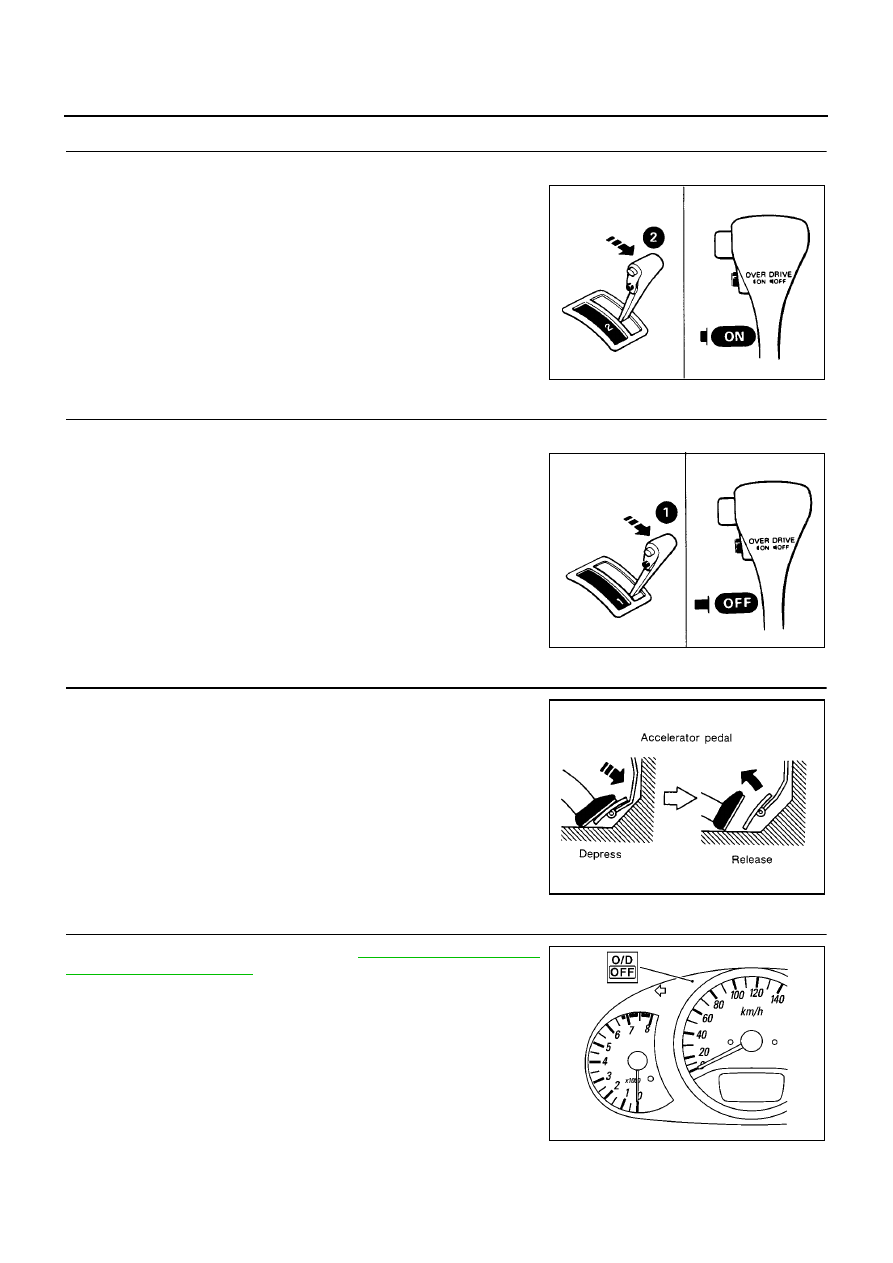

JUDGEMENT PROCEDURE STEP 2

1.

Move selector lever to “2” position.

2.

Set overdrive control switch to “ON” position.

>> GO TO 4

4.

JUDGEMENT PROCEDURE STEP 3

1.

Move selector lever to “1” position.

2.

Set overdrive control switch to “OFF” position.

>> GO TO 5

5.

JUDGEMENT PROCEDURE STEP 4

1.

Depress accelerator pedal fully and release it.

>> GO TO 6

6.

CHECK SELF-DIAGNOSIS CODE

Check O/D OFF indicator lamp. Refer to

AT-53, "JUDGEMENT OF

SELF-DIAGNOSIS CODE"

.

>> DIAGNOSIS END

SAT780B

SAT781B

SAT981F

MCIA0066E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

AT-53

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

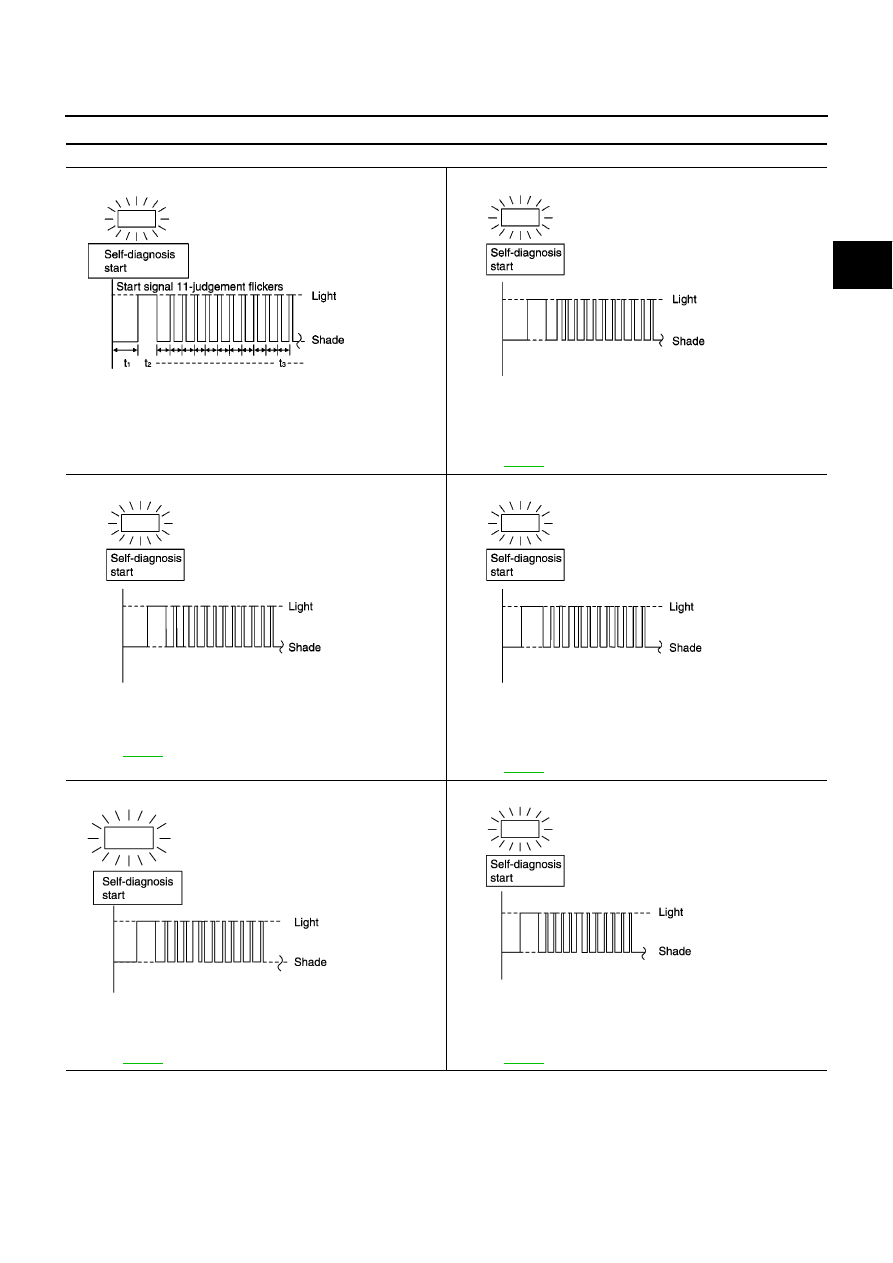

JUDGEMENT OF SELF-DIAGNOSIS CODE

O/D OFF indicator lamp:

All judgement flickers are the same.

All circuits that can be confirmed by self-diagnosis are OK.

1st judgement flicker is longer than others.

Revolution sensor circuit is short-circuited or disconnected.

Þ

Go to DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLU-

TION SENSOR).
Refer to

AT-125

2nd judgement flicker is longer than others.

Vehicle speed sensor circuit is short-circuited or disconnected.

Þ

Go to DTC VEHICLE SPEED SENSOR·MTR.

Refer to

AT-203

3rd judgement flicker is longer than others.

Throttle position sensor circuit is short-circuited or disconnected.

Þ

Go to DTC P1705 ACCELERATOR PEDAL POSI-

TION(APP)SENSOR
Refer to

AT-183

4th judgement flicker is longer than others.

Shift solenoid valve A circuit is short-circuited or disconnected.

Þ

Go to DTC P0750 SHIFT SOLENOID VALVE A.

Refer to

AT-173

5th judgement flicker is longer than others.

Shift solenoid valve B circuit is short-circuited or disconnected.

Þ

Go to DTC P0755 SHIFT SOLENOID VALVE B.

Refer to

AT-178

SCIA0694E

SCIA0695E

SCIA0696E

SCIA0697E

SCIA0698E

SCIA0699E

AT-54

[EURO-OBD]

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

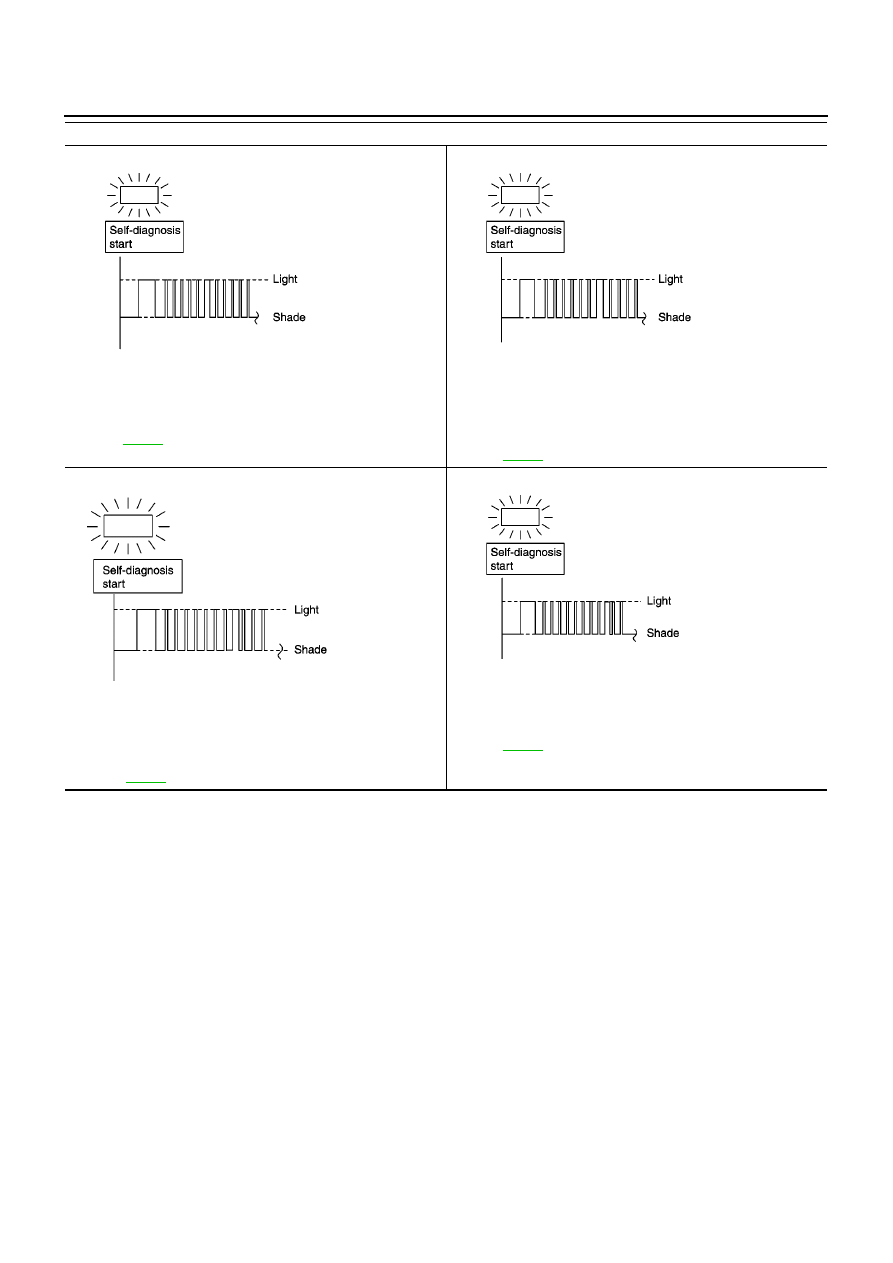

6th judgement flicker is longer than others.

Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.

Þ

Go to DTC P1760 OVERRUN CLUTCH SOLENOID VALVE.

Refer to

AT-189

7th judgement flicker is longer than others.

Torque converter clutch solenoid valve circuit is short-circuited or
disconnected.

Þ

Go to DTC P0740 TORQUE CONVERTER CLUTCH SOLE-

NOID VALVE.
Refer to

AT-161

8th judgement flicker is longer than others.

A/T fluid temperature sensor is disconnected or TCM power
source circuit is damaged.

Þ

Go to DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-

SOR CIRCUIT AND TCM POWER SOURCE).
Refer to

AT-197

9th judgement flicker is longer than others.

Engine speed signal circuit is short-circuited or disconnected.

Þ

Go to DTC P0725 ENGINE SPEED SIGNAL.

Refer to

AT-131

O/D OFF indicator lamp:

SCIA0700E

SCIA0701E

SCIA0702E

SCIA0703E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

AT-55

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

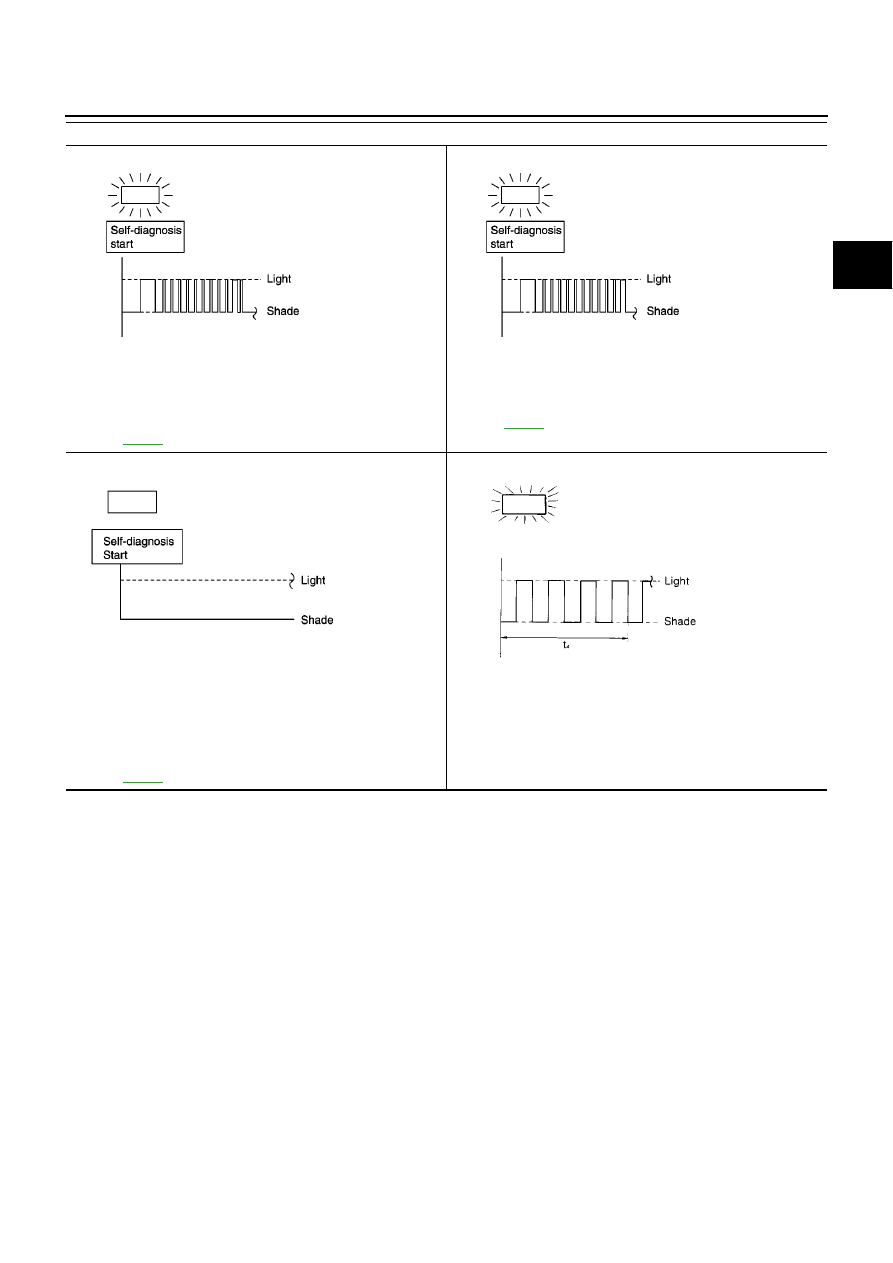

t

1

= 2.5 seconds

t

2

= 2.0 seconds

t

3

= 1.0 second

t

4

= 1.0 second

10th judgement flicker is longer than others.

Line pressure solenoid valve circuit is short-circuited or discon-
nected.

Þ

Go to DTC P0745 LINE PRESSURE SOLENOID VALVE.

Refer to

AT-166

11th judgement flicker is longer than others.

The ECM-AT communication line is open or shorted.

Þ

Go to DTC U1000 CAN COMMNICATION LINE.

Refer to

AT-194

Lamp comes off.

PNP switch, overdrive control switch or throttle position switch cir-
cuit is disconnected or TCM is damaged.

Þ

Go to 21. TCM Self-diagnosis Does Not Activate (PNP &

Overdrive Control Switches, and Throttle Position Sensor
Circuit Checks).
Refer to

AT-239

Flickers as shown below.

Battery power is low.
Battery has been disconnected for a long time.
Battery is connected conversely.
(When reconnecting TCM connectors.—This is not a problem).

O/D OFF indicator lamp:

SCIA0704E

SCIA0705E

SCIA0706E

SAT804H
