Nissan GT-R (2007-2014 year). SEAT. Service Manual - part 4

FRONT SEAT

SE-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000009162949

REMOVAL

CAUTION:

Use shop cloths to protect parts from damage during removal and installation.
1.

Operate the seat control switch knob to move the seat slide to the rearmost position.

2.

Remove the front slide cover.

a.

Front outer slide cover

b.

Front inner slide cover

3.

Remove the mounting bolts from the front seat front side.

4.

Operate the seat control switch knob to move the seat slide to the foremost position.

5.

Remove the rear slide outer and inner covers.

6.

Remove the rear inner bolt cap (Driver seat only).

7.

Remove the mounting bolts from the front seat rear side.

8.

Set the seatback vertically.

9.

Lift up the seat cushion front side, and disconnect the harness connector under the seat cushion and
remove the harness clamp.

CAUTION:

25. Seat belt buckle

26. Seat cushion inner finisher inside

(front)

27. Seat cushion inner finisher outside

28. Seat cushion inner finisher inside

(rear)

29. Seat cushion assembly

30. Seat adjuster assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

: Pawl

JMJIA2133ZZ

: Pawl

JMJIA2134ZZ

: Pawl

JMJIA2135ZZ

2014 GT-R

SE-50

< REMOVAL AND INSTALLATION >

FRONT SEAT

For the seat with side air bag, disconnect the battery cable from the negative terminal after check-
ing that the ignition switch is OFF, wait for at least 3 minutes, and then disconnect the connector.

10. Remove the front seat from the vehicle.

CAUTION:

• Use shop cloths to protect parts from damage during removal and installation.
• Two people must perform removal and installation of the seat assembly to prevent damage or to

keep from dropping it.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Always fix the harness clamp in the normal position.
• Be careful that only driver seat rear inner mounting bolt is different from others among the front seat

mounting bolts.

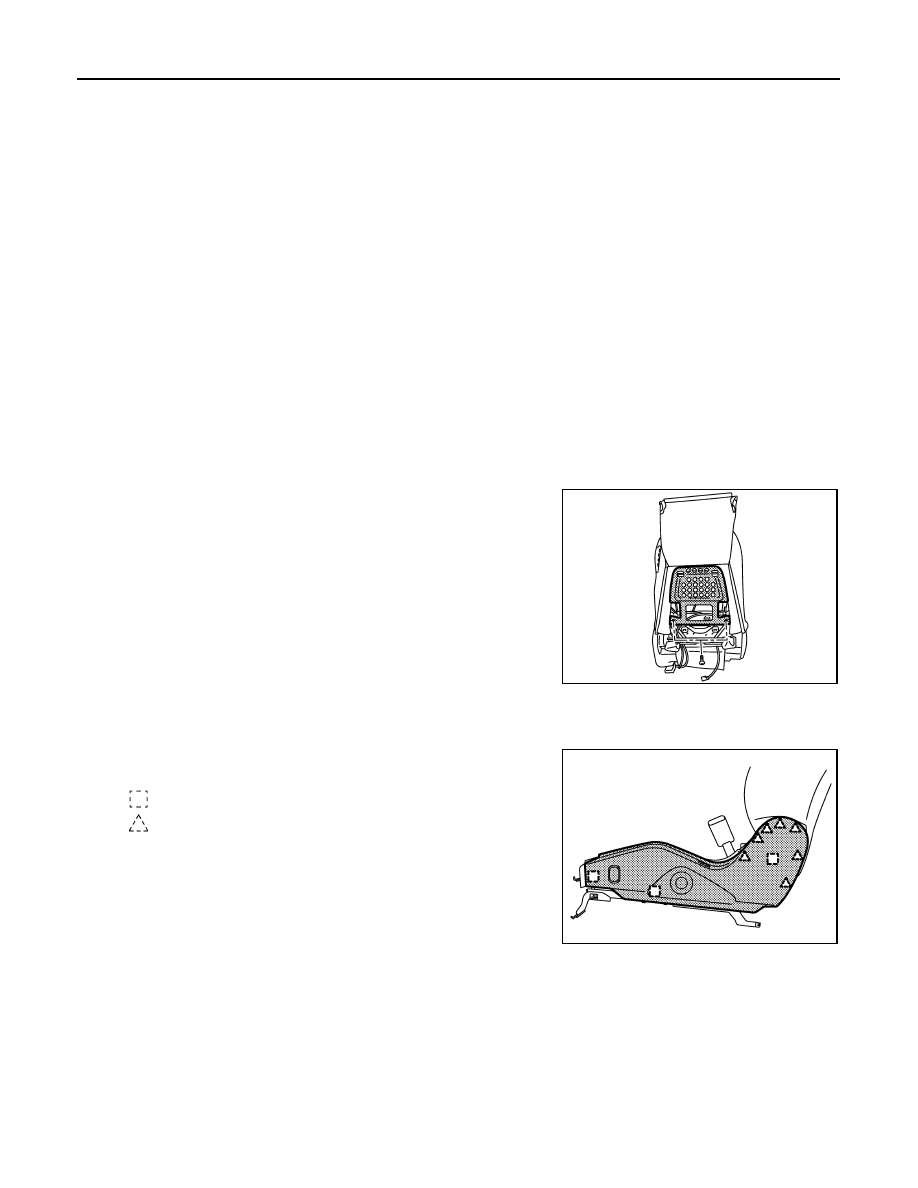

Disassembly and Assembly

INFOID:0000000009162950

Seatback

Disassembly

1.

Unfasten the seatback trim fastener.

2.

Remove the seatback trim lower retainer.

3.

Remove the seatback (main).
• Remove the seatback cover panel mounting screws, and then

remove the seatback cover panel.

4.

Remove the retainer and hog ring of the seatback assembly (main), and then remove the seatback
assembly (main).

5.

Remove the seat cushion outer finisher outside.

6.

Disconnect the connectors of seat control switch, heater switch, and thigh support (Driver seat only)
switch.

JMJIA2141ZZ

: Metal clip

: Pawl

JMJIA2137ZZ

2014 GT-R

FRONT SEAT

SE-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

7.

Remove the seat cushion inner finisher outside.

8.

Remove the seatback ornament.

9.

Remove knob.

a.

Press on the seatback surface near the knob mounting portion
inward to expose the fixing portion of the knob.

b.

Disengage knob fixing pawl, and then remove knob.

: Metal clip

: Pawl

JMJIA2138ZZ

: Pawl

JMJIA2139ZZ

JMJIA8391ZZ

: Pawl

JMJIA8392ZZ

2014 GT-R

SE-52

< REMOVAL AND INSTALLATION >

FRONT SEAT

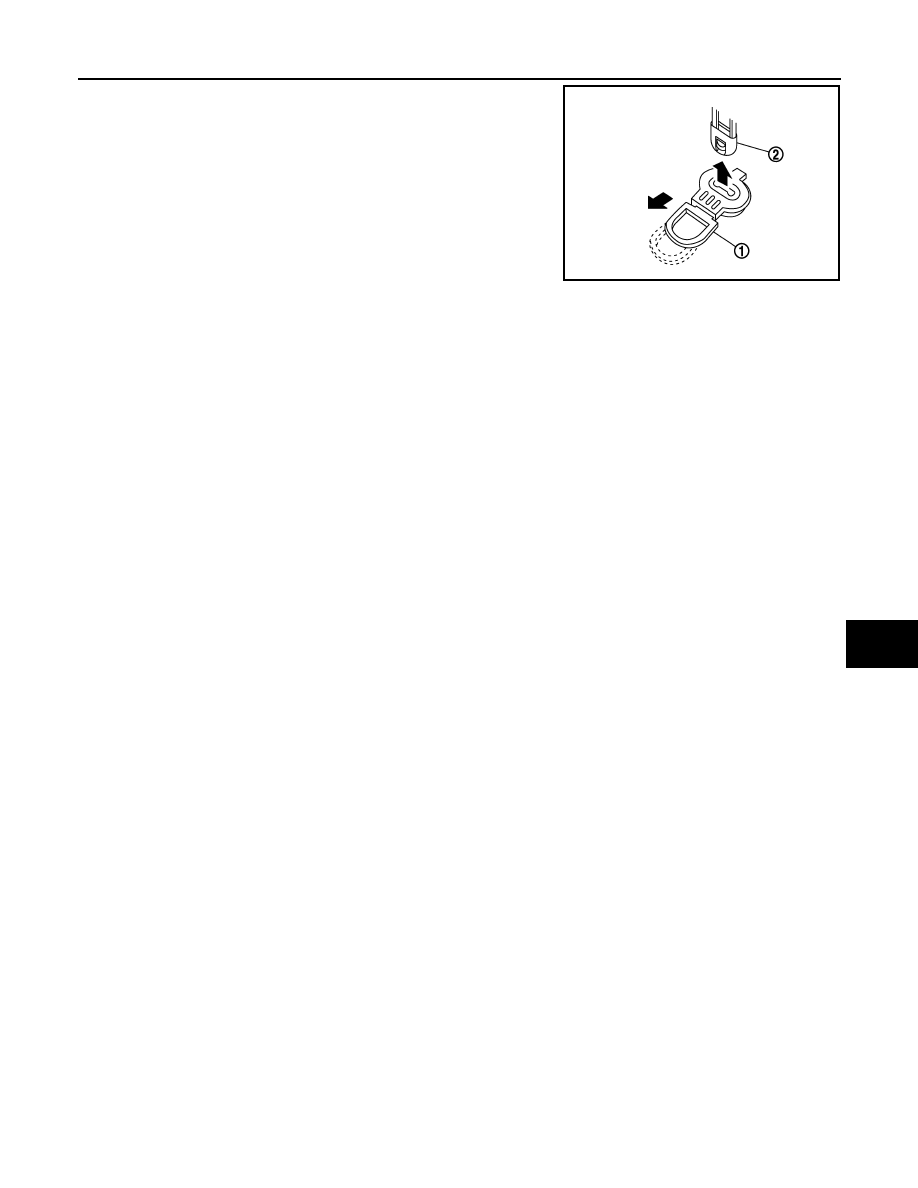

10. Remove the walk-in lever knob (1) and walk-in lever escutcheon

(2).

11. Disconnect the harness connector.

Driver side

1.

Disconnect the reclining limit switch harness connector (A),
the heater unit harness connectors (B), and the reclining
motor harness connector (C).

2.

Remove the side air bag harness (D).

Passenger side

1.

Disconnect the reclining motor harness connector (E), the
heater unit harness connectors (F), and the reclining limit
switch harness connector (G).

: Pawl

JMJIA2140ZZ

JMJIA5892ZZ

NNJIA0137ZZ

JMJIA5592ZZ

2014 GT-R

FRONT SEAT

SE-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

2.

Remove the side air bag harness (J).

12. Remove the seatback assembly.

Remove the seatback assembly mounting bolts (A).

13. Remove the seat cushion outer finisher inside (front) and the seat cushion outer finisher inside (rear).
14. Remove the seat cushion inner finisher inside (front) and the seat cushion inner finisher inside (rear).

15. Remove the reclining device outer cover (outside) and the reclining device outer cover (inside).

16. Remove the reclining device inner cover (outside) and the reclining device inner cover (inside).

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

Seat cushion

Disassembly

1.

Remove the seat cushion.
• Disconnect the harness connector from the seat cushion heater unit.
• Remove the seat cushion lower surface mounting bolts (A).

• Remove the seat cushion trim retainer from the lower rear of the seat cushion.

NNJIA0146ZZ

JMJIA2153ZZ

JMJIA2136ZZ

2014 GT-R

SE-54

< REMOVAL AND INSTALLATION >

FRONT SEAT

2.

Remove the seat cushion outer finisher outside.

3.

Disconnect the connectors of seat control switch, heater switch, and thigh support (driver seat only)
switch.

4.

Remove the seat cushion inner finisher outside.

5.

Remove the seatback trim retainer.

6.

Remove the seatback panel.
• Unfasten the seatback trim fastener.
• Remove the seatback cover panel mounting screws, and then

remove the seatback cover panel.

7.

Disconnect the harness connector.

Driver side

1.

Disconnect the reclining limit switch harness connector (A),
the heater unit harness connectors (B), and the reclining
motor harness connector (C).

: Metal clip

: Pawl

JMJIA2137ZZ

: Metal clip

: Pawl

JMJIA2138ZZ

JMJIA2141ZZ

JMJIA5892ZZ

2014 GT-R

FRONT SEAT

SE-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

2.

Remove the side air bag harness (D).

Passenger side

1.

Disconnect the reclining motor harness connector (E), the
heater unit harness connectors (F), and the reclining limit
switch harness connector (G).

2.

Remove the side air bag harness (J).

8.

Remove the seatback assembly.
Remove the seatback mounting bolts (A), and then remove the
seatback assembly.

9.

Remove the seat belt buckle. Refer to

SB-8, "SEAT BELT BUCKLE : Removal and Installation"

.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.

NNJIA0137ZZ

JMJIA5592ZZ

NNJIA0146ZZ

JMJIA2153ZZ

2014 GT-R

SE-56

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

Exploded View

INFOID:0000000009162951

Removal and Installation

INFOID:0000000009162952

REMOVAL

CAUTION:

Use shop cloths to protect parts from damage during removal and installation.

1.

Remove the seat cushion.

1.

Seatback (RH)

2.

Seat cushion (RH)

3.

Seatback (LH)

4.

Seat cushion (LH)

Refer to

GI-4, "Components"

 for symbols in the figure.

NNJIA0138GB

2014 GT-R

REAR SEAT

SE-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Lift up the seat cushion lower side, disengage the joint by pull-

ing the ring (1) of the cushion hook on the front bottom, and
then lift up the seat cushion (2) to remove the seat cushion.

• Remove the seat cushion from the vehicle.

2.

Remove the seatback.
• Remove the seatback lower mounting nut.
• Remove the seatback from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Use shop cloths to protect parts from damage during removal and installation.

JMJIA0251ZZ

2014 GT-R

SE-58

< REMOVAL AND INSTALLATION >

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000009162953

Removal and Installation

INFOID:0000000009162954

REMOVAL

1.

Remove the front seat. Refer to

SE-49, "Removal and Installation"

.

2.

Remove the seat cushion outer finisher (2). Referto

SE-50, "Dis-

assembly and Assembly"

.

3.

Remove the power seat switch knob.

4.

Remove the screws (A).

5.

Remove the power seat switch (1) from the seat cushion outer
finisher (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When performing the work, use shop cloths to protect the parts from damage.
• Always fix the harness clamp in the normal position.

1.

Power seat switch

JMJIA5203ZZ

JMJIA5204ZZ

2014 GT-R

THIGH SUPPORT SWITCH

SE-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

THIGH SUPPORT SWITCH

Exploded View

INFOID:0000000009162955

Removal and Installation

INFOID:0000000009162956

REMOVAL

1.

Remove the front seat. Refer to

SE-49, "Removal and Installation"

.

2.

Disconnect the thigh support switch connector.

3.

Remove the seat cushion outer finisher (1). Refer to

SE-50,

"Disassembly and Assembly"

.

4.

Remove the thigh support switch (2) from the seat cushion outer
finisher (1) while pressing the pawls.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When performing the work, use shop cloths to protect the parts from damage.
• Always fix the harness clamp in the normal position.

1.

Thigh support switch

JMJIA2116ZZ

: Pawl

JMJIA2121ZZ

2014 GT-R

SE-60

< REMOVAL AND INSTALLATION >

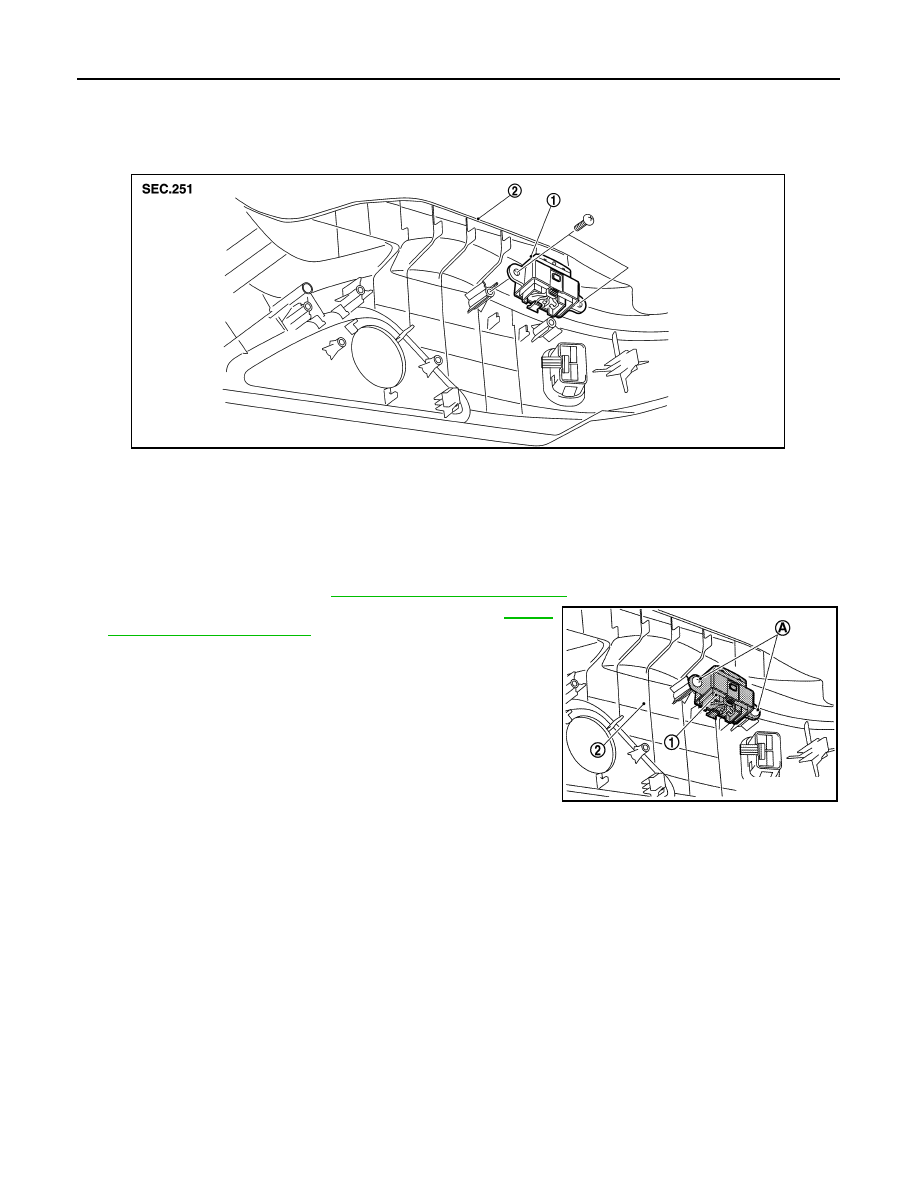

HEATED SEAT SWITCH

HEATED SEAT SWITCH

Exploded View

INFOID:0000000009162957

Removal and Installation

INFOID:0000000009162958

REMOVAL

1.

Remove the front seat. Refer to

SE-49, "Removal and Installation"

.

2.

Remove the seat cushion outer finisher (2). Refer to

SE-50,

"Disassembly and Assembly"

.

3.

Remove the screws (A).

4.

Remove the heater seat switch (1) from the seat cushion outer
finisher (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When performing the work, use shop cloths to protect the parts from damage.
• Always fix the harness clamp in the normal position.

1.

Heated seat switch

2.

Seat cushion outer finisher

JMJIA5205ZZ

JMJIA5206ZZ

2014 GT-R
