Nissan GT-R (2007-2014 year). BODY CONTROL SYSTEM. Service Manual - part 2





BCS

BCM (BODY CONTROL MODULE)

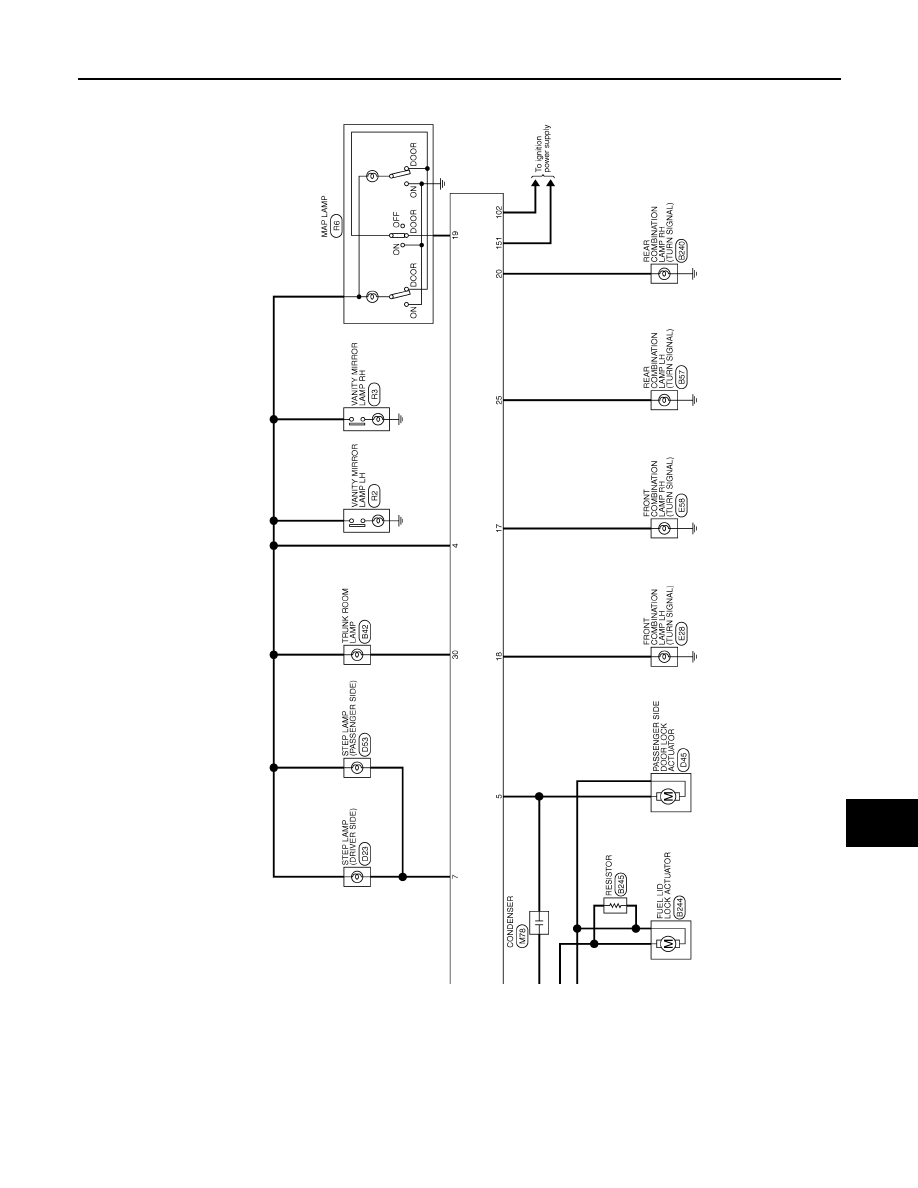

BCS-17

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWC6660GB

Revision: 2012 November

2014 GT-R

BCS-18

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

SYMPTOM DIAGNOSIS

NORMAL OPERATING CONDITION

Description

INFOID:0000000009160275

TRANSIT MODE

• Transit mode inhibits battery power consumption during transportation or storage of the vehicle.
• BCM is set to transit mode before delivery.
• In transit mode, remote keyless entry function, headlamp ON/OFF function, theft warning alarm function,

and other BCM control functions do not operate normally.

• Therefore, cancel operation must be performed so that the vehicle is used in normal status.
• For transit mode cancel operation, refer to

BCS-2, "Description"

.

NOTE:
Do not cancel transit mode during storage of the vehicle. Always cancel transit mode before delivery of the
vehicle to customer.

Revision: 2012 November

2014 GT-R

BCS

PRECAUTIONS

BCS-19

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009186406

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009186529

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Battery Service

INFOID:0000000009186592

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Revision: 2012 November

2014 GT-R

BCS-20

< REMOVAL AND INSTALLATION >

BCM (BODY CONTROL MODULE)

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Exploded View

INFOID:0000000009160278

NOTE:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. (This
work is recommended to be performed by GT-R certified NISSAN dealer.)

Removal and Installation

INFOID:0000000009160279

NOTE:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. (This
work is recommended to be performed by GT-R certified NISSAN dealer.)

REMOVAL

1.

Remove dash side finisher (passenger side). Refer to

INT-15, "Removal and Installation"

.

2.

Remove bolt and nut.

3.

Remove BCM and disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “WRITE CONFIGURATION” when replacing BCM. Or not doing so, BCM control
function does not operate normally. (This work is recommended to be performed by GT-R certified
NISSAN dealer.)
NOTE:
Be sure to perform the system initialization (NATS) when replacing BCM. (This work is recommended to be
performed by GT-R certified NISSAN dealer.)

1.

BCM

JPMIA1145ZZ

Revision: 2012 November

2014 GT-R

BCS

COMBINATION SWITCH

BCS-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

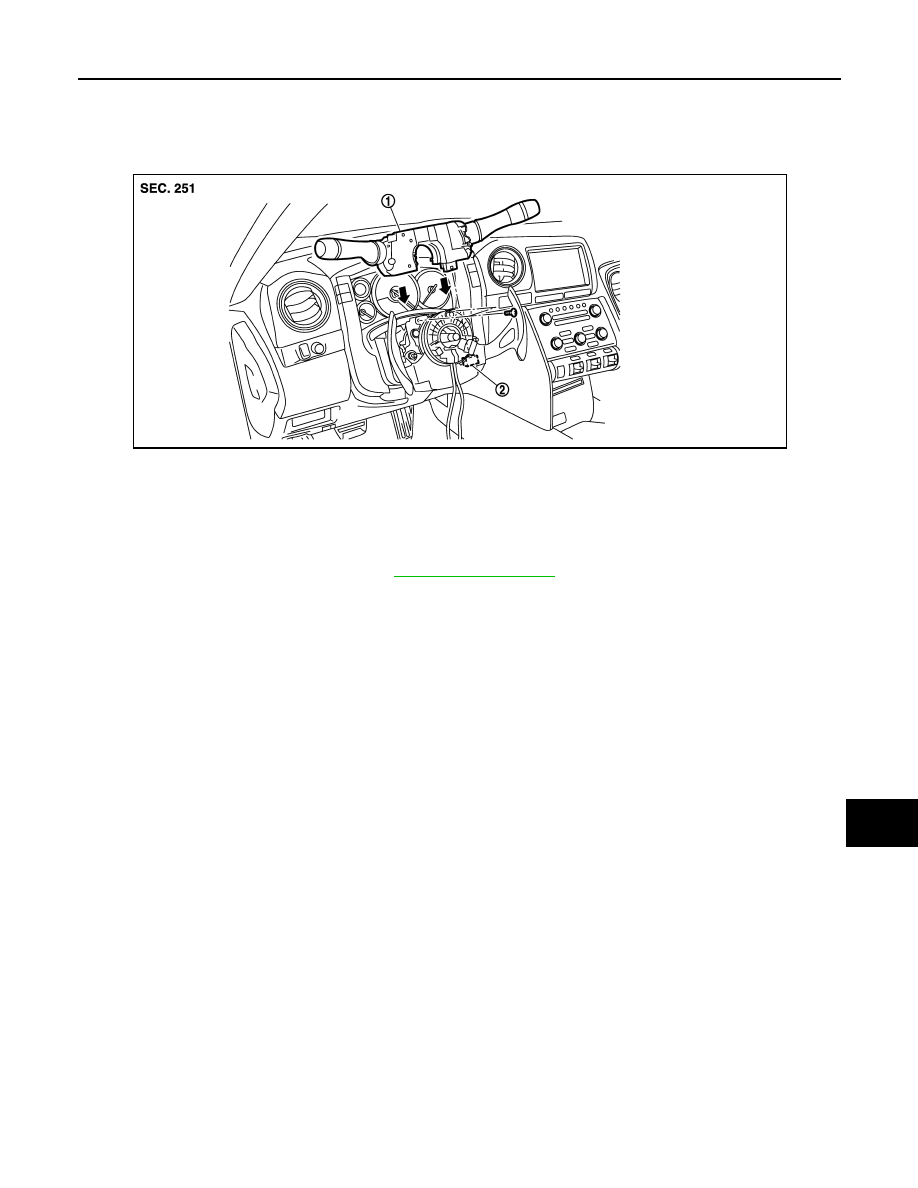

COMBINATION SWITCH

Exploded View

INFOID:0000000009160280

Removal and Installation

INFOID:0000000009160281

REMOVAL

1.

Remove steering column cover. Refer to

IP-12, "Exploded View"

.

2.

Remove screws.

3.

Disconnect the connector.

4.

Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JPMIA1146ZZ

Revision: 2012 November

2014 GT-R
