Nissan GT-R (2007-2014 year). AUDIO, VISUAL & NAVIGATION SYSTEM. Service Manual - part 12





AV

BOSE AMP.

AV-177

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

Exploded View

INFOID:0000000009163444

Removal and Installation

INFOID:0000000009163445

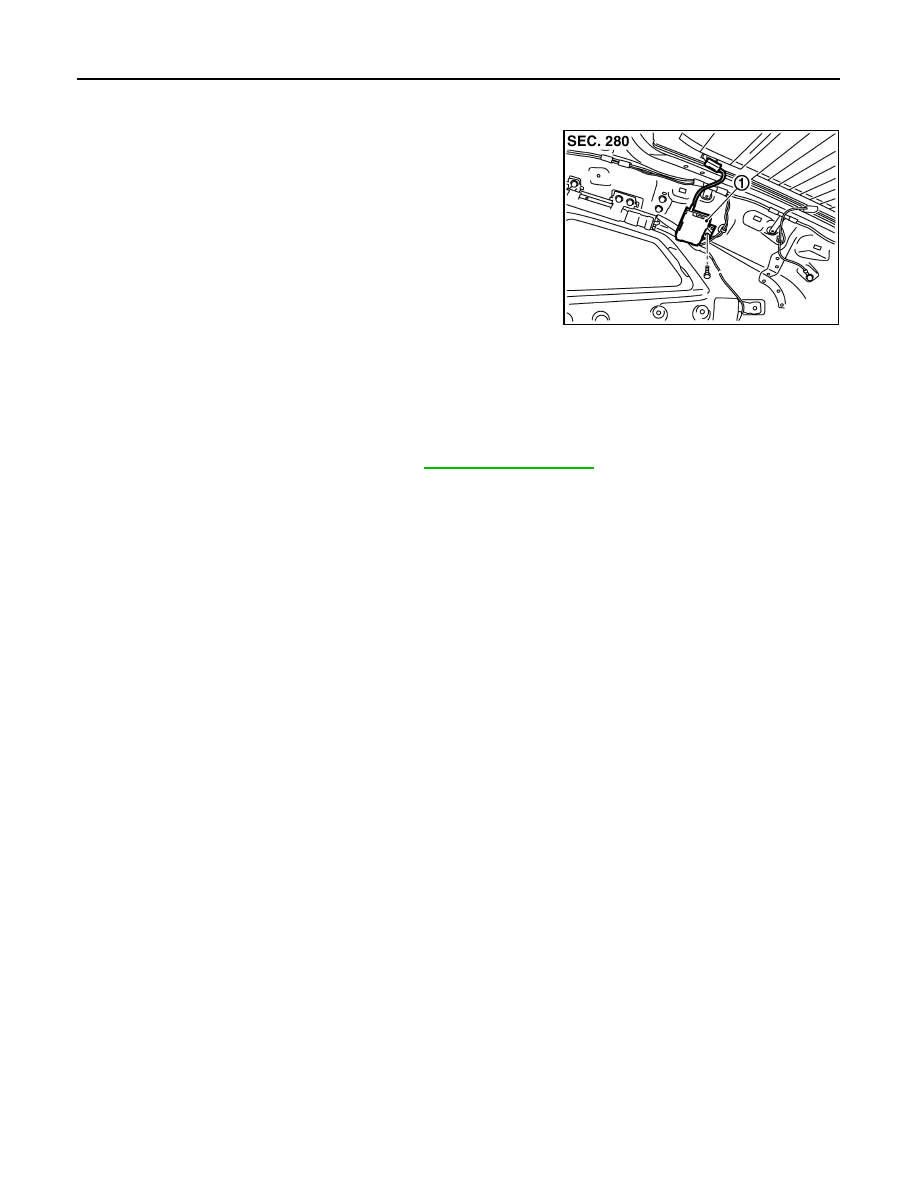

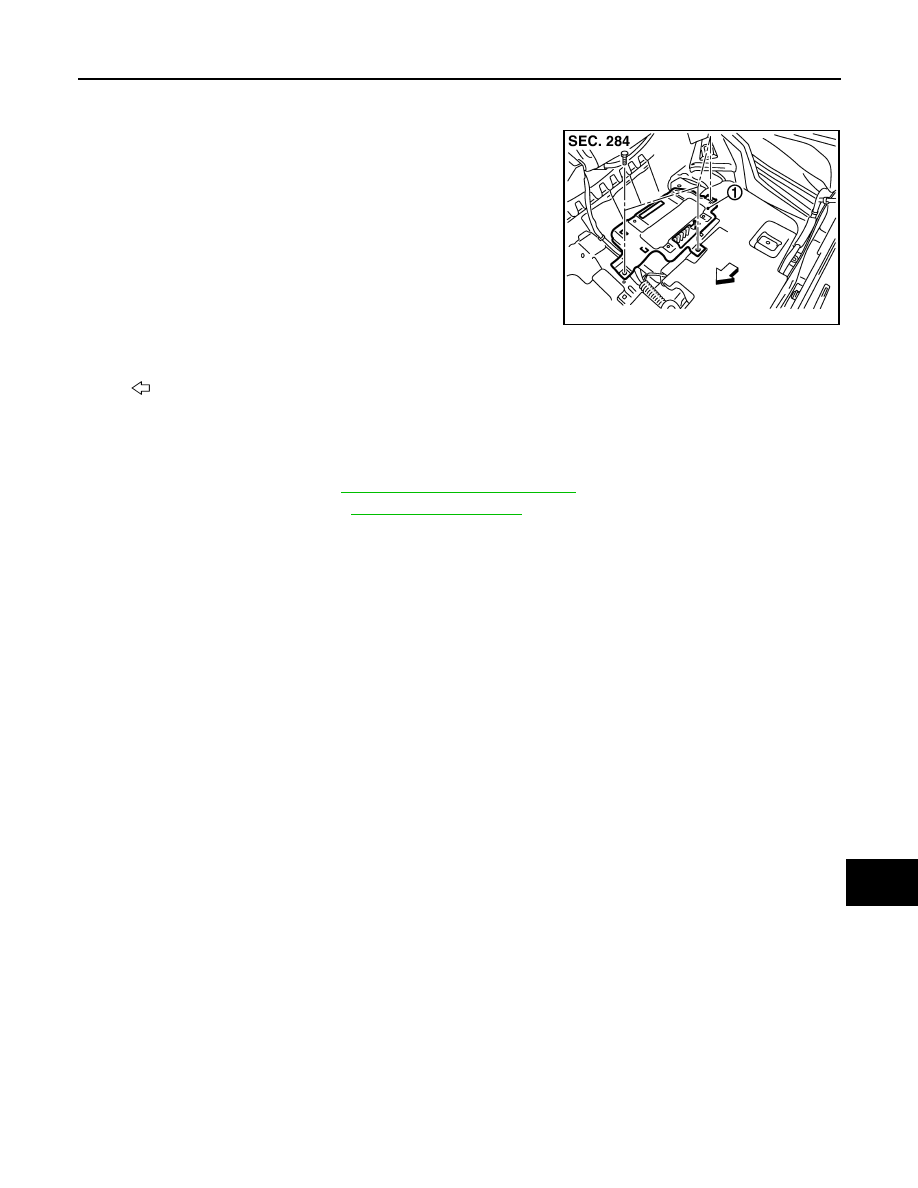

REMOVAL

1.

Remove the driver seat. Refer to

SE-49, "Removal and Installation"

.

2.

Turn over the floor carpet (refer to

INT-22, "Exploded View"

), remove the screws and disconnect the con-

nector, and then remove the BOSE amp.

INSTALLATION

Installation is the reverse order of removal.

NNNIA0043ZZ

1.

BOSE amp.

:

Front of vehicle

Revision: 2012 November

2014 GT-R

AV-178

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

ANTENNA AMP.

ANTENNA AMP.

Exploded View

INFOID:0000000009163446

Removal and Installation

INFOID:0000000009163447

REMOVAL

1.

Remove the rear pillar finisher (RH). Refer to

INT-15, "Exploded View"

.

2.

Remove the screw and disconnect the connector, and then remove the radio antenna amplifier from the
vehicle.

INSTALLATION

Install in the reverse order of removal.

NNNIA0045ZZ

1.

Antenna amp.

Revision: 2012 November

2014 GT-R

AV

MULTIFUNCTION SWITCH

AV-179

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000009163448

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163449

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws (A), and then remove the multifunction
switch from the cluster lid C (upper).

INSTALLATION

Installation is the reverse order of removal.

1.

Bracket (LH)

2.

Multifunction switch

3

Cluster lid C (upper)

4.

Bracket (RH)

5.

Display unit

JPNIA1135ZZ

JPNIA1136ZZ

Revision: 2012 November

2014 GT-R

AV-180

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000009163450

REMOVAL

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000009163451

REMOVAL

1.

Remove the instrument panel garnish (upper) and the instrument panel garnish LH/RH. Refer to

IP-13,

"Removal and Installation"

.

2.

Remove the screws and disconnect the connector, and then remove the preset switch.

INSTALLATION

Install in the reverse order of removal.

1.

Preset switch

2.

Instrument panel garnish (upper)

3.

Instrument panel garnish LH

4.

Instrument panel garnish RH

JPNIA1137ZZ

Revision: 2012 November

2014 GT-R

AV

DISK EJECT SWITCH

AV-181

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISK EJECT SWITCH

Exploded View

INFOID:0000000009163452

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163453

REMOVAL

1.

Remove the cluster lid C (lower). Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws (A), and then remove the disk eject switch.

INSTALLATION

Install in the reverse order of removal.
NOTE:
When installing disk eject switch, do not allow the hard wire that connects disk eject switch and preset switch
to get caught in between AV control unit and disk eject switch.

1.

Bracket LH

2.

Cluster lid C (lower)

3.

Disk eject switch

4.

Bracket RH

5.

AV control unit

NNNIA0171ZZ

NNNIA0091ZZ

Revision: 2012 November

2014 GT-R

AV-182

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000009163454

Refer to

ST-10, "Exploded View"

.

Removal and Installation

INFOID:0000000009163455

REMOVAL

Refer to

ST-10, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

Revision: 2012 November

2014 GT-R

AV

MICROPHONE

AV-183

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Exploded View

INFOID:0000000009163456

Removal and Installation

INFOID:0000000009163457

REMOVAL

1.

Remove map lamp. Refer to

INL-18, "Exploded View"

.

2.

Remove the microphone from the map lamp.

INSTALLATION

Install in the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

Revision: 2012 November

2014 GT-R

AV-184

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Exploded View

INFOID:0000000009163458

Feeder layout

Removal and Installation

INFOID:0000000009163459

REMOVAL

JSNIA2952GB

Revision: 2012 November

2014 GT-R

AV

GPS ANTENNA

AV-185

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

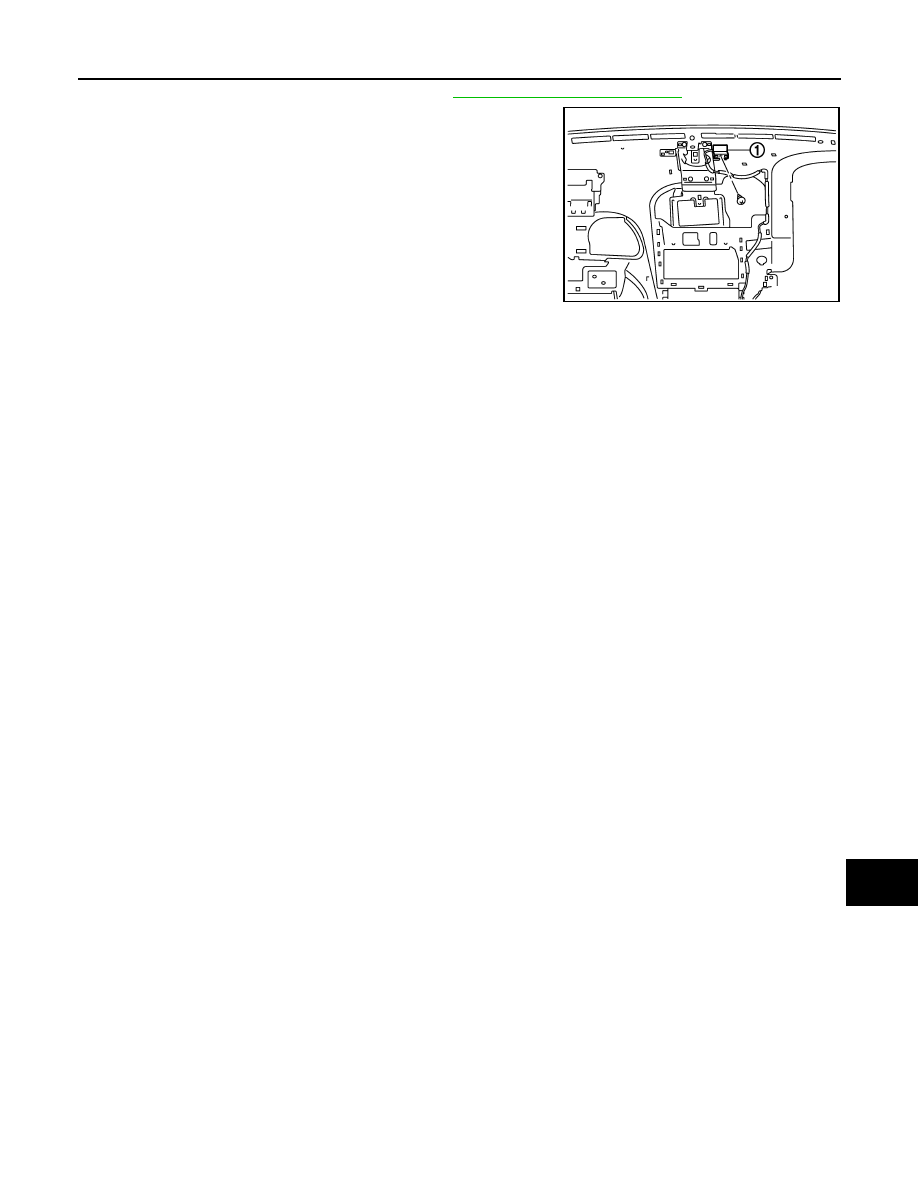

1.

Remove the instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws, and then remove GPS antenna (1) from the
instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

JPNIA1139ZZ

Revision: 2012 November

2014 GT-R

AV-186

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

ANTENNA FEEDER

ANTENNA FEEDER

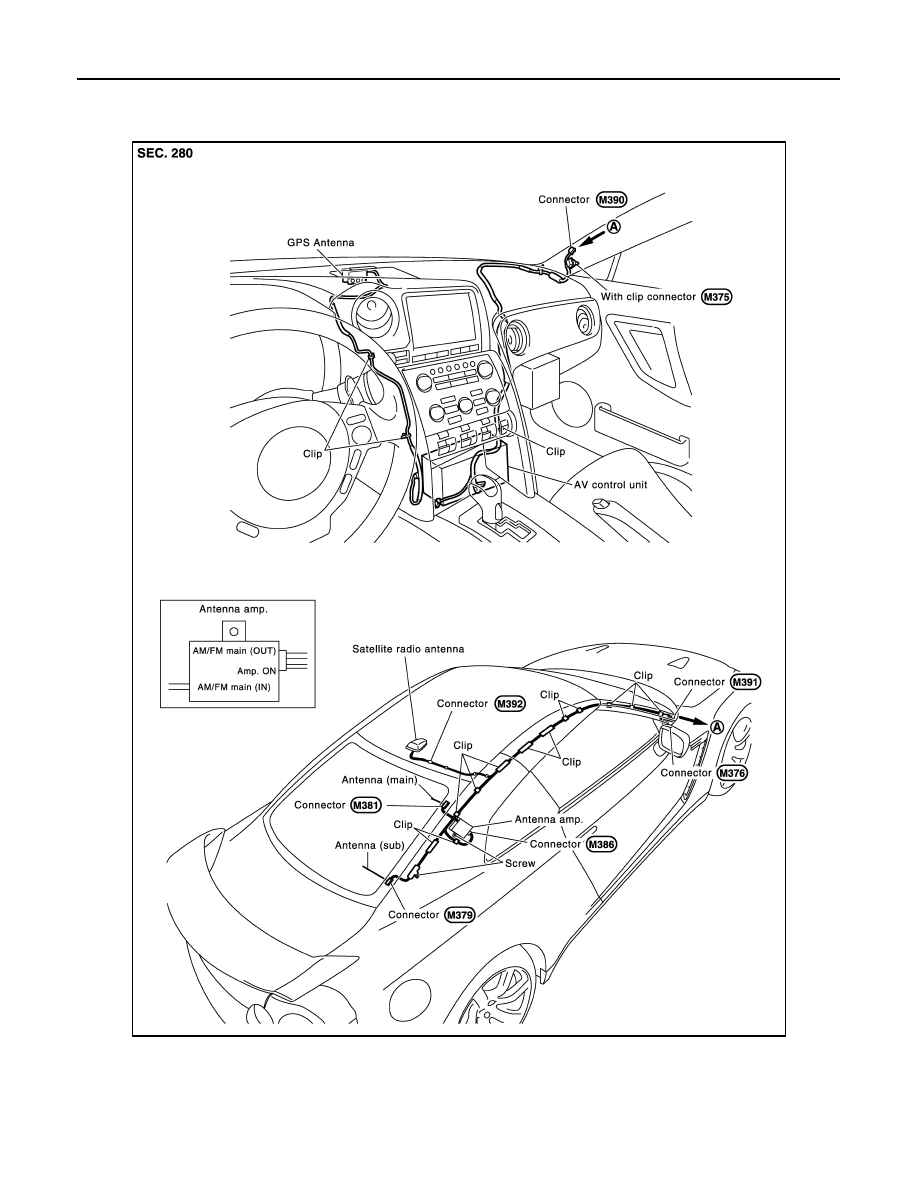

Feeder layout

INFOID:0000000009163460

JSNIA2952GB

Revision: 2012 November

2014 GT-R

AV

USB CONNECTOR

AV-187

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Exploded View

INFOID:0000000009163461

Removal and Installation

INFOID:0000000009163462

REMOVAL

1.

Remove center console. Refer to

IP-23, "Exploded View"

.

2.

Push the pawl from the back of center console to remove USB connector.

INSTALLATION

Install in the reverse order of removal.

NNNIA0182ZZ

1.

USB connector

Revision: 2012 November

2014 GT-R

AV-188

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000009163463

REMOVAL

Refer to

EXT-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163464

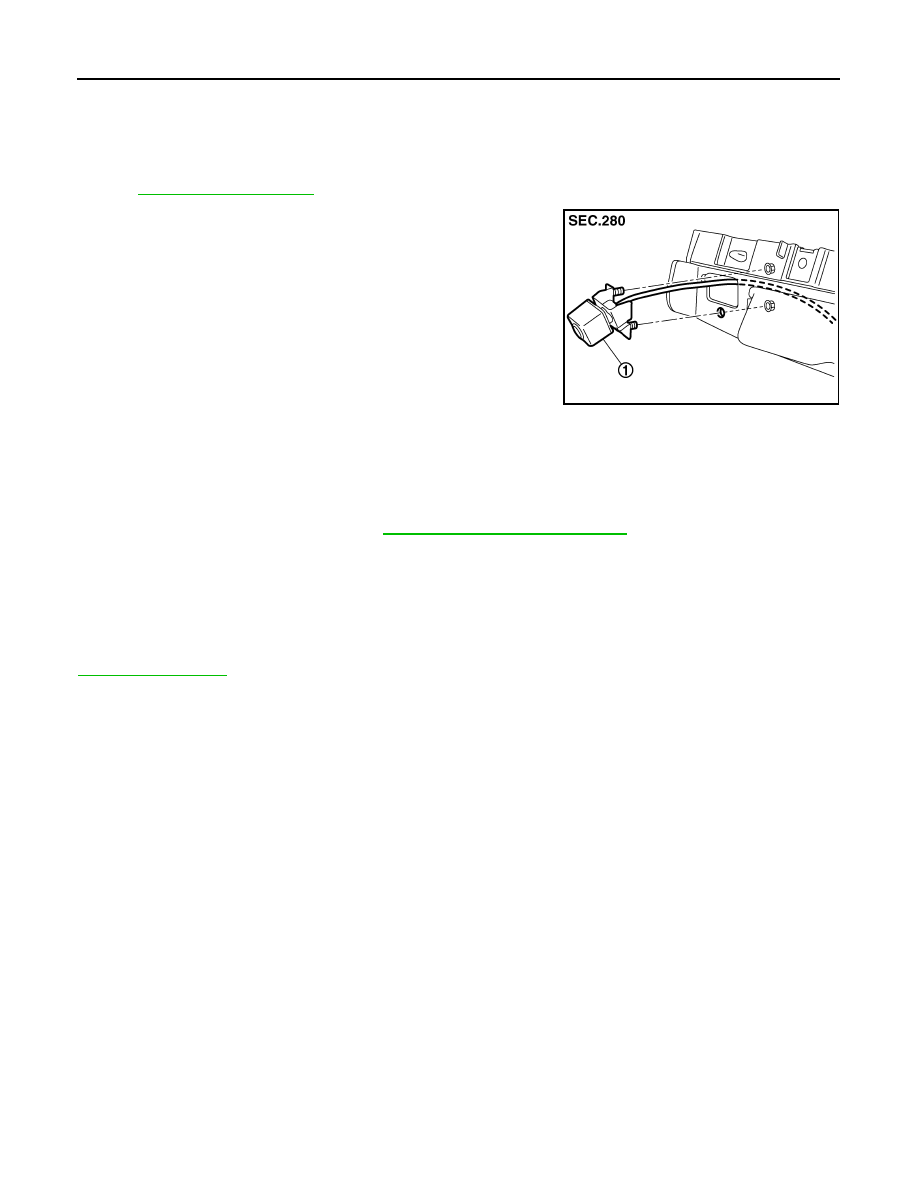

REMOVAL

1.

Remove license lamp bracket. Refer to

EXT-21, "Removal and Installation"

.

2.

Remove the mounting nuts of rear view camera.

3.

Remove rear view camera from license lamp bracket.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Adjust the guide line position if the guide line position is shifted after installing the rear view camera. Refer to

AV-188, "Adjustment"

.

Adjustment

INFOID:0000000009163465

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

JSNIA4792ZZ

1.

Rear view camera

Revision: 2012 November

2014 GT-R

AV

REAR VIEW CAMERA

AV-189

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

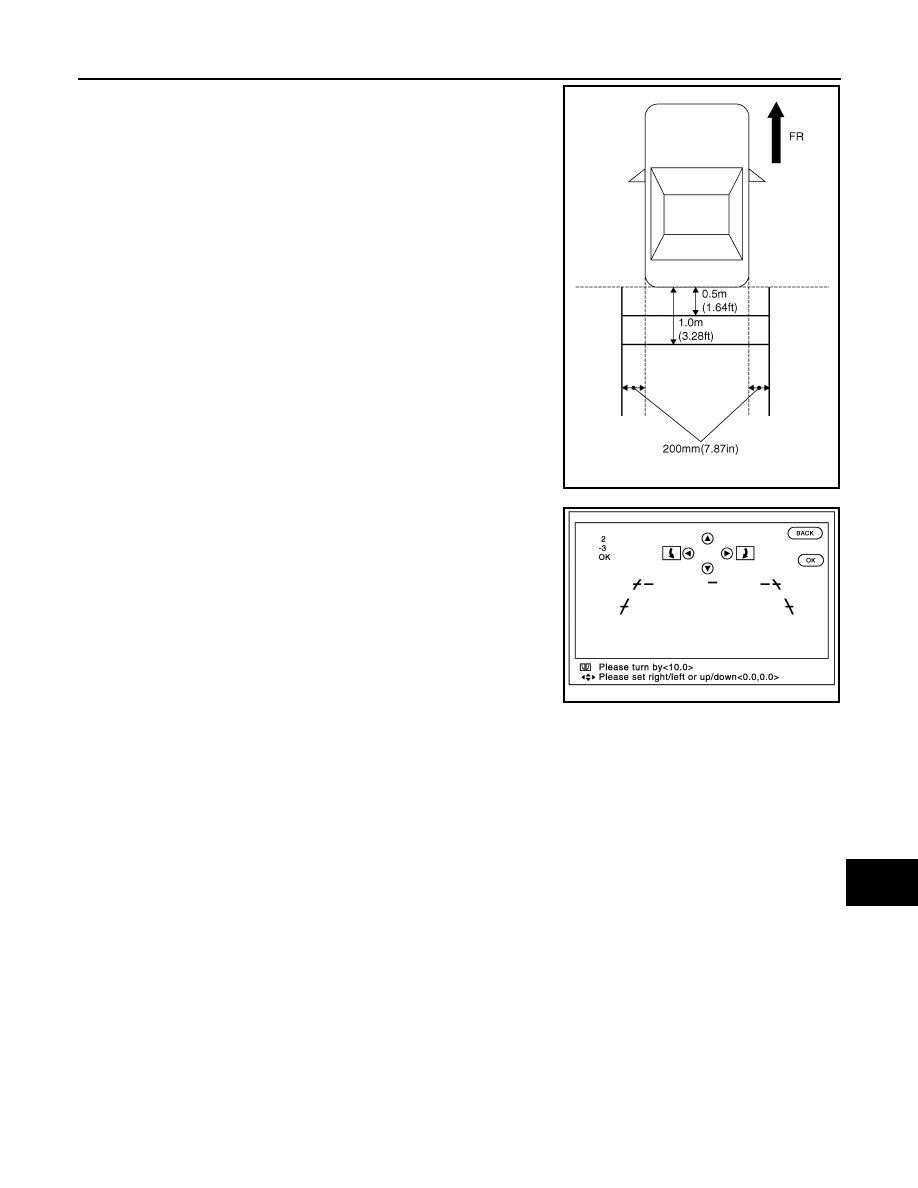

1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “OK” switch and record the
adjusted guiding line position to the camera control unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

10

°

 to 10

°

Up/Down adjustment range

10

°

 to 10

°

Left/Right adjustment range

10

°

 to 10

°

JSNIA2185ZZ

Revision: 2012 November

2014 GT-R

ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009164430

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009161460

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Revision: 2012 November

2014 GT-R
