WW-16

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

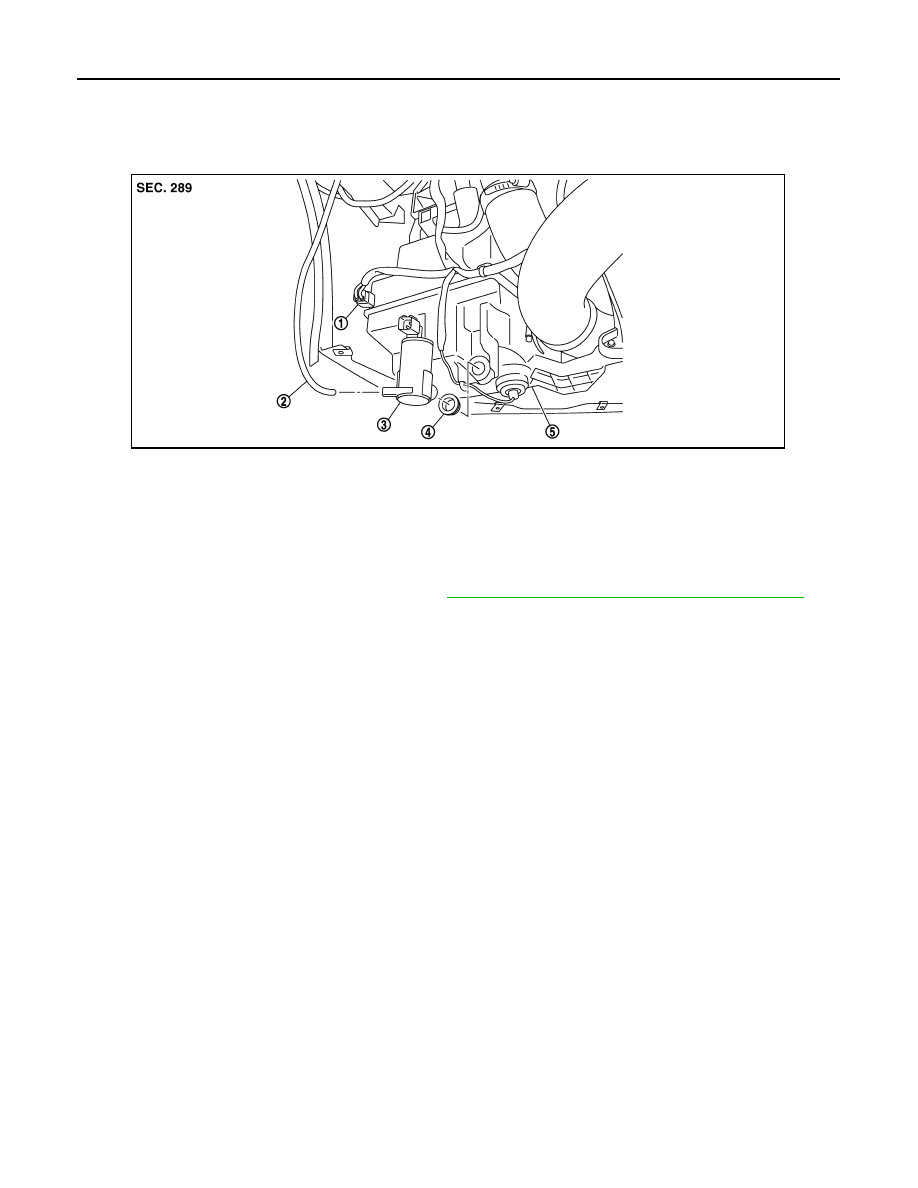

Exploded View

INFOID:0000000009161868

Removal and Installation

INFOID:0000000009161869

REMOVAL

1.

Remove the fender protector LH (front). Refer to

EXT-29, "FENDER PROTECTOR : Exploded View"

.

2.

Disconnect the washer pump connector.

3.

Disconnect the front washer tube.

4.

Remove the washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

1.

Washer pump connector

2.

Front washer tube

3.

Washer pump

4.

Packing

5.

Washer tank

NNLIA0044ZZ

WASHER LEVEL SWITCH

WW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009161870

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-15,

"Removal and Installation"

.

WW-18

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

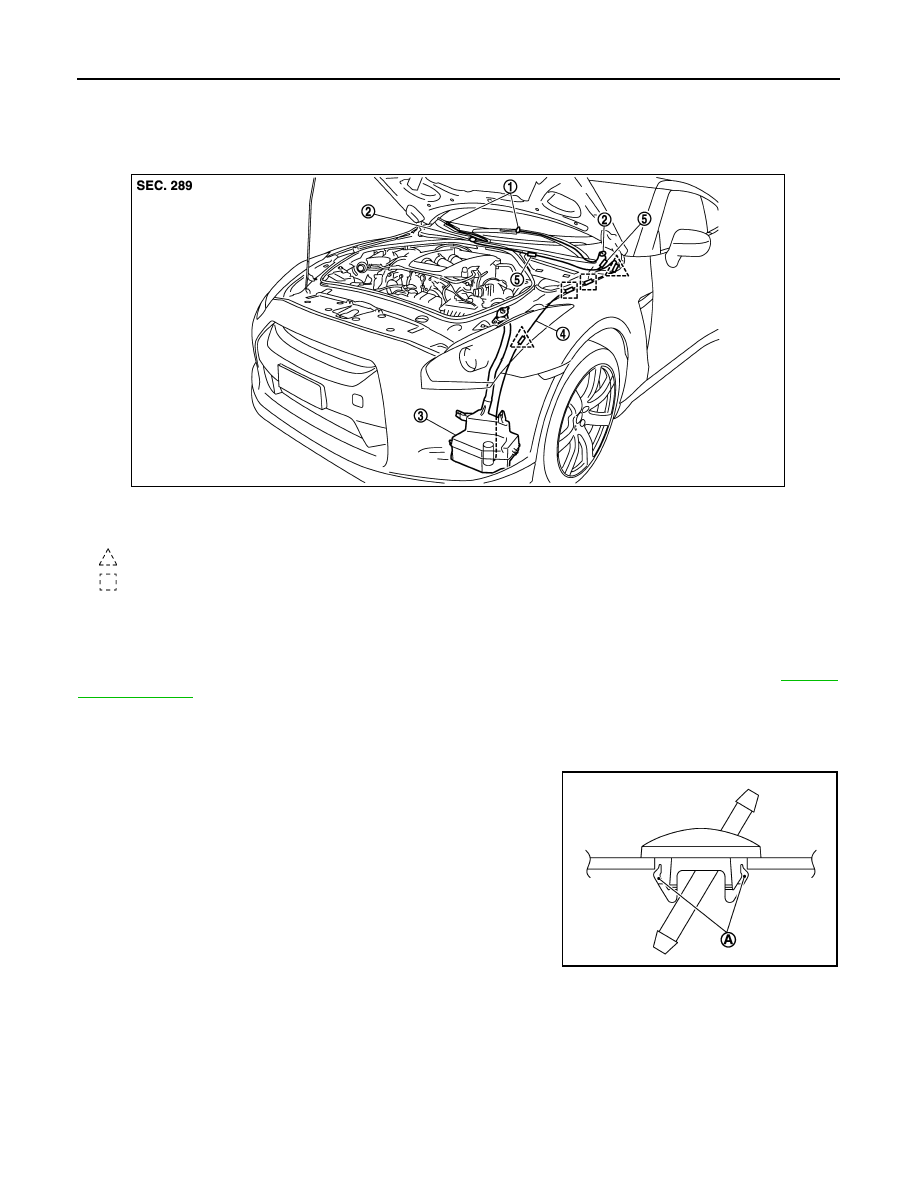

Hydraulic Layout

INFOID:0000000009161871

Removal and Installation

INFOID:0000000009161872

FRONT WASHER NOZZLE

The front washer nozzle must be replaced together with the front wiper arm as an assembly. Refer to

WW-21,

"Exploded View"

.

CAUTION:

Never remove/install the front washer nozzle from the front wiper arm assembly.

FRONT WASHER JOINT

1.

Remove upwards while pressing pawl (A) on reverse side.

2.

Disconnect front washer tube.

Inspection and Adjustment

INFOID:0000000009161873

INSPECTION

Check valve Inspection

1.

Front washer nozzle

2.

Front washer joint

3.

Washer tank

4.

Front washer tube

5.

Check valve

Clip A

Clip B

JPLIA1175ZZ

NNLIA0045ZZ

FRONT WASHER NOZZLE AND TUBE

WW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

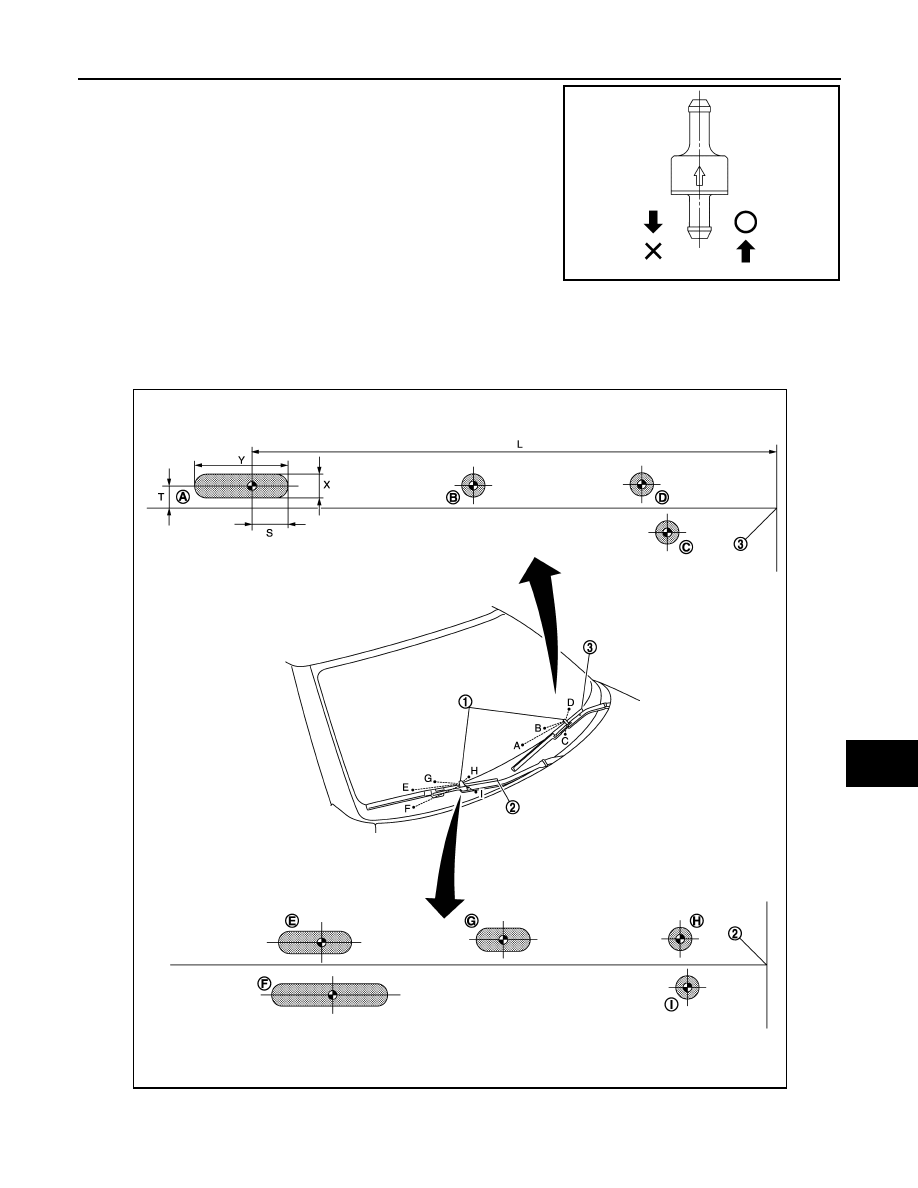

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Front Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure. Remove the wiper motor connector to
ensure front wiper arms do not move.
