Perform the wake-up procedure starting from the vehicle
front left wheel, then repeat the procedure in the order of
the front right wheel, rear right wheel, and rear left wheel.

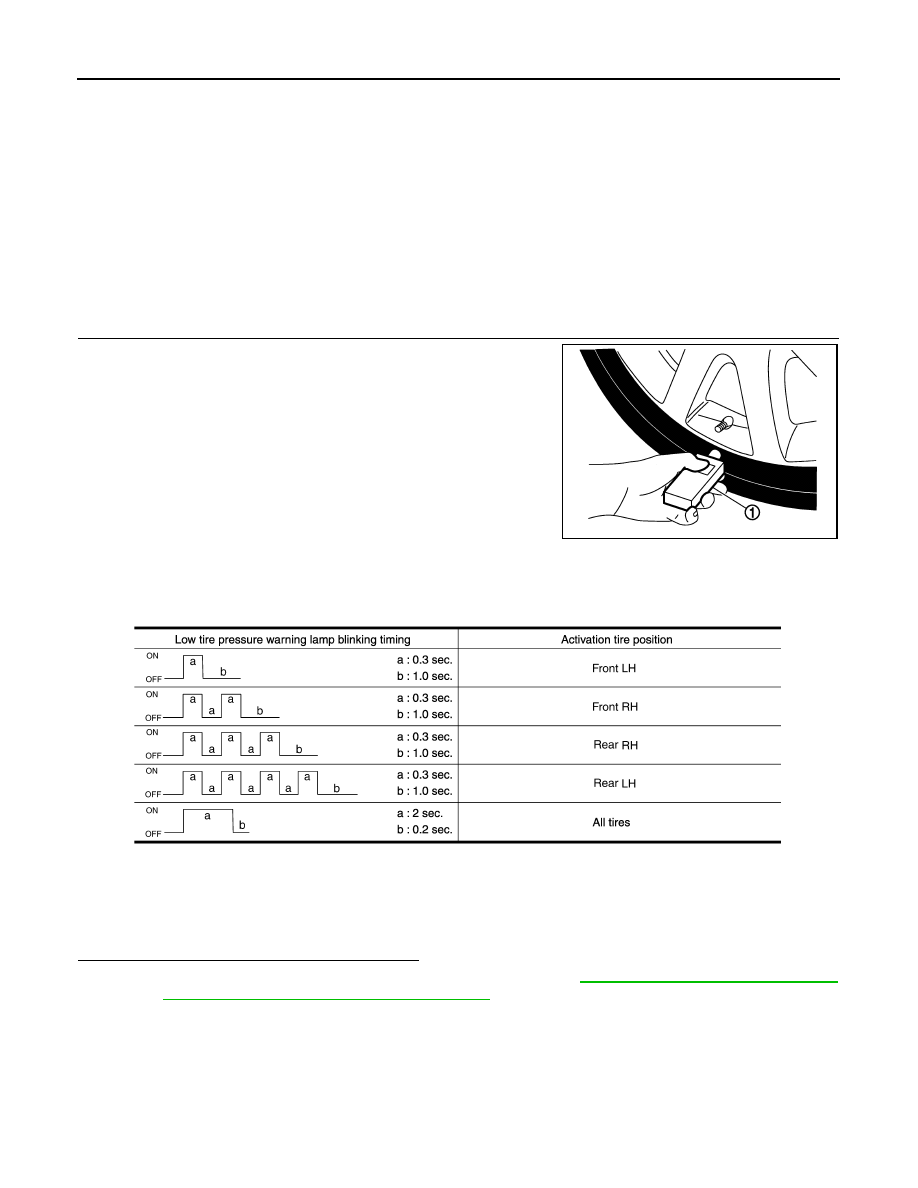

Check that the low tire pressure warning lamp blinks in the pattern shown as per the following. The pattern
indicates that the transmitter wake-up procedure for the wheel is completed.

Check that the turn signal lamps blink twice when the transmitter wake-up procedure for all wheels is com-
pleted.

Check that the low tire pressure warning lamp turns OFF, after the transmitter wake-up procedure is com-
pleted for all wheels and turns OFF.

Is the transmitter wake-up procedure completed?

YES

>> Perform the transmitter ID registration procedure. Refer to

WT-3, "ID REGISTRATION PROCE-

DURE : Transmitter ID Registration Procedure"

>> Perform trouble diagnosis for the transmitter. (This work is recommended to be performed by GT-

R certified NISSAN dealer.)

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE : Description

INFOID:0000000009161089

If the transmitter or low tire pressure warning control unit is replaced, always perform the transmitter ID regis-
tration.

NNEIC0020ZZ

JPEIC0089GB

INSPECTION AND ADJUSTMENT

WT-3

< BASIC INSPECTION >

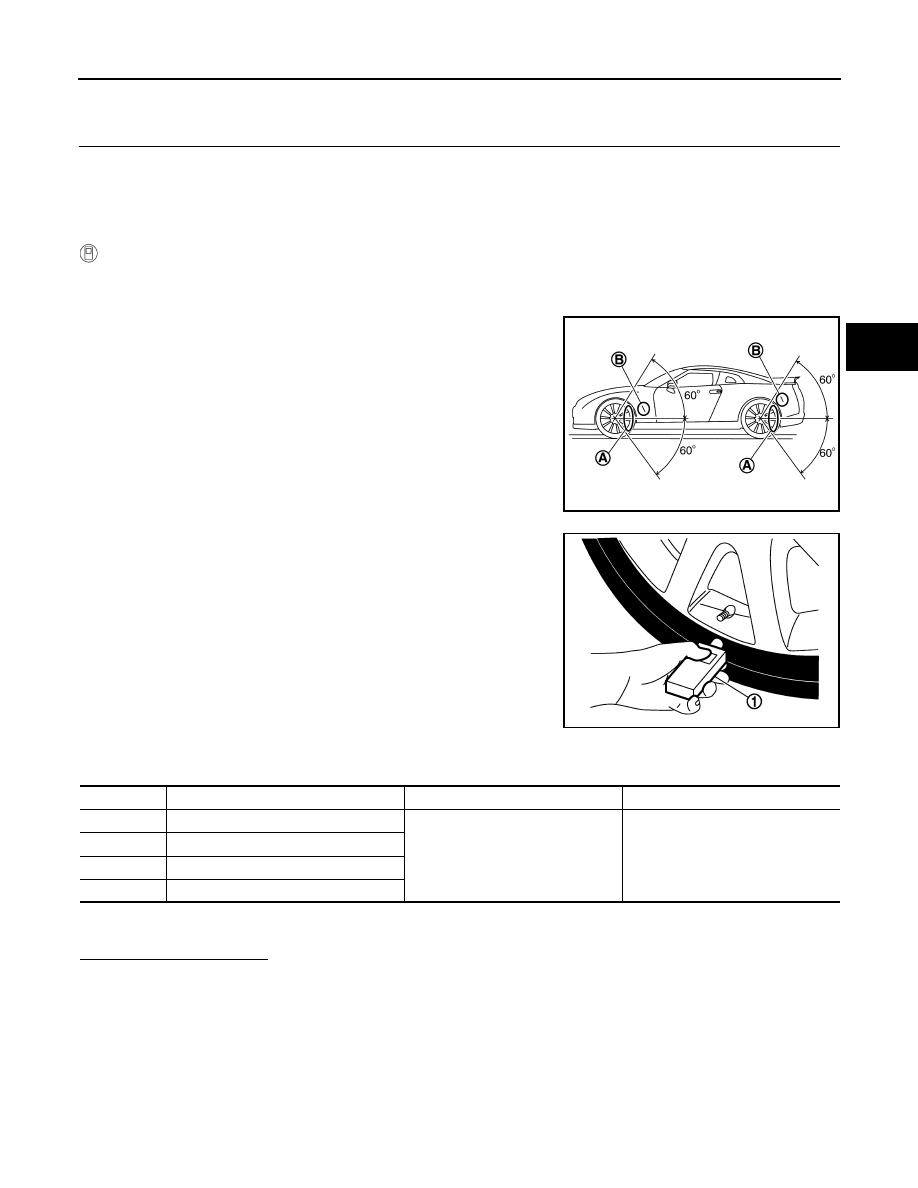

ID REGISTRATION PROCEDURE : Transmitter ID Registration Procedure

INFOID:0000000009161090

TRANSMITTER ID REGISTRATION PROCEDURE

CAUTION:

To perform ID registration, observe the following points:

• Never register ID in a place where radio waves are interfered (e.g. radio tower).
• Never register ID in a place close to vehicles including TPMS.

With CONSULT

Turn the ignition switch ON.

Display the “WORK SUPPORT” screen and select “ID REGIST”.

Select the start button on the “ID REGIST” screen.

Position transmitter within the range (A) to register ID.

Press the transmitter activation tool (J-45295) (1) against the
side of the tire at the location closest to the transmitter.

Wait until the indicator lamp turns off (approximately 5 seconds).

CAUTION:

Perform the ID registration procedure starting from the
vehicle front left wheel, then repeat the procedure in the
order of the front right wheel, rear right wheel, and rear left
wheel.

When ID registration is completed, check the following pattern at each wheel.

After the ID registration procedure for all wheels is completed, press “END” to end ID registration, and
check that ID registration for all wheels is completed.

Is the check result normal?

YES

>> ID registration END.

>> Performs trouble-diagnosis of the Tire Pressure Monitoring System (TPMS). (This work is recom-

mended to be performed by GT-R certified NISSAN dealer.)

: Position receiver

JSEIA0479ZZ

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

Front left wheel

2 blinks

“Red”

↓

“Green”

Front right wheel

Rear right wheel

Rear left wheel

WT-4

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (LOW TIRE PRESSURE WARNING CONTROL UNIT)

SYSTEM DESCRIPTION

DIAGNOSIS SYSTEM (LOW TIRE PRESSURE WARNING CONTROL
UNIT)

CONSULT Function

INFOID:0000000009161096

FUNCTION

The diagnosis functions (main functions) include the following: “WORK SUPPORT”.

WORK SUPPORT

Refer to

WT-3, "ID REGISTRATION PROCEDURE : Transmitter ID Registration Procedure"

Diagnostic test mode

Function

Work support

In this mode, it is possible to make quick and accurate adjustments by following the instruc-
tions on the CONSULT display.
