Nissan GT-R. Manual - part 287

SEC-30

< DTC/CIRCUIT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

JCKWA1294GB

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-31

< DTC/CIRCUIT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

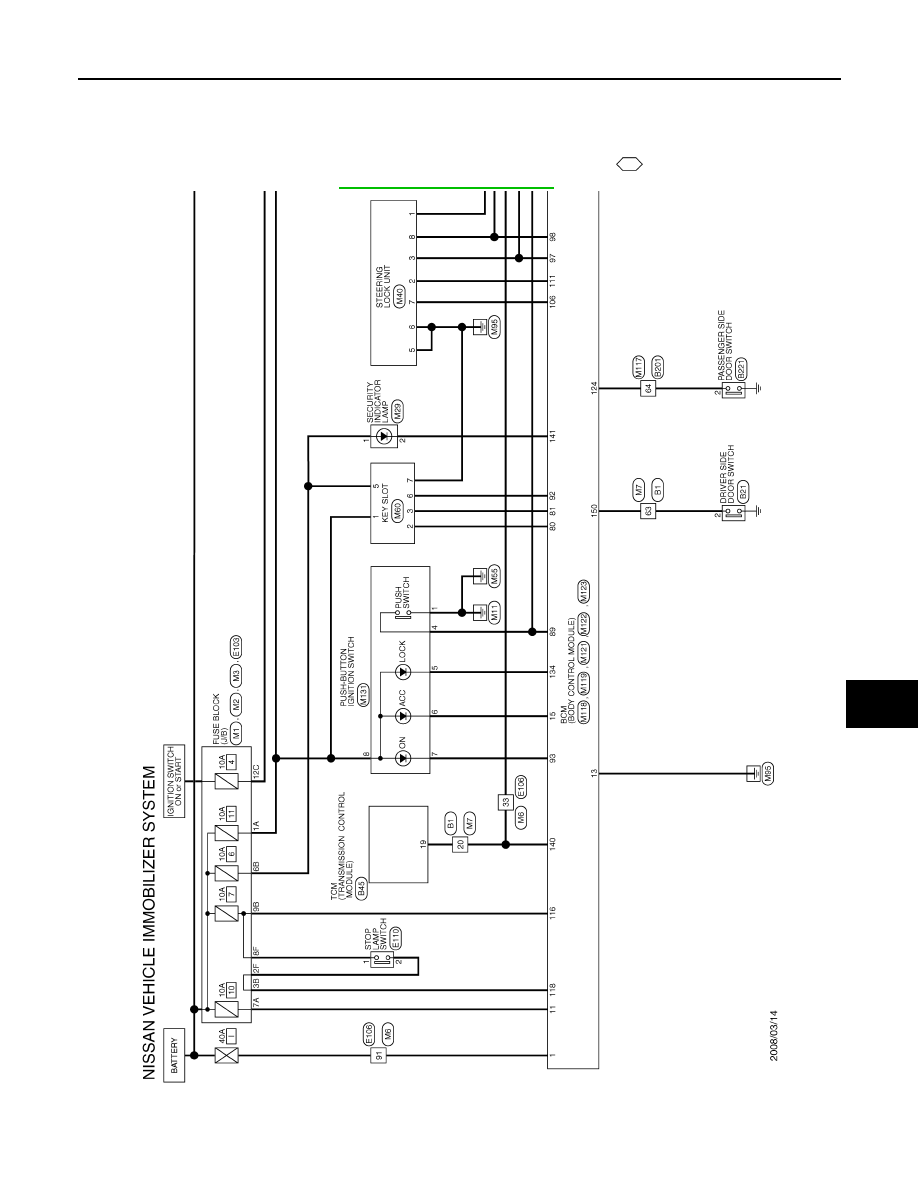

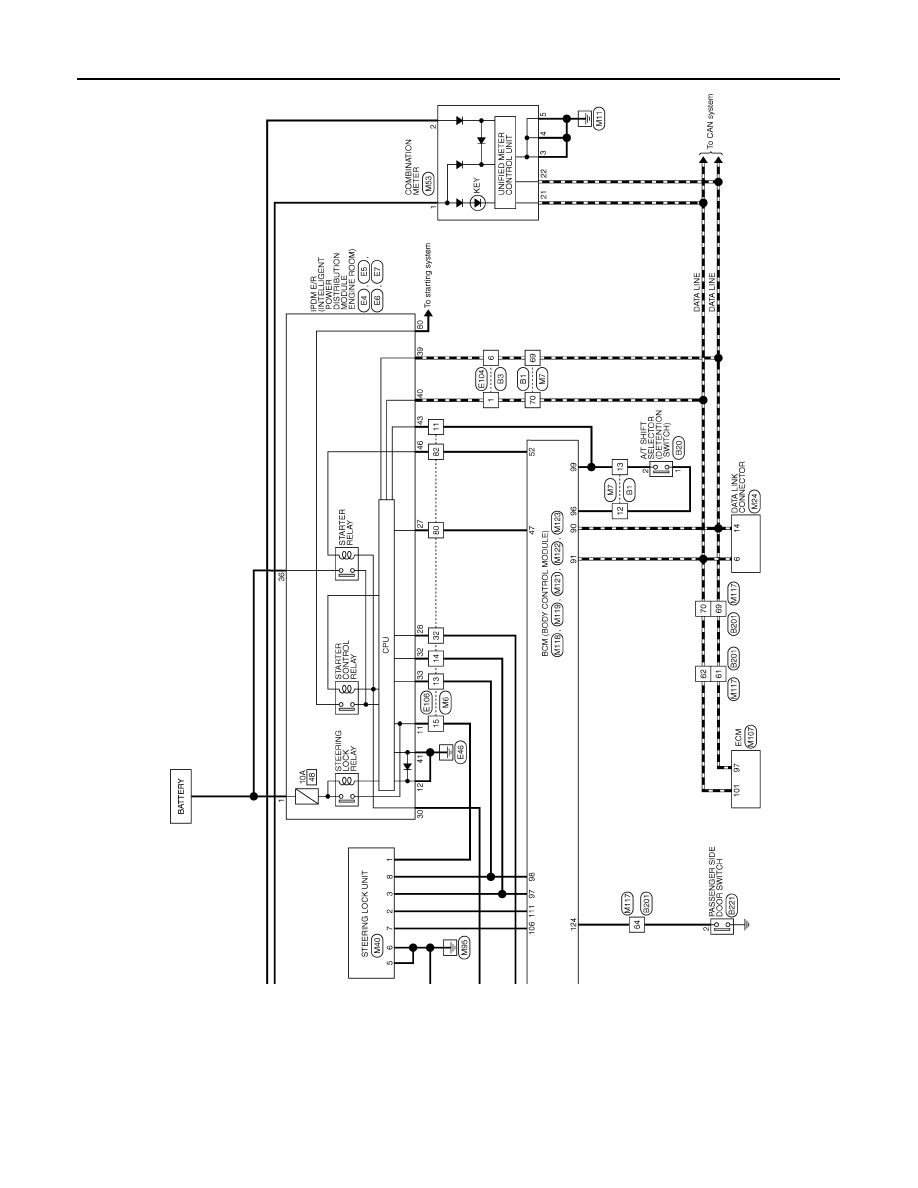

Wiring Diagram - NVIS -

INFOID:0000000009163776

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCKWA1306GB

SEC-32

< DTC/CIRCUIT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

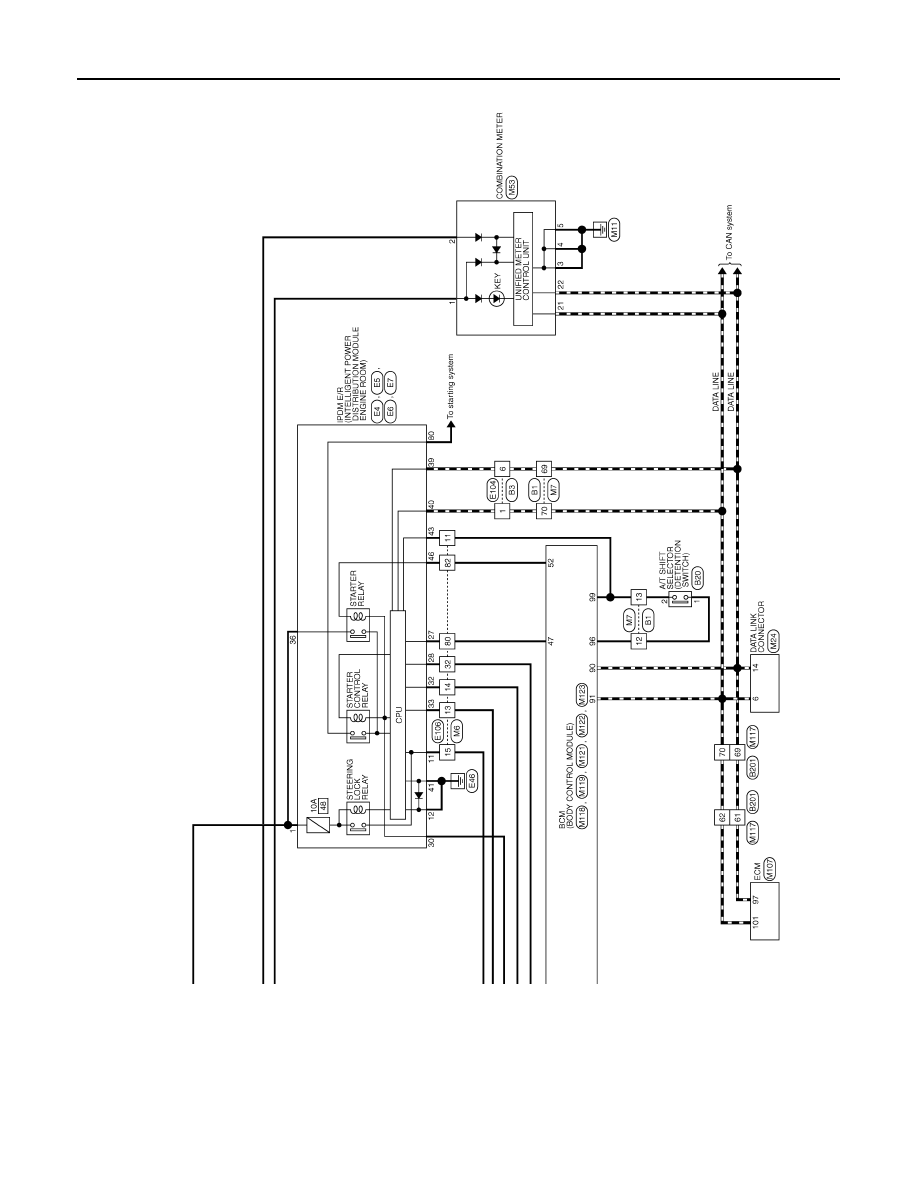

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

JCKWA1307GB

VEHICLE SECURITY SYSTEM

SEC-33

< DTC/CIRCUIT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

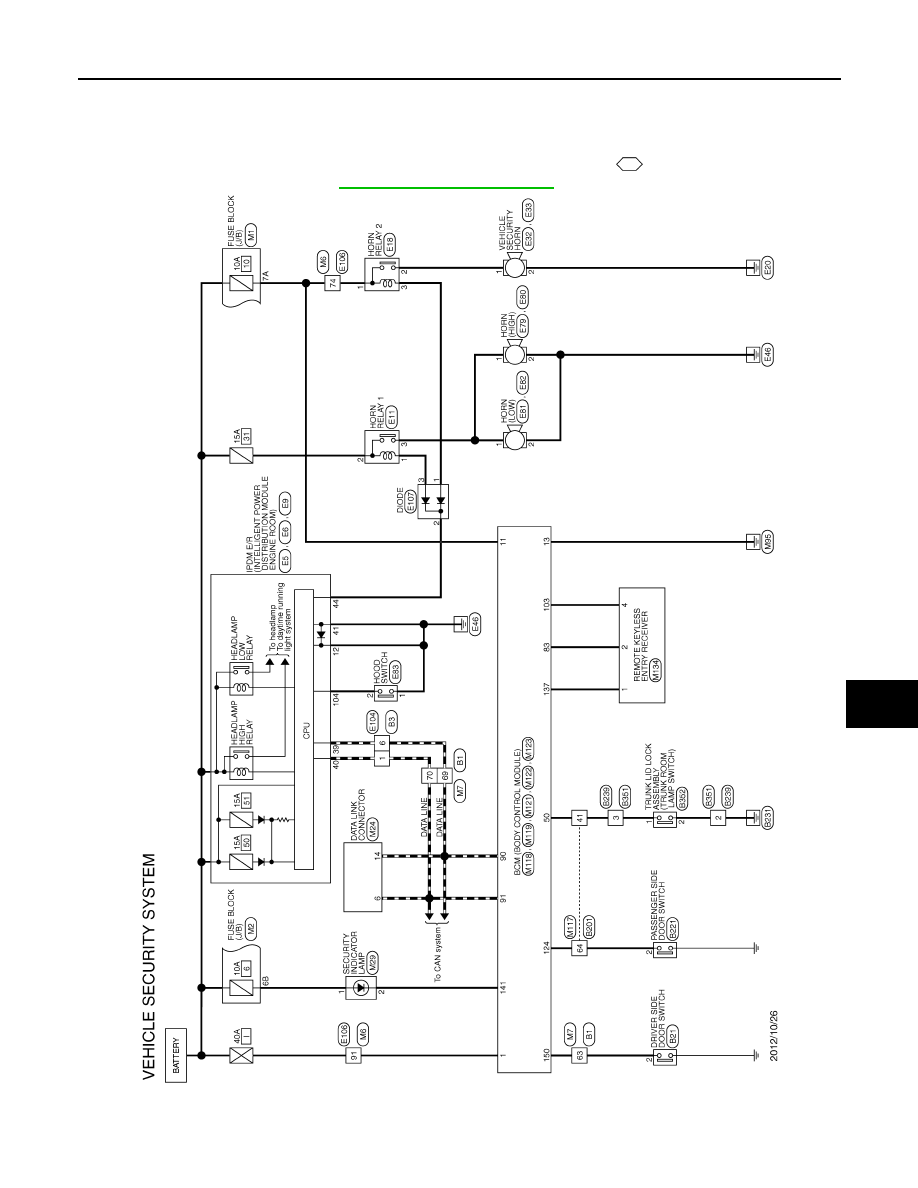

Wiring Diagram - VEHICLE SECURITY SYSTEM -

INFOID:0000000009163777

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JRKWC2675GB
