SE-58

< REMOVAL AND INSTALLATION >

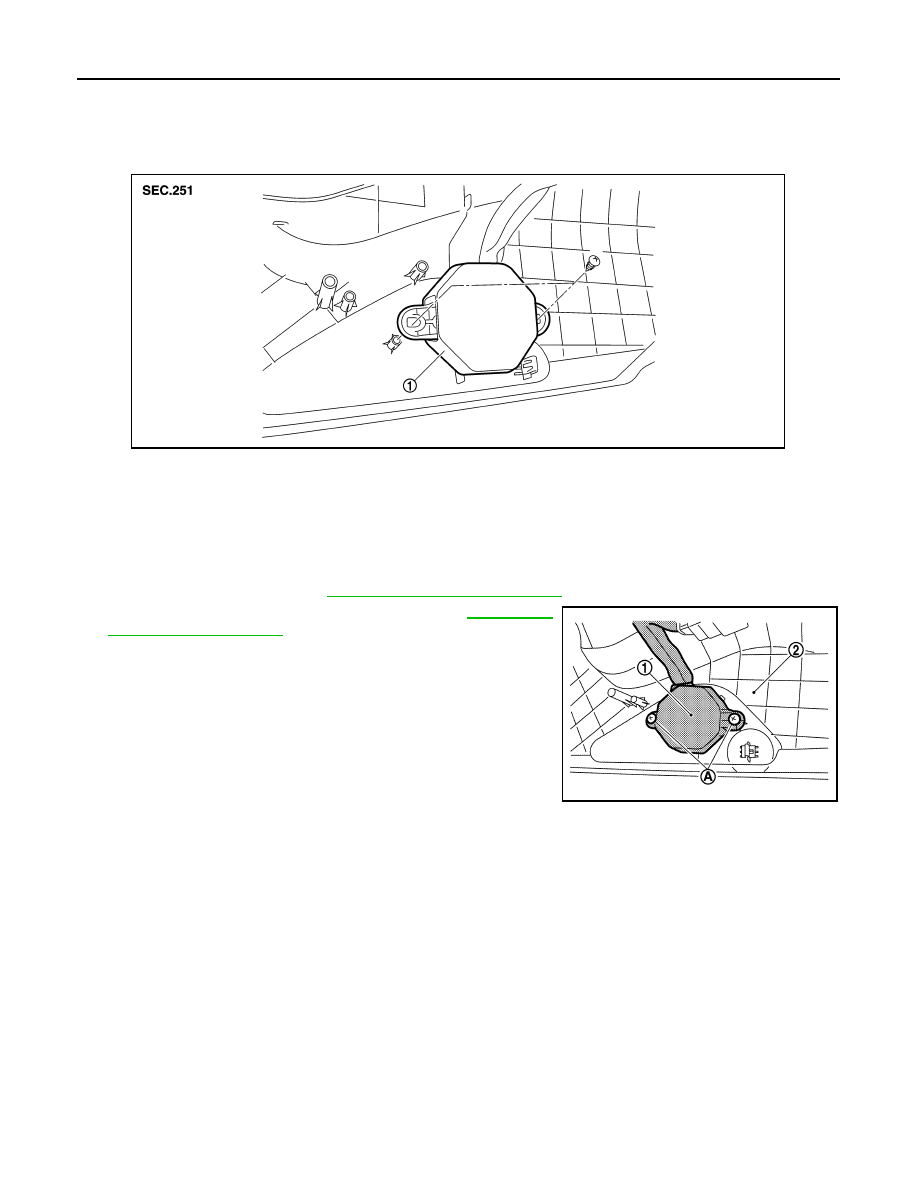

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000009162953

Removal and Installation

INFOID:0000000009162954

REMOVAL

1.

Remove the front seat. Refer to

SE-49, "Removal and Installation"

2.

Remove the seat cushion outer finisher (2). Referto

SE-50, "Dis-

assembly and Assembly"

3.

Remove the power seat switch knob.

4.

Remove the screws (A).

5.

Remove the power seat switch (1) from the seat cushion outer
finisher (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When performing the work, use shop cloths to protect the parts from damage.
• Always fix the harness clamp in the normal position.

1.

Power seat switch

JMJIA5203ZZ

JMJIA5204ZZ

THIGH SUPPORT SWITCH

SE-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

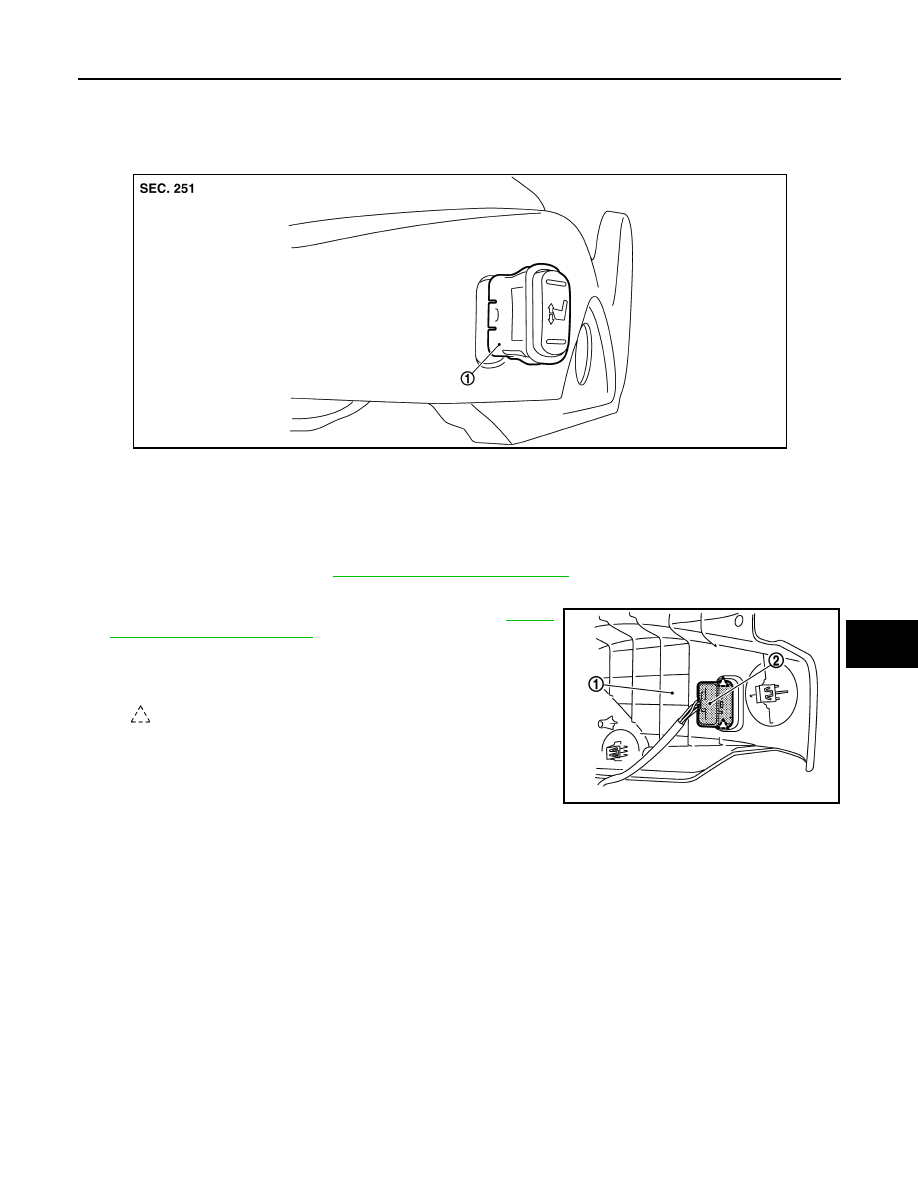

THIGH SUPPORT SWITCH

Exploded View

INFOID:0000000009162955

Removal and Installation

INFOID:0000000009162956

REMOVAL

1.

Remove the front seat. Refer to

SE-49, "Removal and Installation"

2.

Disconnect the thigh support switch connector.

3.

Remove the seat cushion outer finisher (1). Refer to

SE-50,

"Disassembly and Assembly"

4.

Remove the thigh support switch (2) from the seat cushion outer
finisher (1) while pressing the pawls.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When performing the work, use shop cloths to protect the parts from damage.
• Always fix the harness clamp in the normal position.

1.

Thigh support switch

JMJIA2116ZZ

: Pawl

JMJIA2121ZZ

SE-60

< REMOVAL AND INSTALLATION >

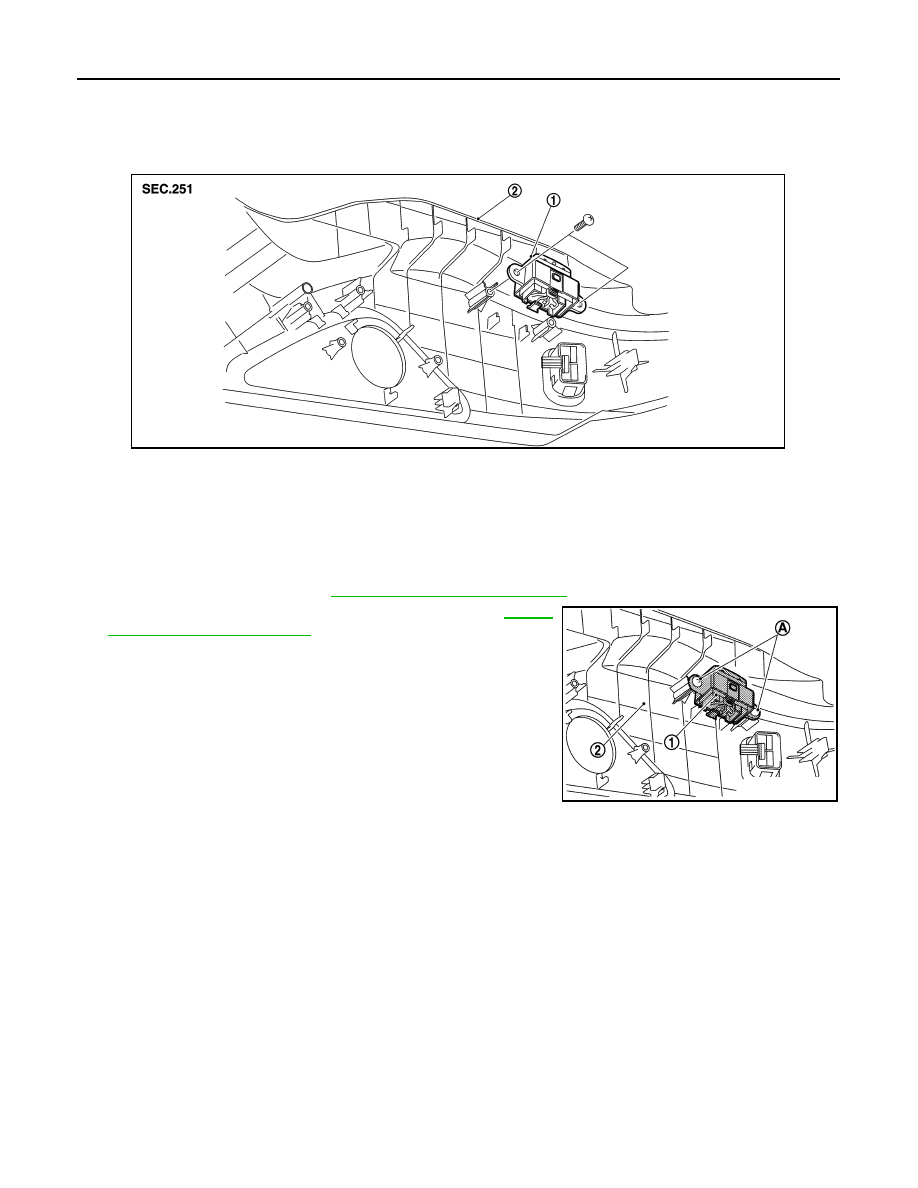

HEATED SEAT SWITCH

HEATED SEAT SWITCH

Exploded View

INFOID:0000000009162957

Removal and Installation

INFOID:0000000009162958

REMOVAL

1.

Remove the front seat. Refer to

SE-49, "Removal and Installation"

2.

Remove the seat cushion outer finisher (2). Refer to

SE-50,

"Disassembly and Assembly"

3.

Remove the screws (A).

4.

Remove the heater seat switch (1) from the seat cushion outer
finisher (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When performing the work, use shop cloths to protect the parts from damage.
• Always fix the harness clamp in the normal position.

1.

Heated seat switch

2.

Seat cushion outer finisher

JMJIA5205ZZ

JMJIA5206ZZ

SEC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

SEC

A

B

SEC

N

O

P
