FRONT SEAT

REMOVAL AND INSTALLATION

FRONT SEAT

Exploded View

INFOID:0000000009162948

Driver seat

1.

Seatback ornament (rear)

2.

Seatback assembly

3.

Seatback ornament (front)

4.

Reclining device inner cover (inside) 5.

Reclining device inner cover (out-
side)

6.

Seatback assembly (main)

JMJIA8501GB

FRONT SEAT

SE-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

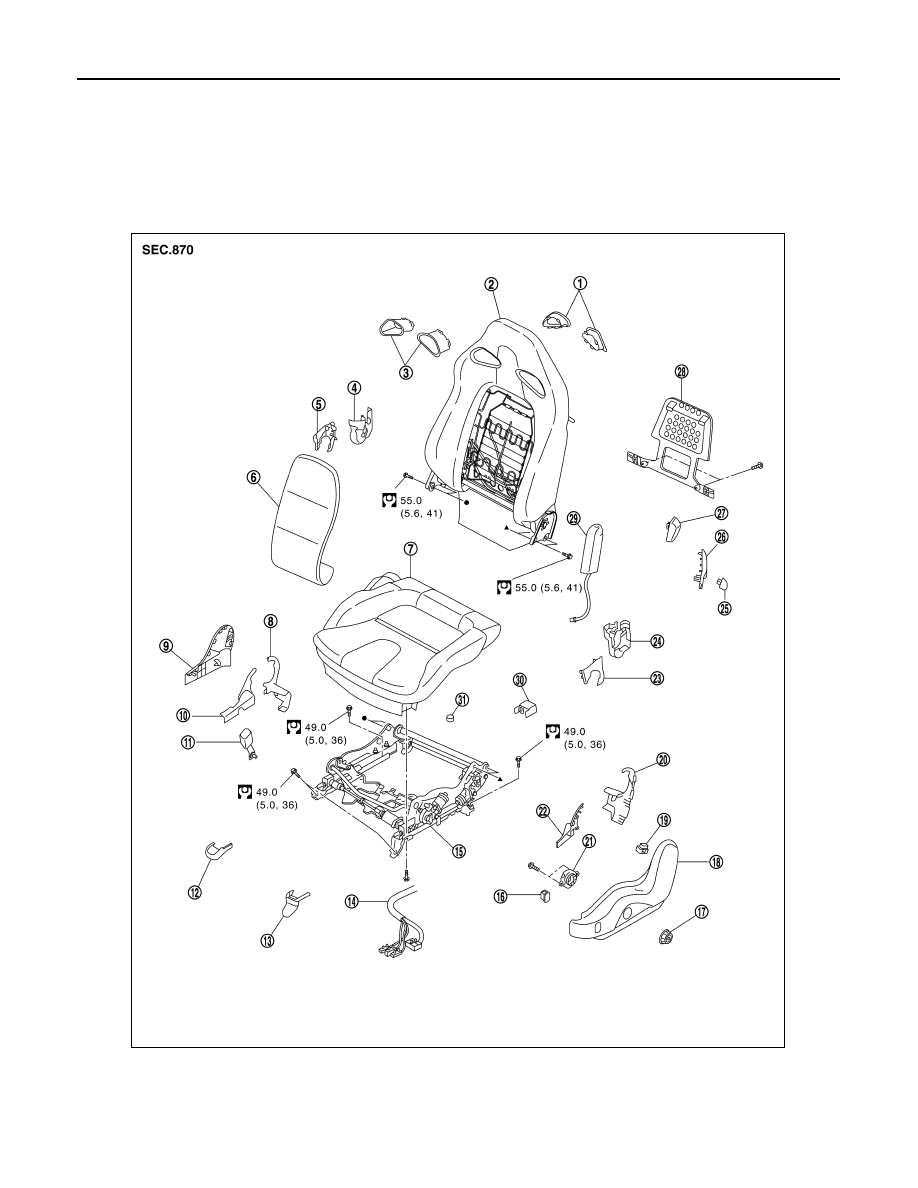

Passenger seat

7.

Seat cushion assembly

8.

Seat cushion inner finisher inside
(rear)

9.

Seat cushion inner finisher outside

10. Seat cushion inner finisher inside

(front)

11.

Seat belt buckle

12. Front slide inner cover

13. Front slide outer cover

14. Seat harness

15. Seat adjuster assembly

16. Thigh support switch

17. Seat control switch knob

18. Seat cushion outer finisher outside

19. Heater seat switch

20. Seat cushion outer finisher inside

(rear)

21. Seat control switch

22. Seat cushion outer finisher inside

(front)

23. Reclining device outer cover (out-

side)

24. Reclining device outer cover (inside)

25. Walk-in lever knob

26. Walk-in lever escutcheon

27. Knob

28. Seatback cover panel

29. Side air bag module

30. Rear slide outer cover

31. Rear inner bolt cap

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-48

< REMOVAL AND INSTALLATION >

FRONT SEAT

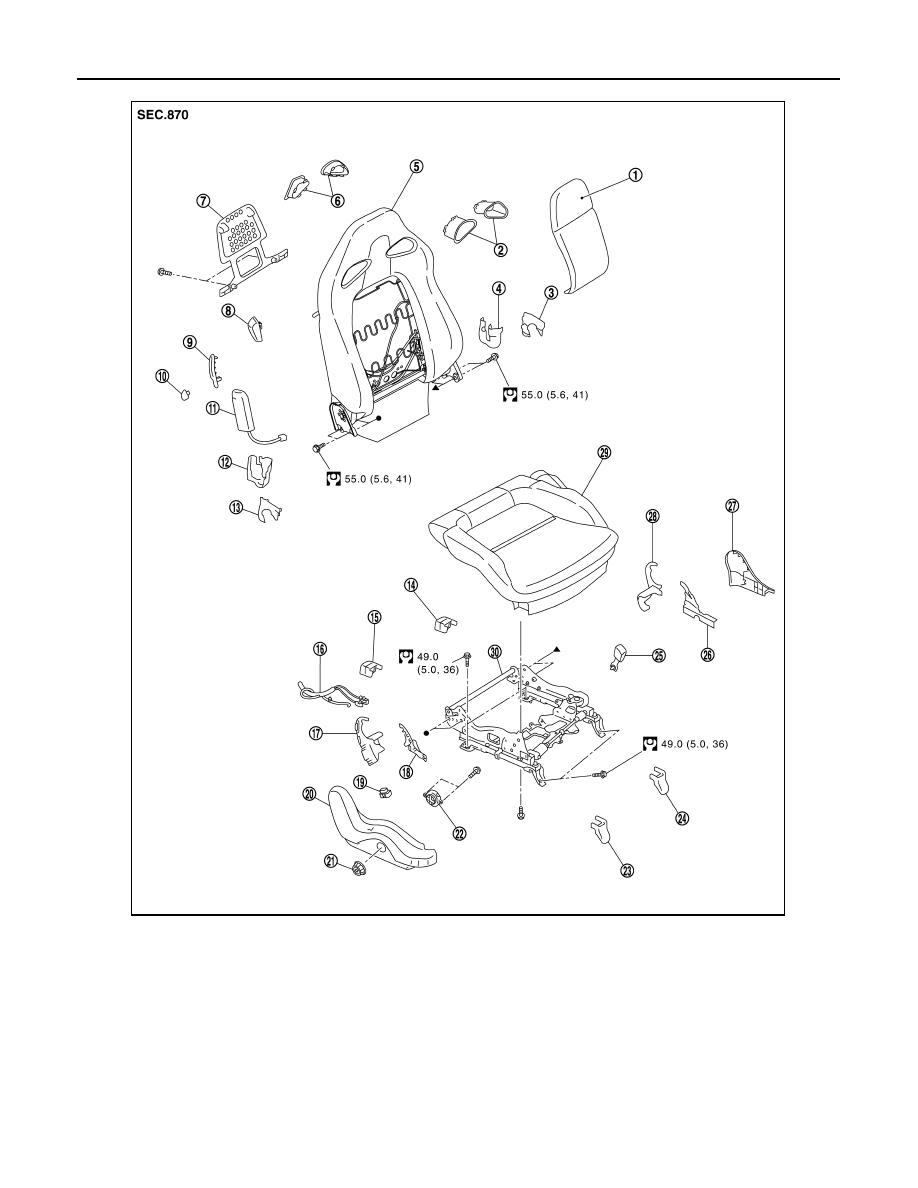

1.

Seatback assembly (main)

2.

Seatback ornament (front)

3.

Reclining device inner cover (out-
side)

4.

Reclining device inner cover (inside) 5.

Seatback assembly

6.

Seatback ornament (rear)

7.

Seatback cover panel

8.

Knob

9.

Walk-in lever escutcheon

10. Walk-in lever knob

11.

Side air bag module

12. Reclining device outer cover (inside)

13. Reclining device outer cover (out-

side)

14. Rear slide inner cover

15. Rear slide outer cover

16. Seat harness

17. Seat cushion outer finisher inside

(rear)

18. Seat cushion outer finisher inside

(front)

19. Heater seat switch

20. Seat cushion outer finisher outside

21. Seat control switch knob

22. Seat control switch

23. Front slide outer cover

24. Front slide inner cover

JMJIA8502GB

FRONT SEAT

SE-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000009162949

REMOVAL

CAUTION:

Use shop cloths to protect parts from damage during removal and installation.
1.

Operate the seat control switch knob to move the seat slide to the rearmost position.

2.

Remove the front slide cover.

a.

Front outer slide cover

b.

Front inner slide cover

3.

Remove the mounting bolts from the front seat front side.

4.

Operate the seat control switch knob to move the seat slide to the foremost position.

5.

Remove the rear slide outer and inner covers.

6.

Remove the rear inner bolt cap (Driver seat only).

7.

Remove the mounting bolts from the front seat rear side.

8.

Set the seatback vertically.

9.

Lift up the seat cushion front side, and disconnect the harness connector under the seat cushion and
remove the harness clamp.

CAUTION:

25. Seat belt buckle

26. Seat cushion inner finisher inside

(front)

27. Seat cushion inner finisher outside

28. Seat cushion inner finisher inside

(rear)

29. Seat cushion assembly

30. Seat adjuster assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

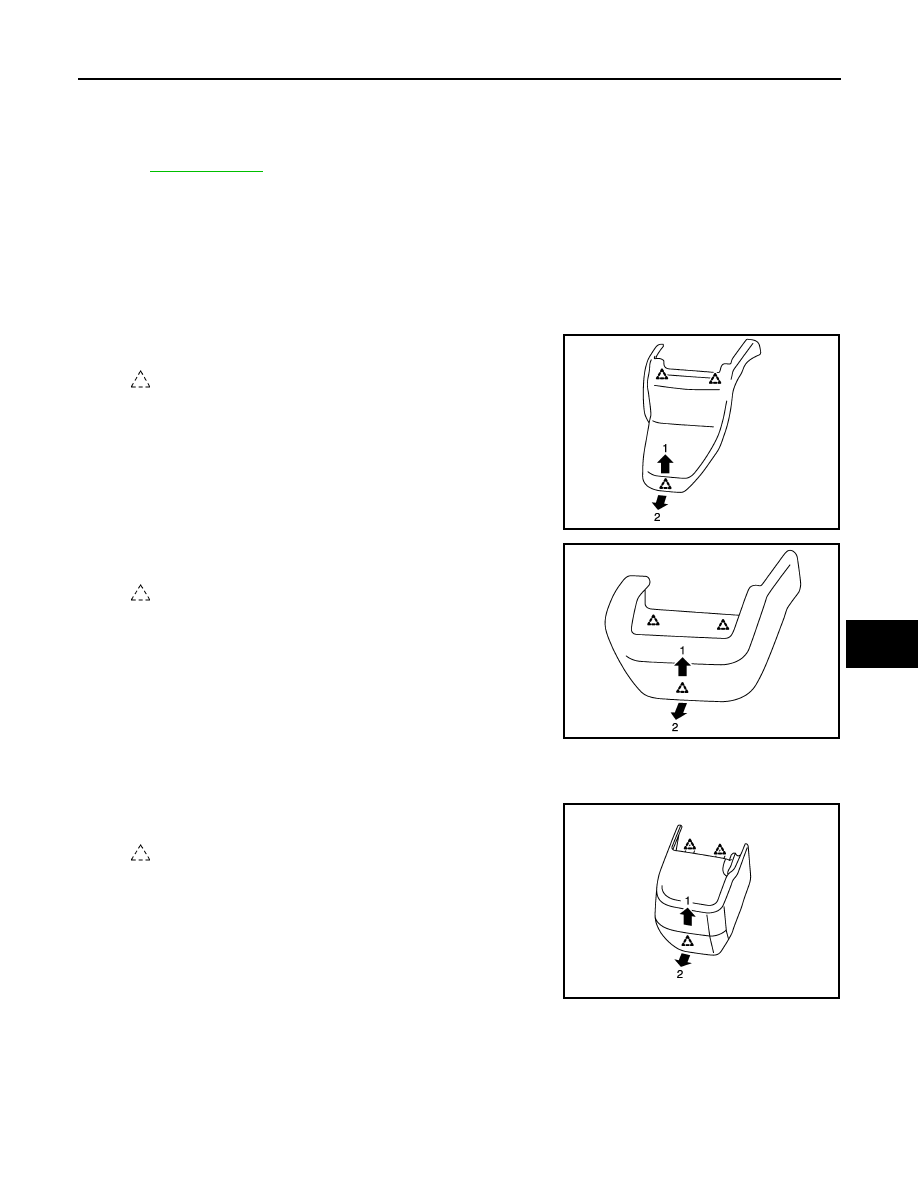

: Pawl

JMJIA2133ZZ

: Pawl

JMJIA2134ZZ

: Pawl

JMJIA2135ZZ
