REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

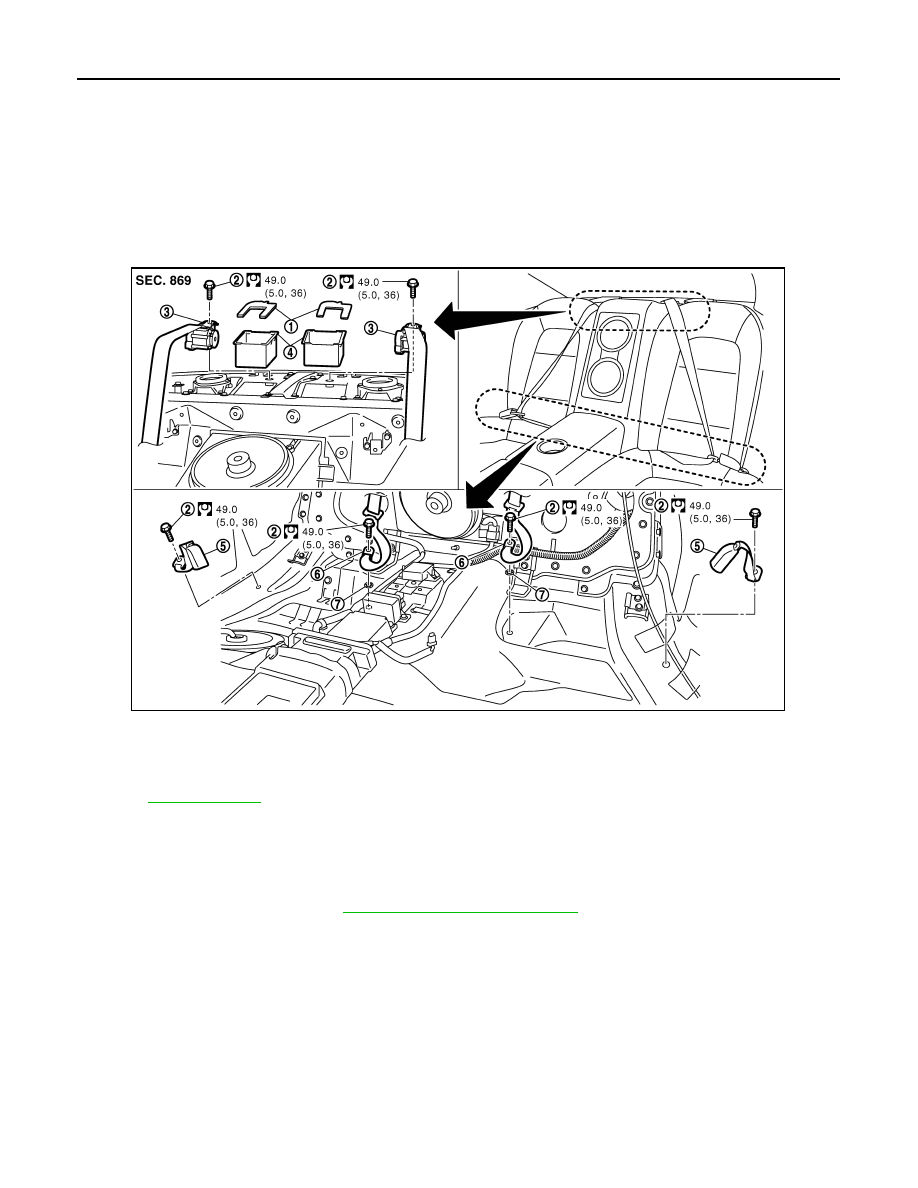

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000009160079

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009160080

REMOVAL

1.

Remove the inner anchor.
• Remove rear seat cushion. Refer to

SE-56, "Removal and Installation"

.

• Remove the inner anchor mounting anchor bolts.

2.

Remove the seat belt retractor.
• Remove rear seatback. Refer to

SE-56, "Removal and Installation"

.

• Remove the kicking plate inners (LH/RH), rear side finishers (LH/RH), and rear pillar finishers (LH/RH).

Refer to

INT-15, "Removal and Installation"

.

• Remove rear parcel shelf. Refer to

INT-19, "Removal and Installation"

.

• Remove the rear seat belt escutcheon from the rear parcel shelf.
• Remove the insulator.
• Remove the mounting anchor bolts, and then remove the seat belt retractor.
• Remove the retractor cover.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000009160081

Post-accident inspection

After a collision, check all parts of the installed seat belt assembly (including the retractor). Then, check the
installed seat belt portion for damage or deformation. When a collision occurs, damage/deformation is

1.

Insulator

2.

Anchor bolt

3.

Seat belt retractor

4.

Retractor cover

5.

Seat belt buckle

6.

Inner anchor

7.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

NNHIA0048GB

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

detected, or operation is not normal, NISSAN recommends replacement of seat belt assembly. If replacement
is not performed, serious personal injury may occur.
If the following conditions occur, replace the seat belt:
• When the seat belt is damaged
• When the installed seat belt portion is damaged (before installing a new seat belt, check the installed portion

for damage or deformation)

• When the seat belt does not operate normally

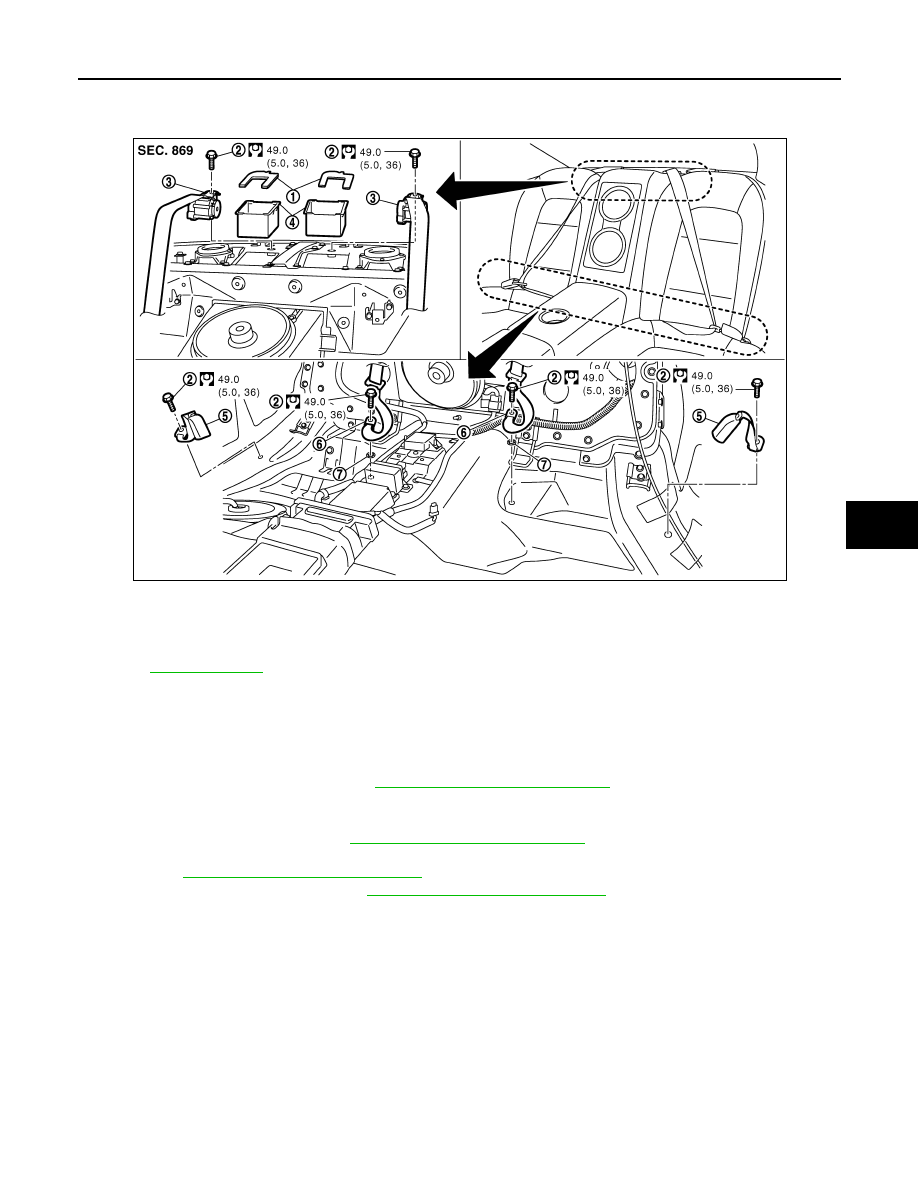

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009160082

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009160083

REMOVAL

Remove the seat belt buckle.
• Remove rear seat cushion. Refer to

SE-56, "Removal and Installation"

.

• Remove the seat belt buckle mounting anchor bolts.

INSTALLATION

Install in the reverse order of removal.

1.

Insulator

2.

Anchor bolt

3.

Seat belt retractor

4.

Retractor cover

5.

Seat belt buckle

6.

Inner anchor

7.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

NNHIA0048GB

LATCH SYSTEM FOR CHILDREN

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH SYSTEM FOR CHILDREN

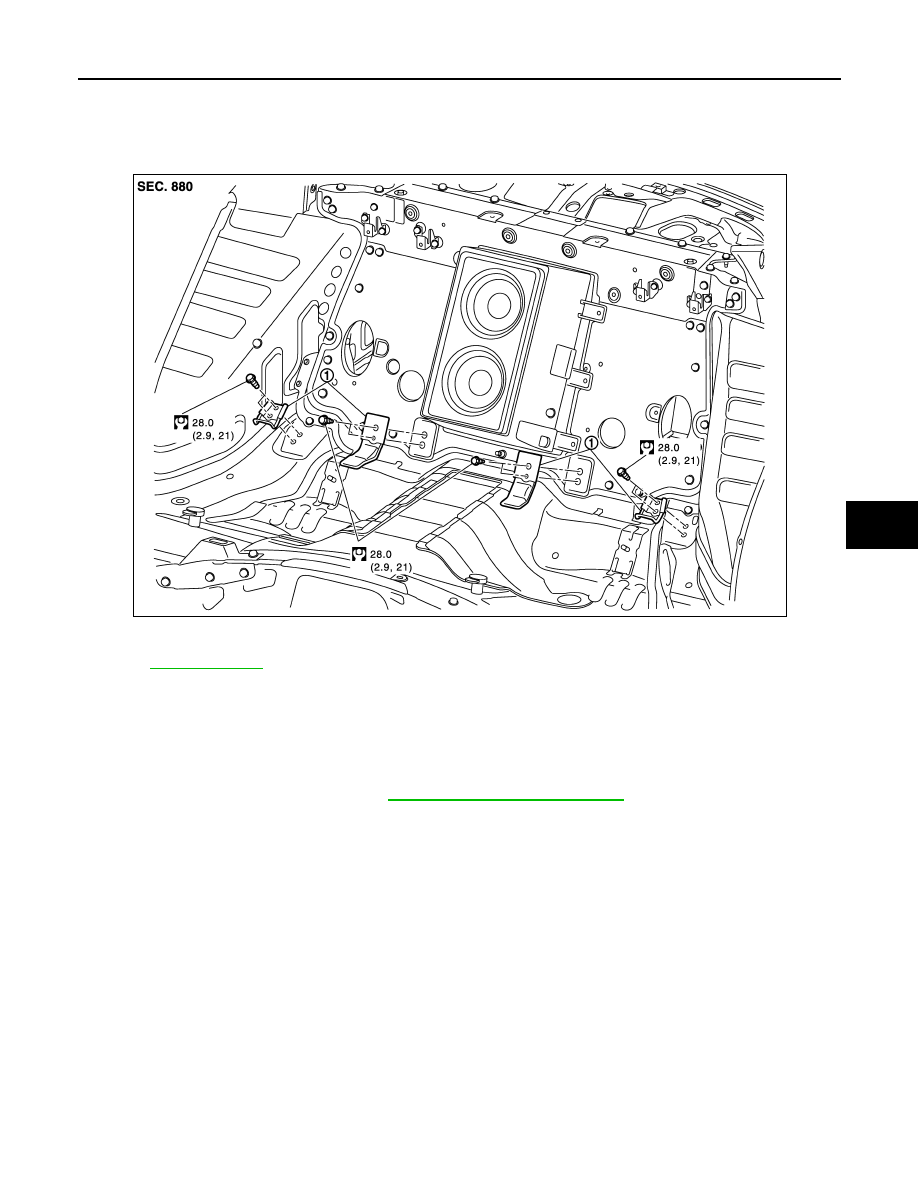

Exploded View

INFOID:0000000009160084

Removal and Installation

INFOID:0000000009160085

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.

1.

Remove the rear seat cushion. Refer to

SE-56, "Removal and Installation"

.

2.

Remove the mounting anchor bolts, and then remove LATCH (Lower Anchor and Tether for Children) sys-
tem.

INSTALLATION

Install in the reverse order of removal.

1.

LATCH system

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0734GB

SB-14

< REMOVAL AND INSTALLATION >

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

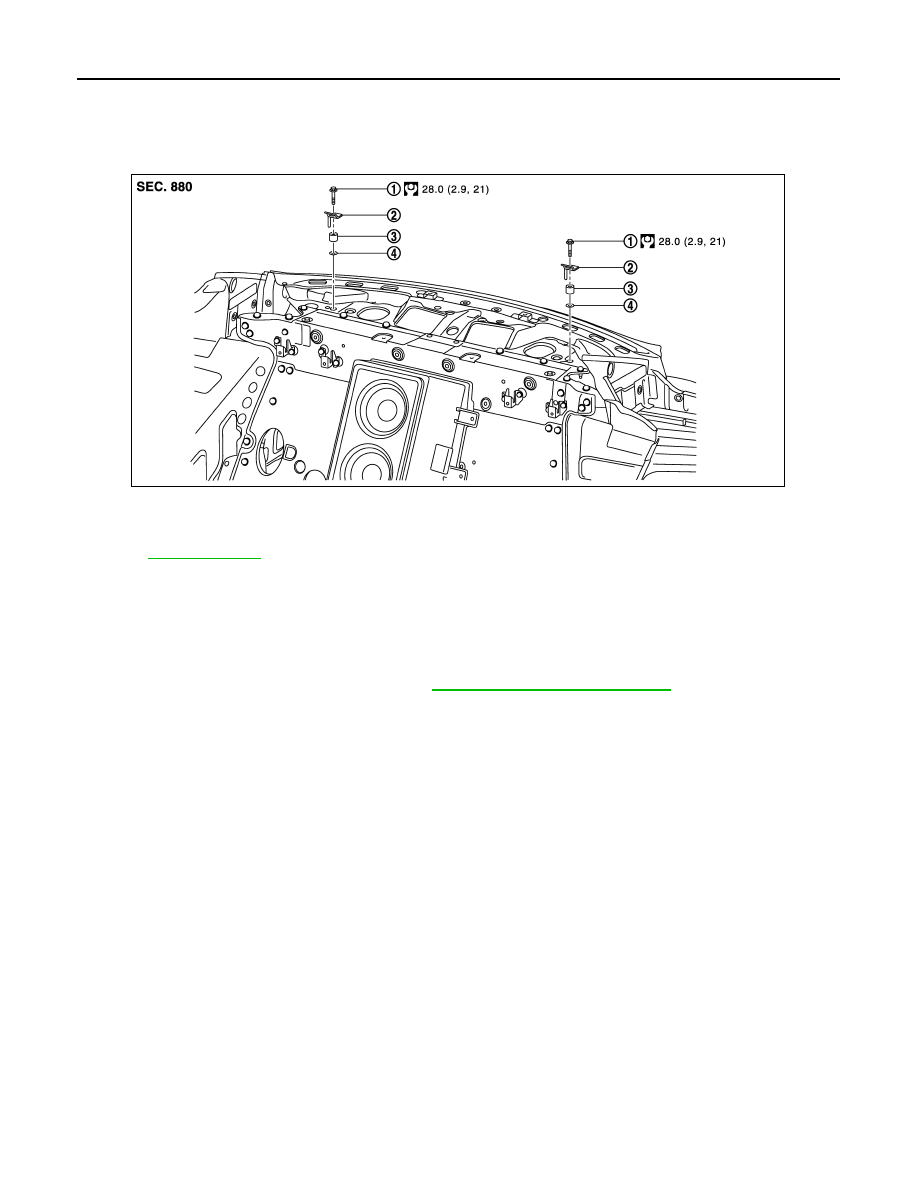

Exploded View

INFOID:0000000009160086

Removal and Installation

INFOID:0000000009160087

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.
1.

Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

2.

Remove the mounting anchor bolts, and then remove the top tether strap child restraint.

INSTALLATION

Install in the reverse order of removal.

1.

Anchor bolt

2.

Anchor plate

3.

Spacer

4.

Fiber washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0735GB
