HAC-6

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

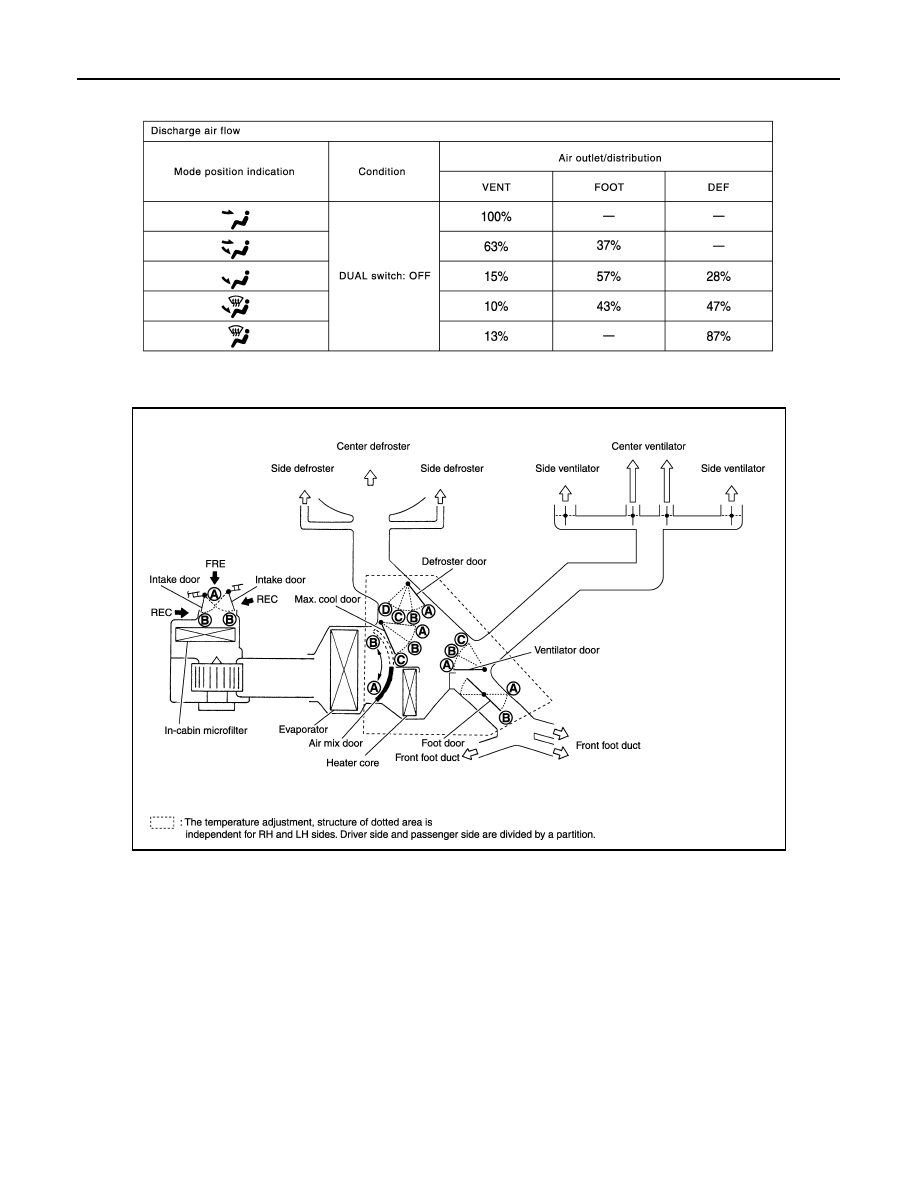

AIR DISTRIBUTION

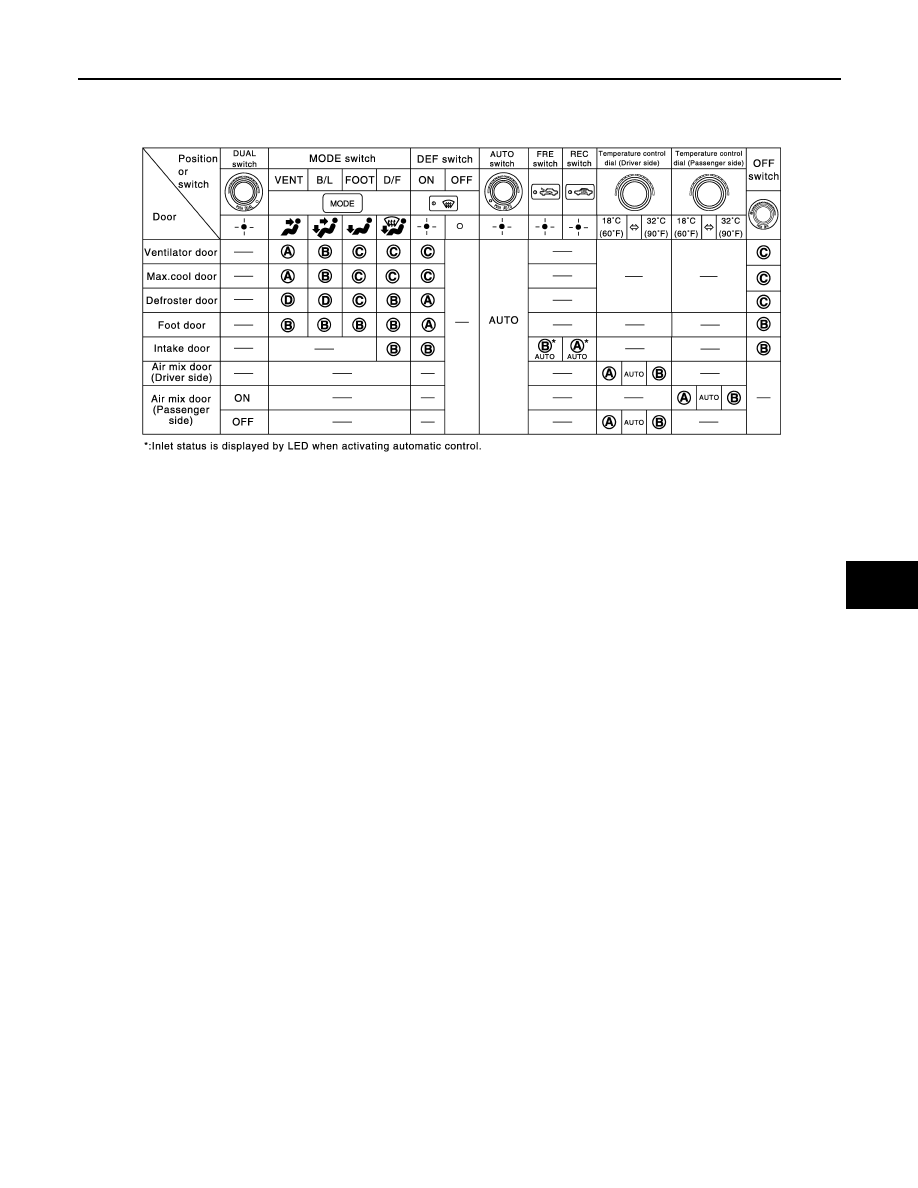

SWITCHES AND THEIR CONTROL FUNCTION

JSIIA1182GB

JSIIA1180GB

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-7

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component Parts Location

INFOID:0000000009163971

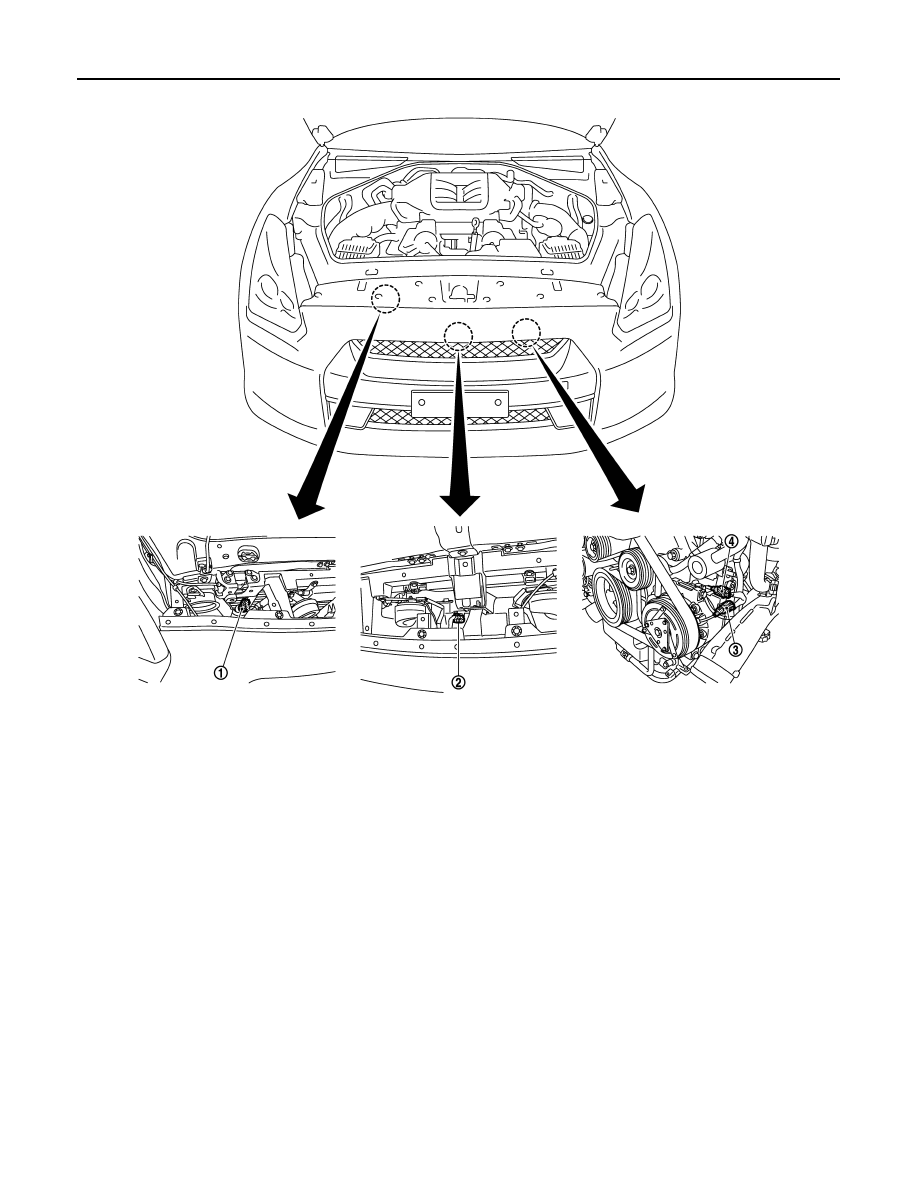

ENGINE COMPARTMENT

JSIIA1181GB

HAC-8

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

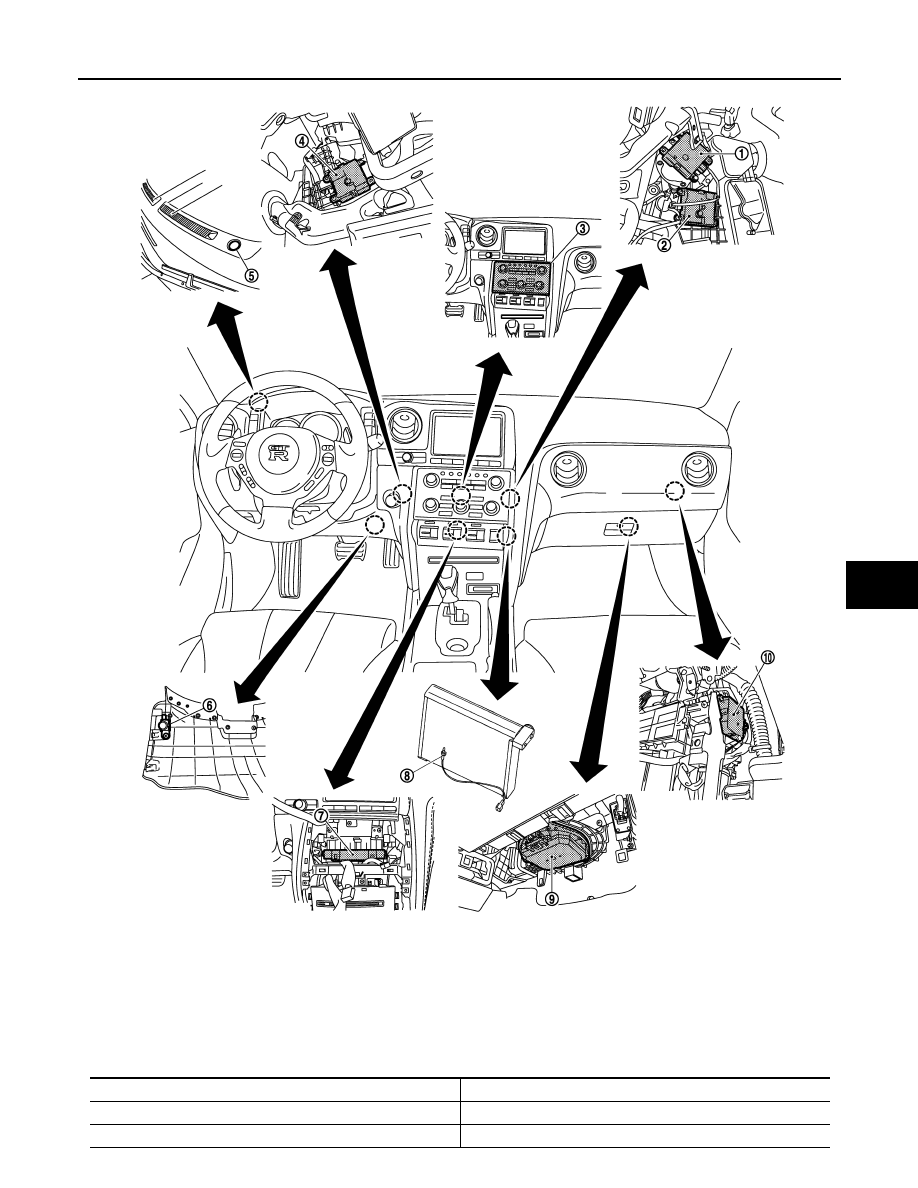

PASSENGER COMPARTMENT

1.

Refrigerant pressure sensor

2.

Ambient sensor

3.

Magnetic clutch connector

4.

ECV connector

NNIIA0131ZZ

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-9

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component Description

INFOID:0000000009163972

1.

Mode door motor

2.

Air mix door motor (passenger side)

3.

Preset switch

4

Air mix door motor (driver side)

5.

Sunload sensor

6.

In-vehicle sensor

7.

A/C auto amp.

8.

Intake sensor

9.

Blower motor

10. Intake door motor

JSIIA1329ZZ

Component

Reference

Air mix door motor (driver side)

—

Air mix door motor (passenger side)

—
