PRECAUTIONS

HA-13

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

• In case of repairing, recover the refrigerant using only dedicated equipment and containers. Never

recover contaminated refrigerant into the existing service equipment. Contact a local refrigerant prod-
uct retailer for available service if the facility does not have dedicated recovery equipment. This refrigerant
must be disposed of in accordance with all federal and local regulations. In addition, replacement of all
refrigerant system components on the vehicle is recommended.

• The air conditioner warranty is void if the vehicle is within the warranty period. Please contact Nissan Cus-

tomer Affairs for further assistance.

General Refrigerant Precaution

INFOID:0000000009160178

WARNING:

• Never breathe A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and

throat. Remove HFC-134a (R-134a) from the A/C system, using certified service equipment meeting
requirements of SAE J-2210 [HFC-134a (R-134a) recycling equipment], or J-2209 [HFC-134a (R-134a)
recovery equipment]. Ventilate work area before resuming service if accidental system discharge
occurs. Additional health and safety information may be obtained from refrigerant and lubricant
manufacturers.

• Never release refrigerant into the air. Use approved recovery/recycling recharging equipment to cap-

ture the refrigerant each time an air conditioning system is discharged.

• Wear always eye and hand protection (goggles and gloves) when working with any refrigerant or air

conditioning system.

• Never store or heat refrigerant containers above 52

°

C (126

°

F).

• Never heat a refrigerant container with an open flame; Place the bottom of the container in a warm

pail of water if container warming is required.

• Never intentionally drop, puncture, or incinerate refrigerant containers.
• Keep refrigerant away from open flames: poisonous gas is produced if refrigerant burns.
• Refrigerant displaces oxygen, therefore be certain to work in well ventilated areas to prevent suffo-

cation.

• Never pressure test or leakage test HFC-134a (R-134a) service equipment and/or vehicle air condi-

tioning systems with compressed air during repair. Some mixtures of air and HFC-134a (R-134a)
have been shown to be combustible at elevated pressures. These mixtures, if ignited, may cause
injury or property damage. Additional health and safety information may be obtained from refriger-
ant manufacturers.

Refrigerant Connection

INFOID:0000000009160179

A new type refrigerant connection has been introduced to all refrigerant lines except the following location.
• Expansion valve to evaporator
• Refrigerant pressure sensor to liquid tank

ABOUT ONE-TOUCH JOINT

Description

• One-touch joints are pipe joints which do not require tools during piping connection.
• Unlike conventional connection methods using union nuts and flanges, controlling tightening torque at con-

nection point is not necessary.

• Use a disconnector when removing a pipe joint.

HA-14

< PRECAUTION >

PRECAUTIONS

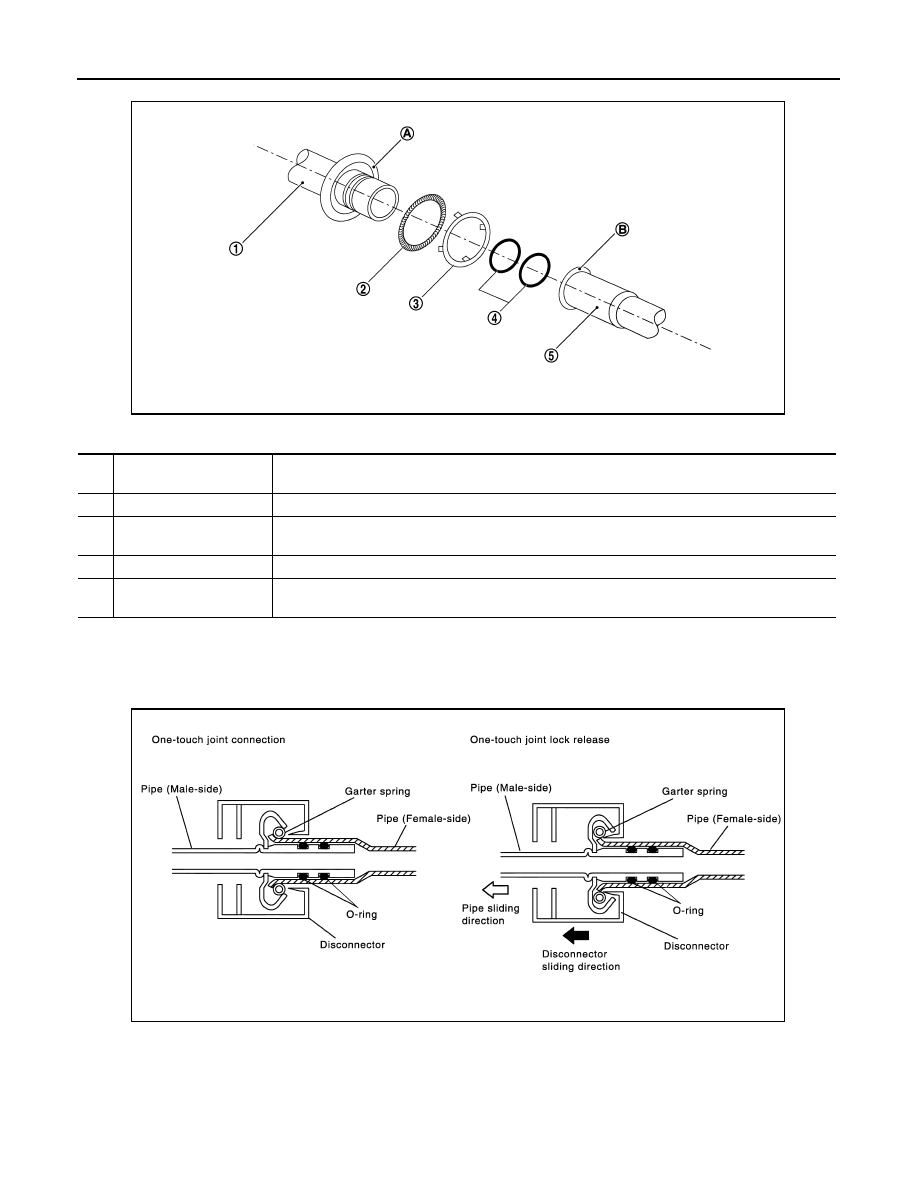

COMPONENT PARTS

FUNCTIONS OF COMPONENT PARTS

NOTE:
• Garter spring cannot be removed from cage of male-side piping.
• Indicator ring remains near piping connection point, however, this is not a malfunction. (This is to check pip-

ing connection during factory assembly.)

REMOVAL

1.

Clean piping connection point, and set a disconnector.

2.

Slide disconnector in axial direction of piping, and stretch garter spring with tapered point of disconnector.

3.

Slide disconnector farther so that inside diameter of garter spring becomes larger than outside diameter of
female-side piping flare. Then male-side piping can be disconnected.

1

Pipe (Male-side)

• Retains O-rings.
• Retains garter spring in cage (A).

2

Garter spring

Anchors female-side piping.

3

Indicator ring

When connection is made properly, this is ejected from male-side piping. (This part is no longer nec-
essary after connection.)

4

O-ring

Seals connection point. (Not reusable)

5

Pipe (Female-side)

• Seals connection by compressing O-rings.
• Anchors piping connection using flare (B) and garter spring.

RJIA4383J

SJIA0106E

PRECAUTIONS

HA-15

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

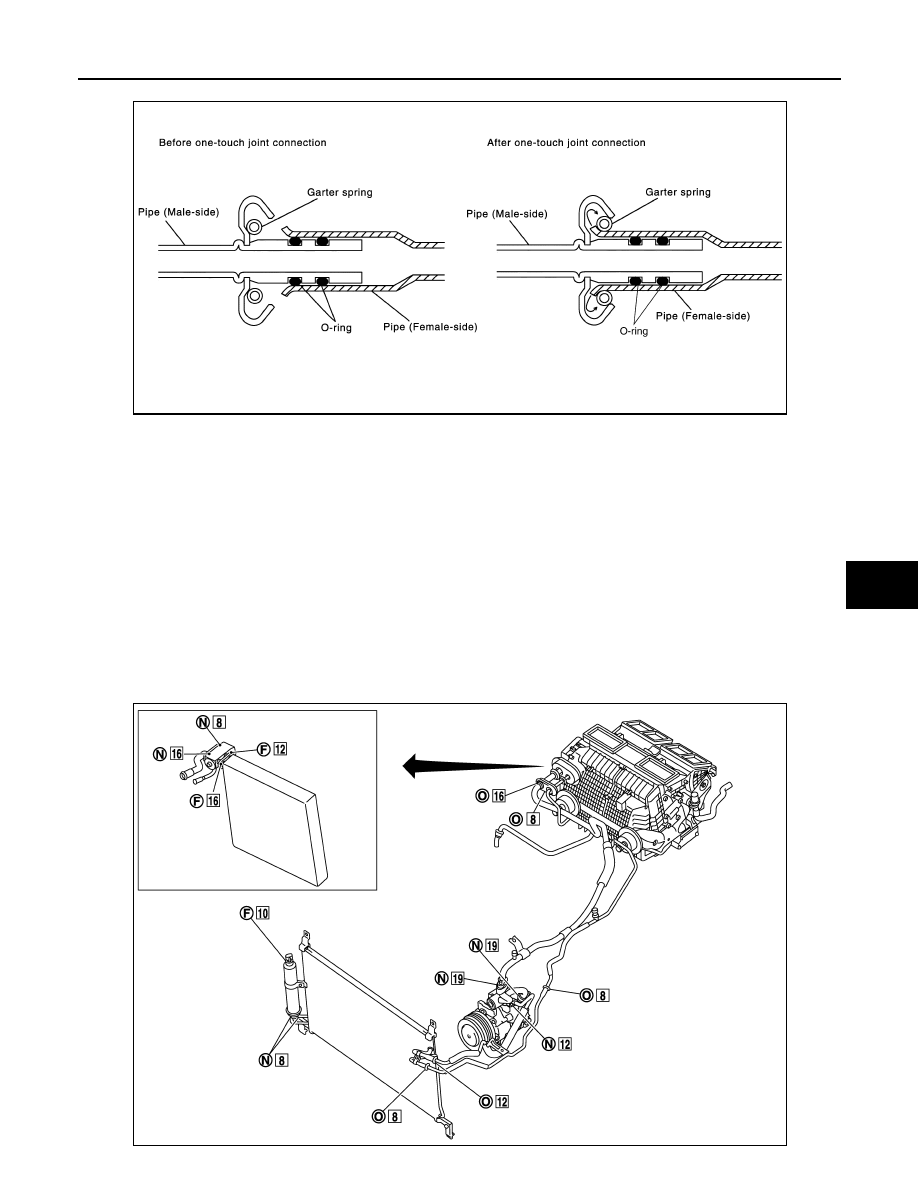

INSTALLATION

1.

Clean piping connection points, and insert male-side piping into female-side piping.

2.

Push inserted male-side piping harder so that female-side piping flare stretches garter spring.

3.

Garter spring seats on flare if inside diameter of garter spring becomes larger than outside diameter of
female-side piping flare. Then, it fits in between male-side piping cage and female-side piping flare to
anchor piping connection point.
NOTE:
When garter spring seats on flare, and fits in between male-side piping cage and female-side piping flare,
it clicks.

CAUTION:

• Female-side piping connection point is thin and easy to deform. Slowly insert the male-side pip-

ing straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connec-

tion does not come loose.

O-RING AND REFRIGERANT CONNECTION

SJIA0107E

JSIIA1166ZZ

HA-16

< PRECAUTION >

PRECAUTIONS

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Never confuse O-
rings since they are not interchangeable. Refrigerant may leak at the connection if a wrong O-ring is
installed.

O-Ring Part Numbers and Specifications

WARNING:

Check that all refrigerant is discharged into the recycling equipment and the pressure in the system is
less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.

CAUTION:

Observe the following when replacing or cleaning refrigerant cycle components.
• Store it in the same way at it is when mounted on the car when the compressor is removed. Failure

to do so will cause lubricant to enter the low-pressure chamber.

• Use always a torque wrench and a back-up wrench when connecting tubes.
• Plug immediately all openings to prevent entry of dust and moisture after disconnecting tubes.
• Connect the pipes at the final stage of the operation when installing an air conditioner in the vehicle.

Never remove the seal caps of pipes and other components until just before required for connection.

• Allow components stored in cool areas to warm to working area temperature before removing seal

caps. This prevents condensation from forming inside A/C components.

• Remove thoroughly moisture from the refrigeration system before charging the refrigerant.
• Replace always used O-rings.
• Apply lubricant to circle of the O-rings shown in illustration when connecting tube. Be careful not to

apply lubricant to threaded portion.

• O-ring must be closely attached to the groove portion of tube.
• Be careful not to damage O-ring and tube when replacing the O-ring.
• Connect tube until a click can be heard. Then tighten the nut or bolt by hand. Check that the O-ring is

installed to tube correctly.

F

: Former type refrigerant connection

N

: New type refrigerant connection

O

: One-touch joint

: O-ring size

Connection type

Piping connection point

QTY

O-ring size

One-touch joint

Low-pressure flexible hose to low-pressure pipe 1

2

φ

16

High-pressure pipe 1 to high-pressure pipe 2

2

φ

8

High-pressure pipe 2 to high-pressure pipe 3

2

φ

8

Condenser

Inlet

2

φ

12

Outlet

2

φ

8

New

Low-pressure flexible hose to low-pressure pipe 2

1

φ

19

Low-pressure pipe 1 to expansion valve

1

φ

16

High-pressure pipe 3 to expansion valve

1

φ

8

Compressor

Inlet

1

φ

19

Outlet

1

φ

12

Liquid tank

Inlet

1

φ

8

Outlet

1

Former

Refrigerant pressure sensor to liquid tank

1

φ

10

Evaporator

Inlet

1

φ

12

Outlet

1

φ

16

Name

: NISSAN A/C System Oil Type S
