GI-16

< HOW TO USE THIS MANUAL >

TIGHTENING TORQUE OF STANDARD BOLTS

The parts with aluminum or the cast iron washer surface/thread surface are excluded.

NEW STANDARD BASED ON ISO

CAUTION:

1.

Use tightening torque with lubricant for the new standard bolts/nuts in principle. Friction coeffi-
cient stabilizer is applied to the new standard bolts/nuts.

2.

However, use tightening torque without lubricant for the following cases. Friction coefficient stabi-
lizer is not applied to the following bolts/nuts.

-

Grade 4.8, M6 size bolt, Conical spring washer installed

-

Paint removing nut (Size M6 and M8) for fixing with weld bolt

Grade

(Strength

grade)

Bolt
size

Bolt di-
ameter

mm

Hexagonal

width

across flats

mm

Pitch

mm

Tightening torque

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

4.8
(Without
lubricant)

M6

6.0

10

1.0

5.5

0.56

4

49

7

0.71

5

62

M8

8.0

13

1.25

13.5

1.4

10

17

1.7

13

1.0

13.5

1.4

10

17

1.7

13

M10

10.0

16

1.5

28

2.9

21

35

3.6

26

1.25

28

2.9

21

35

3.6

26

M12

12.0

18

1.75

45

4.6

33

55

5.6

41

1.25

45

4.6

33

65

6.6

48

M14

14.0

21

1.5

80

8.2

59

100

10

74

4.8
(With lu-
bricant)

M6

6.0

10

1.0

4

0.41

3

35

5.5

0.56

4

49

M8

8.0

13

1.25

11

1.1

8

13.5

1.4

10

1.0

11

1.1

8

13.5

1.4

10

M10

10.0

16

1.5

22

2.2

16

28

2.9

21

1.25

22

2.2

16

28

2.9

21

M12

12.0

18

1.75

35

3.6

26

45

4.6

33

1.25

35

3.6

26

45

4.6

33

M14

14.0

21

1.5

65

6.6

48

80

8.2

59

8.8
(With lu-
bricant)

M6

6.0

10

1.0

8

0.82

6

71

10

1.0

7

89

M8

8.0

13

1.25

21

2.1

15

25

2.6

18

1.0

21

2.1

15

25

2.6

18

M10

10.0

16

1.5

40

4.1

30

50

5.1

37

1.25

40

4.1

30

50

5.1

37

M12

12.0

18

1.75

70

7.1

52

85

8.7

63

1.25

70

7.1

52

85

8.7

63

M14

14.0

21

1.5

120

12

89

140

14

103

10.9
(With lu-
bricant)

M6

6.0

10

1.0

10

1.0

7

89

12

1.2

9

106

M8

8.0

13

1.25

27

2.8

20

32

3.3

24

1.0

27

2.8

20

32

3.3

24

M10

10.0

16

1.5

55

5.6

41

65

6.6

48

1.25

55

5.6

41

65

6.6

48

M12

12.0

18

1.75

95

9.7

70

110

11

81

1.25

95

9.7

70

110

11

81

M14

14.0

21

1.5

160

16

118

180

18

133

TIGHTENING TORQUE OF STANDARD BOLTS

GI-17

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

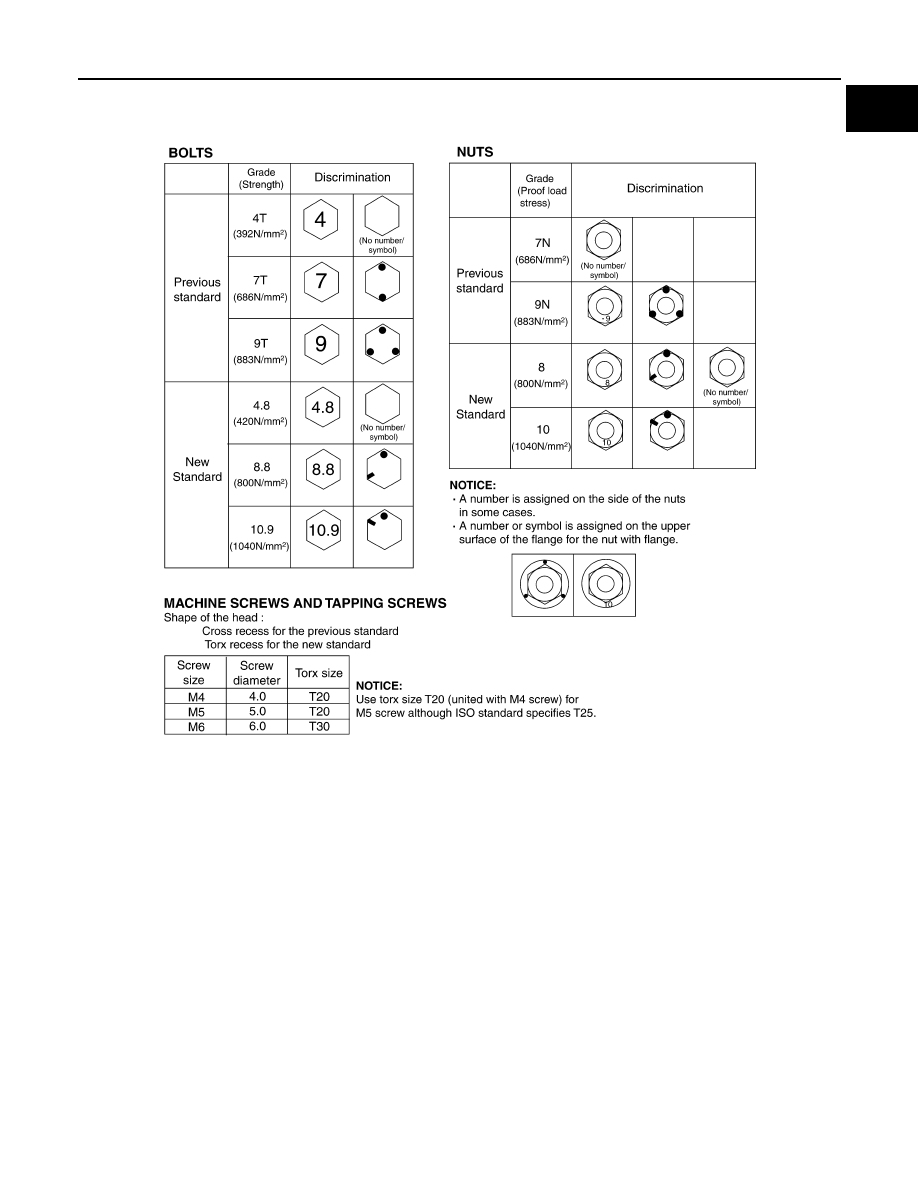

DISCRIMINATION OF BOLTS AND NUTS

SAIA0453E

GI-18

< HOW TO USE THIS MANUAL >

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

Recommended Chemical Products and Sealants

INFOID:0000000009161479

Refer to the following chart for help in selecting the appropriate chemical product or sealant.

Product Description

Purpose

Nissan North America

Part No. (USA)

Nissan Canada Part

No. (Canada)

Aftermarket Cross-

reference Part Nos.

1

Rear View Mirror Adhe-
sive

Used to permanently re-
mount rear view mirrors to
windows.

999MP-AM000P

99998-50505

Permatex 81844

2

Anaerobic Liquid Gas-
ket

For metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide in-
stant sealing for most pow-
ertrain applications.

999MP-AM001P

99998-50503

Permatex 51813 and
51817

3

High Performance
Thread Sealant

Provides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)
• Do not use on plastic.

999MP-AM002P

999MP-AM002P

Permatex 56521

4

Silicone RTV

Gasket Maker

999MP-AM003P
(Ultra Grey)

99998-50506
(Ultra Grey)

Permatex Ultra Grey
82194:
ThreeBond
1207,1215, 1216,
1217F, 1217G and
1217H
Nissan RTV Part No.
999MP-A7007

Gasket Market for GT-R
VR38DETT engine
• Only where engine oil

contacts

999MP-1217H

999MP-1217H

ThreeBond 1217H

Gasket Maker for Quest 5-
speed automatic transmis-
sion
(RE5F22A)

Three Bond 1281B
or exact equivalent in
its quality

5

High Temperature,
High Strength Thread
Locking Sealant (Red)

Threadlocker

999MP-AM004P

999MP-AM004P

Permatex 27200:
ThreeBond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
Loctite 648

6

Medium Strength
Thread Locking Seal-
ant (Blue)

Threadlocker (service tool
removable)

999MP-AM005P

999MP-AM005P

Permatex 24200,
24206, 24240,
24283 and 09178:
ThreeBond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374

IDENTIFICATION INFORMATION

GI-19

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

VEHICLE INFORMATION

IDENTIFICATION INFORMATION

Model Variation

INFOID:0000000009161480

Model variation code (Prefix and suffix designations)

Information About Identification or Model Code

INFOID:0000000009161481

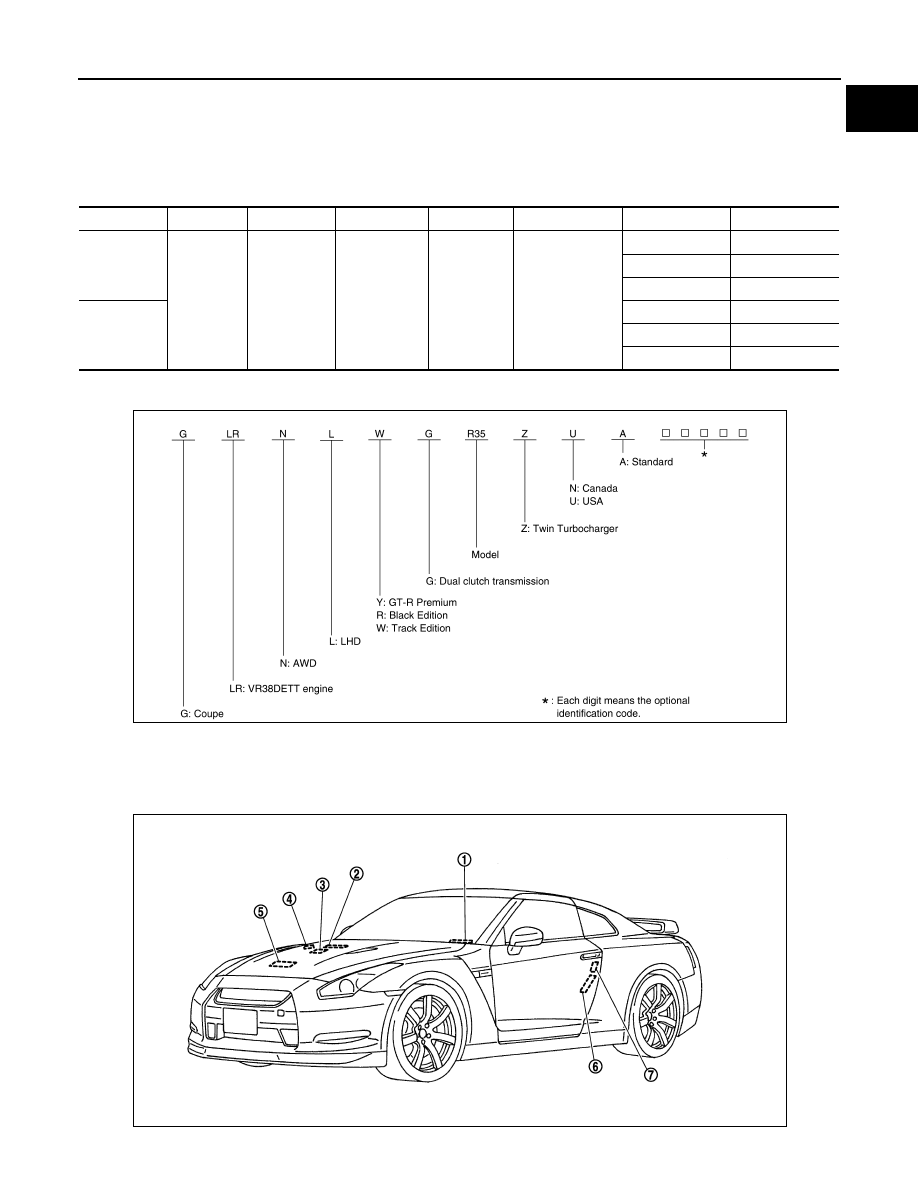

IDENTIFICATION NUMBER

Destination

Body

Engine

Axle

Handle

Transmission

Grade

Model

USA

COUPE

VR38DETT

AWD

LHD

Dual clutch

transmission

Track Edition

GLRNLWG-ZUA

Black Edition

GLRNLRG-ZUA

GT-R Premium

GLRNLYG-ZUA

Canada

Track Edition

GLRNLWG-ZNA

Black Edition

GLRNLRG-ZNA

GT-R Premium

GLRNLYG-ZNA

JSAIA2733GB

JPAIA0732ZZ
